User Manual for Sony SRG-300HW 1080p Desktop & Ceiling Mount Remote PTZ Camera Click to enlarge the picture
Contents of the user manual for the Sony SRG-300HW 1080p Desktop & Ceiling
- Product category: PTZ Cameras Sony
- Brand: Sony
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Sony PTZ Cameras
|
User manual for the Sony SRG-300HW 1080p Desktop & Ceiling contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Sony product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Sony user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Sony product will considerably shorten its lifespan!
|

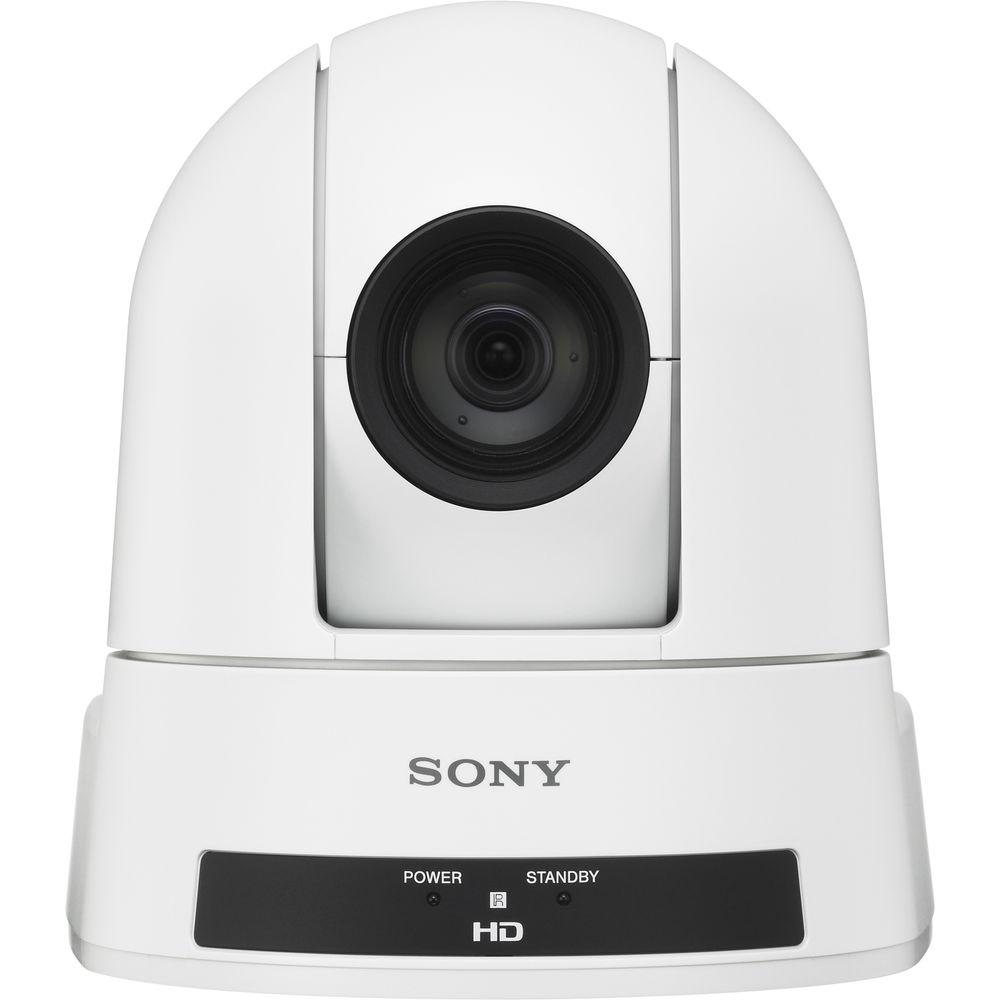

Product description With a 30x optical zoom and remote control capabilities, the white Sony SRG-300HW 1080p Desktop & Ceiling Mount Remote PTZ Camera, is suitable for medium to large venues such as lecture halls, auditoriums, houses of worship, and stadiums. The unit consists of the pan/tilt module and the camera head and lens. The SRG-300HW captures HD video in 720p, 1080i, or 1080p at up to 59.94. It features a 1/2.8" Exmor CMOS sensor providing low light sensitivity of 1.4 lux. The camera comes with Sony's Wide-D for wide dynamic range, enhancing the image with View-DR, while XDNR provides digital noise reduction in both moving and still images. The SRG-300HW is suitable for use on a desk, mounted to a tripod, or you can mount it to a ceiling using the included brackets. The camera also features an Image Flip option, which simplifies setting up the camera when it is mounted upside down. It features remote control operation of pan, tilt, zoom, focus, iris, shutter speed, and gain. Remote operation is a major component of the SRG-300HW's design, and the camera supports VISCA control protocols, as well as RS-232 and RS-422. You can program the camera with up to 16 preset positions, which is useful for repetitive events and productions. The small size and remote operation capabilities of the SRG-300HW allow for placement where a manually operated camera and operator can not go. - Remote Operation
- Remote operated HD camera with pan, tilt, zoom, focus, iris, and shutter speed control
- Zoom Range
- The SRG-300HW provides up to 30x optical zoom, and 12x digital zoom
- Camera Control
-
- VISCA over IP technology allows for control of the camera over an IP connection.
- RS-232 and RS-422 control of the camera
- The camera supports programming of up to 16 preset positions using optional controllers such as the Sony RMIP10
- The included IR Remote allows you to program 6 preset positions.
- Wide-D/View-DR
- View-DR is Sony's Wide-D technology, specific to their security cameras to produce images with an extremely wide dynamic range. With View-DR, the camera uses an electronic shutter to capture multiple images, to reproduce each frame. One image is taken using a 'standard' exposure time and either one or three images are taken using very short exposure times depending on the camera type. As a result, View-DR nearly doubles the sensitivity compared to conventional Wide-D technologies.
- XDNR Noise Reduction
- XDNR utilizes 2D and 3D noise reduction methods adaptively to scenes. Under low-light conditions, XDNR provides clear images for both moving objects and still portions of the image.
UPC: 027242913486 In the Box Sony SRG-300HW 1080p Desktop & Ceiling Mount Remote PTZ Camera (White) AC Power Adapter AC Power Cord IR Remote Commander RS-422 Connector Plug 2 x Ceiling Bracket Wire Rope 8 x Screws (M3 x 8) Operating Instructions Limited 1-Year Parts, 90-Day Labor Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Sony SRG-300HW 1080p Desktop & Ceiling Mount Remote PTZ Camera in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

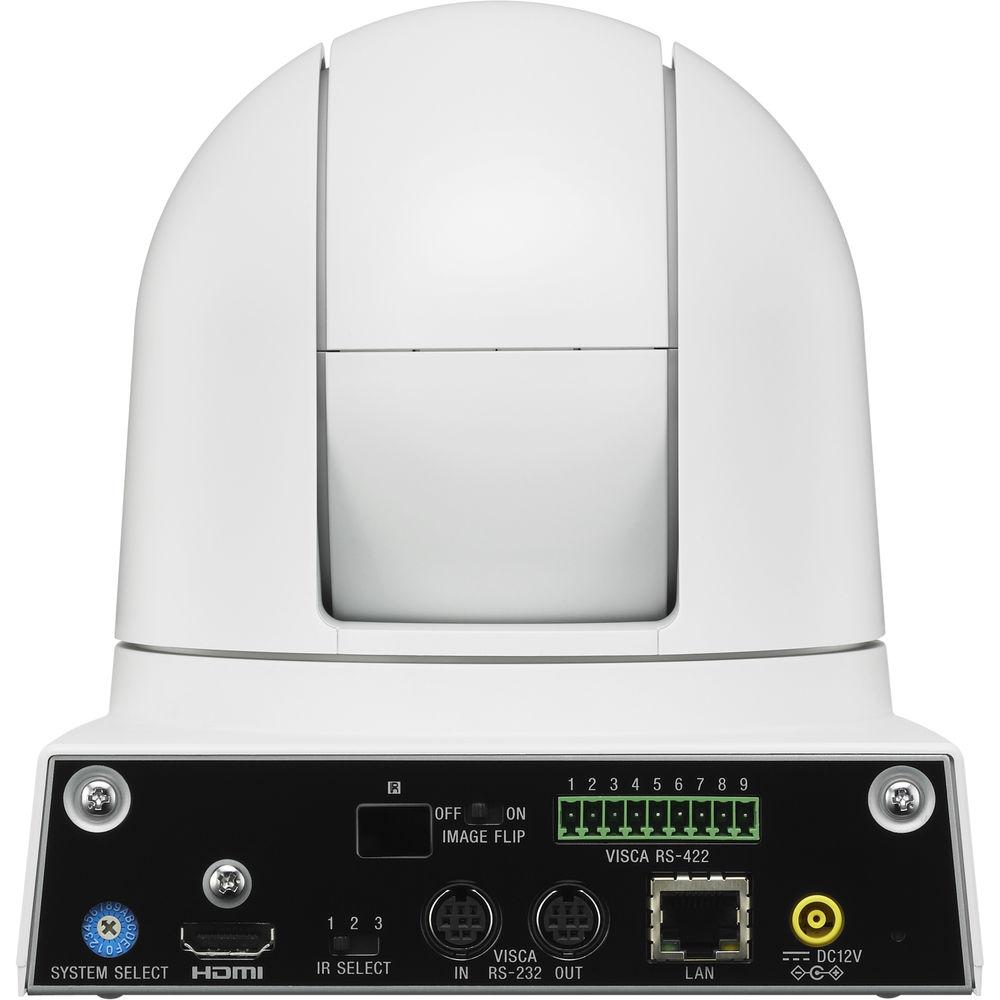

Technical parametersSony SRG-300H Specs | Sensor | 1/2.8" Exmor CMOS Image Sensor | Resolution | Approx. 2.1 Megapixels | Signal System | 720p 25/29.97/50/59.94 1080i 50i/59.94 1080p 25/29.97/50/59.94 | Minimum Illumination | 1.4 lx (50IRE, F1.6, 30 fps) | Signal to Noise Ratio | 50 dB | Gain | Auto, Manual 0 to 43 dB | Shutter Speed Range | 1/10000 to 1/1 sec | Exposure Control | Auto, Manual, Priority AE (Shutter, Iris), Exposure compensation, Bright | White Balance | Auto, Indoor, Outdoor, One-Push Auto, ATW, Manual | Image Stabilization | Selectable On/Off | Image Flip | Selectable On/Off | ICR | Auto | Wide-D | Yes | Sync | Internal | Audio | Input: None | | HD | HDMI | Audio | 1 x RCA (Mono) | Camera Control | VRS-232 1 x VISCA In 1 x VISCA Out
RS-422 1 x VISCA
LAN 1 x RJ-45 | | Lens | Focal Length f=4.3-129mm (f/1.6 to f/4.7)
Zoom Ratio Optical: 30x Digital: 12x
Minimum Object Distance Wide: 0.39" (10 mm) Tele: 47.2" (1200 mm) Horizontal Viewing Angle 65° at the Wide End of the Lens
Focusing System Auto / Manual | | Pan/Tilt | Pan Angle -170 to +170°
Tilt Angle -20 to +90°
Pan Speed 100°/sec Tilt Speed 90°/sec | Presets | VISCA: 16 Remote Control: 6 | | Mounting | Less than ±15° to the horizontal surface | Ceiling Mount Bracket | 2 x Brackets Included | Desktop Mounting | Install on a solid level flat surface, ensure camera does not fall | Tripod Mount | 1 x 1/4"-20 threaded female receiver | | Temperature | Operating Temperature 32 to 104°F (0 to 40°C)
Storage Temperature -4 to 140°F (-20 to 60°C) | Power Requirements | 10.8 to 13.2 VDC | Power Consumption | 16.8 W | Dimensions (WxHxD) | 6.25 x 6.50 x 6.50" (157 x 164 x 164 mm) | Weight | 3.1 lb (1.4 kg) | | Package Weight | 6.08 lb | Box Dimensions (LxWxH) | 12.45 x 11.15 x 9.45" |
