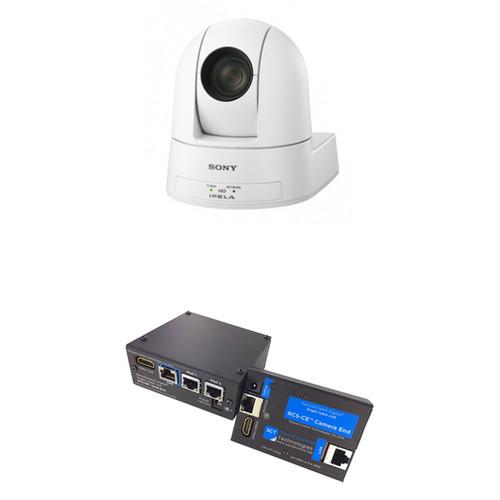

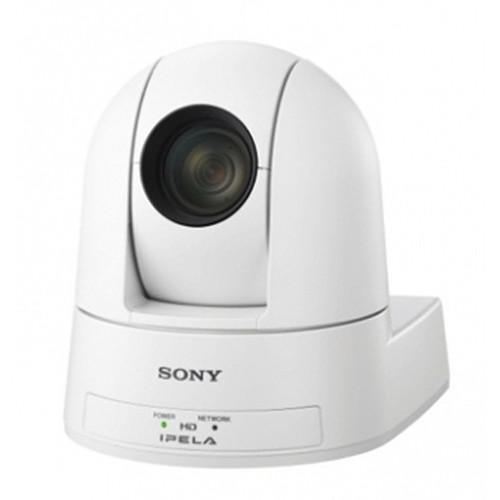

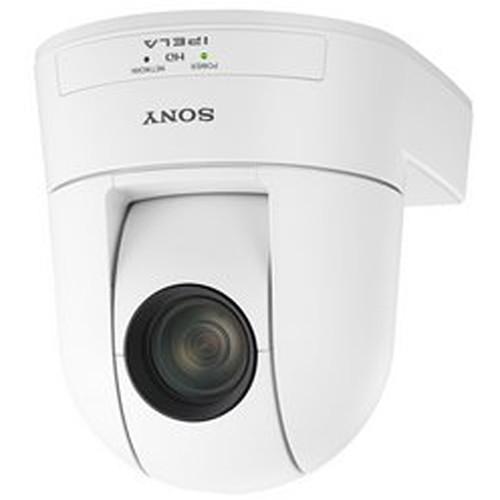

Product description Sony's SRG-300SE IP Streaming PTZ Camera with RC5-SRG EZ-2-Connect Kit includes a white Sony SRG-300SE camera, head/camera-end interface modules, plus a variety of HDMI and UTP cables. The PTZ camera is suitable for medium to large venues such as lecture halls, auditoriums, houses of worship, and stadiums. The unit consists of the pan/tilt module and the camera head and lens and captures HD video in 720p, 1080i, or 1080p at up to 59.94. It features a 1/2.8" Exmor CMOS sensor providing low light sensitivity of 1.4 lux. The camera comes with Sony's Wide-D for wide dynamic range, enhancing the image with View-DR, while XDNR provides digital noise reduction in both moving and still images.
The included head/camera-end interface modules allows you to control and power the camera over a single CAT5e or CAT6 Ethernet cable. The camera-end module accepts video over HDMI or its RJ-45 port and transmits it up to 300' to the head-end module. SRG-300SE Features - The SRG-300SE provides simultaneous 3G-SDI and IP H.264 streaming. This allows you to feed an SDI infrastructure a 3G-SDI signal, while streaming web ready video without using an external encoder to convert your video signal to a web friendly format.
- The web-viewing function allows remote camera control for up to 20 clients. Up to 10 clients can receive video and audio combined streaming.
- Remote Operation
- Remote-operated HD camera with pan, tilt, zoom, focus, iris, and shutter speed control.
- Zoom Range
- The SRG300SE provides up to 30x optical zoom, and 12x digital zoom.
- Camera Control
-
- VISCA over IP technology allows for control of the camera over an IP connection.
- RS-232 and RS-422 control of the camera.
- The camera supports programming of up to 16 preset positions using optional controllers such as the Sony RMIP10.
- Wide-D/View-DR
- View-DR is Sony's Wide-D technology, specific to their security cameras to produce images with an extremely wide dynamic range. With View-DR, the camera uses an electronic shutter to capture multiple images, to reproduce each frame. One image is taken using a 'standard' exposure time, and either one or three images are taken using very short exposure times depending on the camera type. As a result, View-DR nearly doubles the sensitivity compared to conventional Wide-D technologies.
- XDNR Noise Reduction
- XDNR utilizes 2D and 3D noise reduction methods adaptively to scenes. Under low-light conditions, XDNR provides clear images for both moving objects and still portions of the image.

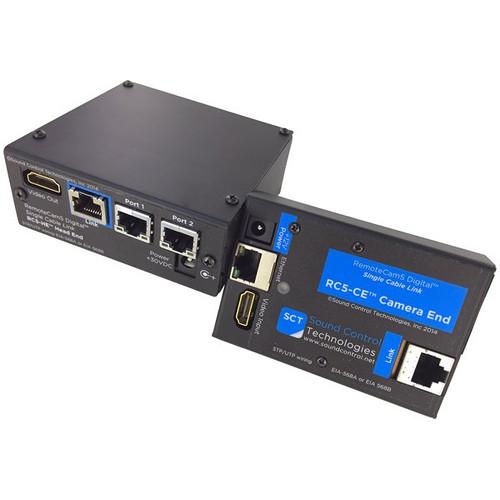

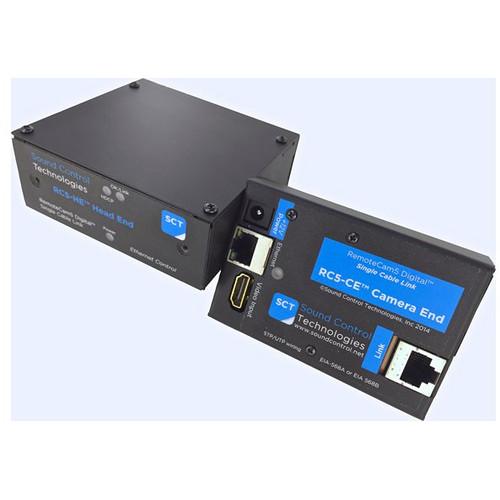

Camera/Head-End Interface Modules - Provides:
- Camera Power.
- Digital Video up to 1080p60.
- Ethernet Camera Control.
- Ethernet Streaming Video on 10/100 capable devices.
- Wired and modulated IR.
- Distances up to 300' over a single CAT5e or CAT6 UTP cable.
In the Box Sony SRG-300SE IP Streaming PTZ Camera with RC5-SRG EZ-2-Connect Kit (White) SRG300SE 1080p Desktop & Ceiling Mount Remote PTZ Camera (Black) Camera-End Interface Module Head-End Interface Module 1' HDMI Camera Cable 1' UTP Camera Cable 1' DC Power Camera Cable 3' HDMI Camera Head-End Cable 3' UTP Head-End Cable Limited 1-Year Parts, 90-Day Labor Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Sony SRG-300SE IP Streaming PTZ Camera with RC5-SRG EZ-2-Connect Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSony SRG-300SE Specs | | | Sensor | 1/2.8" Exmor CMOS Image Sensor | | Resolution | Approx. 2.1 Megapixels | | Signal System | 720p 25/29.97/50/59.94
1080i 50i/59.94
1080p 25/29.97/50/59.94 | | Minimum Illumination | 1.4 lux (50IRE, F1.6, 30 fps) | | Signal to Noise Ratio | 50 dB | | Gain | Auto, Manual
0 to 43 dB | | Shutter Speed Range | 1/10000 to 1/1 sec | | Exposure Control | Auto, Manual, Priority AE (Shutter, Iris), Exposure compensation, Bright | | White Balance | Auto, Indoor, Outdoor, One-Push Auto, ATW, Manual | | Image Stabilization | Selectable On/Off | | Image Flip | Selectable On/Off | | ICR | Auto | | Wide-D | Yes | | Sync | Internal | | Audio | Input: 1 x Mono mini jack | | | | HD | Simultaneous 3G-SDI & IP H.264
Network Port:1 x RJ-45 (10BASE-T/100BASE-TX) | | Audio | 1 x RCA (Mono) | | Camera Control | RS-422
1 x VISCA
LAN
1 x RJ-45 | | | | Lens | Focal Length
f = 4.3-129mm (f/1.6 to f/4.7)
Zoom Ratio
Optical: 30x
Digital: 12x
Minimum Object Distance
Wide: 0.39" (10 mm)
Tele: 47.2" (1200 mm) Horizontal Viewing Angle
65° at the Wide End of the Lens
Focusing System
Auto / Manual | | | | Pan/Tilt | Pan Angle
-170 to +170°
Tilt Angle
-20 to +90°
Pan Speed
100°/sec
Tilt Speed
90°/sec | | Presets | VISCA: 16
Remote Control: 6 | | | | Mounting | Less than ±15° to the horizontal surface | | Ceiling Mount Bracket | 2 x Brackets included | | Desktop Mounting | Install on a solid level flat surface, ensure camera does not fall | | Tripod Mount | 1 x 1/4"-20 threaded female receiver | | | | Temperature | Operating Temperature
32 to 104°F (0 to 40°C)
Storage Temperature
-4 to 140°F (-20 to 60°C) | | Power Requirements | 10.8 to 13.2 VDC | | Power Consumption | 16.8 W | | Dimensions (WxHxD) | 6.25 x 6.50 x 6.50" (157 x 164 x 164 mm) | | Weight | 3.1 lb (1.4 kg) | | | | Codecs Supported | Generic HDMI & Control Device | | Connectors | Camera Module
Ethernet: 1 x RJ-45
Link: 1 x RJ-45
Video Input: 1 x HDMI Type-A
Head-End Module
Port1: 1 x RJ-45
Port2: 1 x RJ-45
Link: 1 x RJ-45M
Video Output: 1 x HDMI Type-A | | Power | 12 VDC | | Dimensions | Camera Module: 3.75 x 1.5 x 3.63" / 9.53 x 3.81 x 9.21 cm
Head-End Module: 2.5 x 0.88 x 3.69" / 6.35 x 2.22 x 9.37 cm |
