Product description

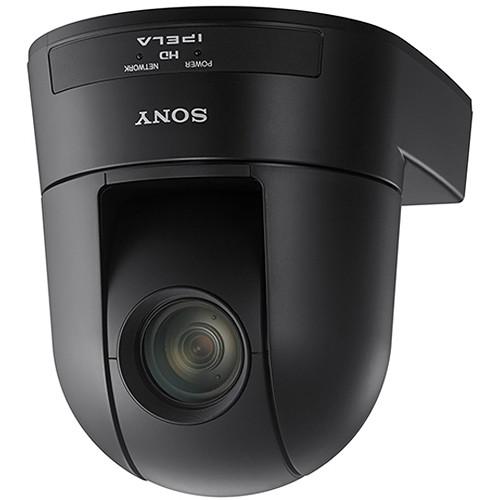

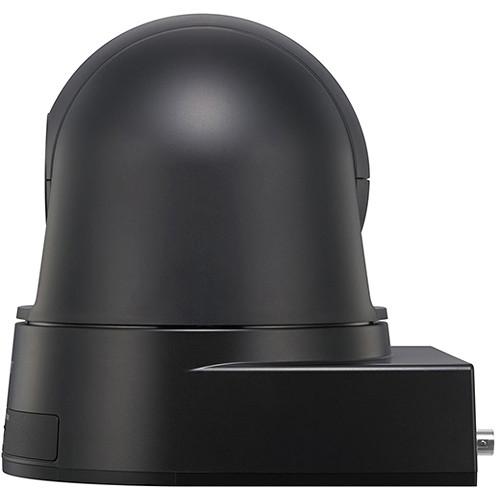

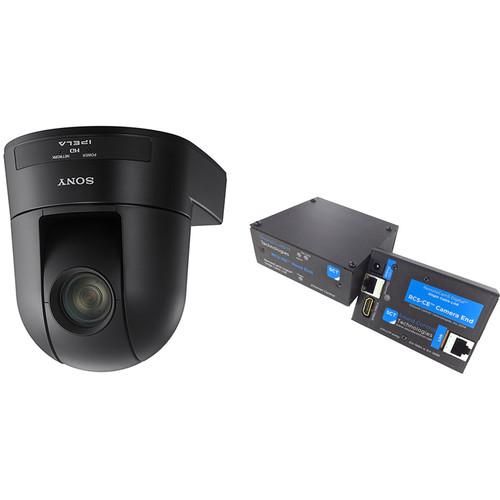

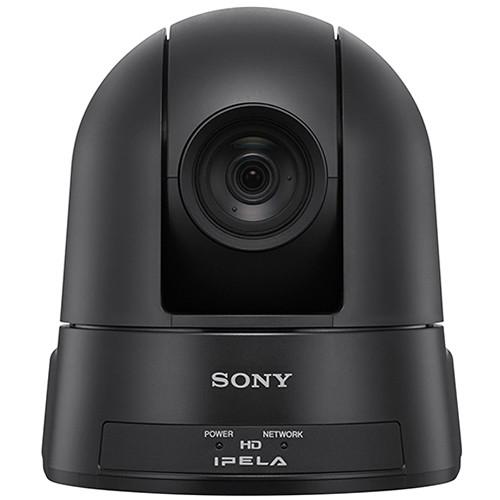

Sony's SRG-300SE IP Streaming PTZ Camera with RC5-SRG EZ-2-Connect Kit includes a black Sony SRG-300SE camera, head/camera-end interface modules, plus a variety of HDMI and UTP cables. The PTZ camera is suitable for medium to large venues such as lecture halls, auditoriums, houses of worship, and stadiums. The unit consists of the pan/tilt module and the camera head and lens and captures HD video in 720p, 1080i, or 1080p at up to 59.94. It features a 1/2.8" Exmor CMOS sensor providing low light sensitivity of 1.4 lux. The camera comes with Sony's Wide-D for wide dynamic range, enhancing the image with View-DR, while XDNR provides digital noise reduction in both moving and still images.

The included head/camera-end interface modules allows you to control and power the camera over a single CAT5e or CAT6 Ethernet cable. The camera-end module accepts video over HDMI or its RJ-45 port and transmits it up to 300' to the head-end module.

SRG-300SE Features

  • The SRG-300SE provides simultaneous 3G-SDI and IP H.264 streaming. This allows you to feed an SDI infrastructure a 3G-SDI signal, while streaming web ready video without using an external encoder to convert your video signal to a web friendly format.
  • The web-viewing function allows remote camera control for up to 20 clients. Up to 10 clients can receive video and audio combined streaming.
    Remote Operation
  • Remote-operated HD camera with pan, tilt, zoom, focus, iris, and shutter speed control.
    Zoom Range
  • The SRG300SE provides up to 30x optical zoom, and 12x digital zoom.
    Camera Control
    • VISCA over IP technology allows for control of the camera over an IP connection.
    • RS-232 and RS-422 control of the camera.
    • The camera supports programming of up to 16 preset positions using optional controllers such as the Sony RMIP10.
    Wide-D/View-DR
  • View-DR is Sony's Wide-D technology, specific to their security cameras to produce images with an extremely wide dynamic range. With View-DR, the camera uses an electronic shutter to capture multiple images, to reproduce each frame. One image is taken using a 'standard' exposure time, and either one or three images are taken using very short exposure times depending on the camera type. As a result, View-DR nearly doubles the sensitivity compared to conventional Wide-D technologies.
    XDNR Noise Reduction
  • XDNR utilizes 2D and 3D noise reduction methods adaptively to scenes. Under low-light conditions, XDNR provides clear images for both moving objects and still portions of the image.

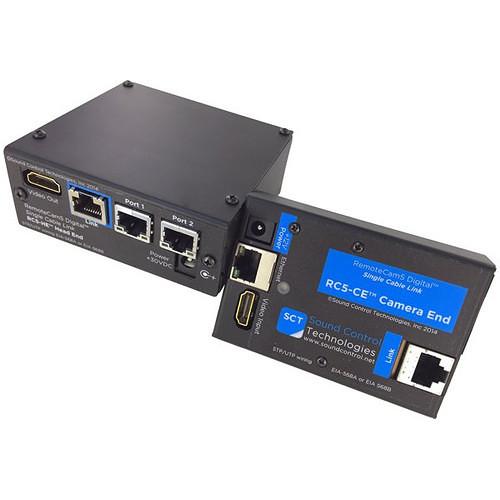

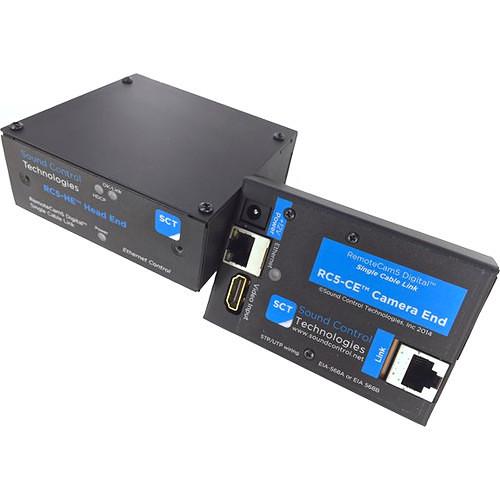

Camera/Head-End Interface Modules

  • Provides:
  • Camera Power.
  • Digital Video up to 1080p60.
  • Ethernet Camera Control.
  • Ethernet Streaming Video on 10/100 capable devices.
  • Wired and modulated IR.
  • Distances up to 300' over a single CAT5e or CAT6 UTP cable.
In the Box Sony SRG-300SE IP Streaming PTZ Camera with RC5-SRG EZ-2-Connect Kit (Black)
  • SRG300SE 1080p Desktop & Ceiling Mount Remote PTZ Camera (Black)
  • Camera-End Interface Module
  • Head-End Interface Module
  • 1' HDMI Camera Cable
  • 1' UTP Camera Cable
  • 1' DC Power Camera Cable
  • 3' HDMI Camera Head-End Cable
  • 3' UTP Head-End Cable
  • Limited 1-Year Parts, 90-Day Labor Warranty
  • Table of Contents




    Upload User Manual

    Have you got an user manual for the Sony SRG-300SE IP Streaming PTZ Camera with RC5-SRG EZ-2-Connect Kit in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:





    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)

    0%


    Technical parameters

    Sony SRG-300SE Specs

    Sensor 1/2.8" Exmor CMOS Image Sensor
    Resolution Approx. 2.1 Megapixels
    Signal System 720p 25/29.97/50/59.94
    1080i 50i/59.94
    1080p 25/29.97/50/59.94
    Minimum Illumination 1.4 lux (50IRE, F1.6, 30 fps)
    Signal to Noise Ratio 50 dB
    Gain Auto, Manual
    0 to 43 dB
    Shutter Speed Range 1/10000 to 1/1 sec
    Exposure Control Auto, Manual, Priority AE (Shutter, Iris), Exposure compensation, Bright
    White Balance Auto, Indoor, Outdoor, One-Push Auto, ATW, Manual
    Image Stabilization Selectable On/Off
    Image Flip Selectable On/Off
    ICR Auto
    Wide-D Yes
    Sync Internal
    Audio Input: 1 x Mono mini jack
    HD Simultaneous 3G-SDI & IP H.264
    Network Port:1 x RJ-45 (10BASE-T/100BASE-TX)
    Audio 1 x RCA (Mono)
    Camera Control RS-422
    1 x VISCA

    LAN
    1 x RJ-45
    Lens Focal Length
    f = 4.3-129mm (f/1.6 to f/4.7)

    Zoom Ratio
    Optical: 30x
    Digital: 12x

    Minimum Object Distance
    Wide: 0.39" (10 mm)
    Tele: 47.2" (1200 mm) Horizontal Viewing Angle
    65° at the Wide End of the Lens

    Focusing System
    Auto / Manual
    Pan/Tilt Pan Angle
    -170 to +170°

    Tilt Angle
    -20 to +90°

    Pan Speed
    100°/sec
    Tilt Speed
    90°/sec
    Presets VISCA: 16
    Remote Control: 6
    Mounting Less than ±15° to the horizontal surface
    Ceiling Mount Bracket 2 x Brackets included
    Desktop Mounting Install on a solid level flat surface, ensure camera does not fall
    Tripod Mount 1 x 1/4"-20 threaded female receiver
    Temperature Operating Temperature
    32 to 104°F (0 to 40°C)

    Storage Temperature
    -4 to 140°F (-20 to 60°C)
    Power Requirements 10.8 to 13.2 VDC
    Power Consumption 16.8 W
    Dimensions (WxHxD) 6.25 x 6.50 x 6.50" (157 x 164 x 164 mm)
    Weight 3.1 lb (1.4 kg)
    Codecs Supported Generic HDMI & Control Device
    Connectors Camera Module
    Ethernet: 1 x RJ-45
    Link: 1 x RJ-45
    Video Input: 1 x HDMI Type-A

    Head-End Module
    Port1: 1 x RJ-45
    Port2: 1 x RJ-45
    Link: 1 x RJ-45M
    Video Output: 1 x HDMI Type-A
    Power 12 VDC
    Dimensions Camera Module: 3.75 x 1.5 x 3.63" / 9.53 x 3.81 x 9.21 cm
    Head-End Module: 2.5 x 0.88 x 3.69" / 6.35 x 2.22 x 9.37 cm
