User Manual for Sony SRG120DH PAC4 EZ-2-Connect PTZ Camera Solution Click to enlarge the picture
Contents of the user manual for the Sony SRG120DH PAC4 EZ-2-Connect PTZ Camera
- Product category: PTZ Cameras Sony
- Brand: Sony
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Sony PTZ Cameras
 |
User manual for the Sony SRG120DH PAC4 EZ-2-Connect PTZ Camera contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Sony product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Sony user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Sony product will considerably shorten its lifespan!
|

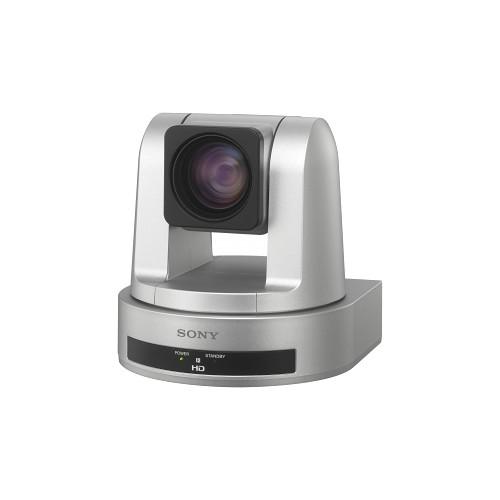

Product description The SRG120DH/PAC4 EZ-2-Connect PTZ Camera Solution from Sony includes a SRG120DH 1/2.8" CCD 12x PTZ Desktop Camera and RC4-SRG Camera Extension kit. The SRG-120DH 12x PTZ Desktop Camera is a remote controlled high definition 1080p/60 PTZ camera with a 12x optical zoom designed for desktop use. It incorporates Sony's high-sensitivity 1/2.8" type Exmor CMOS sensor and an HDMI interface, and is equipped with View-DR dynamic range enhancement and XDNR technology. This camera is RS-232C capable and features a 12x digital zoom, with a 71° horizontal viewing angle. It is ideal for videoconferencing and remote monitoring applications. The RemoteCam4 digital PTZ camera extension kit uses single Cat5e/6 UTP cables for extending camera signals for up to 300'. Provided threaded mounting holes on the side of the camera module allow for flexible mounting options with Sound Control Technologies Wall Mounts or custom design solutions. A rackmountable head-end module enclosure provides clean and easily terminated cabling for UTP wiring, video, control, VISCA, and power supply when deployed with Sound Control Technologies' rack shelves. Camera's Features - High Image Quality: The camera incorporates Sony's high-sensitivity 1/2.8" type Exmor CMOS sensor and View-DR technology. The 60p shooting capability ensures smooth, reduced blur life-like images.
- View-DR (Wide Dynamic Range) feature: It provides extremely wide dynamic range with full-capture Wide-D technology utilizing the Exmor CMOS sensor's high-speed readout capability and Visibility Enhancer (VE) that provides a high level of chrominance and luminance. Achieves up to 130 dB. (29.97 fps).
- XDNR Technology: Reduces noise and provides clear images in both moving and still objects under low light conditions.
- Camera Control: VISCA over IP technology allows for easy control of camera over IP connection.
Extender's Features - Digital video up to 1080p
- Transmission distance up to 300' over a single Cat5e/6 UTP cable
UPC: 027242285095 In the Box Sony SRG120DH/PAC4 EZ-2-Connect PTZ Camera Solution SRG-120DH 12x PTZ Desktop Camera (Silver Housing) tfuecyvzsubefdcyuccfstq RC4-CE Camera Interface Module RC4-HE Codec/Head-End Interface Module 1' HDMI Camera Cable RJ45 to Power/Control IR RJ11 to 8-Pin Mini Din VISCA Out Cable 1' DC Power Camera Cable 3' HDMI Camera Head-End Cable Null Modem DB-9 Serial Head-End Cable VISCA loop 8-pin Mini Din to 9-Pin Head-End Power Supply Limited 3-Year Warranty on RC4 Kit Table of Contents
|
Upload User Manual
Have you got an user manual for the Sony SRG120DH PAC4 EZ-2-Connect PTZ Camera Solution in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSony SRG-120DH Specs | | | Image Device | 1/2.8" Exmor CMOS | | Lens | 12x optical/12x digital zoom lens
Focal Length: 3.9 (wide) to 46.8 mm (tele)
F1.8 to 2.0 | | Minimum Object Distance | Wide End: 0.3" (10.0 mm)
Tele End: 59.0" (1500.0 mm) | | Shutter Speed | 1/1 to 1/10000 sec (59.94 Hz system)
1/1 to 1/10000 sec (50 Hz system) | | Sync System | Internal | | Exposure Control | Auto, manual, priority AE (shutter, Iris), exposure compensation, bright | | White Balance | Auto, indoor, outdoor, one-push auto, ATW, manual | | Pan | Angle: +/- 100°
Speed: 300° per sec | | Tilt | Angle: +/- 25°
Speed: 126° per sec | | Horizontal Viewing Angle | 71° wide | | Preset Positions | 16 presets | | Camera Control Interface | VISCA protocol with built-in IP control
Camera Control Interface: RJ-45/RS-232C | | Minimum Illumination | 1.8 lux (50 IRE, F1.8, 30 fps) | | S/N Ratio | 50 dB | | Video Output | HDMI | | Signal System | 1080/59.94p, 50p, 29.97p, 25p
1080/59.94i, 50i
720/59.94p, 50.29.97p, 25p | | Power Requirements | 12 VDC (10.8 to 13.2 V) | | Power Consumption | 16.8 W | | Operating Temperature | 32 to 104°F (0 to 40°C) | | Storage Temperature | -4 to 140°F (-20 to 60°C) | | Dimensions (W × H × D) | 6.1 x 6.2 x 6.1" (15.3 x 15.6 x 15.3 cm) | | Weight | 3.0 lb (1.5 kg) | | | | Cameras Supported | Sony SRG-300H, SRG-300H/W, SRG-120DH | | Distance | 300.0' (91.4 m) | | Cables | Single Cat5e/6 | | Dimensions | RC4-HE: 3.75 x 1.50 x 3.63" (9.52 x 3.81 x 9.22 cm)
RC4-CE: 2.5 x .875 x 3.68" (6.4 x 2.2 x 9.3 cm) | | Weight | RC4-CE: 5.2 oz (147.4 g)
RC4-HE: 8.1 oz (229.6 g) |
