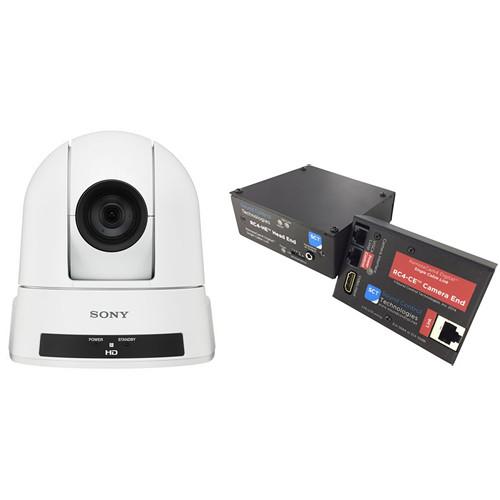

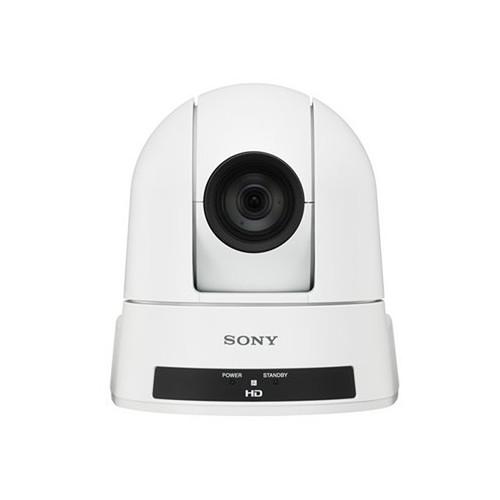

Product description The white SRG300HW/PAC4 EZ-2-Connect PTZ Camera Solution from Sony includes a SRG300H 1/2.8" CCD 1080p Desktop & Ceiling Mount PTZ Camera and RC4-SRG Camera Extension Kit. The SRG-300H is a desktop and ceiling mount 1080p/60 HD PTZ camera with a 30x optical zoom. It incorporates Sony's high sensitivity 1/2.8" type Exmor CMOS sensor. It is equipped with several features including View-DR processing to master the harshest lighting conditions as well as the industry recognized VISCA protocol and built-in IP control. This camera comes in a white housing. It is ideal for use in houses of worship, videoconferencing, distance learning, entertainment/seminar venues, and remote monitoring of small to medium sized rooms. The RemoteCam4 digital PTZ camera extension kit uses single Cat5e/6 UTP cables for extending camera signals for up to 300'. Provided threaded mounting holes on the side of the camera module allow for flexible mounting options with Sound Control Technologies Wall Mounts or custom design solutions. A rackmountable head-end module enclosure provides clean and easily terminated cabling for UTP wiring, video, control, VISCA, and power supply when deployed with Sound Control Technologies' rack shelves. Camera's Features - High Image Quality: The camera incorporates Sony's high-sensitivity 1/2.8" type Exmor CMOS sensor and View-DR technology. The 60p shooting capability ensures smooth, reduced blur life-like images.
- View-DR (Wide Dynamic Range) feature: It provides extremely wide dynamic range with full-capture Wide-D technology utilizing the Exmor CMOS sensor's high-speed readout capability and Visibility Enhancer (VE) that provides a high level of chrominance and luminance. Achieves up to 130 dB (29.97 fps).
- XDNR Technology: Reduces noise and provides clear images in both moving and still objects under low light conditions.
- Camera Control: VISCA over IP technology allows for easy control of camera over IP connection.
Extender's Features - Transmission distance up to 300' over a single Cat5e/6 UTP cable

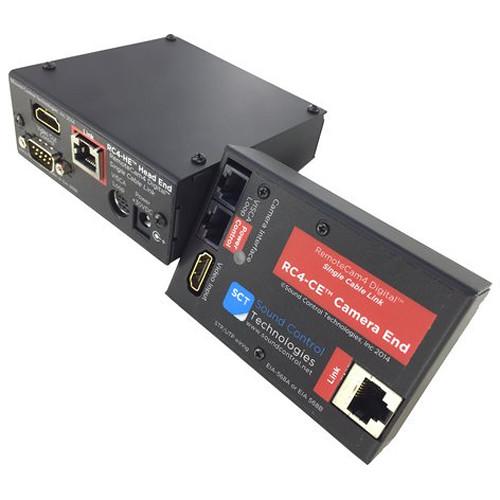

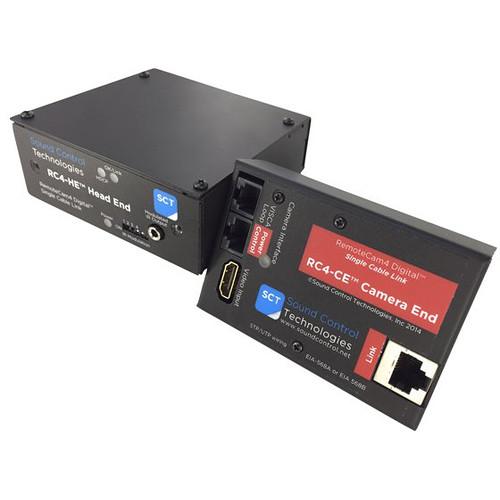

UPC: 027242285088 In the Box Sony SRG300HW/PAC4 EZ-2-Connect PTZ Camera Solution (White) SRG-300H 1080p Desktop & Ceiling Mount Remote PTZ Camera (Black) RC4-CE Camera Interface Module RC4-HE Codec/Head-End Interface Module 1' HDMI Camera Cable RJ45 to Power/Control IR RJ11 to 8-Pin Mini Din VISCA Out Cable 1' DC Power Camera Cable 3' HDMI Camera Head-End Cable Null Modem DB-9 Serial Head-End Cable VISCA loop 8-pin Mini Din to 9-Pin Head-End Power Supply Limited 3-Year Warranty on RC4 Kit Table of Contents
|
Upload User Manual
Have you got an user manual for the Sony SRG300HW PAC4 EZ-2-Connect PTZ Camera Solution in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSony SRG-300H Specs | | | Image Device | 1/2.8" Exmor CMOS | | Lens | 30x optical/12x digital zoom lens
Focal Length: 4.3 (wide) to 129mm (tele)
Aperture: F/1.6 to 4.7 | | Minimum Object Distance | Wide End: 0.3" (10.0 mm)
Tele End: 47.2" (1200.0 mm) | | Shutter Speed | 1/1 to 1/10000 sec (59.94 Hz system)
1/1 to 1/10000 sec (50 Hz system) | | Sync System | Internal | | Exposure Control | Auto, manual, priority AE (shutter, iris), exposure compensation, bright | | White Balance | Auto, indoor, outdoor, one-push auto, ATW, manual | | Pan | Angle: +/- 170°
Speed: 100° per sec | | Tilt | Angle: 90°/-20°
Speed: 90° per sec | | Horizontal Viewing Angle | 65° wide | | Preset Positions | 16 presets | | Camera Control Interface | VISCA protocol with built-in IP control
Camera Control Interface: RJ-45/RS-232C/RS-422 | | Minimum Illumination | 1.4 lux (50 IRE, F1.6, 30 fps) | | S/N Ratio | 50 dB | | Video Output | HDMI | | Signal System | 1080/59.94p, 50p, 29.97p, 25p
1080/59.94i, 50i
720/59.94p, 50.29.97p, 25p | | Power Requirements | 12 VDC (10.8 to 13.2 V) | | Power Consumption | 16.8 W | | Operating Temperature | 32 to 104°F (0 to 40°C) | | Storage Temperature | -4 to 140°F (-20 to 60°C) | | Dimensions (W × H × D) | 6.2 x 6.5 x 6.5" (15.7 x 16.4 x 16.4 cm) | | Weight | 3.3 lb (1.5 kg) | | | | Cameras Supported | Sony SRG-300H, SRG-300H/W, SRG-120DH | | Distance | 300.0' (91.4 m) | | Cables | Single Cat5e/6 | | Dimensions | RC4-HE: 3.75 x 1.50 x 3.63" (9.52 x 3.81 x 9.22 cm)
RC4-CE: 2.5 x .87 x 3.68" (6.4 x 2.2 x 9.3 cm) | | Weight | RC4-CE: 5.2 oz (147.4 g)
RC4-HE: 8.1 oz (229.6 g) | | | | Package Weight | 10.5 lb | | Box Dimensions (LxWxH) | 17.795 x 14.016 x 12.205" |
