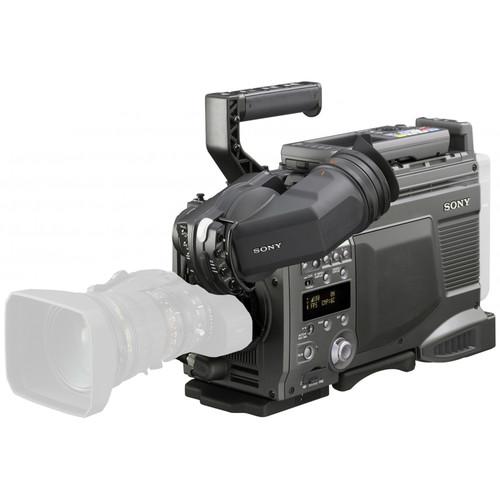

Sony SRW-9000 HDCAM-SR Camcorder w 2.7"

Search your instruction manual in PDF to download

User Manual for Sony SRW-9000 HDCAM-SR Camcorder w 2.7" Viewfinder

Click to enlarge the picture
Sony SRW-9000 HDCAM-SR Camcorder w 2.7" Viewfinder Contents of the user manual for the Sony SRW-9000 HDCAM-SR Camcorder w 2.7"
  • Product category: Camcorders Sony
  • Brand: Sony
  • Description and content of package
  • Technical information and basic settings
  • Frequently asked questions – FAQ
  • Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
  • Authorized service for Sony Camcorders

User manual for the Sony SRW-9000 HDCAM-SR Camcorder w 2.7" contain basic instructions that need to be followed during installation and operation. Before starting your appliance, the user manual should be read through carefully. Follow all the safety instructions and warnings, and be guided by the given recommendations. User manual is an integral part of any Sony product, and if it is sold or transferred, they should be handed over jointly with the product. Following the instructions for use is an essential prerequisite for protecting health and property during use, as well as recognition of liability on the part of the manufacturer for possible defects should you make a warranty claim. Download an official Sony user manual in which you will find instructions on how to install, use, maintain and service your product.

And do not forget – unsuitable use of a Sony product will considerably shorten its lifespan!



Product description

Sony's SRW-9000 HDCAM-SR 2/3" Camcorder with 2.7" Viewfinder is a one-piece, modular 24P camcorder platform that redefines the words "future proof." Designed as a next-generation younger sibling to Sony's renowned CineAlta F35 digital cinema camera, the SRW-9000 manages to introduce new technology while trimming costs and adding unprecedented levels of flexibility.

As the world's first shoulder-mounted HDCAM-SR camera, the SRW-9000 carries forward the F35 and F23's reputations for producing outstanding digital imagery. Using the F23's chipset and the lossless capture afforded by HDCAM-SR's MPEG4-SStP recording format, the camera creates professional-grade 1080p images with customizable gammas and up to 12 stops of dynamic range for true film-like images. This makes the SRW-9000 the perfect tool for features, commercials, documentaries or music videos--either as a low-budget 'A' camera or as a 'B' or Steadicam camera on larger productions.

But the SRW-9000 isn't just a camera, it's a system. Sony's first truly open-platform product, it can be tailored to the specific needs of each production. As with previous CineAlta camcorders, its B4 lens mount allows for the full range of professional 2/3" HD lenses. But the SRW-9000 goes even further. Need to shoot in 4:4:4 color? Or with incremental, variable frame rates? Optional processing boards let you go there.

Even more revolutionary, the SRW-9000 was designed with the ability to switch out its 2/3" sensor for an upcoming 35mm sensor and 35mm PL mount--allowing the highest image quality possible. And with the release of a 1TB SR Memory Pack, the camera will be able to switch from standard HDCAM-SR tape recording to solid state capture. Offering an unprecedented 5Gbps data rate and Raid-5 security, the Memory Pack will allow shooting in 3D, 4K, and 8 different HD streams, at the same time improving post-production workflow by recording color information in the video stream's metadata to provide a built-in color management system. It doesn't get any more forward-looking than that!
  • Sony SRW-9000 HDCAM-SR Camcorder Sony's SRW-9000 HDCAM-SR 2/3" Camcorder is a one-piece, modular 24P camcorder platform that redefines the words "future proof." Designed as a next-generation younger sibling to Sony's renowned CineAlta F35 digital cinema camera, the SRW-9000 manages to introduce new technology while trimming costs and adding unprecedented levels of flexibility.

    As the world's first shoulder-mounted HDCAM-SR camera, the SRW-9000 carries forward the F35 and F23's reputations for producing outstanding digital imagery. Using the F23's chipset and the lossless capture afforded by HDCAM-SR's MPEG4-SStP recording format, the camera creates professional-grade 1080p images with customizable gammas and up to 12 stops of dynamic range for true film-like images. This makes the SRW-9000 the perfect tool for features, commercials, documentaries or music videos--either as a low-budget 'A' camera or as a 'B' or Steadicam camera on larger productions.

    But the SRW-9000 isn't just a camera, it's a system. Sony's first truly open-platform product, it can be tailored to the specific needs of each production. As with previous CineAlta camcorders, its B4 lens mount allows for the full range of professional 2/3" HD lenses. But the SRW-9000 goes even further. Need to shoot in 4:4:4 color? Or with incremental, variable frame rates? Optional processing boards let you go there.

    Even more revolutionary, the SRW-9000 was designed with the ability to switch out its 2/3" sensor for an upcoming 35mm sensor and 35mm PL mount--allowing the highest image quality possible. And with the release of a 1TB SR Memory Pack, the camera will be able to switch from standard HDCAM-SR tape recording to solid state capture. Offering an unprecedented 5Gbps data rate and Raid-5 security, the Memory Pack will allow shooting in 3D, 4K, and 8 different HD streams, at the same time improving post-production workflow by recording color information in the video stream's metadata to provide a built-in color management system. It doesn't get any more forward-looking than that!
      Breathtaking HDCAM SR Picture Quality
    • The SRW-9000 is a one-piece HDCAM-SR camcorder that delivers full HD resolution images and employs a 2/3"-type IT CCD. Combining this CCD with a high-precision 14-bit A/D converter and digital signal processing, the camcorder is able to capture and reproduce stunning-quality 1080/60P and 1080/50P images with low noise and high sensitivity.
      Upgradable Imaging and Storage Options
    • The SRW-9000 is the first camera to be based on a new high-end modular camcorder platform that allows different imaging and storage blocks to be fitted. A Super 35mm CCD sensor and SR Memory solid state recording pack options are already planned as part of a strategy of continual development. Even if you buy the very first SRW-9000, you can be confident of its upgrade path to meet future requirements.
      Full-bandwidth RGB 4:4:4 Digital Image Capturing
    • With the addition of the optional HKSR-9003 RGB 4:4:4 Processing Board, the SRW-9000 offers a full-bandwidth digital 4:4:4 high-definition Red, Green, and Blue signal processing and output capability for highly demanding picture productions. The SRW-9000 also offers S-LOG Gamma with the same optional board, allowing users to flexibly adjust images in the post-production process.
      Variable Frame Rate Image Capturing
    • By adding the HKSR-9002 Picture Cache Board, the SRW-9000 is capable of recording images at a variable frame rate from 1 fps to 60 fps in 4:2:2 mode. And by combining the HKSR-9002 with the HKSR-9003, it can perform the same function even in 4:4:4 mode.
      Exceptional Ergonomics for Filmmakers
    • The SRW-9000's chassis is a development of the film-style ergonomics Sony designed for the F23/F35, utilizing a completely different layout compared to the traditional broadcast TV approach of other Sony cameras. For camera operators used to working with film, the SRW-9000 makes it easy to adapt.
      Outstanding Operational Mobility
    • The SRW-9000's rugged one-piece body, with self-contained, ultra-reliable HDCAM SR recording deck, offers incredible operational mobility both indoors and outside. At the same time, Sony's BP-GL Series of on-board batteries can be attached to further extend shooting times.
      Future-proof and Customizable
    • The SRW-9000 is designed to accommodate the changes necessary to ensure today's best camcorder is also tomorrow's. Its state-of-the-art 2/3" sensor can be upgraded with the same Super 35mm sensor used in Sony's F35, while the internal HDCAM SR tape deck can be swapped out for a revolutionary solid state unit.
      Wide Choice of Viewfinders
    • The SRW-9000 accepts three types of viewfinder, including the HDVF-20A/200, HDVF-C35W, and HDVF-C30WR. The newly introduced HDVF-C30WR is especially suited for use with the SRW-9000, offering improved focus assist functions, a color brightness level indicator, and numerous other beneficial features. Moreover, with pre-installed viewing LUTs (look-up tables) for S-Log Gamma, this viewfinder provides users with easier focus adjustment and a more intuitive photo-shooting operation.
      Versatile Gamma Settings
    • These include unique S-LOG Gamma (HKSR-9003), HyperGamma, and customizable gamma curve (standard).
      Picture Cache Re-recording Capability
    • Everything captured up to a maximum of three seconds before the REC button is pressed is recorded to HDCAM SR tape when the camcorder is in stand-by mode.
      I/O Expandability
    • When using the HKSR-9001, additional dual-link HD-SDI outputs and an additional AUX input port are provided, allowing the camcorder to be connected with an external audio multiplexing device.
      Picture Cache Recording Capability
    • Everything captured for a maximum of three seconds before the REC button is pressed is recorded to HDCAM-SR tape when the camcorder is in stand-by mode.
      Wide Range of Accessories
    • The SRW-9000 is compatible with a wide range of accessories for the HDW-F900, F23, SRW-1, and from ARRI.
  • Sony 2.7" HD Color Viewfinder With its high levels of color accuracy and versatility, Sony's HDVF-C30WR 2.7" Color Viewfinder makes a fitting companion to the CineAlta professional camcorders for which it was designed. Also compatible with Sony's PDW-F800 and HDC-3300R cameras, this viewfinder uses an advanced image processor to combine enhanced focus-assist features with improved luminance and a selectable color temperature (5600K/6500K/9300K). The HDVF-C30WR provides the precise focusing and natural color reproduction needed for professional applications such as moviemaking, TV, and commercial production.
      2.7" Color LCD
    • Large 2.7" 16:9 quarter HD (960 RGB x 540) color LCD.
      LCD Panel Protection Mechanism
    • Suppresses sun-beam burnout of the LCD panel, delivering superior durability.
      Natural Peaking Function
    • Allows focusing with sharper peaking in a life-like image.
      Color Peaking function
    • A newly developed function which shows the shooting object's focused area in actual colors.
      S-LOG Gamma Support
    • S-LOG mode can be set by simply touching a switch.
      Color Space Matching with the F35/F23
    • The HDVF-C30WR can be set to the camera's color space setting automatically or manually.
      Detachable Eye-Piece
    • Allows users to view the LCD directly.
      Dot-by-dot Picture Magnification
    • Gives six-selectable areas, keeping a high resolution even in the magnified image.
      Luminance Level Indicator
    • Allows the user to check the luminance level of a signal. Individual designated signal levels (from 0% to 105%, in 10% increments) can be easily monitored in color.
In the Box
  • SRW-9000 HDCAM-SR Camcorder
  • User Manual
  • Lens Mount Cap
  • Riser Plate
  • V Plate
  • Handle
  • CP, CP Cable
  • 1 Year Limited Warranty
  • 2.7" HD Color Viewfinder
Table of Contents




Upload User Manual

Have you got an user manual for the Sony SRW-9000 HDCAM-SR Camcorder w 2.7" Viewfinder in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Upload PDF user manual Upload DOC user manual
Please enter here the link to the user manual of this product:





OR

Enter here the file with the user manual of this product from your computer/phone:
(60MB max; Permitted formats: PDF)

0%


Technical parameters

  • Sony SRW-9000 HDCAM-SR Camcorder
    Image Device 3-chip 2/3"-type Progressive CCD
    Signal-to-Noise Ratio 55dB
    Horizontal Resolution 1000 TVL
    Sensitivity 2000 lx, 89.9% reflectance:
    23.98/24/29.97PsF: T11 ISO 580
    Minimum Illumination Not specified by manufacturer
    Vertical Smear -135dB (typical)
    Signal System HDCAM-SR
    Built-in Filters A: 3200K, B: 4300K, C: 5600K, D: 6300K, E: ND0.3 (1/2ND)
    1: Clear, 2: ND0.6 (1/4ND), 3: ND1.2 (1/16ND), 4: ND1.8 (1/64ND), 5: CAP
    LCD Monitor None
    Speaker None
    Viewfinder Not included
    Microphone None
    Memory Card Slot 2x Memory Stick (for camera setup files, VTR maintenance)
    Shutter Speed Angle 360°~4.3°
    Continuous Mode (ECS)
    Gain Selection -6, -3, 0, 3, 6, 9, 12 dB
    Tape Format HDCAM-SR
    Tape Speed 440Mbps, 880Mbps
    Maximum Recording Time HDCAM-SR 440 Mbps: 4:2:2, 4:4:4SQ: 40 min (30p), 50 min (24p)
    HDCAM-SR 880 Mbps: 4:4:4HQ: 20 min (30p), 25 min (24p), 4:2:2, 4:4:4SQ: 20min (60p), 24 min (50p)
    Audio Dynamic Range More than 100dB
    Audio Signal Format Not specified by manufacturer
    Audio Frequency Response 20 Hz to 20 kHz, +0.5 dB/-1.0 dB
    Signal to Noise Ratio Not specified by manufacturer
    Input and Output Connectors HD-SDI: BNC (x2 Output)
    Audio: XLR (x2 Input)
    Timecode: BNC (x1 Input, x1 Output)
    Genlock: BNC (x1 Input)
    Test Out: BNC
    Earphone: 3.5mm Mini (x1 Output)
    RS-232C: 5-pin DSub (x1 I/O)
    Remote: 8-pin
    Power Requirements 12VDC +5.0V/-1.0V
    Power Consumption Approx. 57W (while recording, w/o options, power save mode)
    Operating Temperature -20° to +60°C (-4° to +140°F)
    Dimensions (WxHxD) 5.88 x 8.38 x 13" (14.8 x 21.1 x 33 cm)
    Weight 14.31 lbs (6.5kg)
    Box Dimensions (LxWxH) 21.7 x 20.2 x 13.7"
  • Sony 2.7" HD Color Viewfinder
    Applications Digital Cinema, TV/Movie Production, Commercials
    LCD 2.7"
    Resolution 16:9 Quarter HD 960 x 540
    Compatibility HDC-3300R, PDW-F800, F23, F35
    Box Dimensions (LxWxH) 12.6 x 10.6 x 6.1"
