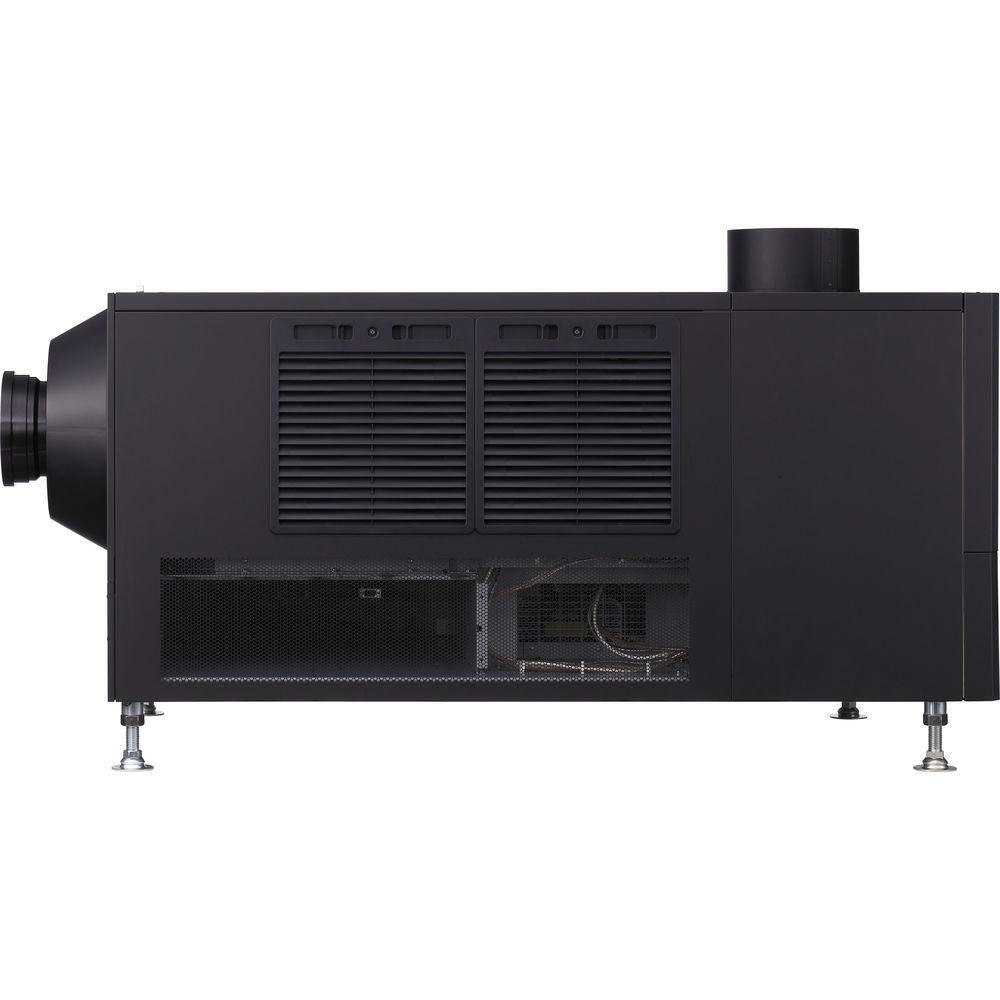

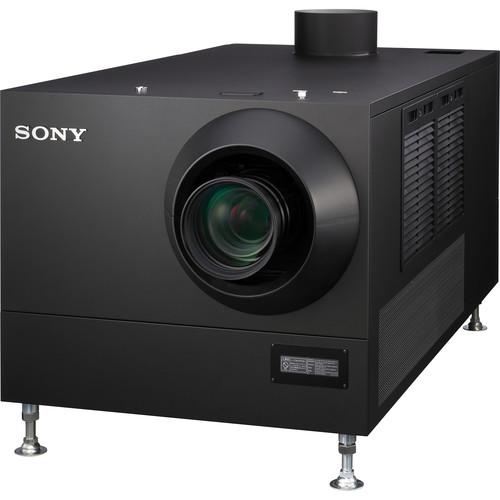

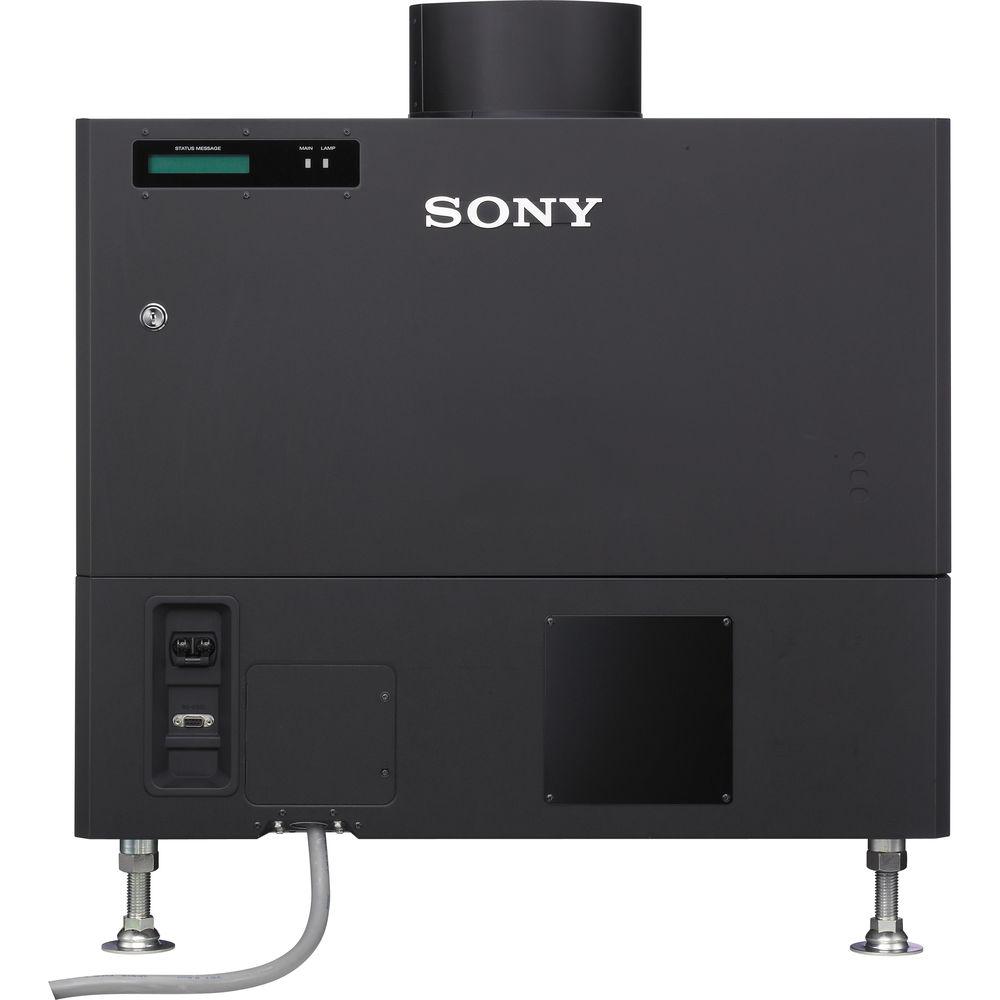

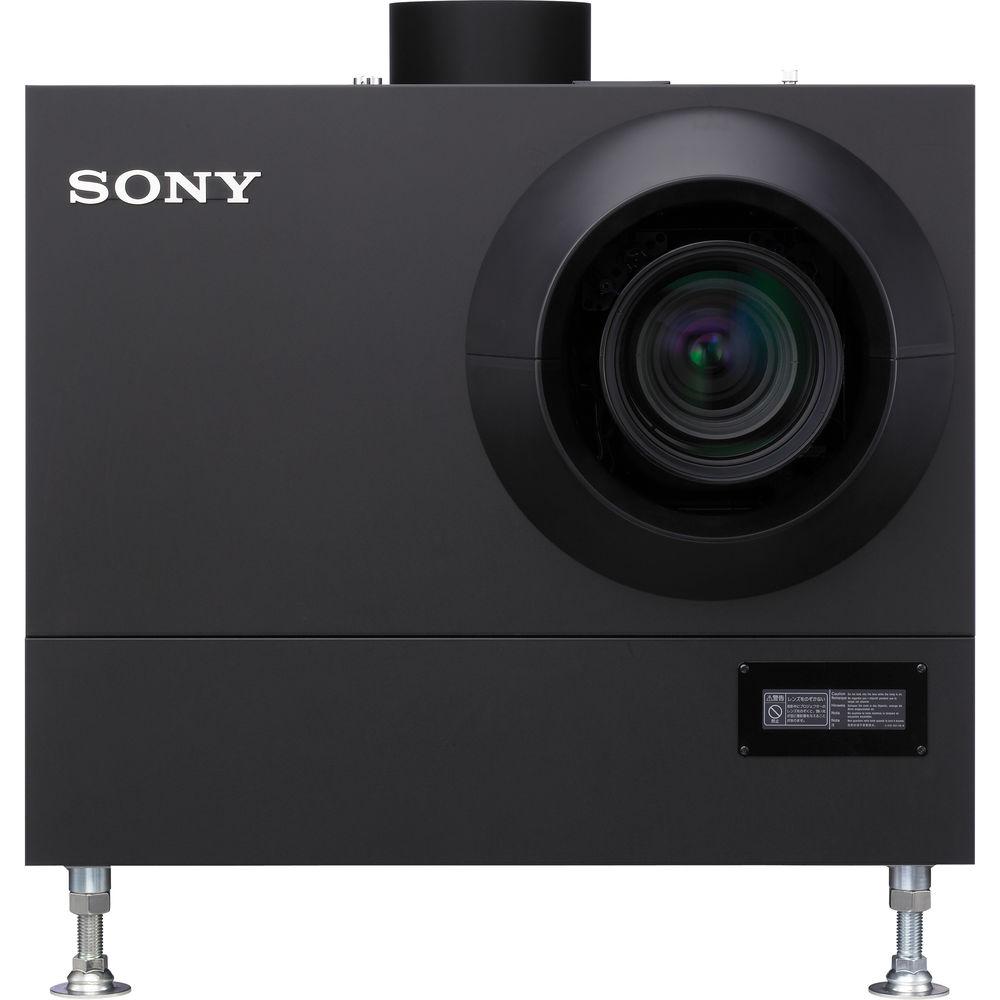

User Manual for Sony SRX-T423 4K SXRD 23,000 Lumens Projector Click to enlarge the picture
Contents of the user manual for the Sony SRX-T423 4K SXRD 23,000 Lumens
- Product category: Multimedia Projectors Sony
- Brand: Sony
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Sony Multimedia Projectors
 |
User manual for the Sony SRX-T423 4K SXRD 23,000 Lumens contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Sony product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Sony user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Sony product will considerably shorten its lifespan!
|
Product description The SRX-T423 4K SXRD 23,000 Lumens Projector from Sony is an ultra-high-resolution projector ideal for use in large-scale commercial and educational venues. The projector can be deployed for a wide range of uses, including applications in auditoriums, simulations, theme parks, museums, and planetariums. Compatible with various lenses, the projector offers a 4096 x 2160 native resolution pixel matrix that achieves more than 8.8 million pixels and offers a vertical tilt angle of ±30°. - 8.8 megapixel resolution at 4096 x 2160 native resolution
- Quad HD configuration capable for simultaneously displaying separate images
- 23,000 lumens of brightness and up to 30,000 lumens in high brightness mode
- Tilted installation and lens shift capabilities
- Lenses and input boards available separately; DVI preinstalled
In the Box Sony SRX-T423 4K SXRD 23,000 Lumens Projector Limited 1-Year Warranty Brochure PDF 336.5kbxafbwwsvytturd Table of Contents
|
Upload User Manual
Have you got an user manual for the Sony SRX-T423 4K SXRD 23,000 Lumens Projector in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSony SRX-T423 Specs | | | Display System | 3-Chip 0.55" LCD | | Native Chip Resolution | 4096 x 2160 | | Supported Resolutions | 1024 x 768
1280 x 960
1600 x 1200
2048 x 1080
1400 x 1050
1920 x 1080
1920 x 1200
2048 x 1080 | | Max Brightness | 23,000 Lumens
30,000 Lumens | | Contrast Ratio | 3000:1 | | DLP Link 3D | None | | Supported 3D Formats | None | | | | Keystone Correction | None | | Picture-in-Picture | None | | Ceiling Mountable | None | | Rear Screen Projection | None | | Built-In Speaker | None | | Closed Captioning | None | | | | Inputs/Outputs | 1 x DVI-D Video (Input)
1 x RS-232C (Unspecified Connector) Control (Input)
1 x Ethernet (RJ45) LAN (Input) | | Internal Storage | None | | Wireless LAN / Wi-Fi | None | | | | Light Source | Lamp (1 x Xenon) | | Color Temperature | 9300K 6500K also available in settings. | | Lamp Power | 4200 W | | Expected Lamp Life | Medium Brightness: 600 Hours | | Security | None | | AC Input Power | 240 VAC, 50 Hz | | Power Consumption | Full Brightness: 5600 W
Standby Mode (Lamp Off): 29 W | | Temperature | Operating
41 to 95°F (5 to 35°C)
Humidity: 35 - 85%
Storage
-4 to 140°F (-20 to 60°C)
Humidity: 10 - 90% | | Dimensions (W x H x D) | 27.6 x 25.2 x 49.2" / 700.0 x 640.0 x 1250.0 mm Excluding the optional lens and projecting parts | | Weight | 399.03 lb / 181 kg Excluding optional lamp and lens |
