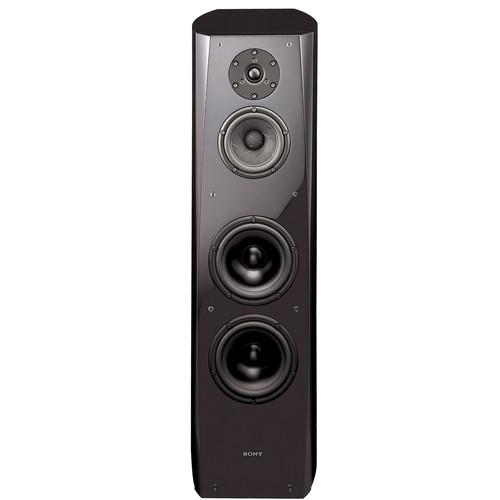

User Manual for Sony SS-AR1 3-Way Floorstanding Speaker Click to enlarge the picture
Contents of the user manual for the Sony SS-AR1 3-Way Floorstanding Speaker
- Product category: Floorstanding Speakers Sony
- Brand: Sony
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Sony Floorstanding Speakers
|
User manual for the Sony SS-AR1 3-Way Floorstanding Speaker contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Sony product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Sony user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Sony product will considerably shorten its lifespan!
|
Product description The single Sony SS-AR1 3-Way Floorstanding Speaker is designed to deliver audiophile-grade sonic performance from its robust speaker cabinet. This speaker has a 4-unit, 3-way design that incorporates a 1" soft dome tweeter, 5" sliced-paper cone midrange, and two 8"" aluminum cone woofers. With a nominal impedance of 4 ohms and a maximum power handling of 200W, the SS-AR1 is ready to be paired with high-quality power amplifiers. This speaker's 28 Hz to 60 kHz frequency response allows it to play back a wide range of musical selections, covering high- and low-frequency material. - Cabinet Design
- This loudspeaker's cabinet is designed to enable clean and pinpoint imaging with a vivid and lifelike soundstage. Driver units from Danish transducer specialist, Scan-Speak, produce powerful bass performance combined with detailed midrange and high-frequency sound that reach up to 60 kHz.
- Speaker Construction
- The SS-AR1 uses a 2" thick baffle board made from laminated, instrument-grade maple from Japan. For the rest of the cabinet, tight-grained Nordic birch is laminated, curved and compressed to a thickness of 1.3". This speaker features a precisely assembled complex internal system and a piano finish that helps to protect the wood from heat and humidity.
- Drivers
-
- 1" soft dome with six neodymium magnets arranged in a circle produces high flux density in minimal space
- 5" sliced-paper cone with a ferrite magnet improves efficiency while a copper ring in the magnetic circuit reduces distortion.
- Twin 8" aluminum cones, each with a copper ring to optimize the symmetry of the magnetic field and reduce distortion. Aluminum diaphragms, oversized ferrite magnets, a rigid enclosure and the common bass reflex port on the rear panel help generate bass response with power, authority, and clarity
UPC: 027242268142 In the Box Sony SS-AR1 3-Way Floorstanding Speaker (Each) Speaker Grille Cleaning Cloth Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Sony SS-AR1 3-Way Floorstanding Speaker in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSony SS-AR1 Specs | | | Type | Vented floorstanding | | Drivers | Tweeter: 1 x 1" (25 mm) soft dome
Midrange: 1 x 5" (130 mm) sliced-paper cone
Woofers: 2 x 8" (200 mm) aluminum cones | | Frequency Response | 28 Hz to 60 kHz | | Crossover | 400 Hz, 4 kHz multi-slope network | | Sensitivity | 88 dB (2.83 V/m) | | Impedance | 4 ohms (nominal) | | Maximum Power Handling | 200 W | | | | Dimensions (WxHxD) | Excluding Protruding Parts: 12.6 x 41.5 x 17.7" / 320.0 x 1,055.0 x 450.0 mm
Including Protruding Parts: 12.6 x 42.5 x 19.3" / 320.0 x 1,080.0 x 490.0 mm | | Weight | 126.0 lb / 57.2 kg |
