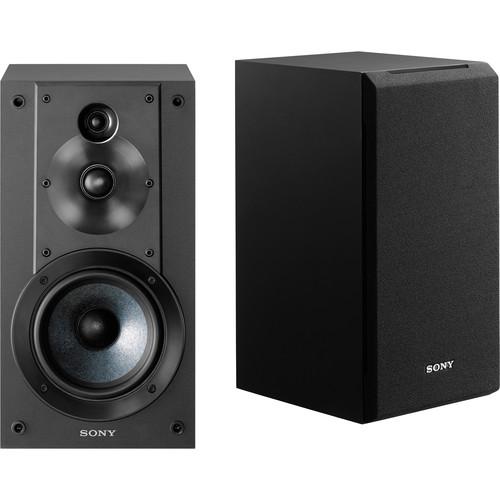

User Manual for Sony SS-CS5 3-Way Bookshelf Speaker Click to enlarge the picture
Contents of the user manual for the Sony SS-CS5 3-Way Bookshelf Speaker
- Product category: Bookshelf Speakers Sony
- Brand: Sony
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Sony Bookshelf Speakers
|
User manual for the Sony SS-CS5 3-Way Bookshelf Speaker contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Sony product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Sony user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Sony product will considerably shorten its lifespan!
|
Product description Enjoy dynamic stereo sound with the SS-CS5 3-Way Bookshelf Speakers from Sony. Each speaker in this pair can handle up to 100W and features a 6 ohm rated impedance. In addition to a 5" woofer and a 1" main tweeter, the on-board 0.75" super tweeter has a wide-dispersion design for a high-frequency audio response up to 50 kHz. The woofer can extend down to 53 Hz and is nicely complemented by the speaker's bass reflex design for optimized low frequency playback. The cabinet of the SS-CS5 is made from wood, which is designed to provide a natural resonance. - Wide-Dispersion Super Tweeter
- The super tweeter in the SS-CS5 is designed to deliver a high-frequency audio response of up to 50 kHz for high-resolution listening with wide directionality.
- Tweeter Design
- Each SS-CS5 features a tweeter with high sound pressure, achieved through a variety of weight reduction techniques, including the integration of a powerful magnetic circuit and a light CCAW (copper-clad aluminum wire) in the voice coil.
- Mica-Reinforced Drivers
- The SS-CS5 incorporates a 5" woofer in an effort to deliver deep and stable bass reproduction. Utilizing a foamed mica-cellular diaphragm, it is designed to produce powerful sound with fine sonic details.
- Bass Reflex Design
- The bass reflex duct, positioned at the rear of each speaker, is designed to suppress unwanted noise and improve low-frequency sound reproduction.
- Additional Features
-
- Air-core inductors in the tweeters, a silicon steel plate in the woofer, and high quality film condensers
- Wood speaker design with removable speaker grille
- Tapered faceplate edges
- Screw type speaker terminals
UPC: 027242873117 In the Box Sony SS-CS5 3-Way Bookshelf Speaker (Pair) 2 x Speaker Grilles 8 x Foot Pads Limited 1-Year Warranty More from Manufacturer Table of Contents
|
Upload User Manual
Have you got an user manual for the Sony SS-CS5 3-Way Bookshelf Speaker in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSony SS-CS5 Specs | Maximum Power Handling | 100 W | | Frequency Response | 53 Hz - 50 kHz | | Sensitivity | 87 dB (2.83 V at 1 m) | | Rated Impedance | 6 Ohms | | Drivers | 1 x 0.75" (19 mm) super tweeter
1 x 1.0" (25 mm) tweeter
1 x 5.0" (130 mm) woofer | | Enclosure Type | Bass reflex | | Enclosure Material | Wood | | Grille Material | Cloth | | Dimensions (W x H x D) | 7.0 x 13.2 x 8.7" / 178.0 x 335.0 x 220.0 mm (including grille) | | Weight | 9.4 lb / 4.5 kg | | | | Package Weight | 20.0 lb | | Box Dimensions (LxWxH) | 18.0 x 16.3 x 10.5" |
