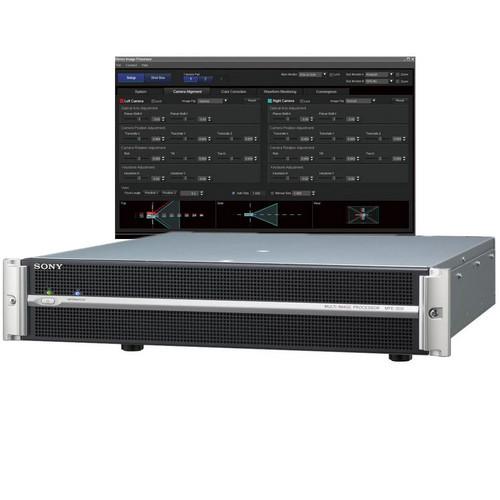

User Manual for Sony Stereo Image Processor Software Click to enlarge the picture
Contents of the user manual for the Sony Stereo Image Processor Software
- Product category: Accessories Sony
- Brand: Sony
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Sony Accessories
|
User manual for the Sony Stereo Image Processor Software contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Sony product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Sony user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Sony product will considerably shorten its lifespan!
|
Product description The Stereo Image Processor Software from Sony is an innovative stereo image processor that allows you to analyze 3D images with a built-in waveform monitoring function and makes fine adjustments to the appearance through digital signal processing. It reduces the cumbersome and time consuming task of mechanical fine adjustment of the 3D camera rigs. You can control several MPE-200 processors with this software via a computer installed with the GUI software. - Camera Alignment Correction
- Correction for left / right camera optical axis shift, alignment, roll shift and other alignment errors, using digital signal processing technology
- Color Correction
- Adjusts the white balance, black balance and gamma curve values to achieve color matching for the image from the left and right camera
- Video Outputs for Monitoring
- The 3D box outputs video signals to its two monitors: the stereo monitor and the wave form monitor
- Convergence Settings / Snapshot
- Modifies the final appearance of the 3D image by adjusting the horizontal offset, toe-in angle and zoom scale
- Real-time 3D image processing software update
- Element Technica mechanical rig control
- F3 1.37" (35 mm) imager support for cine applications
- Supports up to 12 3D camera pairs
- HTTP server metadata output
- 3D analysis functions including depth guide / warning / statistics
- Built-in waveform monitoring function
- Fine adjustment of camera alignment signal processing, such as optical axis shift and mechanical factors
- Color matching between a pair of cameras
- Convergence adjustment, such as horizontal offset and toe-in angle of a pair of cameras, to modify the final appearance of 3D images
- Setup and snapshot features to save / recall settings and status
- Camera metadata (lens information) integration with the HDC-1500R series multi-format HD camera or the HDC-P1 HD multi-purpose camera
- Multi-processor control from a PC GUI via an Ethernet connection
Table of Contents
|
Upload User Manual
Have you got an user manual for the Sony Stereo Image Processor Software in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSony MPES3D01/01 Specs | System Requirements | Operating System: Windows Vista 32-bit, English Version, Service Pack 2 Windows 7 32-bit / 64-bit, English Version Java: Version 6 Update 22 CPU: 1.6 GHz or higher RAM: 2 GB or more Graphics Chip: Intel or NVIDIA Hard Disk Drive: 500 MB or more free space Monitor Resolution: 1280 x 800 pixels or 1280 x 1024 pixels |
