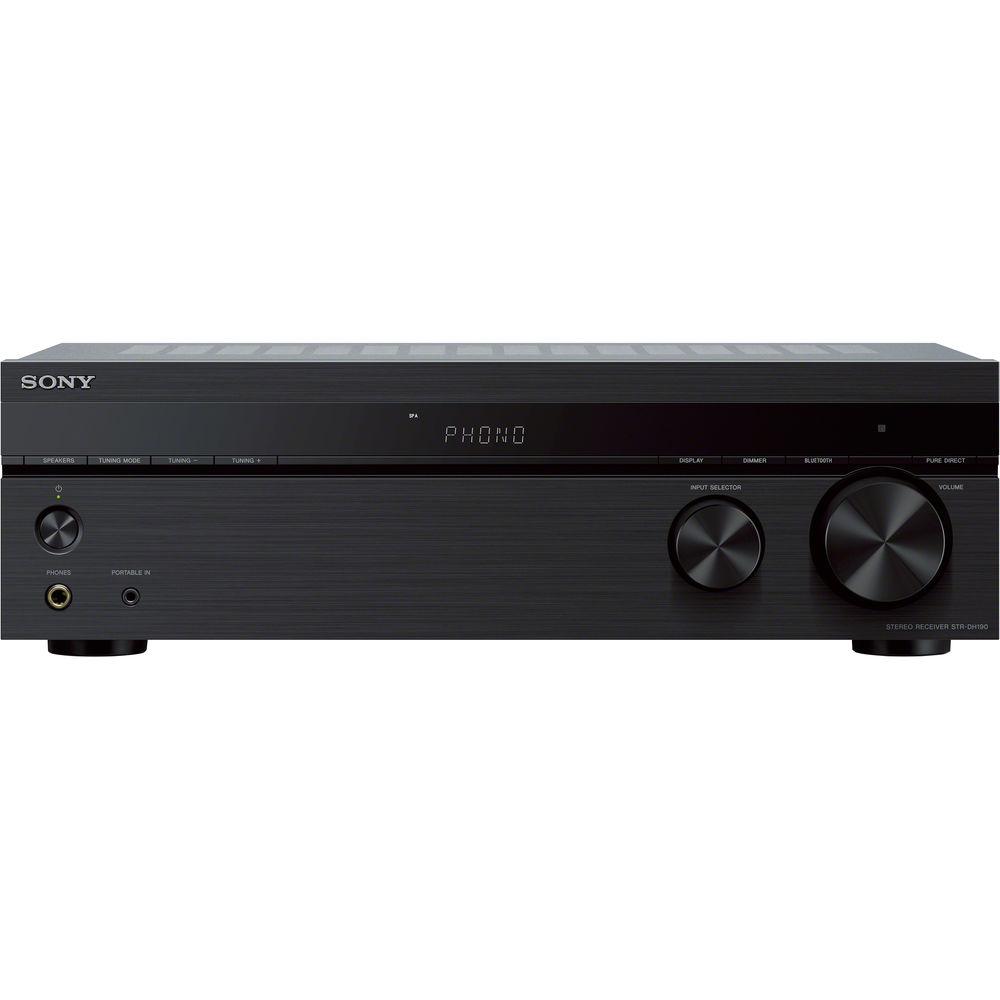

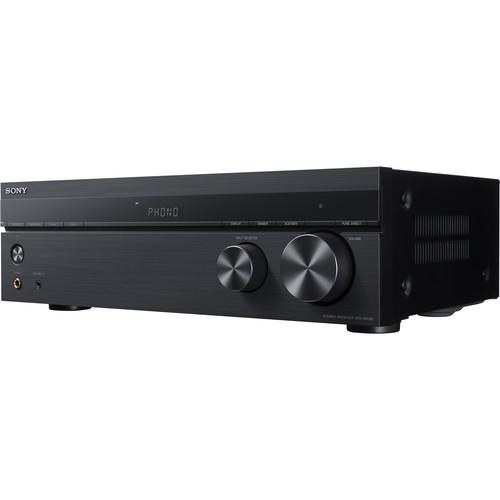

User Manual for Sony STR-DH190 Stereo Receiver Click to enlarge the picture
Contents of the user manual for the Sony STR-DH190 Stereo Receiver
- Product category: Receivers Sony
- Brand: Sony
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Sony Receivers
 |
User manual for the Sony STR-DH190 Stereo Receiver contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Sony product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Sony user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Sony product will considerably shorten its lifespan!
|

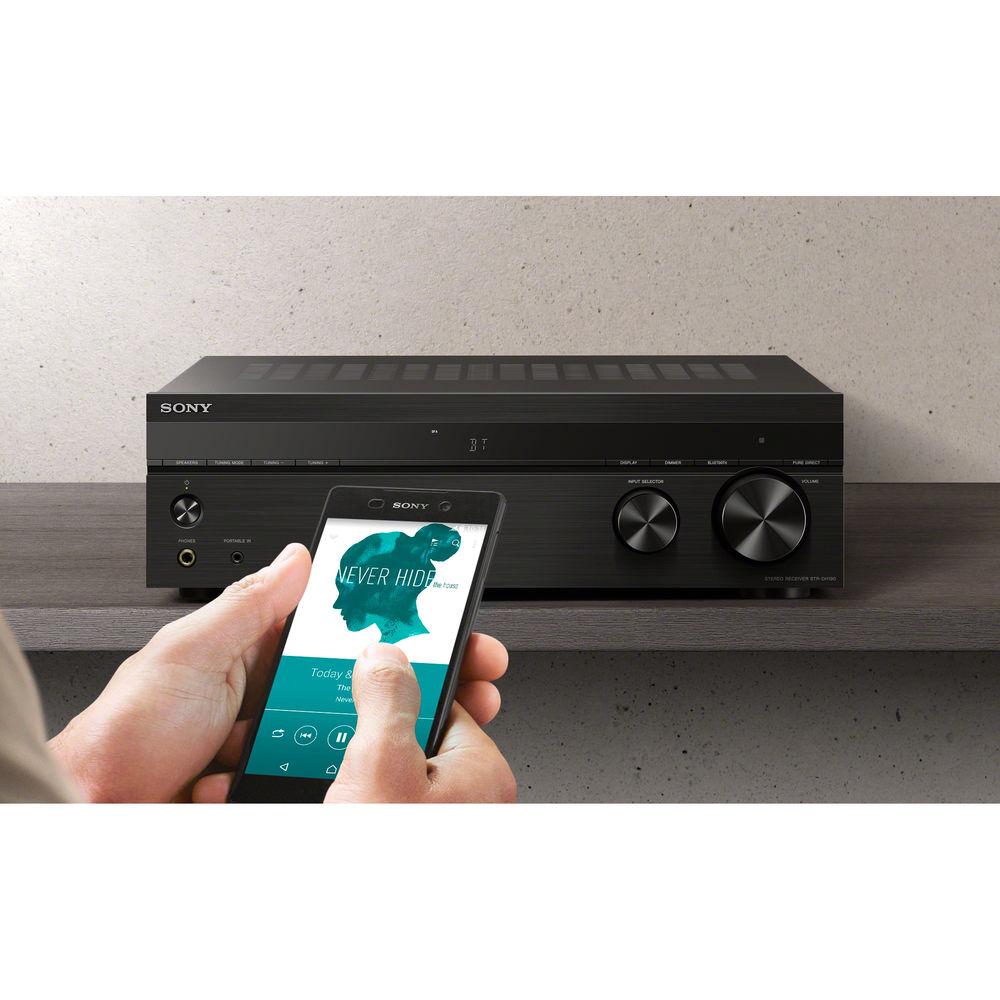

Product description Enjoy music from a variety of sources with the Sony STR-DH190 Stereo Receiver. Built-in Bluetooth allows you to wirelessly stream music from compatible audio sources such as computers, MP3 players, smartphones, and tablets. It also has four stereo RCA inputs for connecting your wired audio sources, plus a dedicated phono input for your turntable. The receiver outputs up to 100W per channel to your speakers at 8 Ohms and features outputs for up to two pairs of speakers. The STR-DH190 also features an integrated FM tuner, allowing you to enjoy free over-the-air content. - Analog & Bluetooth Connectivity
- The STR-DH190 features a phono input for your record player and allows you to switch effortlessly between analog and Bluetooth sources.
- Bluetooth Standby
- With Bluetooth Standby, you can turn your receiver on directly from your paired smartphone or tablet.
- Multiple Connection Options
- The STR-DH190 has four analog audio inputs and one output for easy connection to your audio recording device and other equipment.
- Designed for Minimal Distortion
- The discreet amplifier is engineered to provide high power and pure sound.
- Reinforced Chassis with Rigidly-Mounted Head Sink
- The reinforced frame-and-beam chassis helps reduce transmitted vibration from speaker sound pressure for enhanced sound. The heat sink is held in place by rigid parts, also helping to reduce transmitted vibration from speaker sound pressure.
- Designed for Optimal Phono and Transformer Placement
- The phono amplifier and transformer are positioned in a way that is designed to minimize interference from the magnetic field.
- Flexible Speaker Options
- The A+B function lets you connect two sets of front speakers. You can easily switch between A or B, or use both together to run a pair of speakers in a different area.
- Hi-Res Audio
- Enjoy the subtle nuances of sound in quality higher than that of a CD with High-Resolution Audio.
- Additional Features
-
- Sound-matched to the Sony PS-HX500 and PS-LX300USB turntables for enhanced performance
- Phono volume offset
- Auto standby
- Sleep timer (up to 2 hours)
- Bass/treble control

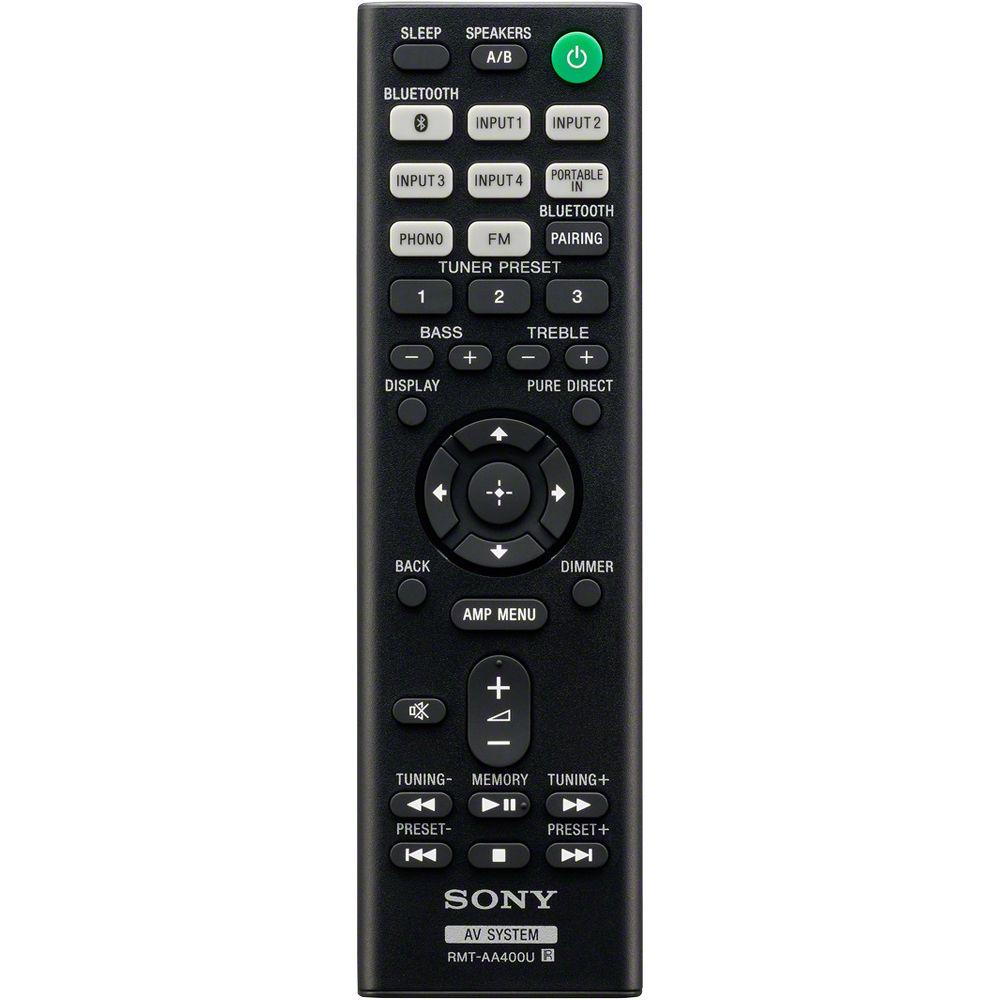

UPC: 027242908383 In the Box Sony STR-DH190 Stereo Receiver Remote Control with Batteries FM Antenna Limited 2-Year Warranty More from Manufacturer raaqtsuuxwvzuevzsvfszfsyctscwvedwrcquw Table of Contents
|
Upload User Manual
Have you got an user manual for the Sony STR-DH190 Stereo Receiver in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

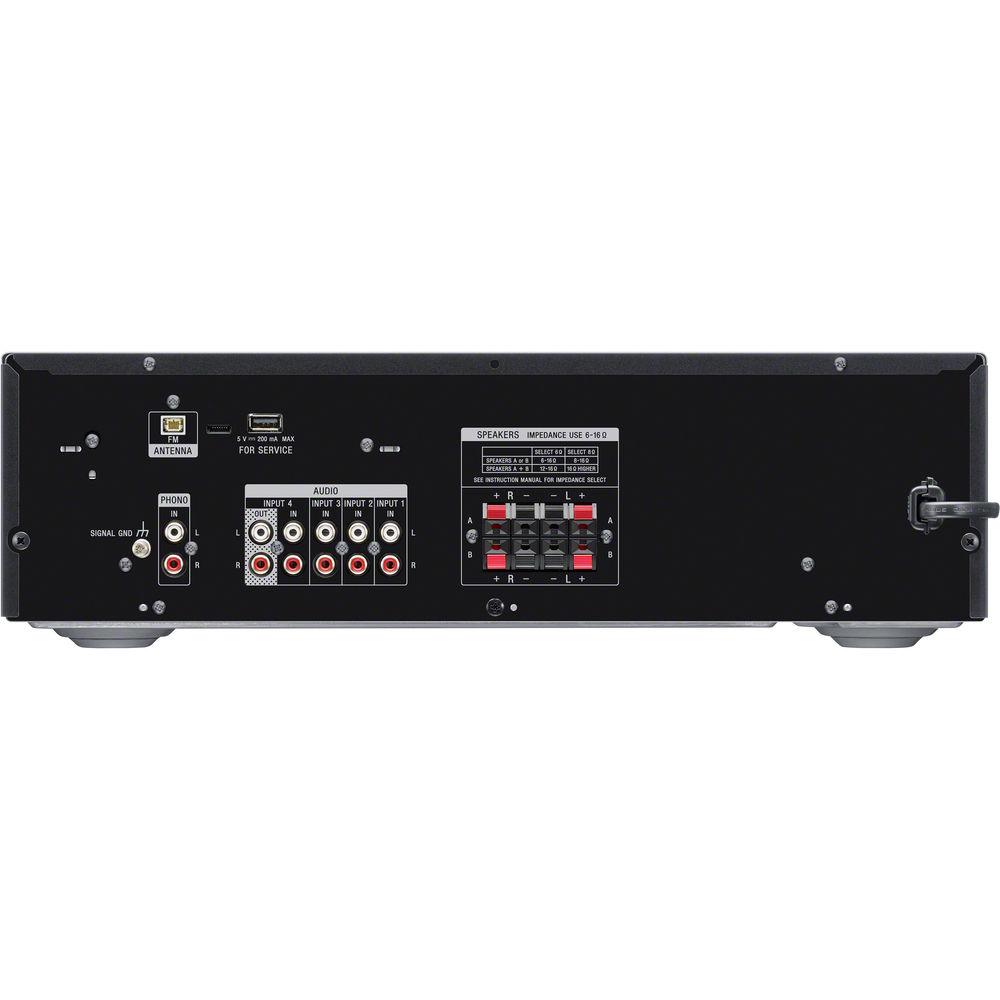

Technical parametersSony STR-DH190 Specs | | | Number of Channels | 2 | | Power Output | 100 W per channel @ 8 Ohms, 1 kHz, 1% THD | | Speaker Impedance | 6 to 16 Ohms | | | | Bluetooth | Yes, input | | Inputs | 4 x stereo RCA
1 x stereo RCA phono
1 x 1/8" / 3.5 mm portable in (front) | | Outputs | 1 x stereo RCA
1 x gold-plated 1/4" / 6.35 mm headphone (front) | | Speaker Connectors | 4 x binding post pairs (A & B) | | Other Connectors | 1 x FM antenna in
1 x USB (service)
1 x phono ground screw | | | | AM/FM Tuner | No/Yes | | Number of Presets | 30 | | | | Power Requirements | 120 VAC, 60 Hz | | Power Consumption | Not specified by manufacturer | | Dimensions (W x H x D) | 17 x 5.25 x 11.25" / 43 x 13.3 x 28.4 cm | | Weight | 14.8 lb / 6.7 kg | | | | Package Weight | 17.0 lb | | Box Dimensions (LxWxH) | 19.3 x 13.8 x 7.0" |
Rating92% users recommend this product to others. And what about you?
This product has already been rated by 03 owners. Add your rating and experience with the product.
