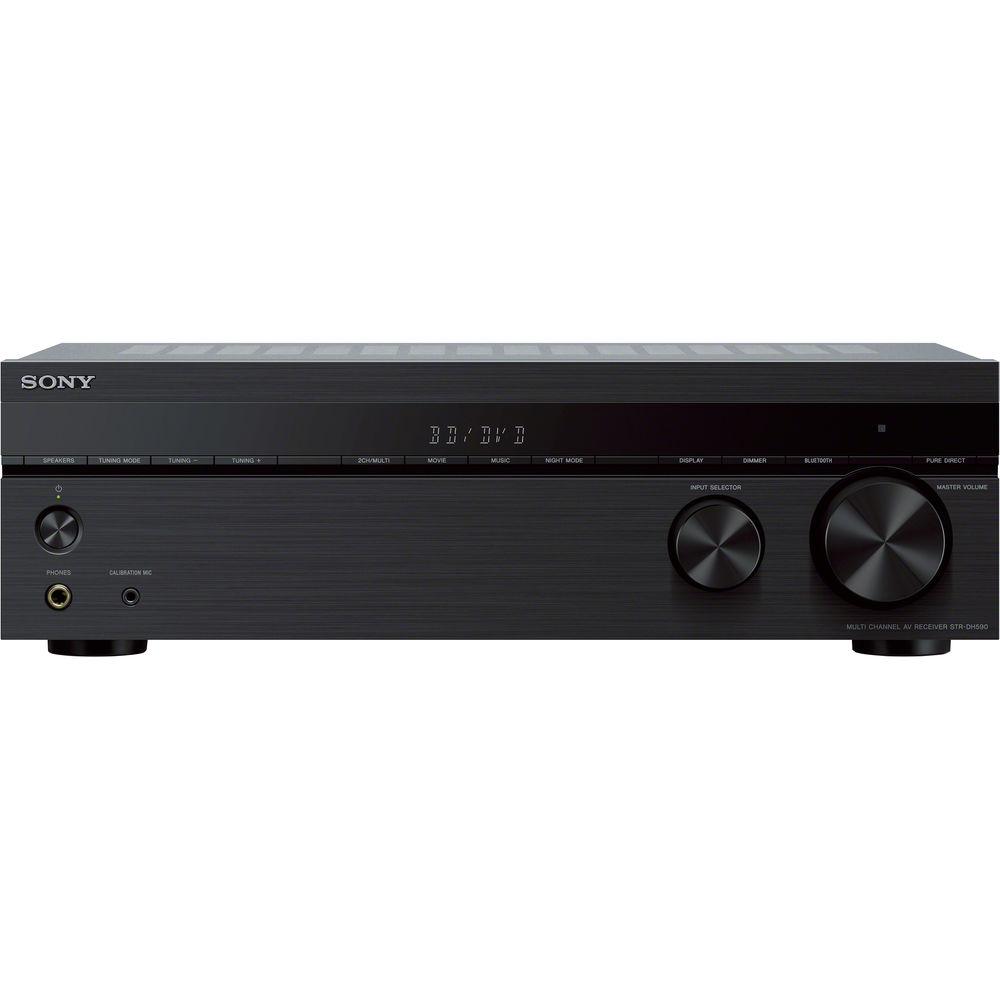

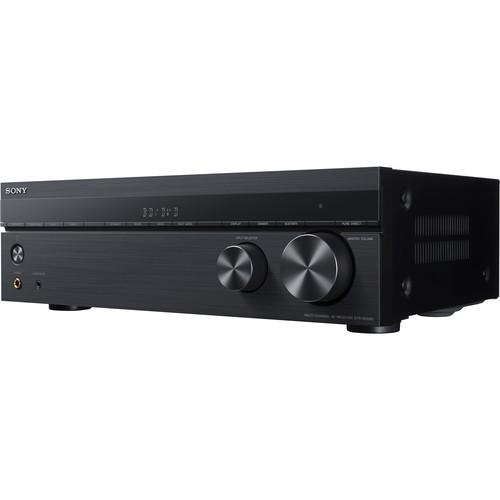

User Manual for Sony STR-DH590 5.2-Channel A V Receiver Click to enlarge the picture
Contents of the user manual for the Sony STR-DH590 5.2-Channel A V Receiver
- Product category: Receivers Sony
- Brand: Sony
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Sony Receivers
 |
User manual for the Sony STR-DH590 5.2-Channel A V Receiver contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Sony product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Sony user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Sony product will considerably shorten its lifespan!
|
Product description Enjoy wireless audio streaming and 4K HDR video pass-through with the Sony STR-DH590 5.2-Channel A/V Receiver. It features Bluetooth connectivity for wireless connection to compatible devices. It delivers up to 145W per channel at 6 Ohms for robust audio playback. D.C.A.C. sound optimization will help simplify your speaker setup and tailor the output to your listening area.
The STR-DH590 has four HDMI inputs and one HDMI output, all of which support 4K resolution, HDR, HDCP 2.2, and 3D. It also has a headphone jack for private listening. The GUI on-screen display will walk you through any settings you may want to change. - See Clearly with High Dynamic Range (HDR)
- With HDR pass-through support, you can enjoy the enhanced image contrast and brightness, shadow detail, and highlights with compatible content and devices. The HDR10, HLG, and Dolby Vision formats are supported.
- HDMI Pass-Through
- The 4K pass-through feature allows data to pass through the receiver without compromising image quality thanks to HDCP 2.2 compliance.
- Flexible Surround Sound Options
- Immerse yourself in movie action with a 5.1-channel setup, or enjoy virtual surround with S-Force PRO Front Surround. DCAC (Digital Cinema Auto Calibration) automatically optimizes the sound based on where you sit in relation to your speakers to enhance sound quality.

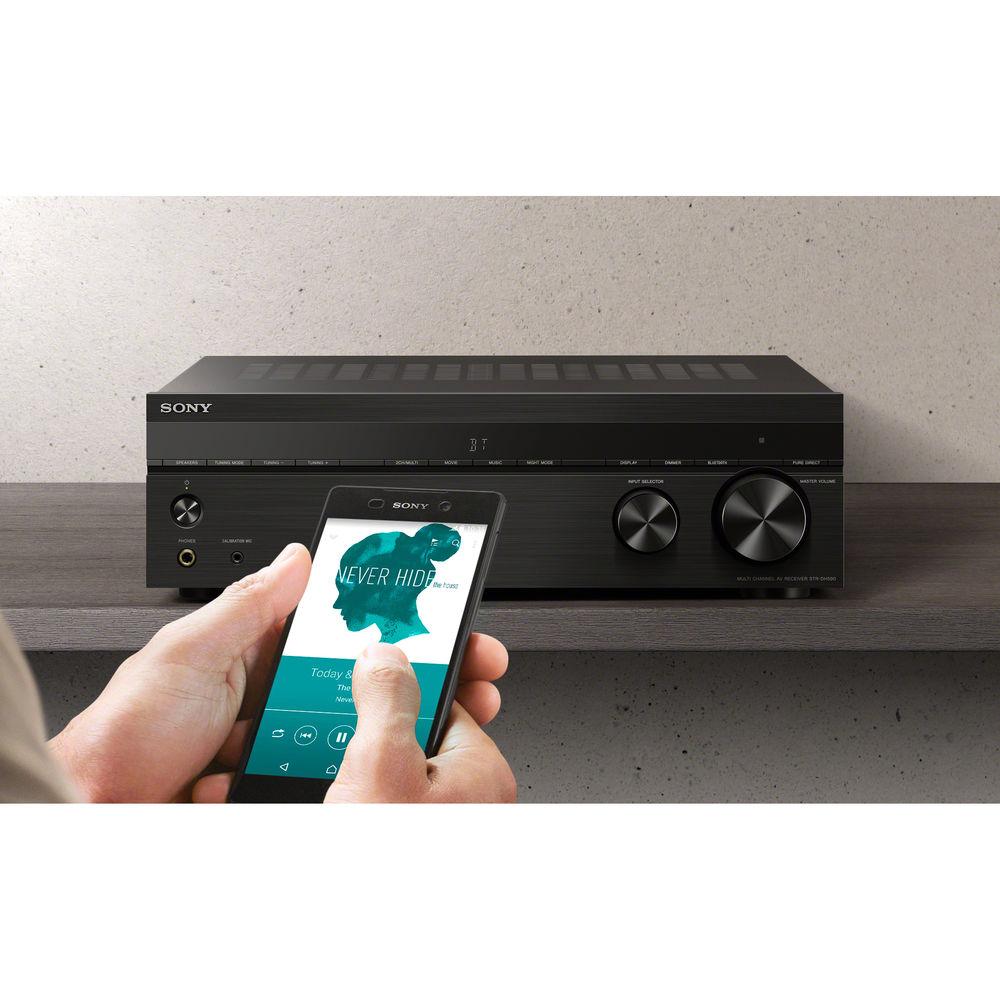

- Bluetooth Connectivity
- Not only can you connect to the receiver with Bluetooth and play all your favorite tracks wirelessly, you can also turn the receiver on directly from your paired device.
- Clean Design
- The minimal front includes the Pure Direct button, which feeds sound directly to the receiver's amplifier, helping to preserve signal and clarity.
- Bring It All Together

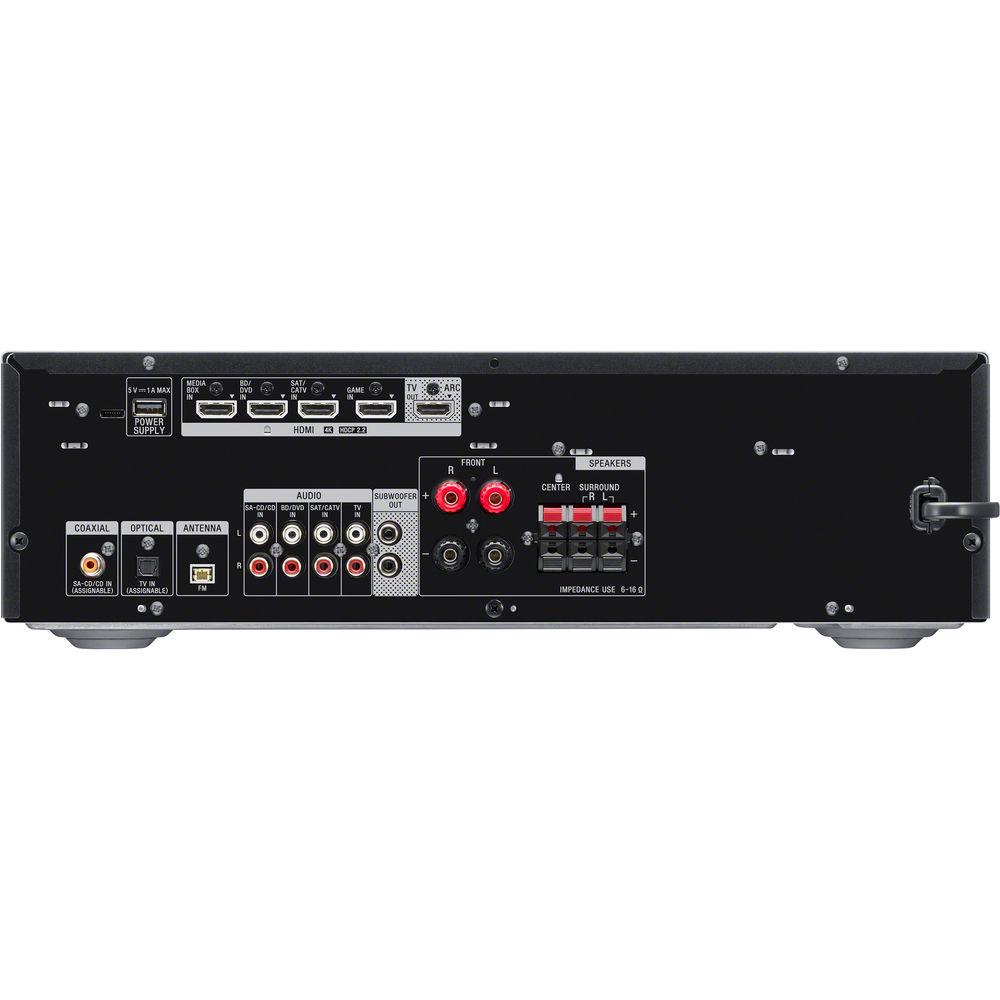

- With the four HDMI, optical and digital coaxial, four analog audio inputs, and HDMI output, you can connect your display, Blu-ray player, gaming console, and more.
- Compact Profile
- The STR-DH590 has a compact 5.25" height for easy storage in a media unit.
- Reinforced Design
- The reinforced frame and beam chassis design help reduce external speaker sound pressure for ore focused, powerful sound.
- Power Amplifier Engineered for Minimal Distortion
- The power amplifier uses a glass-epoxy circuit board to help reduce vibration and distortion, providing clear, high power from each discreet amplifier.
- DSD Decoding
- Developed for High-Resolution Audio, DSD features a sampling frequency 64x that of CD audio.
- Designed to Prevent Overheating
- The heat sink is designed to maximize air intake, keeping the amplifier circuit cool to reduce distortion and increase reliability.
- Metal Framework
- The metal framework and heat sink bracket help shield the circuits from sound pressure and radiation for enhanced rigidity and clearer sound quality.
- Additional Features
-
- Supports High-Resolution Audio
- A/V Sync (fixed)
- TV Volume Offset
- Auto standby
- GUI (graphic user interface)
- Large-capacity power transformer for enhanced clarity
- FM station names, auto tuning, and direct tuning
UPC: 027242908369 In the Box Sony STR-DH590 5.2-Channel A/V Receiver Calibration Microphone Limited 2-Year Warranty More from Manufacturer rwzxsxfawqce Table of Contents
|
Upload User Manual
Have you got an user manual for the Sony STR-DH590 5.2-Channel A V Receiver in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSony STRDH590 Specs | | | Channels | 5.2 | | Power Output | 145 W @ 6 Ohms, 1 kHz, 0.9% THD, 1-channel driven | | Audio Decoding | DSD
Dolby Digital
Dolby Dual Mono
DTS-HD Master Audio
DTS-HD High-Resolution Audio
DTS 96/24 | | Sound Fields | 2-channel Stereo
Direct
Multi Ch Stereo
HD-D.C.S.
Hall (large hall)
PLII Movie
Front Surround
Jazz Club
Live Concert (Live House)
Stadium
Sports
Audio Enhancer
PLII Music
Headphone 2ch | | Speaker Impedance | 6 to 16 Ohms | | FM Tuner | Yes | | Number of Presets | 30 | | | | HDMI Pass-Through | 4K 60p 4:4:4, HDR10, HLG, Dolby Vision, ARC, BRAVIA SYNC (CEC), 3D | | | | Inputs | 4 x HDMI
1 x digital coaxial
1 x optical TOSLINK
4 x stereo RCA | | Outputs | 1 x HDMI
1 x 1/4" / 6.35 mm headphone (front)
2 x RCA subwoofer | | Other Connectors | 1 x 1/8" / 3.5 mm calibration microphone in (front)
1 x FM antenna in
1 x USB power out | | Speaker Connectors | 2 x binding post pairs
3 x spring-clip pairs | | HDCP Version | 2.2 | | | | Power Requirements | 120 VAC, 60 Hz | | Dimensions (W x H x D) | 17 x 5.25 x 11.75" / 430 x 133 x 297 mm | | Weight | 15.7 lb / 7.1 kg | | | | Package Weight | 18.2 lb | | Box Dimensions (LxWxH) | 19.3 x 13.8 x 7.0" |
