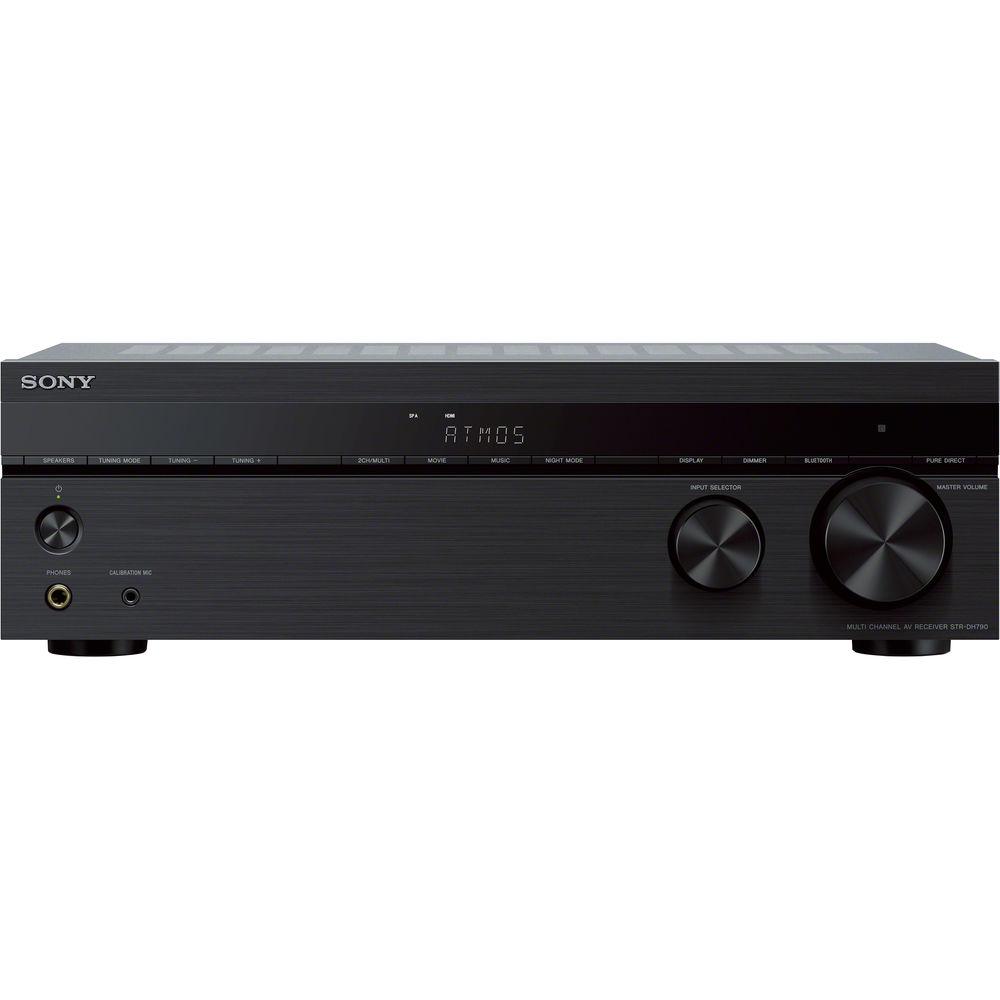

User Manual for Sony STR-DH790 7.2-Channel A V Receiver Click to enlarge the picture
Contents of the user manual for the Sony STR-DH790 7.2-Channel A V Receiver
- Product category: Receivers Sony
- Brand: Sony
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Sony Receivers
 |
User manual for the Sony STR-DH790 7.2-Channel A V Receiver contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Sony product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Sony user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Sony product will considerably shorten its lifespan!
|

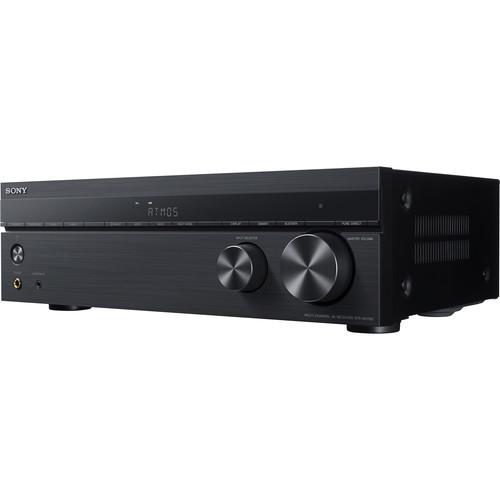

Product description Enjoy wireless audio streaming and 4K HDR video pass-through with the Sony STR-DH790 7.2-Channel A/V Receiver. It features Bluetooth connectivity for wireless connection to compatible devices. It delivers up to 145W per channel at 6 Ohms for robust audio playback. D.C.A.C. sound optimization will help simplify your speaker setup and tailor the output to your listening area.

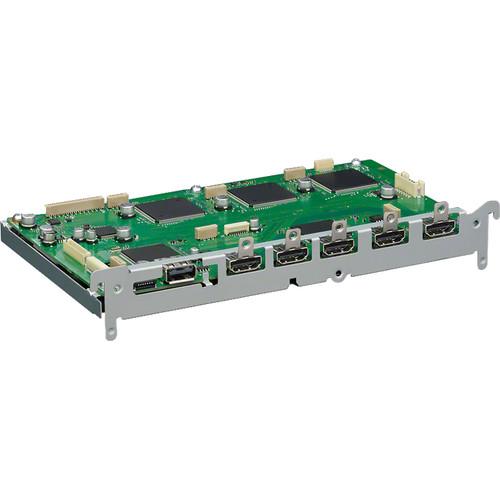

The STR-DH790 has four HDMI inputs and one HDMI output, all of which support 4K resolution, HDR, HDCP 2.2, and 3D. It also has a headphone jack for private listening. The GUI on-screen display will walk you through any settings you may want to change. - See Clearly with 4K & High Dynamic Range (HDR)
- With HDR pass-through support, you can enjoy the enhanced image contrast and brightness, shadow detail, and highlights with compatible content and devices. The HDR10, HLG, and Dolby Vision formats are supported. The 4K pass-through feature allows data to pass through the receiver without compromising image quality thanks to HDCP 2.2 compliance.
- Dolby Atmos
- Dolby Atmos surround sound technology dispenses with channel-based coding in favor of more advanced object-based coding, giving the sound designer the ability to precisely place sounds anywhere in the 3-dimensional space. The STR-DH790 features the ability to connect a 5.1 surround sound speaker system and two additional overhead speakers, or two additional Dolby Atmos-certified up-firing speakers.
- DTS:X
- DTS:X decoding delivers multi-dimensional surround sound that adapts to your speaker configuration in real time. Sound is positioned precisely around and above you thanks to object-based audio decoding.

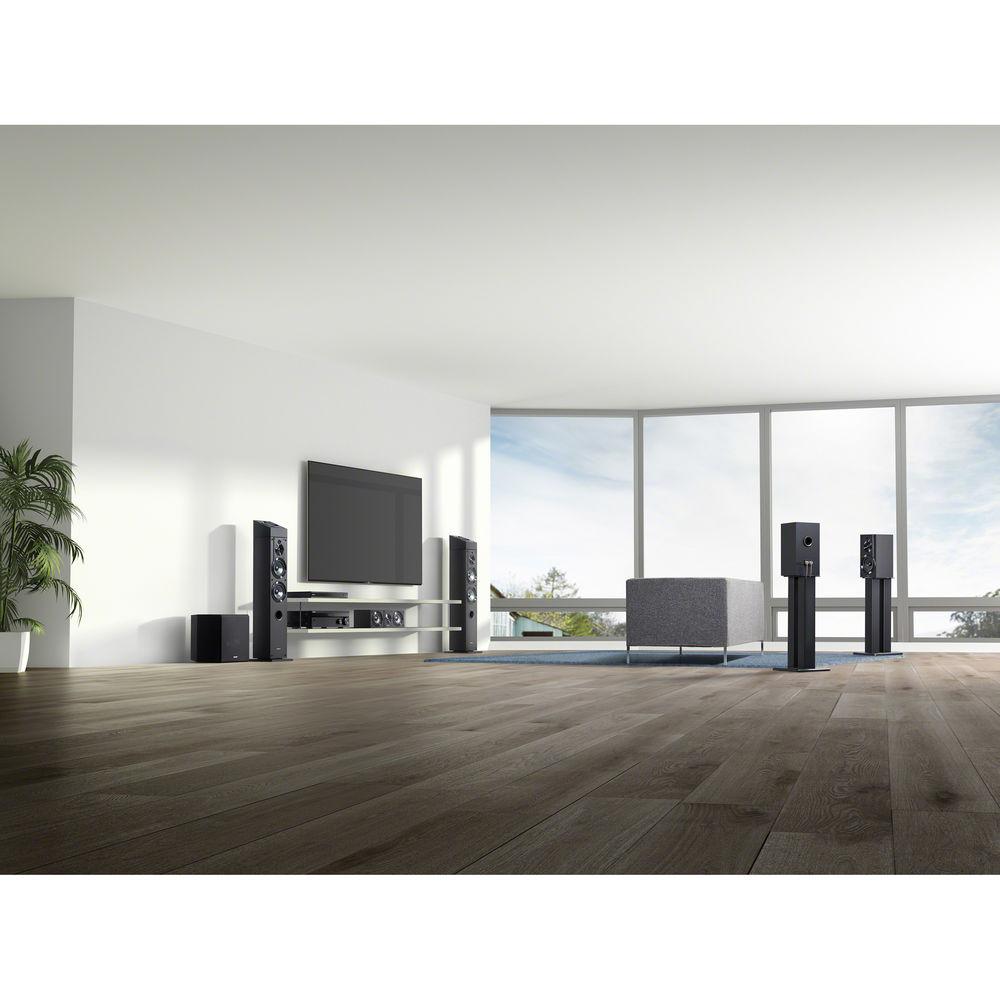

- Flexible Surround Sound Options
- Immerse yourself in movie action with a 7.2-channel configuration, experience object-based surround sound with a 5.1.2-channel setup, or enjoy virtual surround with S-Force PRO Front Surround. DCAC (Digital Cinema Auto Calibration) automatically optimizes the sound based on where you sit in relation to your speakers to enhance sound quality.
- Advanced DCAC
- If you're working with different combinations of speakers, Digital Cinema Auto Calibration (DCAC) will have them all deliver the same sound quality. Automatic Phase Matching aligns the phase characteristics of your speakers to the front left and right speaker channels, so they all work together to deliver to deliver a more effective surround sound experience.

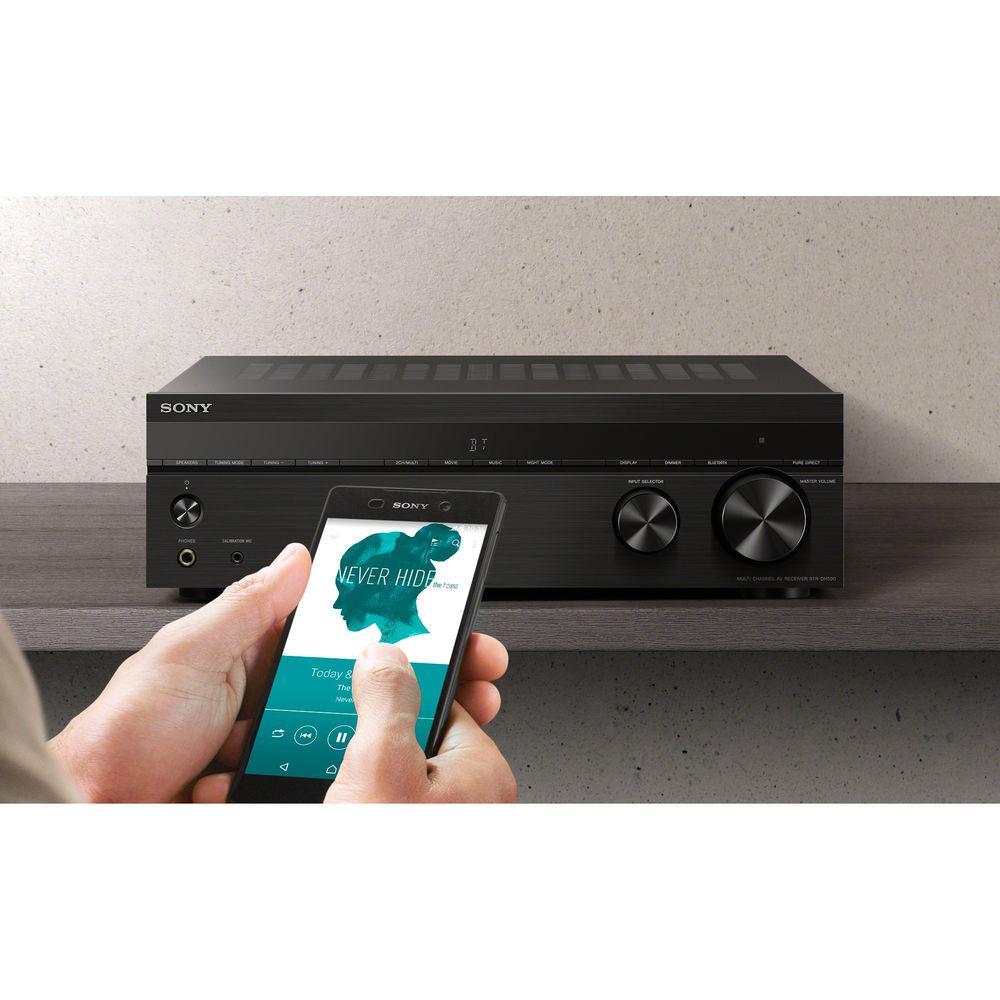

- Bluetooth Connectivity
- Not only can you connect to the receiver with Bluetooth and play all your favorite tracks wirelessly, you can also turn the receiver on directly from your paired device.
- Smooth Control
- The sleek control panel is designed to blend seamlessly with nearly any d
|
Upload User Manual
Have you got an user manual for the Sony STR-DH790 7.2-Channel A V Receiver in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSony STR-DH790 Specs | | | Channels | 7.2 | | Power Output | 145 W @ 6 Ohms, 1 kHz, 0.9% THD, 1-channel driven | | Audio Decoding | DSD
Dolby Atmos
Dolby Digital
Dolby Dual Mono
DTS:X
DTS-HD Master Audio
DTS-HD High-Resolution Audio
DTS
DTS-ES (Matrix6.1/Discrete6.1)
DTS 96/24 | | Sound Fields | 2ch Stereo
Direct
Multi Ch Stereo
Dolby Surround
Neural: X
Front Surround
Audio Enhancer
Headphone 2ch | | Speaker Impedance | 6 to 16 Ohms | | FM Tuner | Yes | | Number of Presets | 30 | | | | HDMI Pass-Through | 4K 60p 4:4:4, HDR10, HLG, Dolby Vision, ARC, BRAVIA SYNC (CEC), A/V Sync (variable), 3D | | | | Inputs | 4 x HDMI
1 x digital coaxial
1 x optical TOSLINK
4 x stereo RCA | | Outputs | 1 x HDMI
1 x 1/4" / 6.35 mm headphone (front)
2 x RCA subwoofer | | Other Connectors | 1 x 1/8" / 3.5 mm calibration microphone in (front)
1 x FM antenna in
1 x USB power out | | Speaker Connectors | 2 x binding post pairs
5 x spring-clip pairs | | HDCP Version | 2.2 | | | | Power Requirements | 120 VAC, 60 Hz | | Dimensions (W x H x D) | 17 x 5.25 x 11.75" / 430 x 133 x 297 mm | | Weight | 16.3 lb / 7.4 kg | | | | Package Weight | 18.9 lb | | Box Dimensions (LxWxH) | 19.1 x 13.5 x 7.0" |
