User Manual for Sony STR-DN1080 7.2-Channel Network A V Receiver Click to enlarge the picture
Contents of the user manual for the Sony STR-DN1080 7.2-Channel Network A V
- Product category: Receivers Sony
- Brand: Sony
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Sony Receivers
 |
User manual for the Sony STR-DN1080 7.2-Channel Network A V contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Sony product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Sony user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Sony product will considerably shorten its lifespan!
|

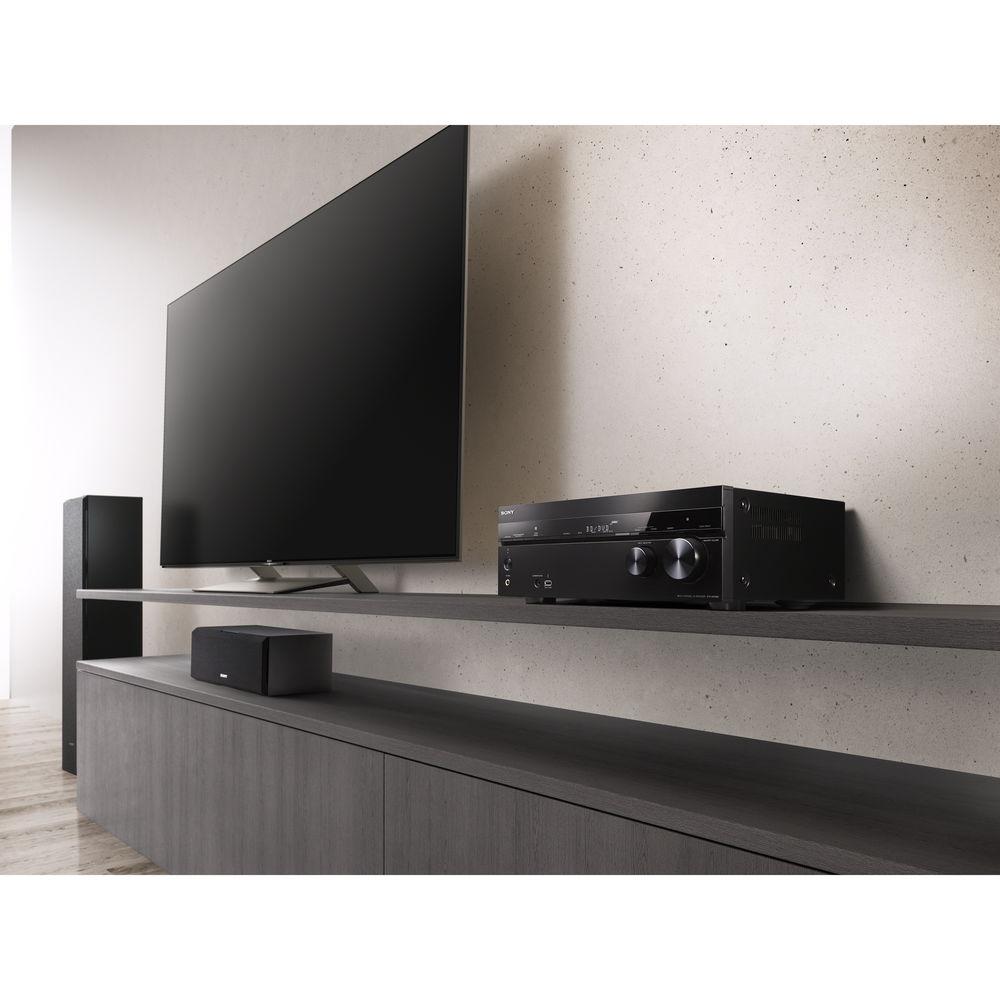

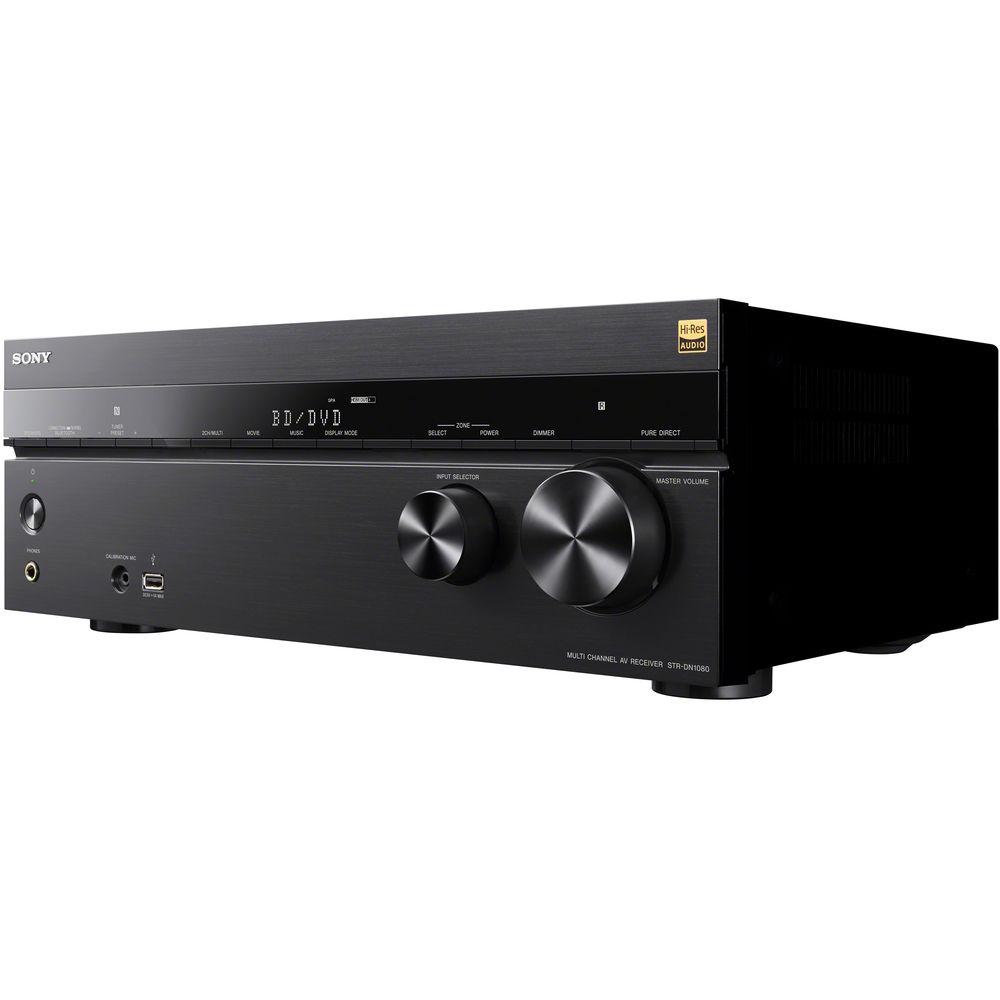

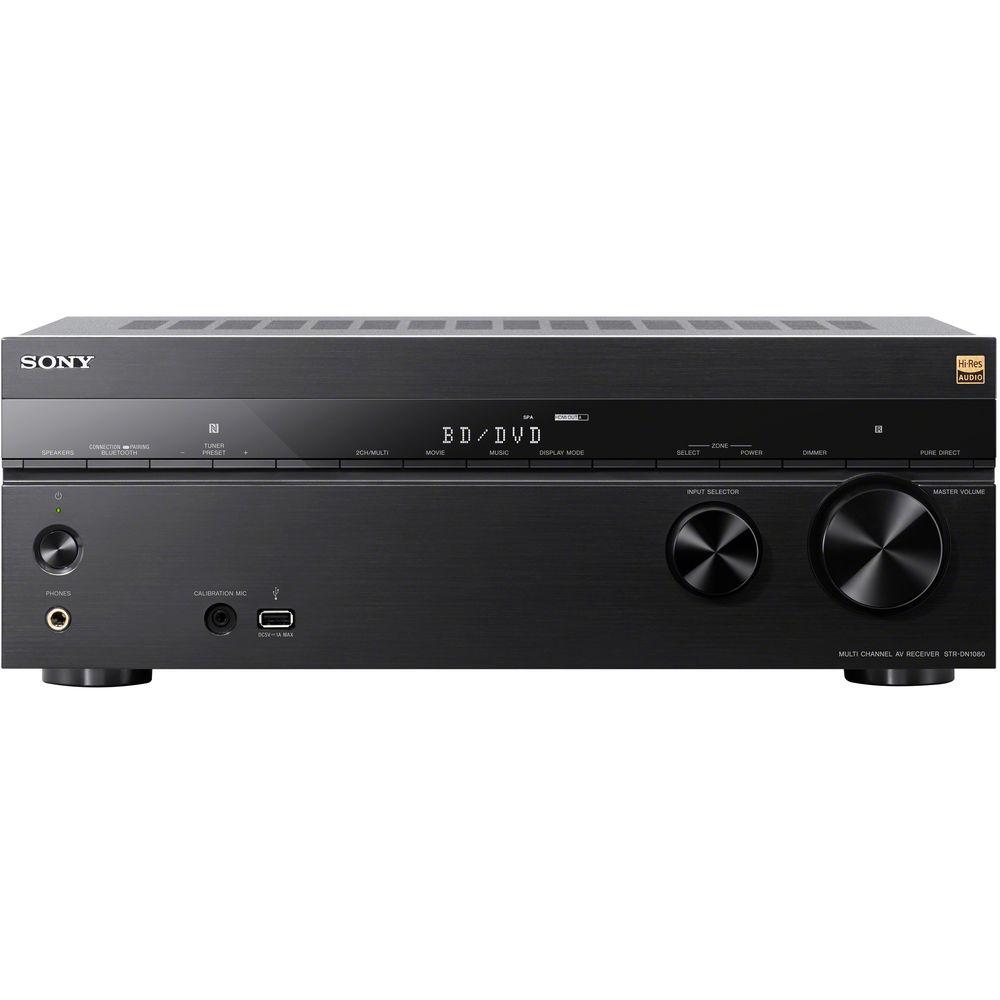

Product description Enjoy wireless audio streaming with the Sony STR-DN1080 7.2-Channel Network A/V Receiver. It has Bluetooth with NFC connectivity for a quick connection to compatible devices with just a tap. You can also stream from your compatible smartphone or tablet with Chromecast built-in. The receiver delivers up to 100W per channel at 6 Ohms for robust audio playback. D.C.A.C. EX sound optimization will simplify your speaker setup and tailor the output to your listening area.
The STR-DN1070 has six HDMI inputs and two HDMI outputs, which all support 4K resolution, HDCP 2.2, and 3D. One output is also ARC-compatible to reproduce TV-based audio such as from your TV's apps. It also has a headphone jack for private listening and a USB port for audio playback from compatible devices. The GUI on-screen display will walk you through any settings you may want to change. - Experience Dolby Atmos and DTS:X Object-Based Surround Sound
- With Dolby Atmos and DTS:X object-based surround sound, the sounds of people, music, and objects will seem to move all around you in three-dimensional space.
- 7.2-Channel Audio
- With 7.2 channels of sound and up to 100W (@ 6 ohms, 20 Hz to 20 kHz, 0.09% THD) per channel, the STR-DN1080 is designed to envelop you in sound. You can also expand your audio/video experience beyond the living room with a powered 2nd zone, plus an available 3rd zone connectivity and control.
- 4K HDR Compatibility with HDCP 2.2
- Supporting 4K 60p 4:4:4, this receiver can pass content mastered in HDR (High Dynamic Range) through to your compatible display for enhanced contrast and tonal range. It's also compatible with HDCP 2.2 copy protection for 4K support.
- Six HDMI Inputs, Two HDMI Outputs
- With six HDMI inputs and two HDMI outputs – including one dedicated second-zone HDMI output – there's space for a variety of equipment.
- Google Home Compatibility and Wireless Multi-Room Listening
- Connect with your Google Home control network and enjoy voice activation as a part of a whole-home solution. Control what music you want, and where, with the sound of your voice. Turn up the volume, skip to the next track, or stop the music, all without lifting a finger. With multi-room capability, you can expand and control your music across multiple compatible speakers in separate rooms. You can also cast music, podcasts, and radio from 100+ apps with Chromecast built-in.
- Digital Cinema Auto Calibration EX with Speaker Relocation Technology
- D.C.A.C. EX with stereo mic is Sony's auto calibration technology that adjusts speaker output to simulate the sound of optimally positioned and angled speakers.
- Phantom Surround Speaker Channels
- Can't fit seven-channel surround sound? Phantom rear surround channels will simulate the sound of a seven-channel system from your five-channel system.
- Hi-Res Audio and Native DSD up to 5.6 MHz
- The receiver supports a variety of high-resolution audio formats including 192k / 24-bit WAV/FLAC audio playback and native DSD up to 5.6 MHz. Additional file formats supported include MP3, AAC, WMA, WAV192k, FLAC 192k, ALAC, and AIFF.
- Enhanced Setup and Usability
- Set up and control the A/V receiver via an on-screen graphical user interface that's designed to be intuitive. Change inputs, adjust settings, and confirm volume levels on-screen.
- Dual-Band Wi-Fi for AirPlay, DLNA, Chromecast built-in, and Spotify Connect
- Wirelessly connect with dual-band Wi-Fi and stream music stored on your home network or favorite devices, including AirPlay compatibility. You can also play Spotify using the Spotify app as a remote, and jump right back into the last track you were listening to on your Spotify account by pushing the Music Service button.
- Stream Audio via Bluetooth and Control Your Experience with Your Smart Device
- Download the free SongPal and Network Audio Remote apps from iTunes or the Google Play Store and use your iPhone or Android devices to control receiver functionality, including volume and input selection.
- Additional Features
-
- A/V SYNC
- Center Speaker Lift Up
- Digital Legato Linear
- In-Ceiling Speaker Mode
- OP processing
- Pure Direct
- Sound Optimizer
- A/B/A+B/Off speaker selection
- Automatic Phase Matching via D.C.A.C. EX
- Phantom Surround Back
- Speaker Relocation
- Bluetooth receiver and transmitter
- Dual-band (2.4 / 5 GHz) 802.11a/b/g/n Wi-Fi
- 7-channel amp
- Bass/Treble control
- Auto/Direct Tuning
- FM station name display
- S-Select
- Audio Widget
- HDMI standby pass-through
- CIS IP control
- SDDP (Control4) compatibility
- 2nd A: Speaker (Variable) / Line (Variable, Fixed)
- HDMI Zone
- Multi-Zone Line Out Level and Volume Control for Zone 2
- Compatible with Video & TV Sideview app
- Music service button on remote control
- Network Player/Renderer
- SongPal Link
- Easy Setup Wizard
- GUI Blending
- Custom Preset (Easy Automation)
- Optical & digital coaxial input assign
- Auto Standby
- System updates via Ethernet or USB
- Walkman connectivity for music
UPC: 027242901896 In the Box Sony STR-DN1080 7.2-Channel Network A/V Receiver Remote Control AAA Batteries FM Wire Antenna Calibration Microphone Guides & Manuals More from Manufacturer Table of Contents
|
Upload User Manual
Have you got an user manual for the Sony STR-DN1080 7.2-Channel Network A V Receiver in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Download User ManualThe user manual for the Sony STR-DN1080 7.2-Channel Network A V Receiver can be downloaded in PDF format at the link stated below.
Technical parametersSony STR-DN1080 Specs | | | Channels | 7.2 | | Amplifier Power | 2 x 100 W @ 6 Ohms, 20 to 20 kHz, 2-channel driven, 0.09% THD
2 x 120 W @ 6 Ohms, 1 kHz, 2-channel driven, 1% THD
165 W @ 6 Ohms, 1 kHz, 1-channel driven, 0.9% THD | | Audio Decoding | DSD (up to 2.8 MHz, 5.1-channel)
DTS
DTS-ES (Matrix 6.1 / Discrete 6.1)
DTS 96/24
DTS HD MA
DTS HD HR
DTS:X
Dolby Atmos
Dolby Digital
Dolby Dual Mono
Dolby TrueHD
Dolby Digital Plus
LPCM (up to 192 kHz / 24-bit, 7.1-channel) | | Sound Fields | 2ch
Audio Enhancer
Audio Format Decoding
Direct
Dolby Surround
Front Surround
Headphone 2ch
Multi Stereo (Multi Ch Stereo)
Neural:X | | Impedance Matching Capability | 6 to 16 Ohms | | Crossover Frequency | Subwoofer: 40 to 200 Hz (17 points) | | FM Tuner | Yes (30 presets) | | USB Support | AAC
ALAC (up to 192 kHz / 24-bit, 5.1-channel)
DSD (up to 5.6 MHz, 5.1-channel)
DSF (up to 5.6 MHz, 5.1-channel)
FLAC (up to 192 kHz / 24-bit, 5.1-channel)
WAV (LPCM) (up to 192 kHz / 24-bit, 7.1-channel)
AIFF (LPCM) (up to 192 kHz / 24-bit, 5.1-channel)
MP3
WMA | | Network File Protocols Supported | MP3: .mp3
AAC/HE-AAC: .m4a, .aac
WMA9 Standard: .wma
LPCM: .wav
FLAC: .flac, .fla
DSF: .dsf
DSDIFF: .dff
AIFF: .aiff, .aif

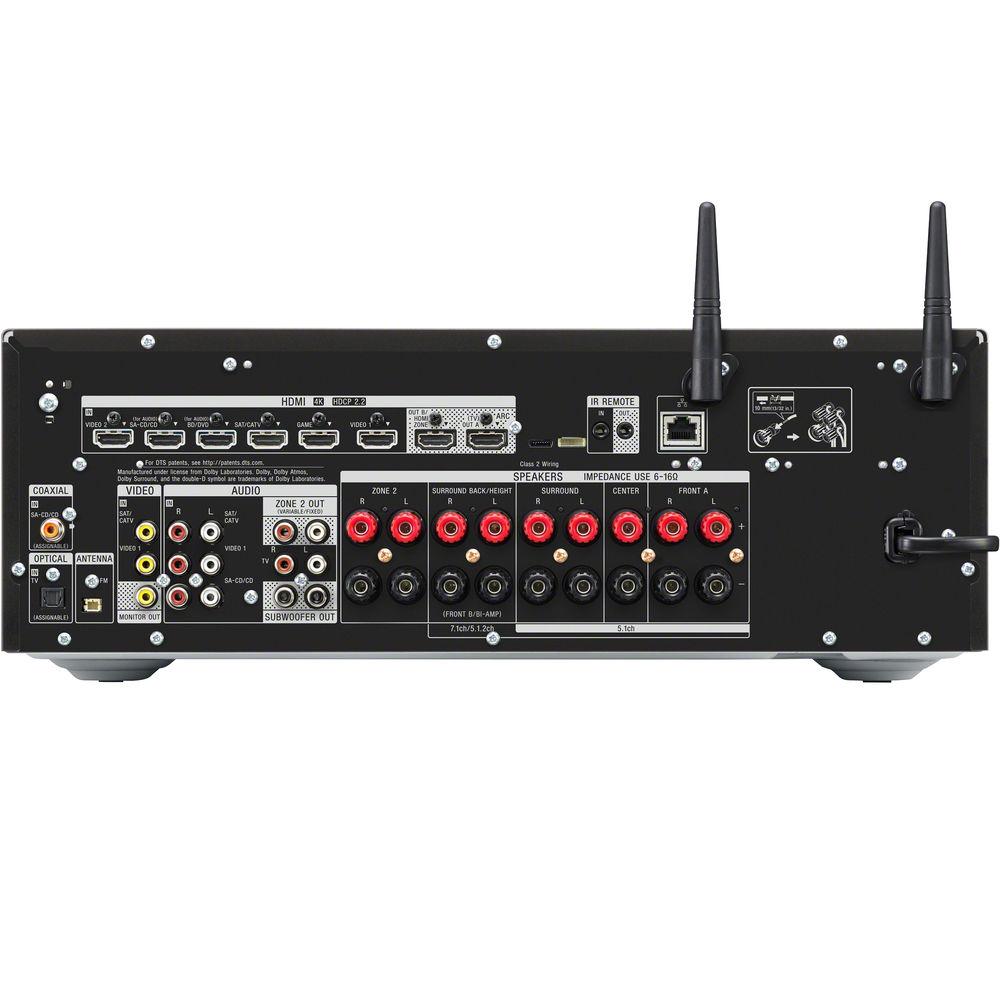

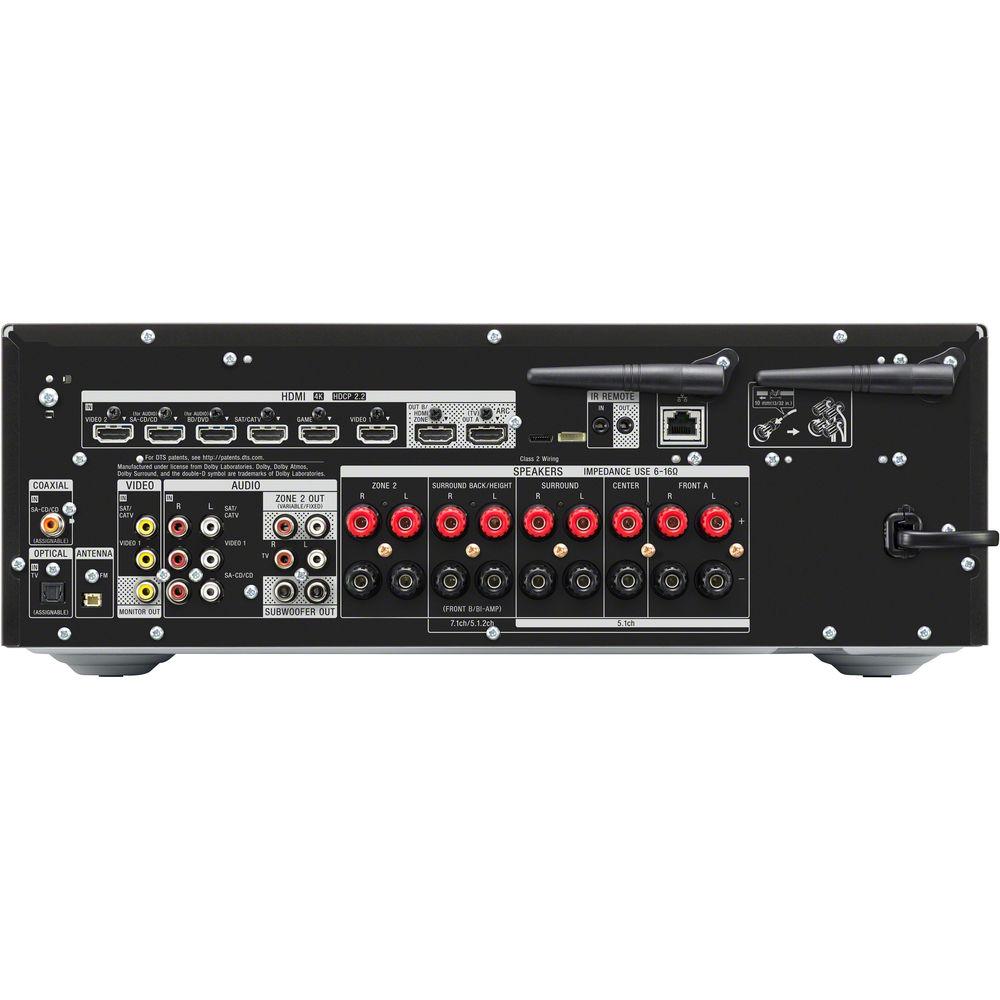

ALAC: .m4a | | Sync | A/V Sync Time: 0 to 300 ms | | | | HDMI Video Output | 3D, 4K 60p 4:4:4, 1080p, 4K upscaling (from HDMI), HDR | | HDMI CEC | Yes (BRAVIA Sync) | | | | Bluetooth | Yes | | NFC | Yes | | AirPlay | Yes | | ARC (Audio Return Channel) | Yes | | Bi-Amp Capability | Yes (shared with surround back) | | Inputs | 6 x HDMI
1 x Digital coaxial
1 x Optical TOSLINK
2 x Composite video
4 x Stereo RCA audio
1 x USB 2.0 (front) | | Outputs | 2 x HDMI (1 assignable)
1 x Composite video
1 x Gold-plated 1/4" (6.35 mm) headphone (front)
2 x Subwoofer RCA pre-outs
1 x Zone 2 (variable/fixed) | | Other Interfaces | 1 x Ethernet
1 x Calibration microphone (front)
1 x FM antenna
1 x IR remote in
1 x IR remote out | | Speaker Connectors | 9 x Nickel-plated screw terminal pairs | | HDCP Version | 2.2 | | | | Graphical User Interface | Yes (English, Spanish, French), via HDMI | | Sleep Timer | Yes, up to 2 hours | | Power Requirements | 120 VAC, 60 Hz | | Power Consumption | Operational: 240 W
Standby: 0.4 W
Bluetooth Standby: 2.5 W | | Dimensions (W x H x D) | 17 x 6.25 x 13.125" (430 x 156 x 331 mm) | | Weight | 20.06 lb (9.1 kg) | | | | Package Weight | 24.4 lb | | Box Dimensions (LxWxH) | 19.3 x 15.5 x 8.0" |
