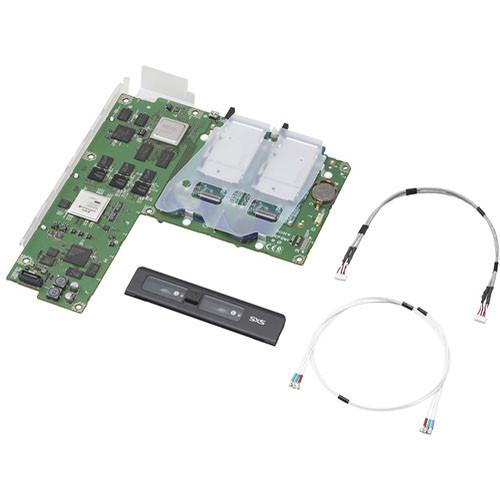

User Manual for Sony SxS Card Slot Option Board for PDW-HR1 Click to enlarge the picture
Contents of the user manual for the Sony SxS Card Slot Option Board
- Product category: Solid State Recorder Accessories Sony
- Brand: Sony
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Sony Solid State Recorder Accessories
|
User manual for the Sony SxS Card Slot Option Board contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Sony product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Sony user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Sony product will considerably shorten its lifespan!
|
Product description The Sony SxS Card Slot Option Board for PDW-HR1 is an SxS Memory Card Adaptor that can be used as an option for adding 2 SxS card slots to the PDW-HR1 Professional Disc Field Station. You can use play content on SxS memory cards and copy content between professional discs and SxS memory cards via the optional board.
You can directly browse files on SxS cards via the PDW-HR1 and also perform various clip transcoding and copy functions. You can copy data to and from the UserData folder of the PDW-HR1 and thus maintain the original XDCAM EX card BPAV folder structure whenever required.
Rewrapping or transcoding of XDCAM EX MP4 files to optical XDCAM MXF files during copy process is also possible using the SxS Card Slot Option Board for PDW-HR1. Consolidation of all footage on a disc using the MXF file format is also possible which is useful for XDCAM EX and optical XDCAM photographers.
You can easily transcode and upconvert SD clips to HD as well as cross convert 720p material to 1080i material using the SxS Card Slot Option Board for PDW-HR1. - SxS Memory Card Adaptor that can be used as an option for adding 2 SxS card slots to the PDW-HR1 Professional Disc Field Station
- Allow you to play content on SxS memory cards and copy content between professional discs and SxS memory cards via the optional board
- Allows you to directly browse files on SxS cards via the PDW-HR1 and also perform various clip transcoding and copy functions
- Allows copying data to and from the UserData folder of the PDW-HR1 and thus maintaining the original XDCAM EX card BPAV folder structure whenever required
- Enables rewrapping or transcoding of XDCAM EX MP4 files to optical XDCAM MXF files during copy process
- Consolidates all footage on a disc using the MXF file format
- Transcodes and upconverts SD clips to HD as well as cross converts 720p material to 1080i material
In the Box Sony SxS Card Slot Option Board for PDW-HR1 14 x Fitting Screws Installation Manual CD-ROM Operation Guide Quick Reference 1 Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Sony SxS Card Slot Option Board for PDW-HR1 in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSony PDBKMK1 Specs | Power / Consumption | +12VDC, 1A (Power is supplied from PDW-HR1) | | Mass | Approx. 0.62 lb (290g) (Total Mass of the DPR-321 Board, EC-67 Board, and the Slot Cover) | | Recording & playback rate | SBP-16
- HQ mode 50 min.
- SP mode 70 min.
- DVCAM mode 65 min.
- HD422 50/IMX50 30 min.
- HD420 HQ 45 min.
- DVCAM 55 min.
SBP-32 / SBS-32G1A - HQ mode 100 min.
- SP mode 140 min.
- DVCAM mode 130 min.
- HD422 50/IMX50 60 min.
- HD420 HQ 90 min.
- DVCAM 110 min.
SBS-64G1A - HQ mode 200 min.
- SP mode 280 min.
- DVCAM mode 260 min.
- HD422 50/IMX50 120 min.
- HD420 HQ 180 min.
- DVCAM 220 min.
| | Dimensions | 8.6 × 9.37" (216.2 × 235.5 mm) |
