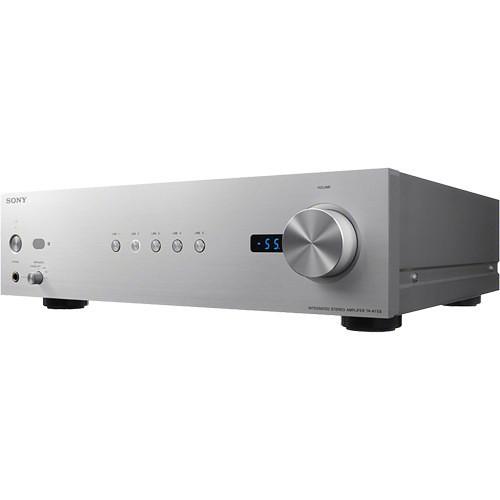

User Manual for Sony TA-A1ES High-Resolution Audio Stereo Amplifier Click to enlarge the picture
Contents of the user manual for the Sony TA-A1ES High-Resolution Audio Stereo Amplifier
- Product category: Amplifiers Sony
- Brand: Sony
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Sony Amplifiers
 |
User manual for the Sony TA-A1ES High-Resolution Audio Stereo Amplifier contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Sony product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Sony user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Sony product will considerably shorten its lifespan!
|
Product description The TA-A1ES High-Resolution Audio Stereo Amplifier from Sony utilizes a frame/beam/base chassis that produces a high power output, and bias that's intuitively controlled by and linked to volume position. Employing FET input and buffer circuits that enhance performance, the amplifier's optimum gain volume control combines electronic volume with a discrete buffer amplifier, allowing it to reduce gain error and produce sound quality superior to conventional volume controls. It is designed with a single pair of transistors to eliminate variations in each channel at the source, as well as variation controlling emitter resistance, allowing the transistors to drive the speakers directly, for a more character-free sound quality. The TA-A1ES has a power amp stage featuring smart bias control for Class-A operation and single push-pull hi-current amplifier. - High-Resolution Audio
- A field-effect transistor (FET) input buffer delivers enhanced sound quality with low distortion. Hear every detail of the song with final stage circuitry that produces a high power output, and bias that's intuitively controlled by and linked to volume position
- Digital Sound Enhancement Engine (DSEE) Technology
- With Digital Sound Enhancement Engine (DSEE) technology, you can hear all your music - even compressed files - in quality closer to the original recording
- Make a Secure Connection
- The screw-type terminals and shaved pin, 18mm pitch jack ensure a secure fit between the amp and your components, reducing the chances of sound degradation
- Single Push-Pull Amplifier
- This amplifier achieves dynamic output by using a single push-pull amplifier. The power amplifying stage, which determines sound quality, consists of a single pair of transistors, eliminating the emitter resistance used by conventional amplifiers to suppress overheating. The transistor output drives the speaker directly, reproducing sound with less undesired character
- Independent HP-AMP
- To reflect the growing popularity of premium-quality headphones, this amp includes a discrete amp with gain optimized to match headphone impedance
- Optimum Gain Volume Control
- The electronic volume with a buffer amp enhances the overall sound quality by reducing the gain error experienced by conventional amps
- Large Speaker Terminals
- The terminals of this amplifier minimize sound quality deterioration. Y-lugs and speaker wires can be tied securely
- Converting Analog to Digital
- High-res audio converts analog sound to digital at a higher rate than CDs, producing sound at 24-bit / 192 kHz, compared to CDs at 16-bit / 44.1 kHz
- FBB
- A frame beam base chassis has been developed for the stereo amplifier. By combining a conventional frame beam chassis with a transformer base, the frame is more stabilized, reproducing better sound with less overall distortion
- FET Input Buffer
- The TA-A1ES has been fitted with an FET input buffer and a discrete circuit for the pre-amp. They produce the sharpness and detail that High-Resolution Audio brings to your music with minimal distortion
- Simplified Circuitry
- The TA-A1ES has simplified the circuitry of the amplifier's final stage by reducing transistors and eliminating the emitter resister, coil, and capacitor. The result is a high power output with low distortion, so you can listen with your High-Resolution Audio files without a loss in sound quality
- Intelligent Controls
- The TA-A1ES intelligently controls the bias by a volume position to heighten the sound quality
- Additional Features
- Number of amp. channels: 2-channel
4 ohm / 8 ohm switching
OP processing
Auto standby
Energy saving features UPC: 027242868205 In the Box Sony TA-A1ES High-Resolution Audio Stereo Amplifier AC Power Cord (Mains Lead) RM-AAU181 Remote Control 2 x R03 (Size AAA) Batteries Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Sony TA-A1ES High-Resolution Audio Stereo Amplifier in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSony TAA1ES Specs | | | Rated Power Output | 80 W + 80 W
20 Hz - 20 kHz 0.09 % 8 ohms
Measured under the following conditions: Power requirements: 230 V AC, 50 /60 Hz | | Impedance | 4 ohms or higher | | Distortion | 0.008 %
1 kHz 10 W 8 ohm | | Frequency Response | 10 Hz - 100 kHz ±3 dB (8 ohms) | | Input | Unbalanced:
Sensitivity: 150 mV
Impedance: 47 kohms
S/N ratio: 96 dB (Input short, A, 20 kHz LPF)
Balanced:
Impedance: 20 kohms / 20 kohms
S/N ratio: 96 dB (Input short, A, 20 kHz LPF) | | Inputs/Outputs | Analog Audio Input: 5 (Balanced x 1, Unbalanced x 4)
Headphone Output: 1
Speaker Output
IR Repeat In: 1 | | | | Impedance | Low: from 8 ohms to less than 50 ohms
Mid: from 50 ohms to less than 300 ohms (+10 dB against Low)
Hi: 300 ohms or higher (+16 dB against Low) | | Distortion | 0.1% or less
20 Hz - 20 kHz
Low: (8 ohms load impedance) 500 mW + 500 mW
Mid: (150 ohms load impedance) 500 mW + 500 mW
Hi: (300 ohms load impedance) 250 mW + 250 mW | | Frequency Response | 10 Hz - 100 kHz +0.5/-3 dB (at Low Mode 8 ohms load impedance) | | | | Power Requirements | 120 V AC, 60 Hz | | Power Consumption | Normal: 300 W
Standby: 0.4 W | | Dimensions (W x H x D) | Including Projecting Parts and Controls: 16.9 x 5.1 x 16.5" (430 x 130 x 420 mm) | | Weight | 39.7 lb (18 kg) | | | | Package Weight | 46.3 lb | | Box Dimensions (LxWxH) | 21.8 x 19.6 x 8.6" |
