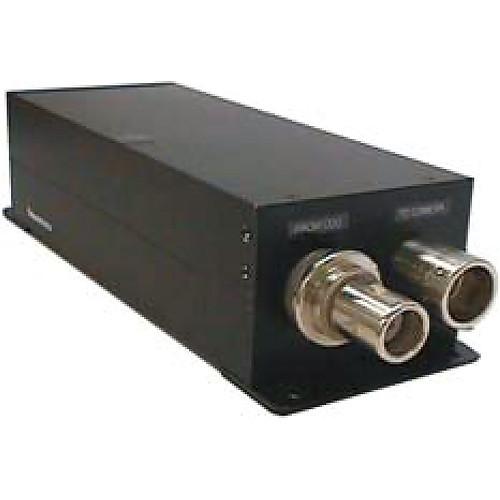

User Manual for Sony Teleprompter Adapter for the HSC-300 HXC-100 Series HD SD System Cameras Click to enlarge the picture
Contents of the user manual for the Sony Teleprompter Adapter for the HSC-300
- Product category: Studio & EFP Camera Accessories Sony
- Brand: Sony
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Sony Studio & EFP Camera Accessories
|
User manual for the Sony Teleprompter Adapter for the HSC-300 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Sony product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Sony user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Sony product will considerably shorten its lifespan!
|
Product description The Sony Teleprompter Adapter TA-HXC provides power to a large teleprompter for studio and remote field production applications. Designed for the Sony HSC-300/HXC-100 Series HD/SD System Cameras, the adapter eliminates the need for an additional teleprompter power source, thus providing for portable camera flexibility with studio camera teleprompter features.
The Adapter is designed as a separate unit, fully transparent to camera operation. It is connected directly to the triax camera cable (looped through) and extracts teleprompter DC power. The 180 VDC from the CCU is converted to 12 VDC to power the teleprompter, eliminating the need for additional power source at the camera location. Table of Contents
|
Upload User Manual
Have you got an user manual for the Sony Teleprompter Adapter for the HSC-300 HXC-100 Series HD SD System Cameras in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSony TMTAHXC Specs | Power Input | 180 VDC | | Power Output | Voltage: 12 VDC
Power: 80 W max | | Connectors | CCU: Triax Plug, Kings 7704-6
Camera: Triax Jack, Kings 7704-2
Teleprompter: 4-pin XLR Female | | Temperature | Operating Temperature: 14 to 104ºF (-10 to 40ºC)
Storage Temperature: -4 to 158ºF (-20 to 70ºC)
Humidity: 5 to 95% (non-condensing) | | Dimensions | Including protrusions: 11.25 x 4 x 2.92" (28.57 x 10.16 x 7.41 cm) | | Weight | 4 lb (1.8kg) |
