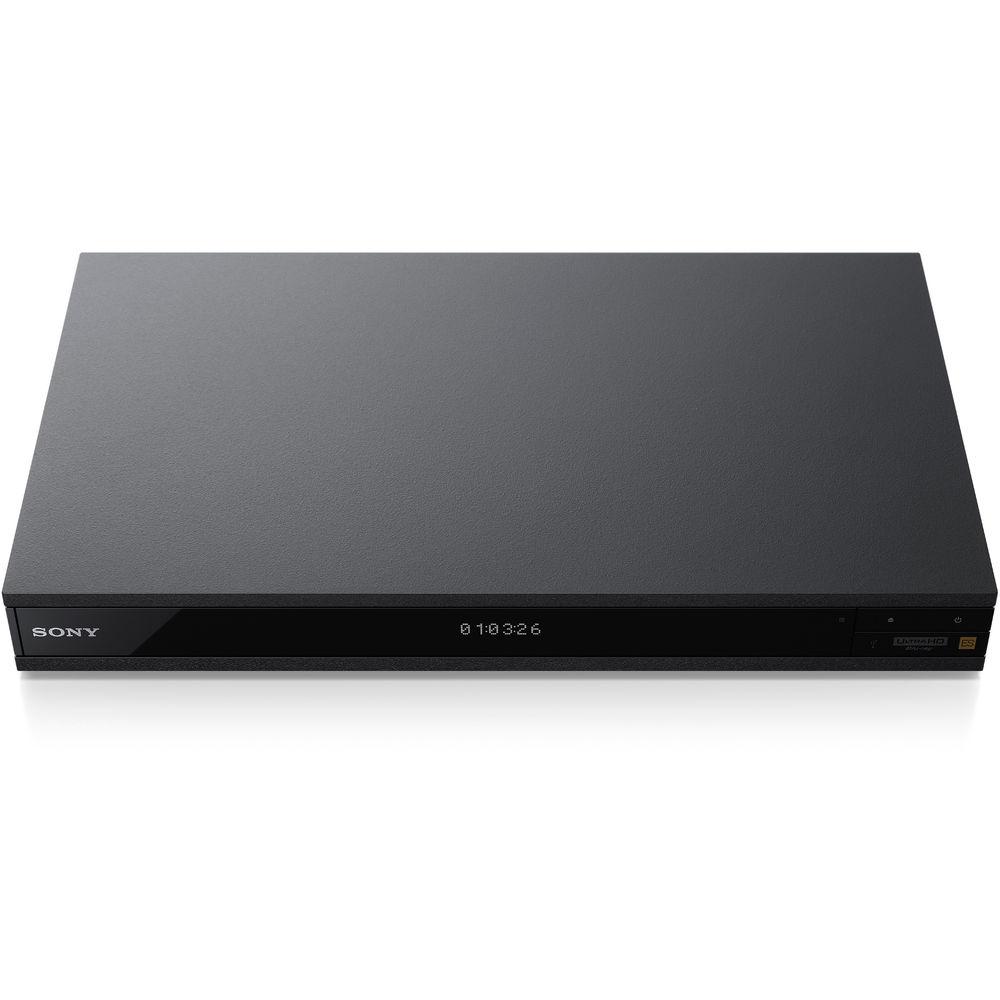

User Manual for Sony UBP-X1000ES HDR UHD Blu-ray Disc Player Click to enlarge the picture
Contents of the user manual for the Sony UBP-X1000ES HDR UHD Blu-ray Disc
- Product category: Blu-ray Disc Players Sony
- Brand: Sony
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Sony Blu-ray Disc Players
 |
User manual for the Sony UBP-X1000ES HDR UHD Blu-ray Disc contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Sony product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Sony user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Sony product will considerably shorten its lifespan!
|

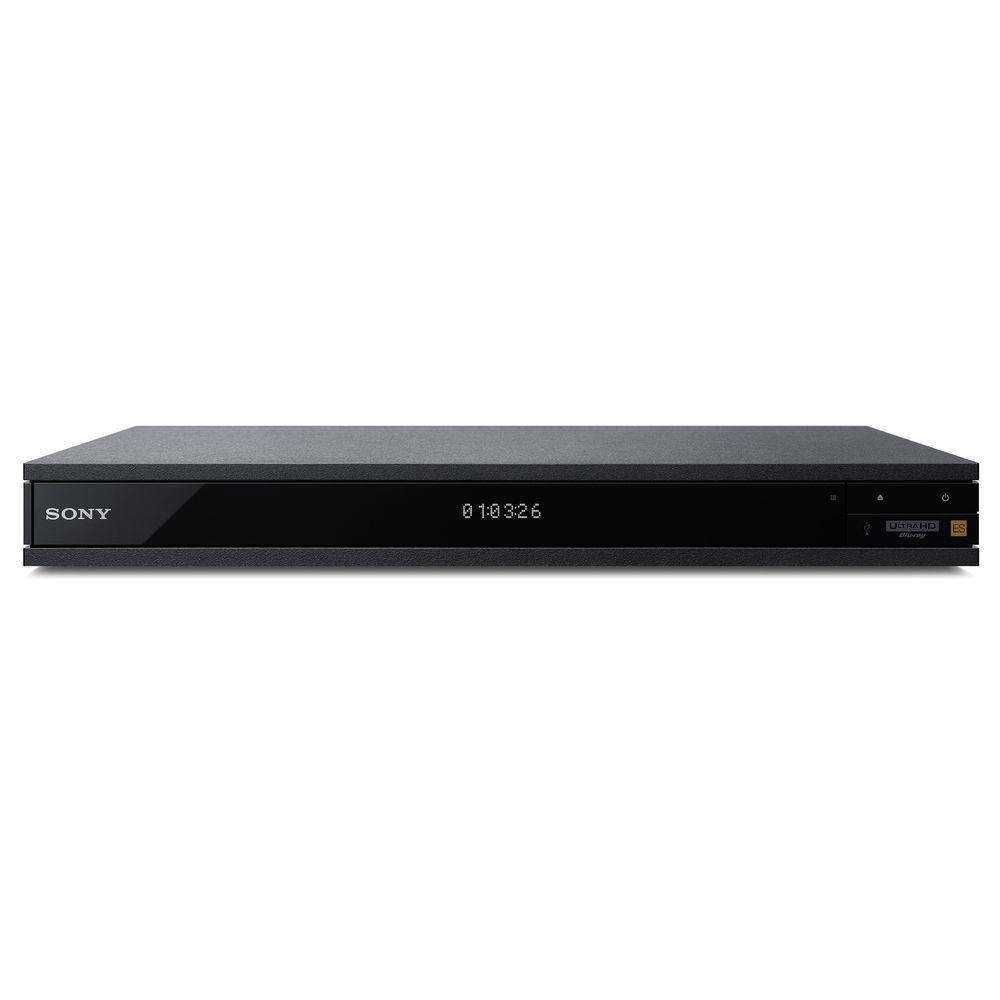

Product description Enjoy 4K multimedia playback and near-4K upscaling on your compatible display with the Sony UBP-X1000ES HDR UHD Blu-ray Disc Player. It supports high-resolution audio formats such as Dolby TrueHD plus the object-based audio formats Dolby Atmos and DTS:X. The UBP-X1000ES features two HDMI outputs and a digital coaxial output for versatile connectivity options; one HDMI output exclusively transmits audio for connection to a non-ARC-compatible sound system.

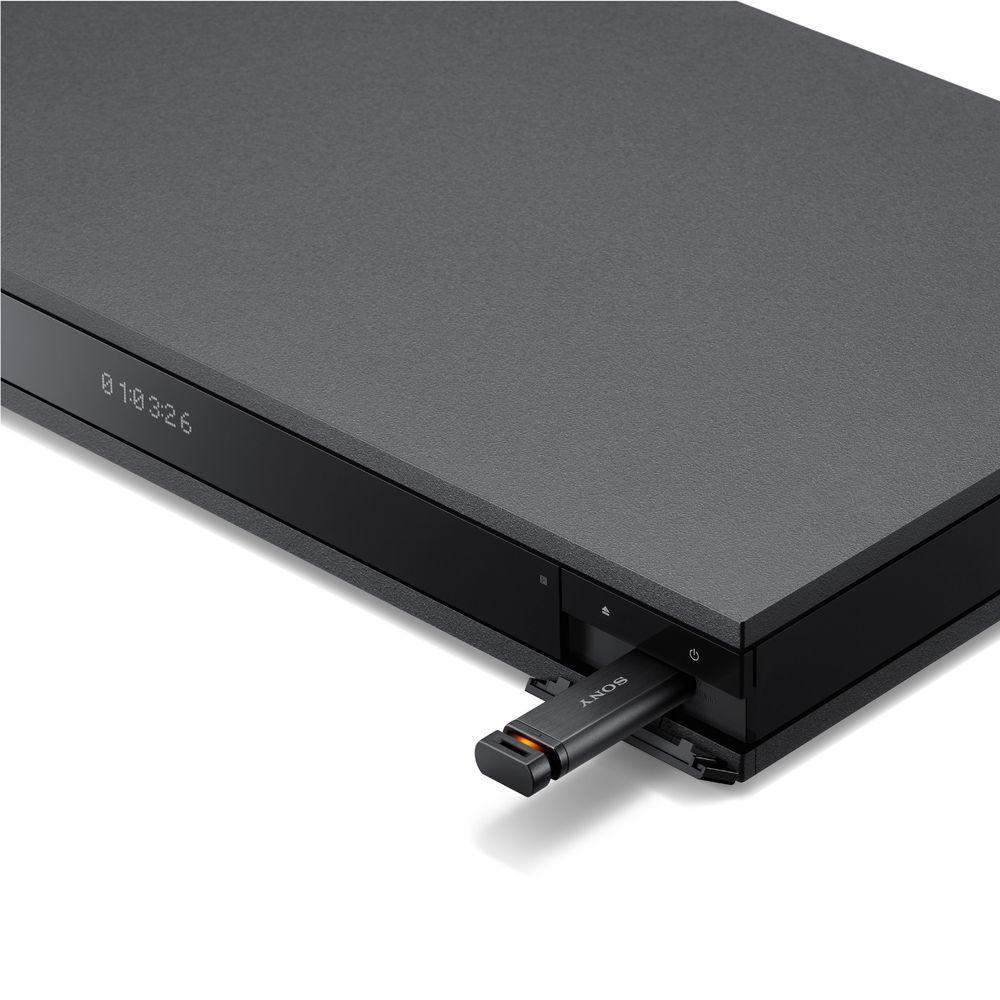

This Blu-ray player has Wi-Fi and an Ethernet port built-in to allow you to stream multimedia content from your home network. The USB port also provides for the playback of your digitally stored media. You can connect a pair of Bluetooth headphones for private listening, or Bluetooth speakers to move your audio out of the main listening area. - Enhanced Realism with 4K Ultra HD Blu-ray
- Play 4K Ultra HD movies at four times the resolution of Full HD 1080p, letting you watch your favorite scenes with a higher level of detail and clarity.
- More Vibrant Colors with 4K High Dynamic Range
- Combined with the clarity of 4K, HDR allows for a greater range of color contrast and brightness, enhancing details from the original film format.
- Experience Dolby Atmos and DTS:X Object-Based Surround Sound
- Dolby Atmos and DTS:X object-based surround sound are designed to make you feel like you're inside the action as the sounds of people, music, and objects move all around you in three-dimensional space.
- Optimized for Custom Installation
- IP control over Cat 5 cable or Wi-Fi networks, RS232C two-way control, and IR-in allow you to integrate the Blu-ray player into complex installations. A web browser interface is also offered, along with support for Ihiji, a cloud-based network management solution used by custom installers for remote maintenance. Rack ears are also included for faster, easier installation.
- Constructed for Enhanced Audio-Visual Performance

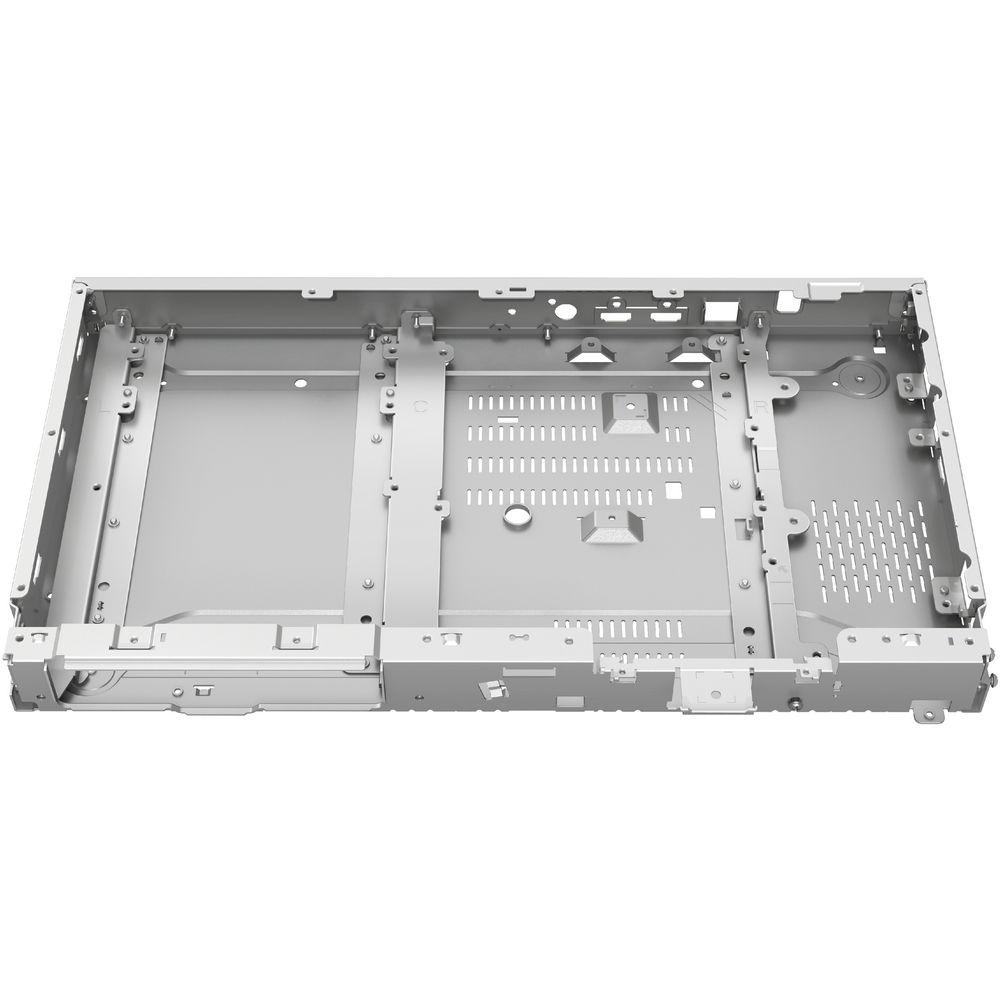

- The frame-and-beam chassis is designed to offer rigid structure to help eliminate micro-vibrations, as well as electrical shielding, for enhanced sound and picture quality.
- Hear Every Detail with Hi-Res Audio
- Similar to the improved quality of going from HD video to 4K, High-Resolution Audio tracks are higher quality than MP3s and CDs, letting you hear additional detail.
- 4K Streaming Services
- The UBP-X1000ES offers up to 4K video streaming thanks to Wi-Fi with dual-band MIMO technology, for a strong signal even from the edge of your wireless network's range.
- Play Most Discs and File Formats
- This Blu-ray player is able to play most discs, supports playback of most USB video and audio file types, and supports a host of High-Resolution Audio formats.
- 4K HDR to SDR Conversion
- 4K HDR to SDR (Standard Dynamic Range) conversion enhances contrast and color for optimized playback and viewing on non-HDR displays.
- Enjoy Private Viewing with Wireless Headphones
- The UBP-X1000ES supports Bluetooth audio transmission, so you can use your favorite Bluetooth headphones for private listening, without wires.
- Simultaneous HDMI and Bluetooth Connectivity
- Send audio via HDMI to your display or soundbar while also sending it to a wireless speaker or headphones over Bluetooth at the same time. With simultaneous connectivity, you don't have to miss a word or sound, even if you step away from your display.
- Stream Music to Different Rooms with the SongPal App
- Listen to the same song all around the house with multi-room listening through the SongPal app. It allows you to group select Sony soundbars and speakers together and stream music in multiple rooms.
- Additional Features
-
- Bit rate indicator
- IPCC
- Parental control
- USB keyboard
- BRAVIA sync (HDMI CEC)
- Super Quick Start Mode
- Designed for easy setup
- Child lock

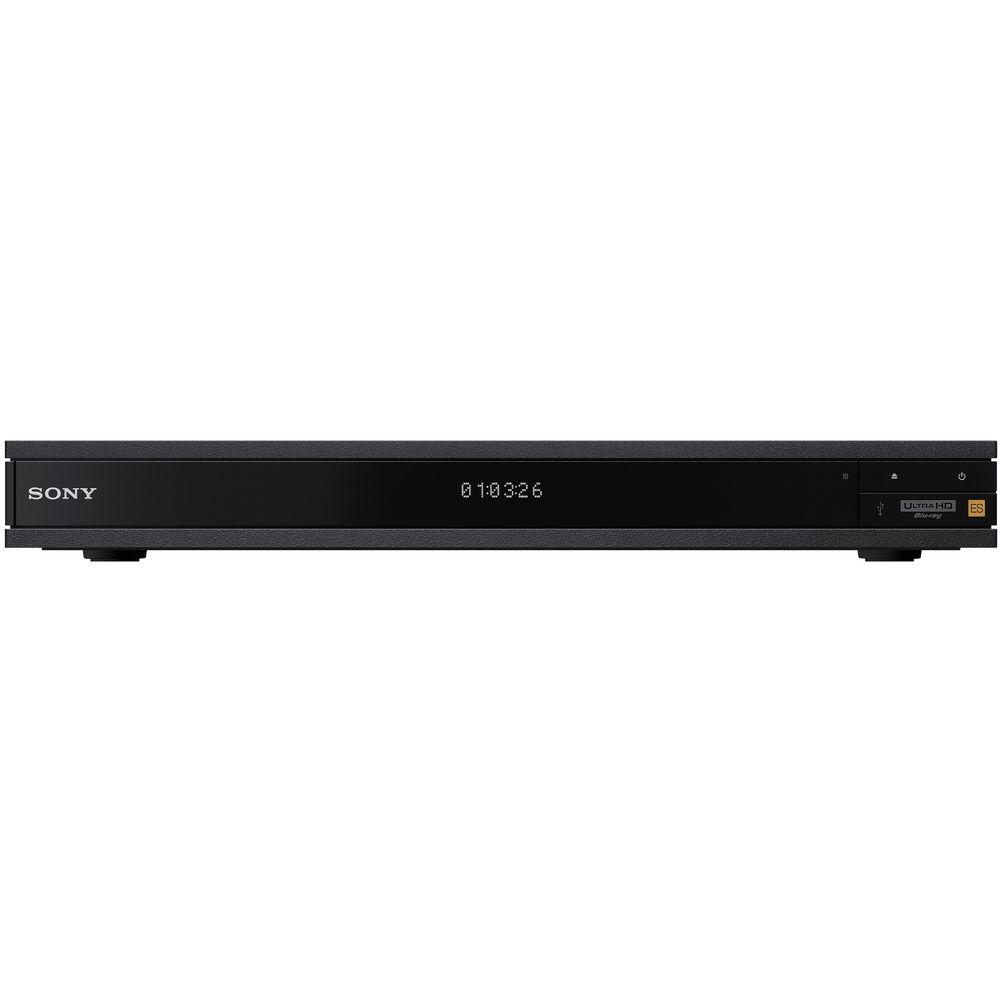

- Alphanumeric FL display
- 12-bit Deep Color
- IP content noise reduction
- 24p True Cinema mode
- DSEE-HX
- PCM 192 kHz / 24-bit, DSD 2.8 MHz (DSD 5.6 MHz to PCM 176 kHz / 24-bit)
- Wake on LAN in Super Quick Start Mode
UPC: 027242901681 In the Box Sony UBP-X1000ES HDR UHD Blu-ray Disc Player Remote Control 2 x AAA Batteries Rack Ears Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Sony UBP-X1000ES HDR UHD Blu-ray Disc Player in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSony UBPX1000ES Specs | | | System | NTSC | | Region | Blu-ray: A
DVD: 1 | | HDR Compatibility | HDR10 | | HD Upconversion | Yes, 720p, 1080i, 1080p, 4K | | | | Dolby Digital/DTS Compatibility | DTS, DTS:X, Dolby Atmos, Dolby TrueHD | | Built-in Decoder | Yes | | Audio D/A Converter | 192 kHz / 24 Bit | | LPCM | Yes | | | | Video | BD-R, BD-RE, BD-ROM, BD-ROM DL, BDMV, CD-DA, DVD-Video | | Audio | CD, CD-DA, CD-R, CD-RW, DVD-Audio | | Pictures | CD-R
CD-RW
DVD+R

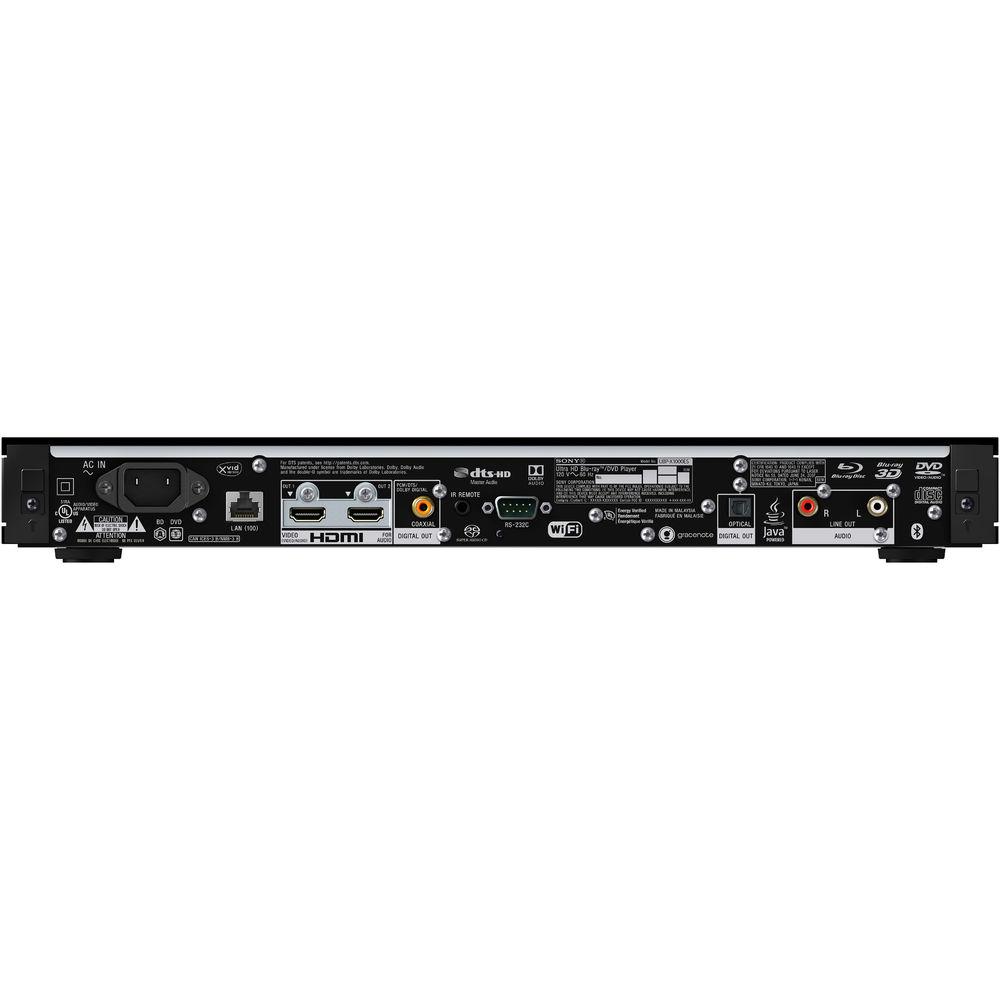

DVD-R | | File Formats Supported | 3G2, 3GP, 3GPP, 3GPP2, AAC, AC3, ASF, AVCHD, AVI, FLA, FLAC, FLV, GIF, JPEG, LPCM, M2TS, M4A, M4V, MKA, MKV, MOV, MP3, MP4, MPEG2 PS, MPEG2 TS, MPEG4-AVC, MPO, MTS, PNG, WAV, WMA9, WMV, Xvid | | | | Slow Motion Playback | Yes | | Frame-by-Frame Playback | Yes | | | | Network Access | Yes, Built-in Wi-Fi | | BD-Live | Yes | | BONUSVIEW | Yes | | Support for Streaming Services | Yes | | DLNA Home Network Sharing | Yes | | | | Analog | 1 x 2-Channel Audio (RCA) Output | | Digital | 1 x HDMI Audio/Video 2.0 Output
1 x HDMI Audio 1.4 Output
1 x USB Input
1 x Digital Coaxial Audio Output
1 x Digital Optical Audio Output | | Other | 1 x Ethernet
1 x RS232 Input
1 x IR in/out Input | | | | Tray Type | Single Disc Horizontal | | Remote | Yes | | Power Requirements | 120 VAC, 60 Hz | | Power Consumption | Operational: 17 W
Standby: 0.45 W | | Dimensions (W x H x D) | 16.9 x 2.1 x 10.4" / 430.0 x 54.0 x 265.0 mm | | Weight | 8.6 lb / 3.9 kg | | | | Package Weight | 11.0 lb | | Box Dimensions (LxWxH) | 18.9 x 14.0 x 3.9" |
