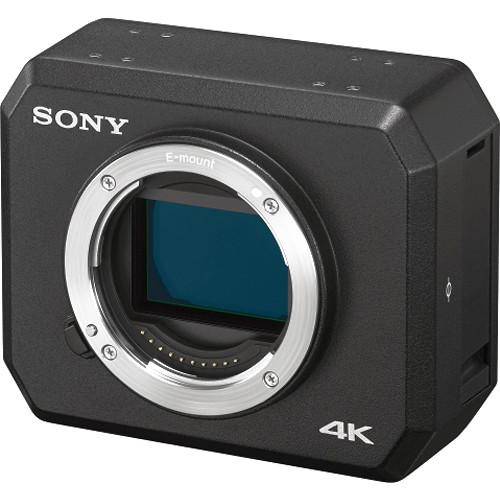

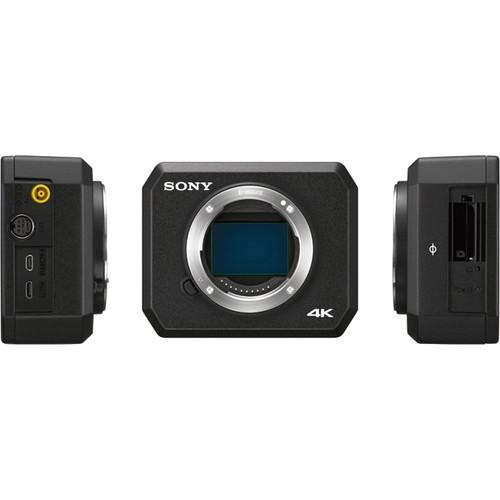

Product description The UMC-S3CA High-Sensitivity UHD 4K Video Camera from Sony utilizes a full 35mm frame Exmor CMOS sensor and XAVC S format (at up to 100 Mb/s) to capture 4K/29.97 and 4K/25 color video, and low-noise 12MP color still images. With compact size, minimum illumination of 0.004 lux / ISO 409600, and onboard recording capability, it is suitable for remote POV, documentaries, wildlife and live action shooting, and challenging environments where cabling or space is limited. The high-speed electronic shutter can capture blur-free color video of characters, numbers, and human faces. The camera is also equipped with a mechanical shutter for sharp still images, even when there's movement in a scene.

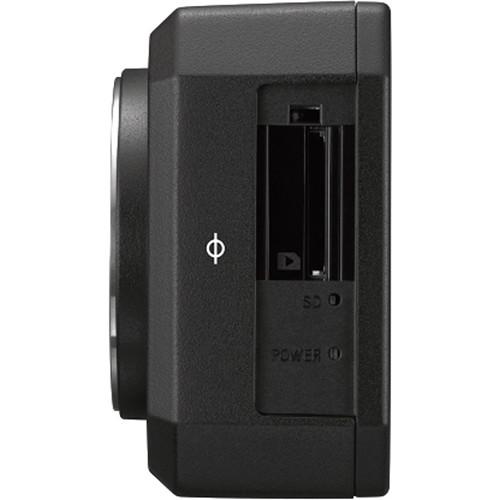

Equipped with a genlock function, the UMC-S3CA camera is suitable for multicamera installations such as 2D/3D virtual reality, multiple-angle live event broadcast coverage, or as a supplementary studio camera. You can record long-duration video and still images to the camera's onboard SD memory card, or output to an external recorder or monitor via HDMI. You can also use the optional 256GB memory card to record up to 8 hours and 35 minutes of 4K footage with standard quality (29.97p, 60 Mb/s). The area-specific noise reduction selectively divides the image into areas based on patterns, such as edges, textures, and evenly colored areas, to efficiently reduce noise and improve image quality. The camera can be controlled via multi-terminal, remote controller, or a PC and compatible software. - Supports internal recording

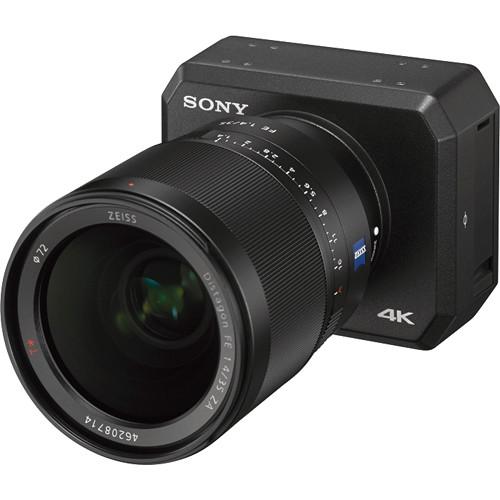

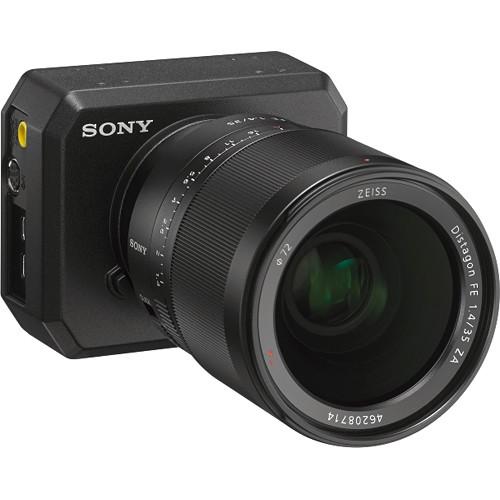

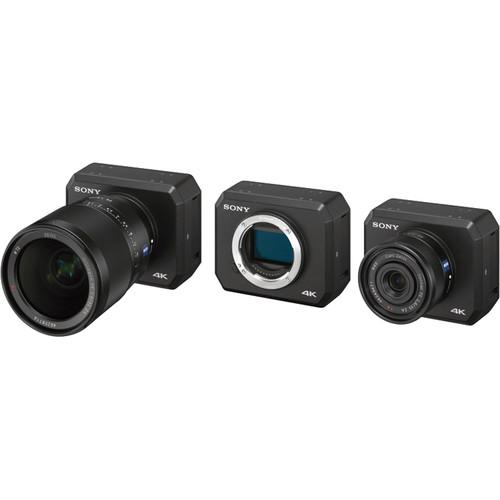

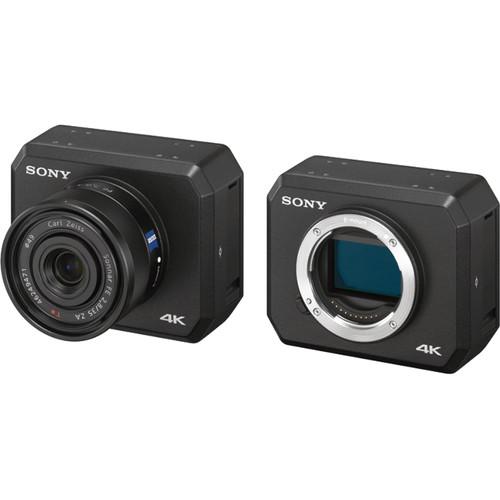

- Interchangeable E-mount FE lenses allows adjustment of camera's viewing angle

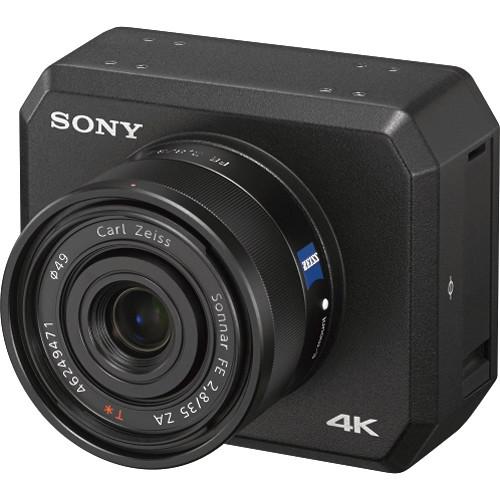

- Compatible E-mount FE lenses include the SEL35F14Z (35mm, f/1.4), SEL35F28 (35mm, f/2.8), SEL28F20 (28mm, f/2.0), and SEL55F18Z (55mm, f/1.8)
UPC: 027242907560 In the Box Sony UMC-S3CA High-Sensitivity UHD 4K Video Camera Body Cap Tripod Adapter 4 x Tripod Adapter Fixing Screw Ferrite Core Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Sony UMC-S3CA High-Sensitivity UHD 4K Video Camera in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSony UMC-S3CA Specs | | | Type | Interchangeable lens digital camera | | Lens Mount | E-mount | | Lens Compatibility | Sony E-mount lenses | | Image Sensor | 35 mm full-frame Exmor CMOS sensor | | Effective Number of Pixels | 12.2 MP approximately | | Total Number of Pixels | 12.4 MP approximately | | Aspect Ratio | 3:2 | | Color Filter | R/G/B primary color | | Dust Removal | Charge protection coating
Optical Filter and ultrasonic vibration mechanism | | | | Still Image | Recording Format:
JPEG (DCF Ver. 2.0, Exif Ver.2.3, MPF Baseline compliant), Raw (Sony ARW 2.3 format)
Image Size (3:2)
35 mm Full-Frame:
L: 4240 x 2832 (12 MP)
M: 2768 x 1848 (5.1 MP)
S: 2128 x 1416 (3 MP)
APS-C:
L: 2768 x 1848 (5.1 MP)
M: 2128 x 1416 (3 MP)
S: 1376 x 920 (1.3 MP)
Image Size (16:9)
35mm Full-Frame:
L: 4240 x 2384 (10 MP)
M: 2768 x 1560 (4.3 MP)
S: 2128 x 1200 (2.6 MP)
APS-C:
L: 2768 x 1560 (4.3 MP)
M: 2128 x 1200 (2.6 MP)
S: 1376 x 776 (1.1 MP)
Image Quality Modes:
Raw, Raw & JPEG, JPEG extra fine, JPEG fine, and JPEG standard
RAW: 14-bit
Picture Profile:
Yes (Off / PP1-PP9) Parameters: Black level, Gamma (Movie, Still, Cine1-4, ITU709, ITU709 [800%], S-Log2, S-Log3), Black Gamma, Knee, Color Mode, Saturation, Color Phase, Color Depth, Detail, Copy, Reset
Dynamic Range Functions:
Off, Dynamic Range Optimizer (Auto/Level (1-5)), Auto High Dynamic Range (Auto Exposure Difference, Exposure Difference Level (1-6 EV, 1.0 EV step))
Color Space:
sRGB standard (with sYCC gamut)
Delete Function: Yes | | Movies | Recording Format:
XAVC S
Video Compression:
XAVC S, MPEG-4 AVC/H.264
Image Size:
3810 x 2160 (XAVC S 4K), 1920 x 1080 (XAVC S HD)
Picture Profile:
Off / PP1-PP9) Parameters: Black level, Gamma (Movie, Still, Cine1-4, ITU709, ITU709 [800%], S-Log2, S-Log3), Black Gamma, Knee, Color Mode, Saturation, Color Phase, Color Depth, Detail, Copy, Reset
Color Space:
xvYCC standard (x.v.Color when connected via HDMI cable) compatible with TRILUMINOS color | | Resolution | Movie Recording System (XAVC S 4K)
Approximately 100 Mb/s:
3840 x 2160 29.97, NTSC
3840 x 2160 25, PAL
3840 x 2160 23.98, NTSC
Approximately 60 Mb/s:
3840 x 2160 29.97, NTSC
3840 x 2160 25, PAL
3840 x 2160 23.98, NTSC
Movie Recording System (XAVC S HD)
Approximately 100 Mb/s:
1920 x 1080p 119.88, NTSC
1920 x 1080p 100, PAL
Approximately 60 Mb/s:
1920 x 1080p 119.88, NTSC
1920 x 1080p 100, PAL
Approximately 50 Mb/s:
1920 x 1080p 59.94, NTSC
1920 x 1080p 50, PAL
1920 x 1080p 29.97, NTSC
1920 x 1080p 25, PAL
1920 x 1080p 23.98, NTSC
High Frame Rate Recording
Approximately 16 Mb/s:
1920 x 1080p 29.97, NTSC
1920 x 1080p 25, PAL
Approximately 12 Mb/s:
1920 x 1080p 23.98, NTSC | | | | Selector Controls | NTSC/PAL | | Format | TC Preset
UB Preset
TC Format
TC Run
TC Make
UB Time Rec | | Auto Slow Shutter | Yes | | Control | REC control | | HDMI Output | 3840 x 2160 29.97/25/23.98
1920 x 1080p 59.94/50/23.98
1920 x 1080i 59.94/50
YCbCr 4:2:2 8-bit / RGB 8-bit | | | | Media | SD
SDHC (UHS-I compliant)
SDXC (UHS-I compliant)
microSD
microSDHC
microSDXC | | Memory Card Slot | SD memory card | | File System | FAT12/16/32
exFAT | | Noise Reduction | Long Exposure NR:
On/Off (available at shutter speeds longer than 1 second)
High ISO NR:
Normal/Low/Off | | Frame | Multi-Frame NR: Auto/ISO 100 to 409600 | | | | Modes | Auto
Daylight
Shade
Cloudy
Incandescent
Fluorescent
Flash
Underwater
Color Temperature & color filter | | AWB | AWB micro adjustment | | | | Type | Contrast-detection AF | | Sensor | Exmor CMOS sensor | | Autofocus Points | 169 points (contrast-detection AF) | | Sensitivity Range | EV-4 to EV-20 (ISO 100 equivalent with f/2.0 lens attached) | | AF Modes | AF-S (single-shot AF)
AF-C (continuous AF)
Manual focus | | Focus Area | Wide
169 points, contrast-detection AF | | Focus Lock | Yes | | | | Metering Type | 1200-zone evaluative metering | | Sensor | Metering: Exmor CMOS sensor | | Metering Sensitivity | EV-3 to EV-20 (at ISO 100 equivalent with f/2.0 lens attached) | | Modes | Multi-segment | | Exposure Modes | Auto (iAuto/Superior Auto)
Programmed AE (P)
Aperture priority (A)
Shutter-speed priority (S)
Manual (M)
Movie
High Frame Rate (Programmed AE (P)
Aperture priority (A)
Shutter-speed priority (S)
Manual (M)) | | Exposure Compensation |
