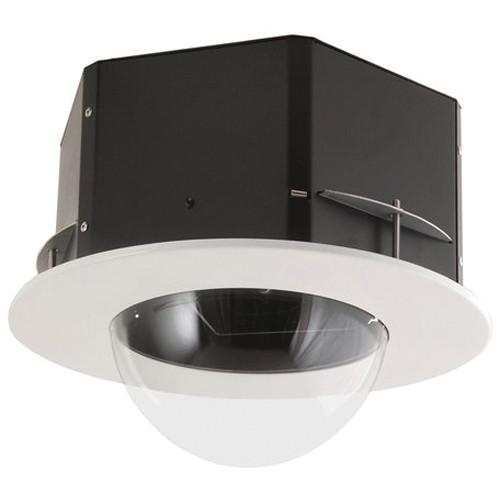

User Manual for Sony UNI-ID7C3 7" Indoor Recessed Ceiling Housing Click to enlarge the picture
Contents of the user manual for the Sony UNI-ID7C3 7" Indoor Recessed Ceiling
- Product category: Housings Sony
- Brand: Sony
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Sony Housings
|
User manual for the Sony UNI-ID7C3 7" Indoor Recessed Ceiling contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Sony product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Sony user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Sony product will considerably shorten its lifespan!
|
Product description The Sony UNI-ID7C3 7" Indoor Recessed Ceiling Housing (Clear Bubble) is designed to offer extra protection to the SNC series PTZ Network Indoor Cameras. Made of 18- and 20-gauge steel, the top body of the housing can be set up in a drop or sheetrock ceiling. Once installed, only the lower part of the dome and the trim ring remain visible, making it a wise choice for discreet security monitoring in commercial surveillance applications. - Compatibility
-
- Designed for the Sony SNC-RZ25N, SNC-RZ50N, SNC-RS44/46, SNC-RH124, SNC-RX series PTZ, SNC-ER/EP 520, 550, 580 and SNC-ZR/ZP550 cameras
- Rugged Construction
-
- Upper body of the 7" (177.8mm) housing is made of 18- and 20-gauge steel
- Dome shell is constructed of an injection molded 0.115” (3mm) thick, optically clear aspheric polycarbonate
- UL-rated for drop ceiling applications
- Includes 19-gauge steel trim ring with an attractive finish
- Quick-release pressure springs on the trim ring make it easy to remove the housing
- Discreet Installation
-
- Designed for installation in either sheetrock or drop ceilings
- Dome projects only 3.5” (88.9mm) from the ceiling
- 3 rotating support arms allow adjustment for ceiling material thickness
- Easy camera installation and servicing from below the ceiling
- White powder-coated trim ring gives the housing a clean look
- Operates on 12 VDC or 24 VAC power supply
1 Please Note: Interface wiring and power adapter need to be bought separately. close UPC: 027242254961 In the Box Sony UNI-ID7C3 7" Indoor Recessed Ceiling Housing (Clear Bubble) Quick Release Plate Spacer Packet 4 x M3 x 6mm Machine Screw 4 x M3 Lock Washers 1/4 x 20 Bolt 1/4 Flat Washer 1/4 Lock Washer 3 x 8 x 32 x 0.375" Bolt 3 x Cable Ties 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Sony UNI-ID7C3 7" Indoor Recessed Ceiling Housing in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSony UNI-ID7C3 Specs | | | Body | Steel | | Back box | 18-and 20-gauge steel | | Trim Ring | 19-gauge steel | | Dome | OptiClear polycarbonate | | | | Dimensions (H x W x D) | 11.08 x 12.25 x 12.25" (281 x 311 x 311 mm) | | Weight | 6 lb (3 kg) | | | | Package Weight | 11.75 lb | | Box Dimensions (LxWxH) | 16.6 x 14.9 x 14.8" |
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 84 owners. Add your rating and experience with the product.
