User Manual for Sony UNI-ORS7T1 7" Vandal-Resistant Outdoor Housing Click to enlarge the picture
Contents of the user manual for the Sony UNI-ORS7T1 7" Vandal-Resistant Outdoor Housing
- Product category: Housings Sony
- Brand: Sony
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Sony Housings
|
User manual for the Sony UNI-ORS7T1 7" Vandal-Resistant Outdoor Housing contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Sony product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Sony user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Sony product will considerably shorten its lifespan!
|

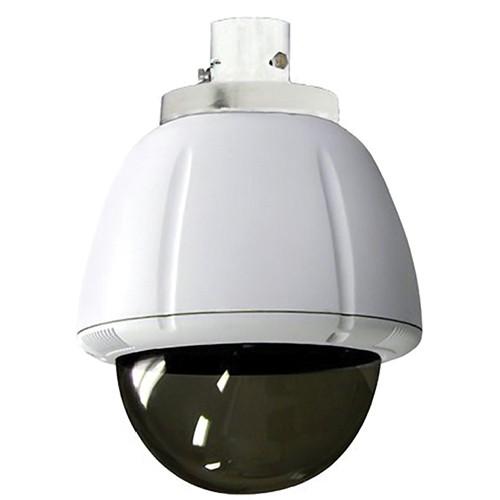

Product description The Sony UNI-ORS7T1 7" Vandal-Resistant Outdoor Housing (Tinted) is designed to offer extra protection to the Sony’s RZ series Dome Cameras. The upper part of the housing is constructed of durable cast aluminum while the lower dome is made of thermoplastic polycarbonate material. Designed for discreet surveillance, the housing is equipped with a tinted lower dome that helps conceal the direction of the camera without interfering with the camera's view. An integrated heater and blower system shields the camera in low temperatures and prevents the lower bubble from fogging up in high humidity. - Compatibility
-
- Designed for SNC-RZ30N Outdoor Dome Cameras
- 1.5” NPT quick connect coupling
- Rugged Vandal-Resistant Construction
-
- Upper body of the 7" (177.8 mm) housing is made of durable cast aluminum
- Dome shell is constructed of an injection molded 0.118” (3 mm) thick, optically clear thermoplastic polycarbonate
- Strong cast aluminum top and trim ring
- Installation in Extreme Temperatures
-
- 24-hour fan operation for effective heating and condensation protection
- Equipped with a 24 VAC input blower and a thermostatically controlled 50 W heater that turns on and off at 50°F (10°C) and 80°F (25°C) respectively
- Power
-
- 24 VAC input, integrated 12 VDC power supply for camera power
In the Box Sony UNI-ORS7T1 7" Vandal-Resistant Outdoor Housing (Tinted) 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Sony UNI-ORS7T1 7" Vandal-Resistant Outdoor Housing in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSony UNI-ORS7T1 Specs | | | Heater & Blower | 24 VAC, 54 W | | Camera | 24 VAC, 25 W | | | | Effective Projected Area (EPA) | 0.12 m2 | | Heater Activates At | 60°F (15°C), deactivates at 80°F (26°C), 24 VAC, 25 W | | Operating Temperature | -20 to 122°F (-29 to 50°C) | | | | Upper Housing | Rugged cast aluminum housing and trim ring | | Lower Dome | 0.118" (3 mm), optically clear, thermoplastic polycarbonate | | Mounting Brackets | Cast or machined aluminum | | Size (HxWxD) | 9.7 x 9.7 x 13.3" (245 x 245 x 338 mm) | | Weight | 7 lb (3.5 kg) |
