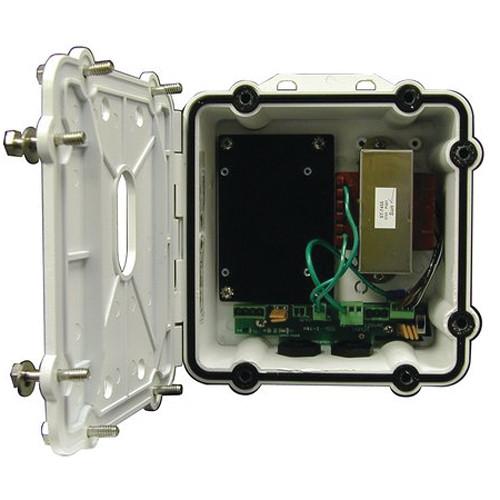

Product description The Sony UNI-PBU1 Power Block Unit Case is an outdoor power supply that is enclosed in a rugged, IP66-rated, vandal-resistant aluminum enclosure. It is designed for use with the UNI-WMB1 Wall Mount and the UNI-MDB1, UNI-MDB2, and UNI-MDB3 Pendant Adapter Kits, which can be directly mounted to the Power Block's hinged door. Using the clips included in the pack, you can also mount the Block Unit Case to the UNI-PMA1 Pole Mount Adapter or the UNI-CMA1 Corner Mount Adapter.
The IP66 and NEMA 4X rated unit is protected against the ingress of dust, wind, rain, high pressure water jets from any direction, hose-directed water, and damage from external ice formation.
This unit comes standard with an 84 VA power supply, designed for either 220 or 120 VAC input with 24 VAC output. In addition, it provides 52 W power to the heater/blower and 32 W power to the camera. - Compatibility
-
- Designed for use with the UNI-WMB1 Wall Mount and the UNI-MDB1, UNI-MDB2 and UNI-MDB3 Pendant Adapter Kits
- Clips included for mounting to the UNI-PMA1 Pole Mount Adapter or the UNI-CMA1 Corner Mount Adapter
- Rugged Vandal-Resistant Construction
-
- Cast aluminum outdoor enclosure
- IP66- and NEMA Type 4X-rating ensures protection against dust, windblown dust, rain, high pressure water jets from any direction, hose-directed water, and damage from external ice formation
- Designed for direct conduit connections
- UL-approved electrical device
- Power
-
- 120 or 220 VAC input into enclosure supplies power to the camera, heater, and blower
- 2.75” conduit inputs located at the bottom of the box to provide input for power and for data cabling
- Provides 52 W power to the heater/blower and 32 W power to the camera
- 24 VAC fused output
UPC: 027242234741 In the Box Sony UNI-PBU1 Power Block Unit Case 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Sony UNI-PBU1 Power Block Unit Case in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSony UNI-PBU1 Specs | | | Power Input | 120 VAC or 240 VAC, 50/60 Hz | | Power Output | 96 VA (96 W) | | Power Consumption | 1 A (120 W) at 120 VAC | | Camera Power | 32 W | | Heater & Blower | 52 W | | | | Operating Temperature | -40 to 122°F (-40 to 50°C) | | | | Construction | Rugged cast aluminum | | Cable Entry | Two conduit openings located on the bottom of the box | | Size (HxWxD) | 8.75 x 7.5 x 3.81" (222 x 191 x 97 mm) | | Weight | 10 lb (4.54 kg) | | | | Package Weight | 11.8 lb | | Box Dimensions (LxWxH) | 11.2 x 10.0 x 7.4" |
