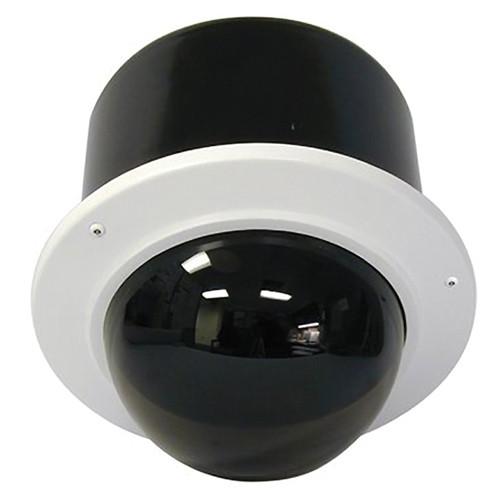

User Manual for Sony UNIOFS7T1 7" Vandal-Resistant Outdoor Recessed Dome Click to enlarge the picture
Contents of the user manual for the Sony UNIOFS7T1 7" Vandal-Resistant Outdoor Recessed
- Product category: Housings Sony
- Brand: Sony
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Sony Housings
|
User manual for the Sony UNIOFS7T1 7" Vandal-Resistant Outdoor Recessed contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Sony product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Sony user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Sony product will considerably shorten its lifespan!
|
Product description The Sony UNIOFS7T1 7" Vandal-Resistant Outdoor Recessed Dome (Tinted Bubble) is designed to offer extra protection to SNC-RZ30 and SNC-RZ50PTZ Dome Cameras. Made of 10-gauge aluminum, the top body of the housing is installed discreetly inside a drop or hard ceiling. Once set up, only the lower part of the dome and the trim ring remain visible, making it a wise choice for discreet security monitoring in commercial surveillance applications.
Compliant with IP-66 weather-proof and IK-10 vandal-proof standards, the camera remains protected against tampering and vandalism. Additionally, an integrated heater and blower system shields the camera in low temperatures and prevents the lower bubble from fogging up in high humidity. - Compatibility
-
- Designed for the SNC-RZ30 and SNC-RZ50PTZ Dome Cameras
- Rugged Vandal-Resistant Short Construction
-
- Upper body of the 7" (177.8 mm) housing is made 10-gauge aluminum
- Dome shell is constructed of 0.118” (3 mm) thick aspheric polycarbonate
- Compliant with IP-66 weather-proof and IK-10 vandal-proof standards
- Tamper- and vandal-resistant to ensure uninterrupted surveillance
- Includes a aluminum trim ring with safety lanyard and captive security fasteners
- RoHS, WEEE, UL, CE compliant
- Installation in Extreme Temperatures
-
- Equipped with 24 VAC input blowers and thermostatically controlled heaters
- Heater turns on at 40°F (5°C) and turns off at 60°F (15°C)
- Operates in locations with extreme temperatures ranging from -20 to 122°F (-29 to 50°C)
- Power & Installation
-
- 12 VDC with pre-terminated cable/plug for camera is present inside the enclosure
- Includes 24VAC to 12VDC power supply for the camera
- Easy camera installation and servicing from below the ceiling
UPC: 027242253957 In the Box Sony UNIOFS7T1 7" Vandal-Resistant Outdoor Recessed Dome (Tinted Bubble) Spacer Packet 4 x M3 x 6mm Machine Screw 4 x M3 Lock Washers 1/4 x 20 Bolt 1/4 Flat Washer 3 x 8 x 32 x 0.37" Bolt 3 x Cable Ties Camera Bracket 4 Pin Auxiliary Connector 4 Pin Power Connector RJ45 Coupling 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Sony UNIOFS7T1 7" Vandal-Resistant Outdoor Recessed Dome in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSony UNI-OFS7T1 Specs | | | Heater Activates At | 50°F (10°C), deactivates at 77°F (25°C), 24 VAC, 25 W | | Blower | Continuous operation | | Operating Temperature | -20 to 122°F (-29 to 50°C) | | | | Heater & Blower | 24 VAC 27 W | | Camera | 24 VAC 25 W | | | | Upper Housing | 10-gauge aluminum, powder coated | | Trim Ring | Die-cast aluminum, powder coated | | Lower Dome | 0.118" (3 mm), optically clear, thermoplastic polycarbonate | | Size (HxWxD) | 11.2 x 11.2 x 11.5" (284 x 284 x 292 mm) | | Weight | 9 lb (4.1 kg) |
