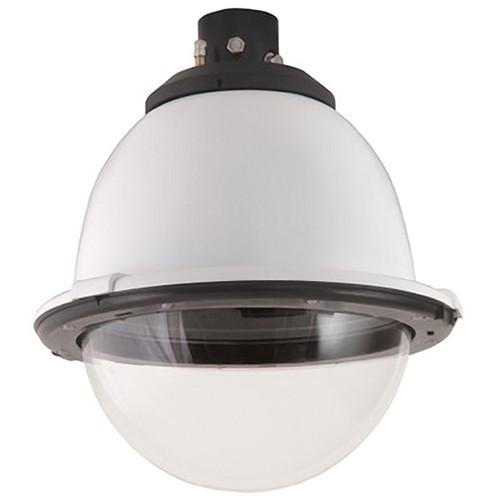

User Manual for Sony UNIOPL7C2 7" Pressurized Outdoor Dome Housing Click to enlarge the picture
Contents of the user manual for the Sony UNIOPL7C2 7" Pressurized Outdoor Dome
- Product category: Housings Sony
- Brand: Sony
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Sony Housings
|
User manual for the Sony UNIOPL7C2 7" Pressurized Outdoor Dome contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Sony product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Sony user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Sony product will considerably shorten its lifespan!
|
Product description The Sony UNIOPL7C2 7" Pressurized Outdoor Dome Housing (Clear Bubble) offers excellent protection to the SNC series cameras from rain, snow, wind, dust, pollution, and insects.
For maximum protection from the elements, this outdoor housing uses internal pressure produced by dry nitrogen to seal off even the smallest openings. The Schrader valve of the housing maintains the pressure in the housing, while the pressure relief valve helps release excess pressure. In addition, an integrated heater and blower system shields the camera in low temperatures and prevents the lower bubble from fogging up in high humidity.
Made of durable engineered plastic, the top body of the housing is flame-retardant and UV protected, making it an excellent choice for installation in outdoor and high-risk locations. Designed for discreet surveillance, the housing is equipped with a clear lower dome that helps in maximum light transmission. - Compatibility
-
- Designed for the SNC-RS44/46, SNC-RH124, SNC-RZ25, SNC-RX, SNC-EP/ER 520/550/580, and SNC-ZR550/ZP550 Outdoor Dome Cameras
- 1.5” NPT quick connect coupling
- Pressurized Dome
-
- Creates a constant pressure within the inner housing
- Pressurized to 7 psi to maintain pressure for 2-3 years
- Schrader valve to fill the housing with dry nitrogen
- Relief valve prevents over-pressurization of the enclosure
- 10-pin hermetically sealed connector located at the top of the housing for power, video, and control functions
- Rugged Construction
-
- Upper body of the 7" (177.8 mm) housing is made of plastic and is 94 VO flame-rated
- Dome shell is constructed from optically clear thermoplastic polycarbonate
- Installation in Harsh Weather Conditions
-
- Equipped with a 24 VAC input blower and a thermostatically controlled 50 W heater that turns on and off at 60°F (15°C) and 80°F (27°C) respectively
- 24-hour fan operation for effective protection against heating and condensation
- Corrosion protection makes it ideal for use in harsh weather conditions
- Water-proof IP67-rated housing provides protection against dust and water
- Designed to meet NEMA 4x for water ingress
- Power
-
- 12 VDC with pre-terminated cable/plug for camera is present inside the enclosure
- Includes 24 VAC to 12 VDC power supply for the camera
UPC: 027242232075 In the Box Sony UNIOPL7C2 7" Pressurized Outdoor Dome Housing (Clear Bubble) Spacer Packet 4 x M3 x 6mm Machine Screw 4 x M3 Lock Washers 1/4 x 20 Bolt 1/4 Flat Washer 3 x 8 x 32 x 0.37" Bolt 3 x Cable Ties 4 Pin Auxiliary Connector 4 Pin Power Connector RJ45 Coupling Teflon Tape Pendant Gasket 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Sony UNIOPL7C2 7" Pressurized Outdoor Dome Housing in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSony UNI-OPL7C2 Specs | | | Body | High-impact engineered plastic, UV protected, with a UL flame rating of 94-5V | | Viewing dome construction | Polycarbonate | | Camera included | No | | Environment | Outdoor | | Housing Style | Standard | | Style | Pressurized pendant | | RoHS | Yes | | IP Rating | 67 | | NEMA Rating | 4x | | UL | Yes | | CUL | Yes | | CE | Yes | | | | Heater Activates At | 60°F (16°C) | | Heater Deactivates At | 80°F (26°C) | | Effective Projected Area (EPA) | Approximately 0.12 m² | | Operating Humidity | Up to 100% | | Operating Temperature | -50 to 120°F (-45 to 49°C) | | | | Heater | Yes | | Blower | Yes | | Power Input | 24 VAC | | Power (VA) | 52 | | Power | 80 W (52 W for heater/blower) | | Operating Temperature | -40 to 120°F (-40.0 to 48.9°C) | | | | Construction | 0.125" (3 mm) engineered plastic | | Wall Mount Bracket | Cast aluminum | | Schrader valve | Nitrogen input (Pressurized models) | | Pressure Relief Valve | 5 psi | | Power Connector | 10 pin hermetically sealed | | Size (HxWxD) | 14.4 x 11.2 x 11.2" (365.76 x 284.48 x 284.48 mm) | | Weight | 11 lb (5 kg) |
