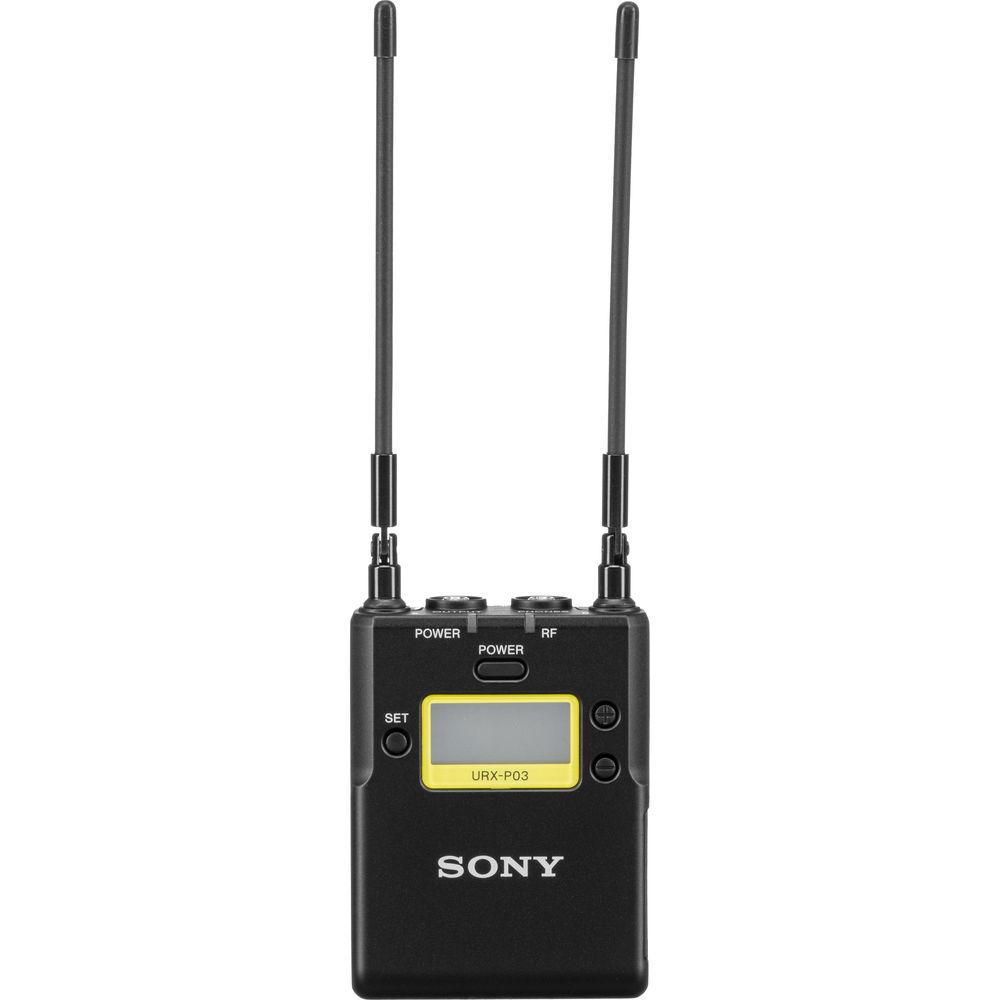

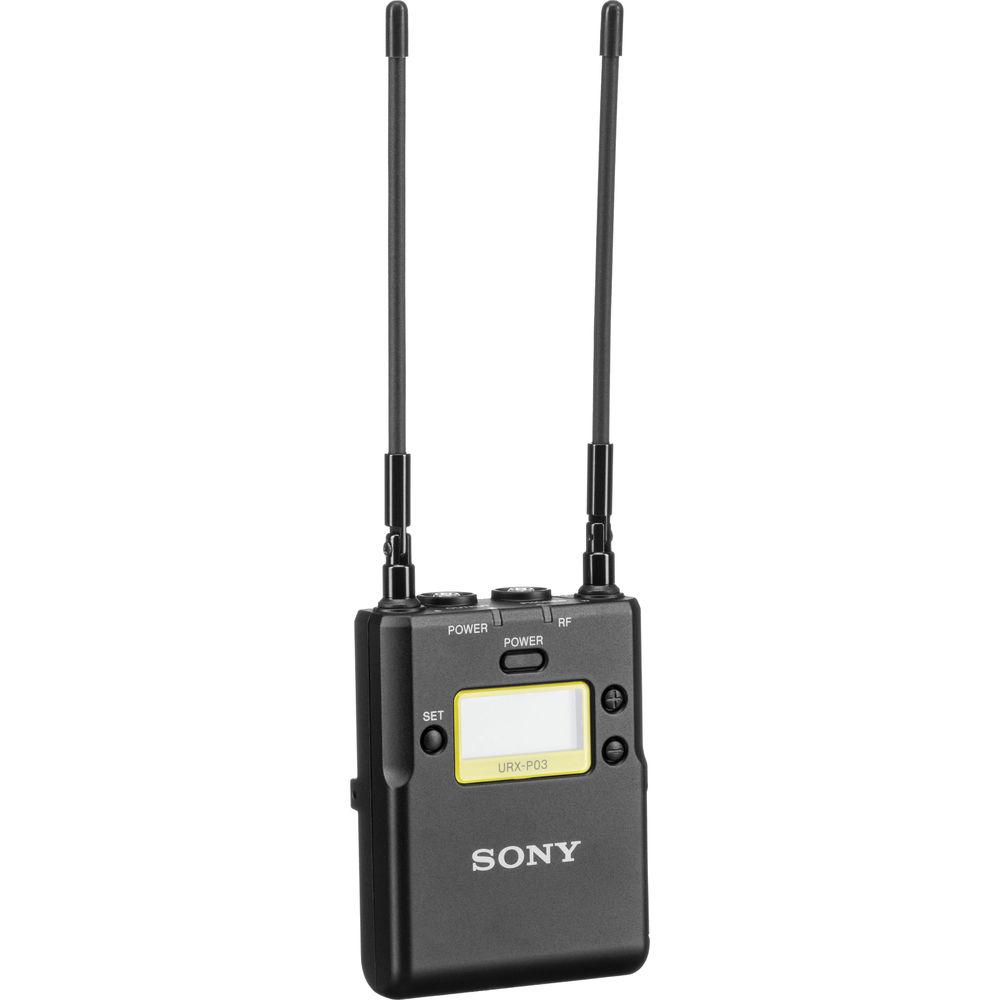

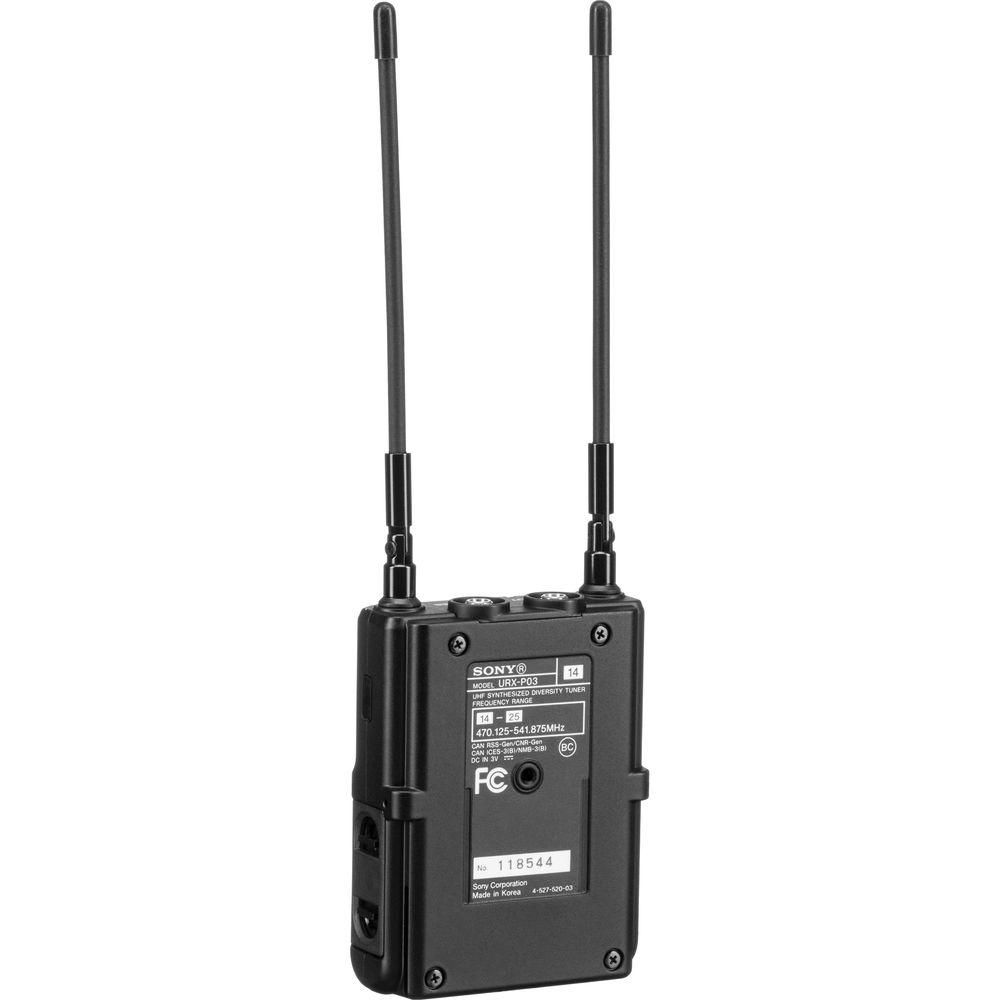

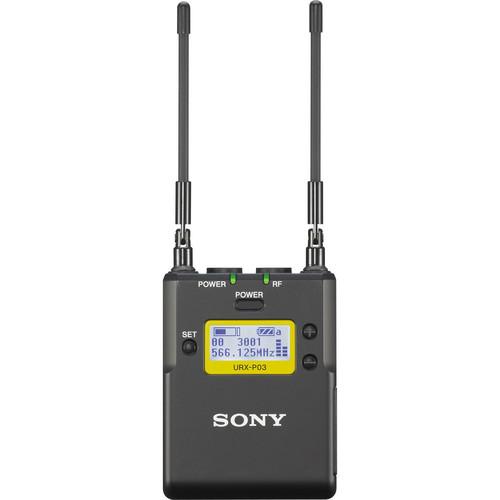

Product description The 470 to 542 MHz version of the Sony URXP03 Integrated Digital Wireless Portable Receiver features an all-metal chassis, a large easy to read LCD display, a wide switching RF bandwidth, USB power and charging, automatic channel scanning, infrared synchronization between transmitter and receiver, true diversity reception, PLL-synthesized tuning, a headphone output for monitoring, an output gain control for optimizing input level to a camera, and digital companding circuitry. The package is suitable for a wide range of wireless applications such as electronic news gathering (ENG), documentary work, talk shows, conferences, and more.
The receiver is referred to as integrated digital because it utilizes DSP for digital expansion of the transmission signal. Performing the companding and expanding processes in the digital domain improves the accuracy and transient response of the received audio.The camera-mountable receiver features true-diversity technology which stabilizes reception and minimizes RF interference by using dual antenna input/reception circuits and selecting the strongest incoming signal. The angle of the antennas is also adjustable to improve reception when the receiver is mounted on top of a camera or camcorder. The system utilizes UHF Phase Locked Loop (PLL) synthesis to lock the phase of the transmission frequency between transmitter and receiver. The receiver can automatically search for an available transmission frequency and link the desired frequency to the transmitter via infrared connection.

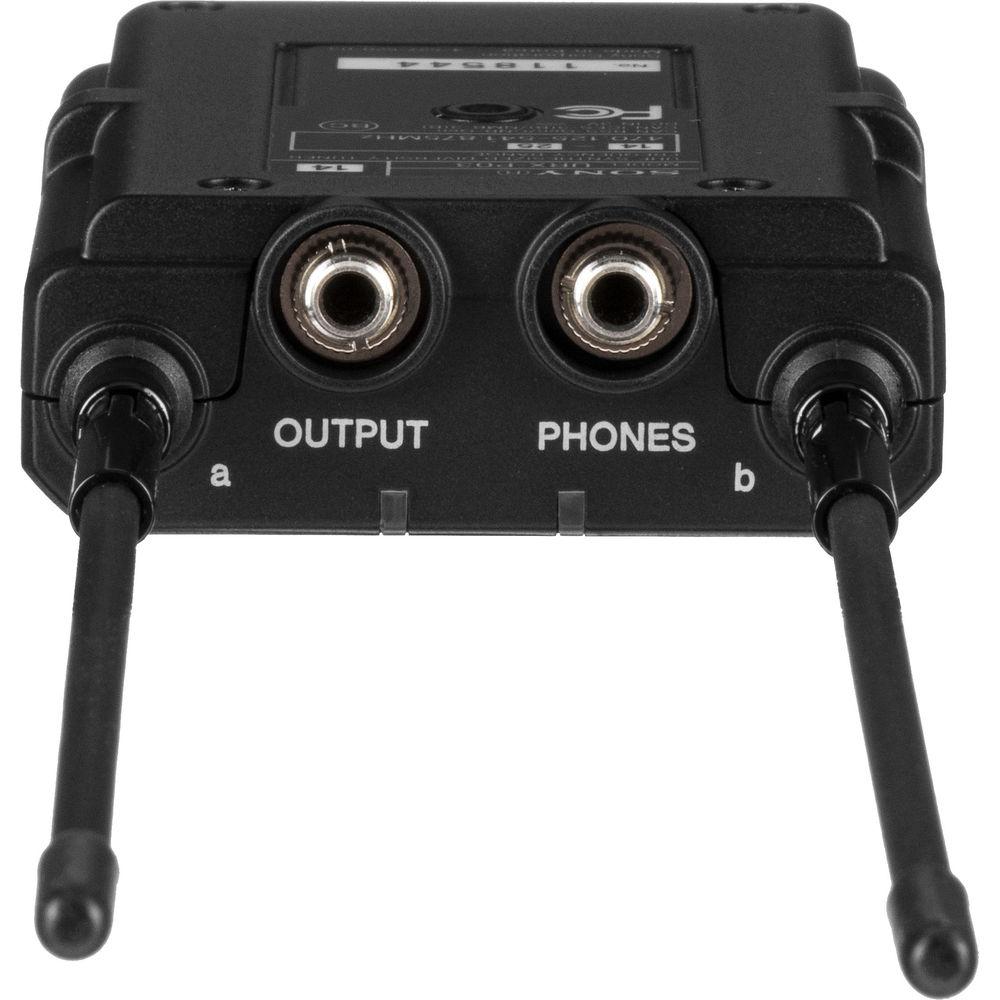

A stereo mini-jack output with monitor volume control is featured and both stereo mini and stereo XLR cables are provided. The unit also includes a headphone monitor output for use with cameras and camcorders that don't have a monitor output. An LCD display provides channel and frequency information, battery life, RF-input level, audio-output status and accumulated operating time.

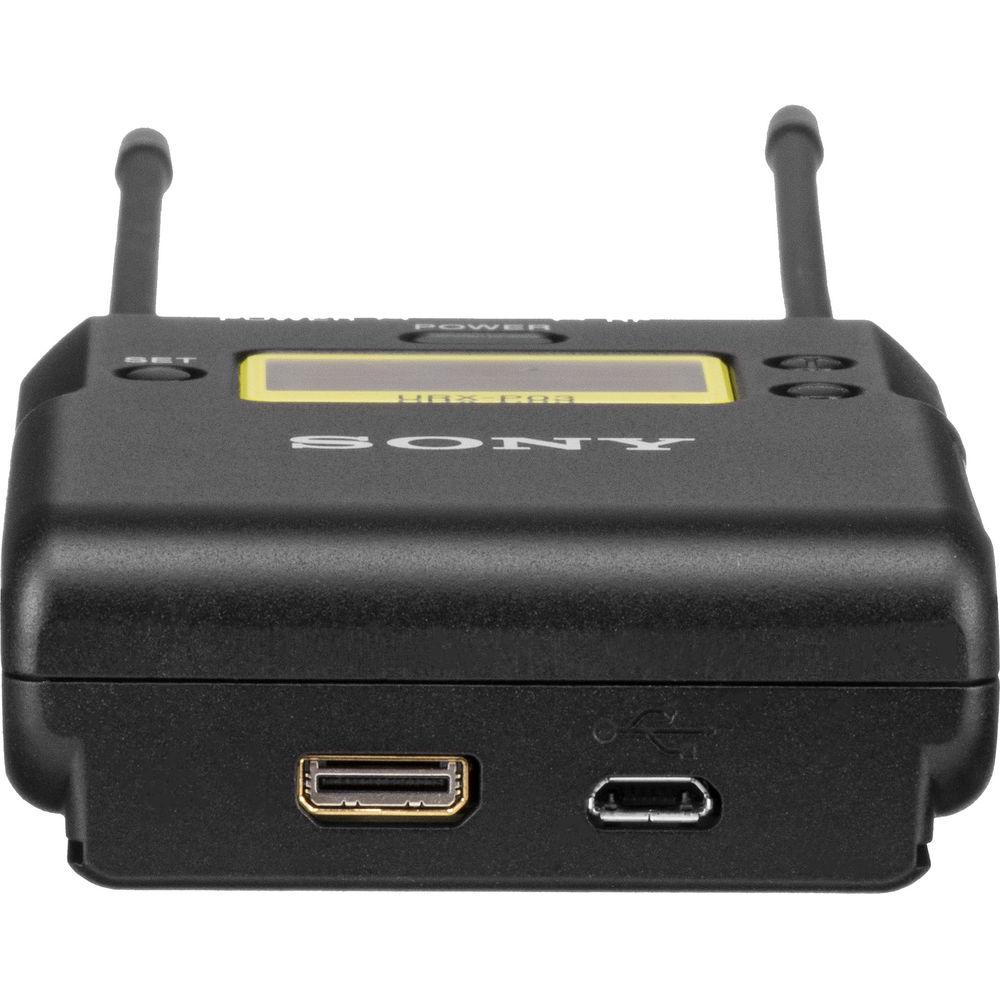

For power, the receiver operates on two AA batteries for up to 6 hours, or on 5 VDC of USB power over a USB micro B cable. The USB connection can also be used to recharge Ni-MH rechargeable batteries within the battery cartridge. The receiver's compact design and included shoe-mount adapter allows easy mounting to most camcorders and interchangeable lens system cameras.
The receiver comes with a belt clip, a shoe-mount adapter, a 3.5mm mini to 3.5mm mini stereo cable, and a 3.5mm mini to XLR cable. Optional accessories such as a soft case are sold separately. - Digital Companding
- Utilizes analog-to-digital and digital-to-analog converter stages so that the transmission signal can be digitally companded by the transmitter and digitally expanded by the receiver for improved audio transient response
- Automatic Channel Scanning
- Scans for available transmission channels and then syncs the transmitter to the receiver via infrared
- Frequency Coverage
- Provides up to 72 MHz of reception bandwidth
- UWP Series / WL-800 Series Compatibility
- Enables cross-compatibility between the UWP-D transmitter with a UWP Series or WL-800 Series receiver or UWP Series or WL-800 Series transmitter with a UWP-D receiver
- Headphone Output
- Enables direct monitoring of receiver via headphones; especially useful for cameras that lack a monitor output
- USB Power Options
- Supports USB powering and USB charging of internal Ni-MH rechargeable batteries placed in the battery cartridge
- Output Level Control
- Controls the receiver's output level with ±12 dB adjustments for optimizing the input level into the camera
- UHF Phase Locked Loop (PLL) Synthesized Frequencies
- Provides stable transmission and reception by generating a transmission frequency and locking the phase of the transmission signal to the incoming signal of the receiver
- True Diversity Reception
- Utilizes dual-antenna reception circuits and selects the stronger incoming signal to reduce drop-outs
- Tone Squelch Circuitry
- Utilizes pilot-tone signal with the audio signal and only outputs the audio signal if the pilot tone is present to reduce RF interference from other sources
- Simultaneous Multi-Channel Operation
- Stores the most stable interference-free transmission frequencies to internal memory for rapid setup and switching between frequency groups
- Visual Display
- Both transmitter and receiver feature a comprehensive LED display providing channel and frequency information, battery life, total usage time and more
- Improved All-Metal Construction
- The transmitter and receiver feature metal construction for durability
UPC: 027242874374 In the Box Sony URXP03 Integrated Digital Portable Wireless Receiver (UHF Channels 14/25: 470 to 542 MHz) Belt Clip Shoe-Mount Adapter (Receiver) 3.5mm to 3.5mm Output Cable 3.5mm to XLR Output Cable Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Sony URXP03 Integrated Digital Portable Wireless Receiver in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSony URX-P03 Specs | | | Type of System | Camera-mountable UHF-synthesized wireless system | | RF Carrier Frequency Range | 470 to 542 MHz | | RF Bandwidth | 72 MHz | | Approx. Working Range | Not Specified by Manufacturer | | | | Type of Receiver | Camera-mountable, true diversity, crystal-controlled PLL synthesizer | | Reception Type | True diversity | | Antenna Type | 1/4 wave length wire | | Frequency Response | 23 Hz to 18 kHz (typical) | | Signal to Noise Ratio | 96 dB (max deviation, A-weighted) | | Distortion | 0.9% or less (-60 dBV, 1 kHz input) | | Audio Delay | Approximately 0.35 msec | | Type of Outputs | 1/8" / 3.5 mm mini-jack, unbalanced | | Analog Output Levels | -60 dBV (at ±5 kHz deviation) | | Adjustment Range | -12 dB to +12 dB (in 3 dB steps) | | Headphone Monitoring | 1/8" / 3.5 mm stereo mini-jack, unbalanced with variable level | | Headphone Output Level | 5 mW (at 16-Ohm load) | | Pilot Tone | 32, 32.382, 32.768 kHz | | Display | LCD | | Power Requirements | 3.0 V (with two AA-size alkaline (LR6) batteries)
5.0 VDC (via USB micro-B) | | Battery Type/Approx. Life | Approximately 6 hours with Sony's AA-size alkaline (LR6) batteries at 77°F (25°C) | | Operating Temperature | 32 to 122°F (0 to 50°C) | | Storage Temperature | -4 to 131°F (-20 to +55°C) | | Mounting Options | Camera / Belt / Mic Stand Mountable | | Dimensions | 2.48 x 3.23 x 0.94" / 63.0 x 82.0 x 23.8 mm | | Weight | 6.21 oz / 176 g including batteries | | | | Package Weight | 1.06 lb | | Box Dimensions (LxWxH) | 9.6 x 5.85 x 3.65" |
