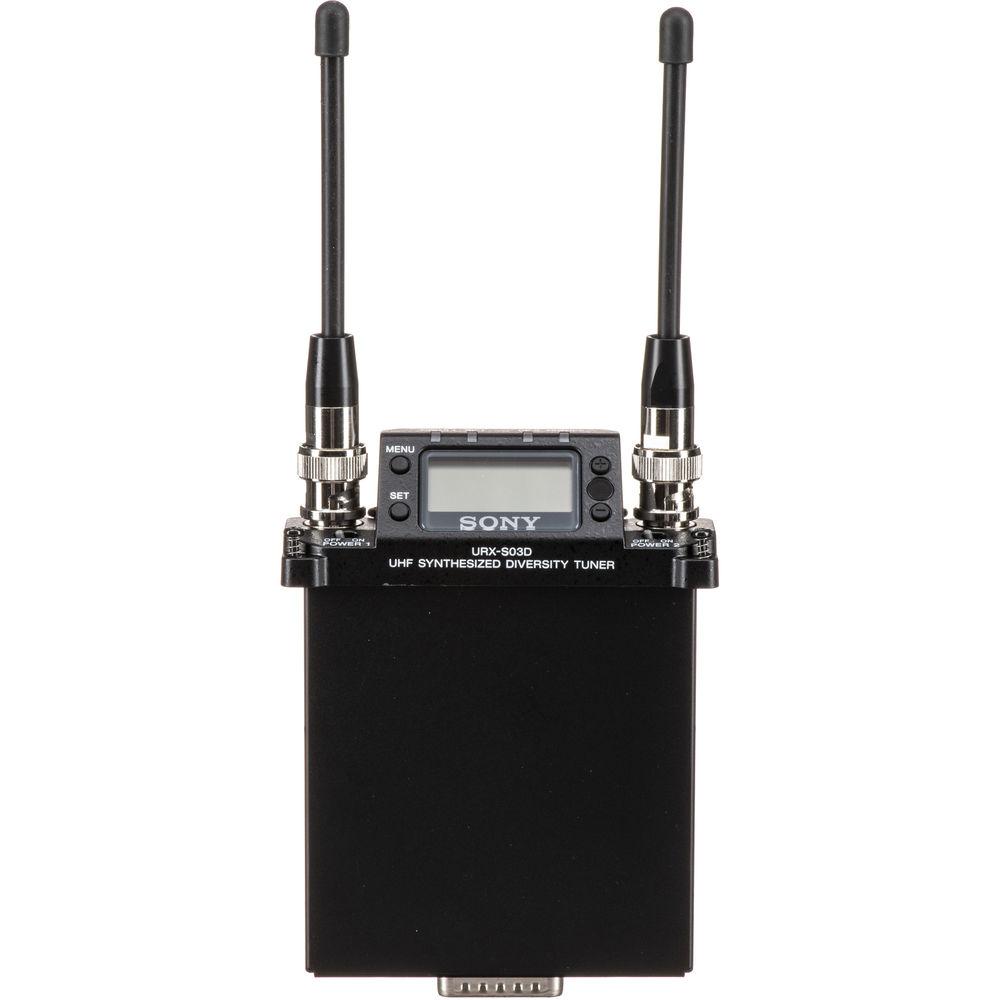

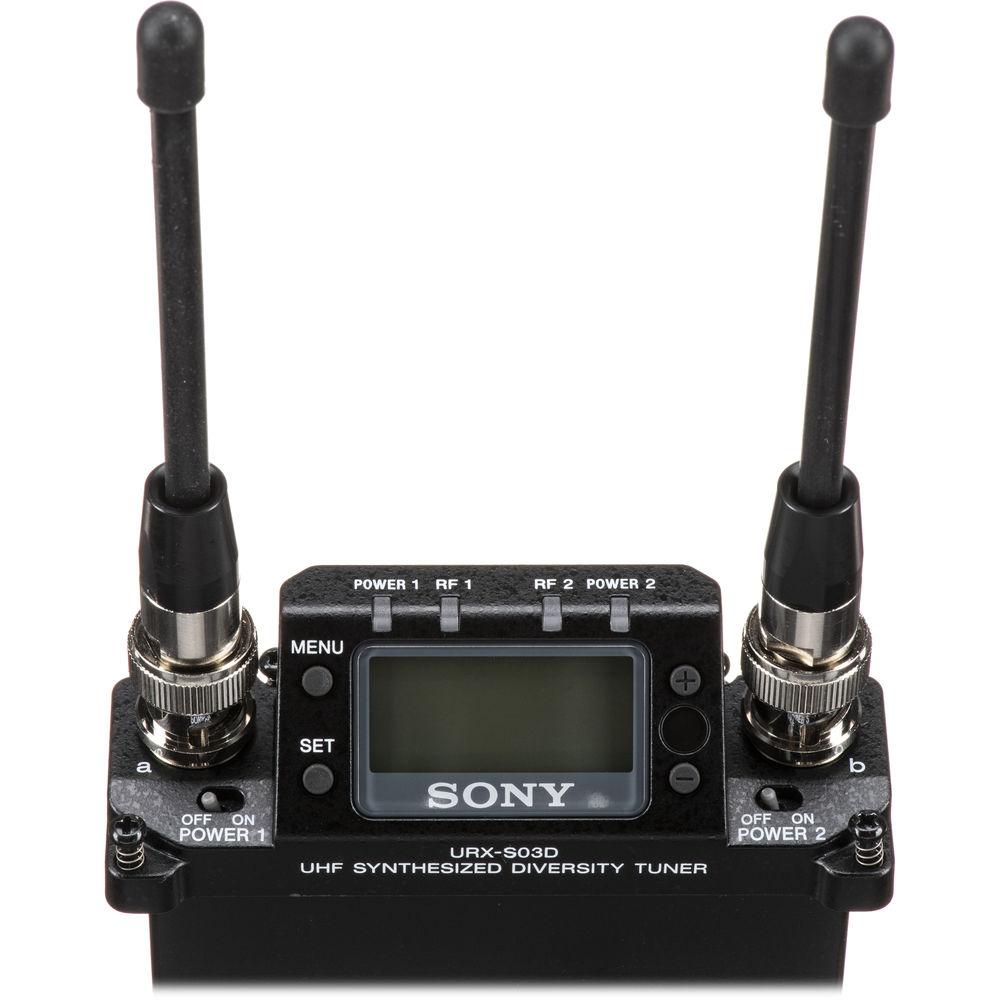

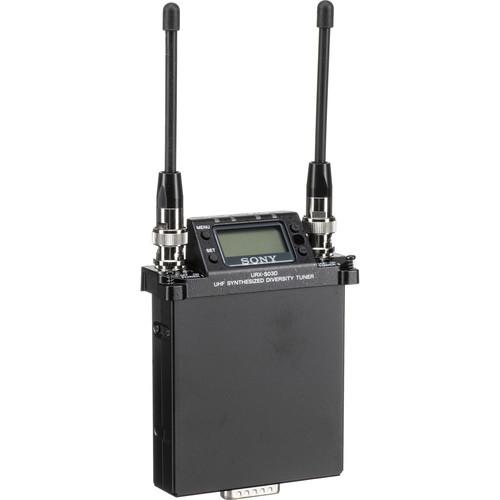

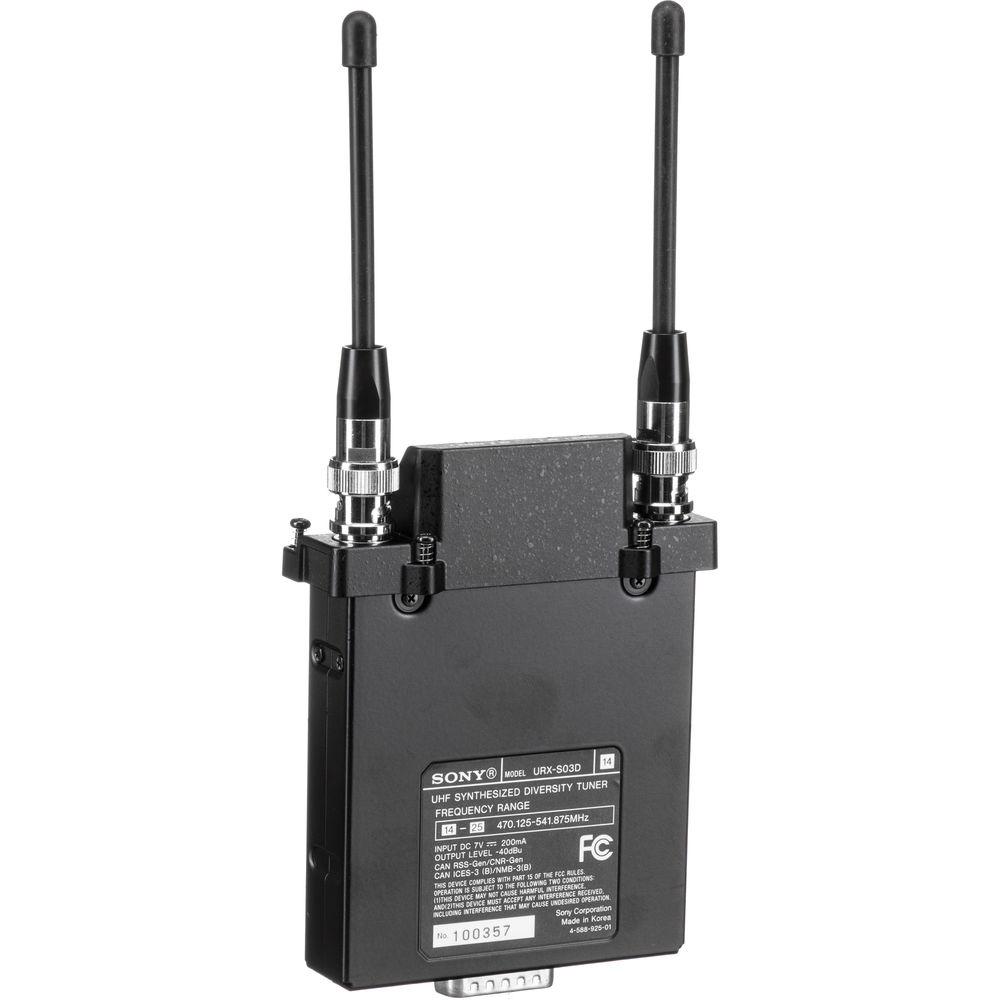

Product description The URXS03D/25 UWP-D Portable Two-Channel Wireless Receiver from Sony operates in UHF-TV channels 25-36 and fits directly in the slot of Sony XDCAM and HDCAM camcorders. It can be used to capture audio when paired with the UTX-B03HR beltpack transmitter & microphone (sold separately) and features easy channel setting functions, stable RF transmission, and Digital Audio Processing technology for wireless audio and video applications. The receiver can access 2,541 frequencies and offers True Diversity reception. It is built with a robust metal body and has a weatherproof structure, a selectable squelch, and wide frequency coverage with a choice of channels available. In addition, it also works seamlessly with Sony 800 and UWP Series transmitters. It includes two whip antennas. - True Diversity Reception System for Stable Reception
- Wireless microphone transmission systems are typically subject to interruptions in reception (RF signal dropout). The UWP-D series reduces this to a minimum and utilizes a true diversity reception per channel. It compares the RF signals from the two antennas and automatically selects the stronger signal for output
- Digital Audio Processing
- Sony Digital Audio Processing is used to improve sound quality and transient response performance compared to conventional analog wireless systems. Analog companding systems cannot accurately reproduce sounds such as a bell, tee shot or handclap, but Sony Digital Audio Processing reproduces them faithfully
- Direct Digital Connection to Camcorders

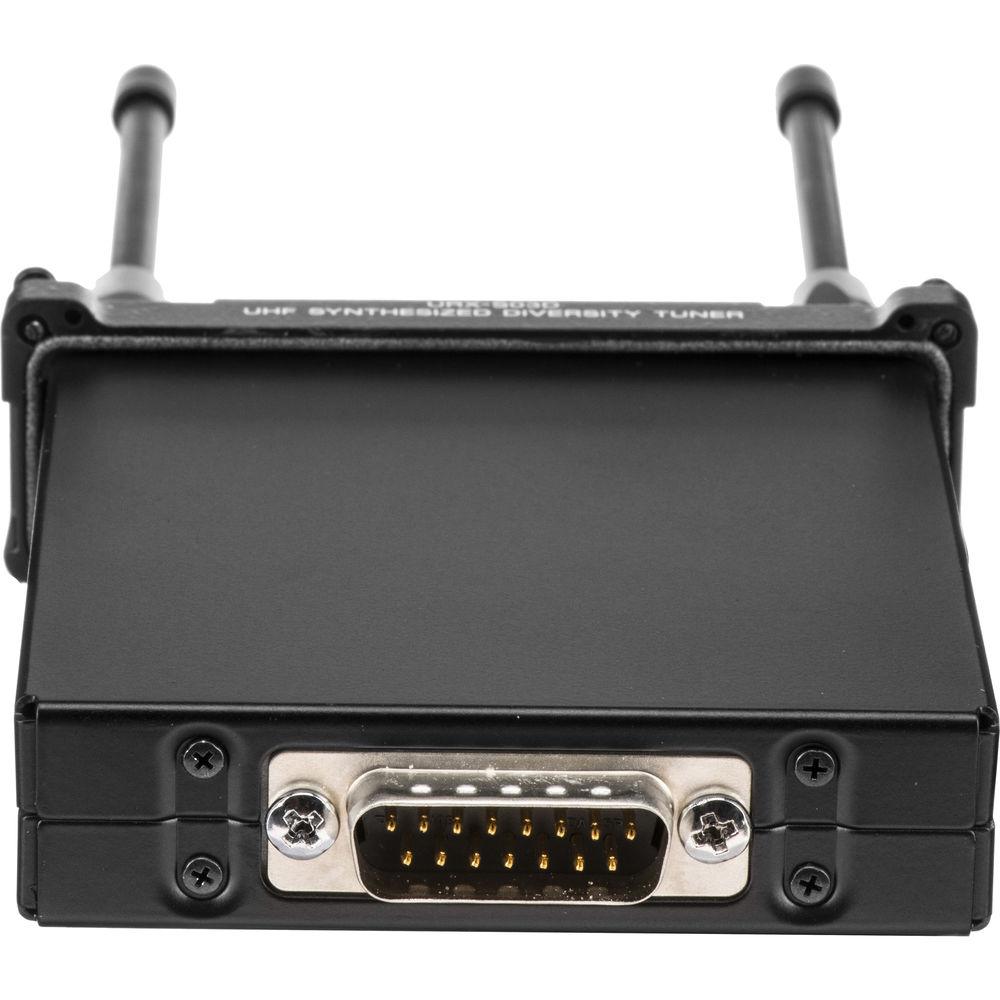

- The URX-S03D provides a digital connection with two-channel (with XDCAM camcorders) and a single-channel (with HDCAM camcorders) via a D-sub 15-pin interface. With HDCAM camcorders, two audio signals from two transmitters can be output in the single channel as a two-channel mixing function. Sony camcorders can also show each wireless microphone's RF/AF level in the viewfinder
- Automatic Channel Setting Mode
- The Auto Set channel mode allows the user to find and set available frequencies to use within the operating frequencies of the system. The receiver will automatically set the transmitter channel using the IR Sync feature
- Easy Channel Scan
- With its Clear Channel Scan, Active Channel Scan function and IR Sync features, the system detects unoccupied channels and selects the most appropriate channel automatically for fast and easy system setup
- Compatible with Sony 800 & UWP Series Wireless
- DSP enables a digital compander to match Sony's analog wireless system. The WP-D Series transmitters and receivers are also compatible with Sony's WL-800 Series and UWP Series, allowing users to switch between different companding modes
- Wide Frequency Coverage
- The switching bandwidth covers a wide area and has a wide choice of channels available
- PLL Synthesized System
- The receiver achieves stable transmission and reception by using a UHF PLL (Phase Locked Loop) frequency synthesized system, which provides accurate carrier signal frequencies. This system is used in both the transmitters and tuners, so that a stable carrier is generated at the transmitter, and accurately tuned in at the tuner. This PLL-controlled system provides highly stable, user-selectable frequencies in increments of both 25 kHz and 125 kHz
UPC: 027242913967 In the Box Sony URXS03D/25 UWP-D Portable Two-Channel Wireless Receiver (25/36: 536 to 608 MHz) 2 x Whip Antennas Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Sony URXS03D 25 UWP-D Portable Two-Channel Wireless Receiver in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSony URX-S03D Specs | Antenna Connector | 2 X BNC-R, 50 Ohms | | Squelch | Level: 15 dBµ / Off (0 dBµ = 1 µV) | | Audio Output Level | -40 dBu (0 dBu = 0.775 Vrms with modulating frequency of 1 kHz and frequency deviation of ±5.0 kHz) | | Accessory Connector | 1 x D-sub connector (15-pin) | | Reception | True diversity method | | Oscillator | Crystal-controlled PLL synthesizer | | Frequency Band | 25/36: 536 to 608 MHz | | Signal to Noise Ratio | 60 dB or more (A-weighted) | | Voice Delay | 0.375 ms | | Deemphasis | 50 μs | | Frequency Deviation | ±5 kHz | | Frequency Response | 40 Hz to 18 kHz | | Distortion | 0.9% or less (with modulating frequency of 1 kHz and frequency deviation of ±5.0 kHz) | | Tone Signal | In UWP-D Compander Mode: 32.382 kHz
In UWP Compander Mode: 32 kHz
In WL800 Compander Mode: 32.768 kHz | | Indicators | Power 1/2, RF 1/2 | | Operating Temperature | 32 to 122°F (0 to 50°C) | | Storage Temperature | -4 to 131°F (-20 to 55°C) | | Supply Voltage | 7.0 VDC (supplied from camcorder or wireless adapter) | | Current Consumption | 200 mA or less (during 7 VDC) | | Dimensions | 3.5 x 4.6 x 1.2" / 88.0 x 116.2 x 31.2 mm | | Weight | 11 oz / 303 g | | | | Package Weight | 1.1 lb | | Box Dimensions (LxWxH) | 9.5 x 5.5 x 3.5" |
