Product description The 470 to 542 MHz version of the Sony UTX-B03 Integrated Digital Wireless Bodypack Transmitter with Lavalier Microphone features an all-metal chassis, an easy to read LCD display, a wide switching RF bandwidth, USB power and charging options, infrared synchronization between transmitter and receiver, a Mic/Line switchable input, and digital companding circuitry to improve the transient response of received audio. The package is suitable for a wide range of wireless applications such as ENG (electronic news gathering), documentary work, talk shows, conferences, and more. The system utilizes UHF Phase Locked Loop (PLL) synthesis to lock the phase of the transmission frequency between transmitter and receiver. The transmitter and receiver can be linked to an available transmission frequency via infrared. An LCD display provides channel and frequency information, battery life, RF level, audio status and accumulated operating time.

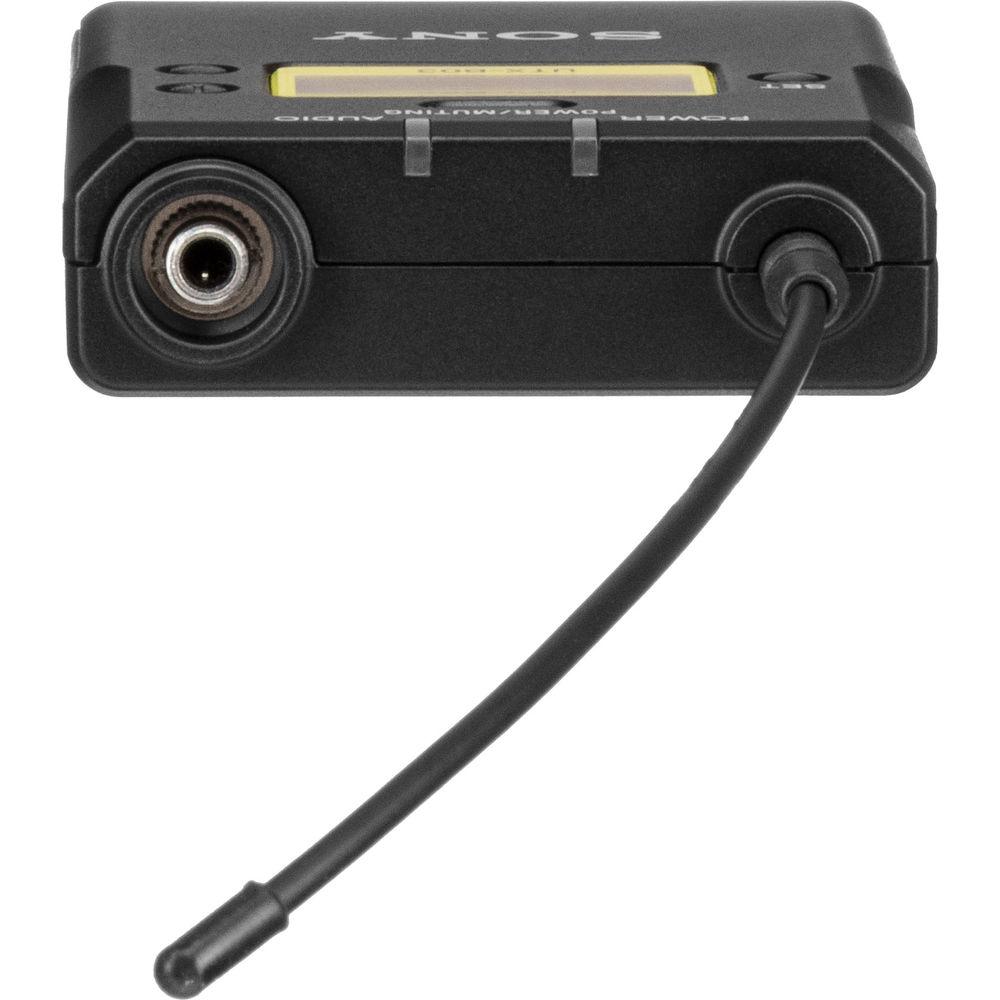

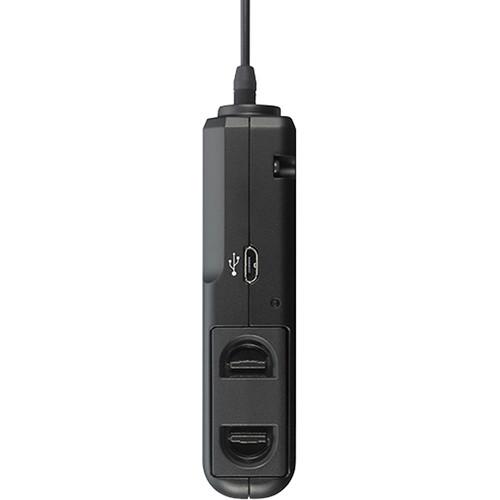

For power, the transmitter operates on two AA batteries for up to 8 hours, or on 5 VDC of USB power over a USB micro B cable. The USB connection can also be used to recharge Ni-MH rechargeable batteries within the battery cartridge. The unit features a mic- and line-level switch for standard wired microphone- or line-level sources with adjustable attenuation. Selectable transmission output power provides a choice between 5mW output, which is suitable for simultaneous multi-channel operation, or 30mW output for long distance transmission.
The transmitter is referred to as integrated digital because it utilizes DSP to compand the transmission signal. Performing the companding and expanding processes in the digital domain improves the accuracy and transient response of the received audio.

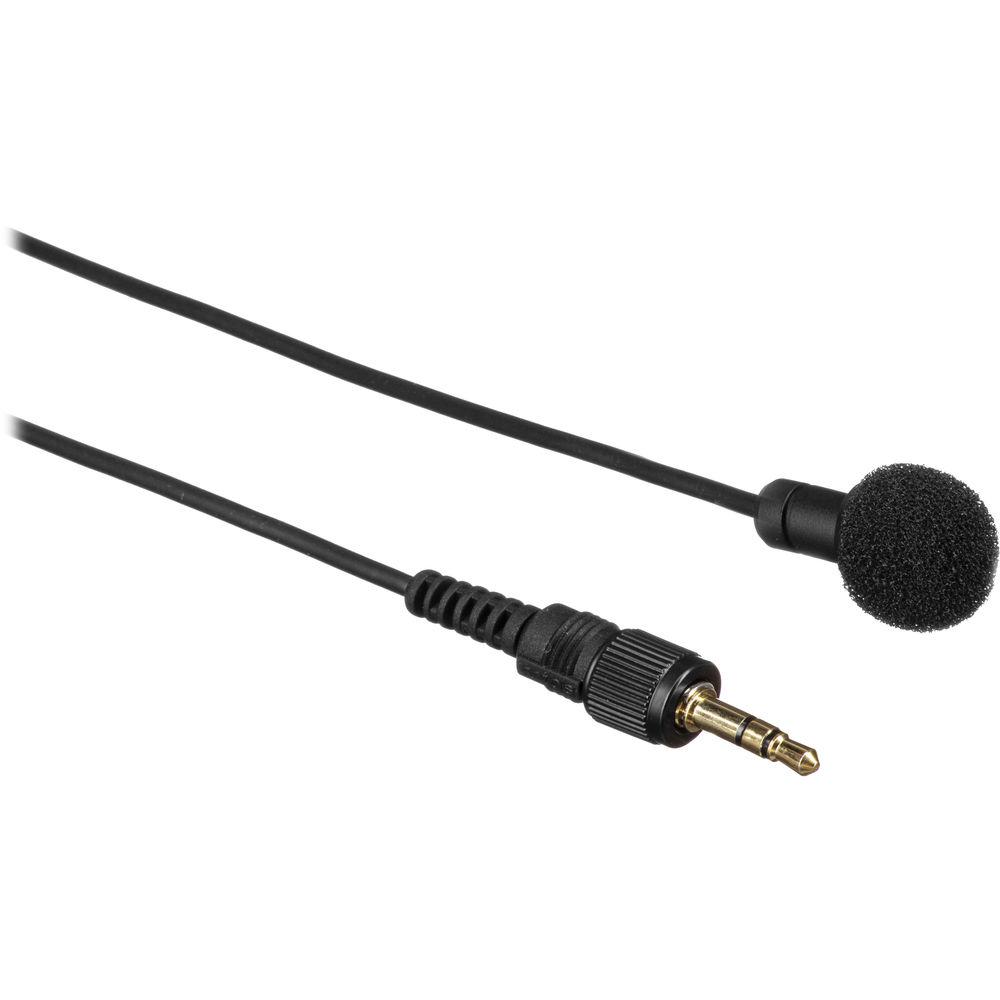

The unit comes with an omnidirectional electret condenser lavalier microphone, a windscreen for the microphone, a microphone holder clip, and a belt clip. - Digital Companding
- Utilizes analog-to-digital and digital-to-analog converter stages so that the transmission signal can be digitally companded by the transmitter and digitally expanded by the receiver for improved audio transient response
- Automatic Channel Scanning
- Scans for available transmission channels and then syncs the transmitter to the receiver via infrared
- Frequency Coverage
- Provides up to 72 MHz of transmission bandwidth
- UWP Series / WL-800 Series Compatibility
- Enables cross-compatibility between the UWP-D transmitter with a UWP Series or WL-800 Series receiver
- USB Power Options
- Supports USB powering and USB charging of internal Ni-MH rechargeable batteries placed in the battery cartridge
- UHF Phase Locked Loop (PLL) Synthesized Frequencies
- Provides stable transmission and reception by generating a transmission frequency and locking the phase of the transmission signal to the incoming signal of the receiver
- Tone Squelch Circuitry
- Transmits a pilot-tone signal with the audio signal and only outputs the audio signal if the pilot tone is present to reduce RF interference from other sources
- Mic and Line Input Switch
- Enables switching between microphone- and line-level input sources
- Simultaneous Multi-Channel Operation
- Stores the most stable interference-free transmission frequencies to internal memory for rapid setup and switching between frequency groups
- Selectable RF Output
- The transmitter allows selection between 5mW output power and 30mW output. 5mW is suitable for indoor, simultaneous multi-channel operation while 30mW is intended for outdoor, long-range use
- Visual Display
- Features a comprehensive LED display providing channel and frequency information, battery life, total usage time and more
- All-Metal Construction
- Features metal construction for durability

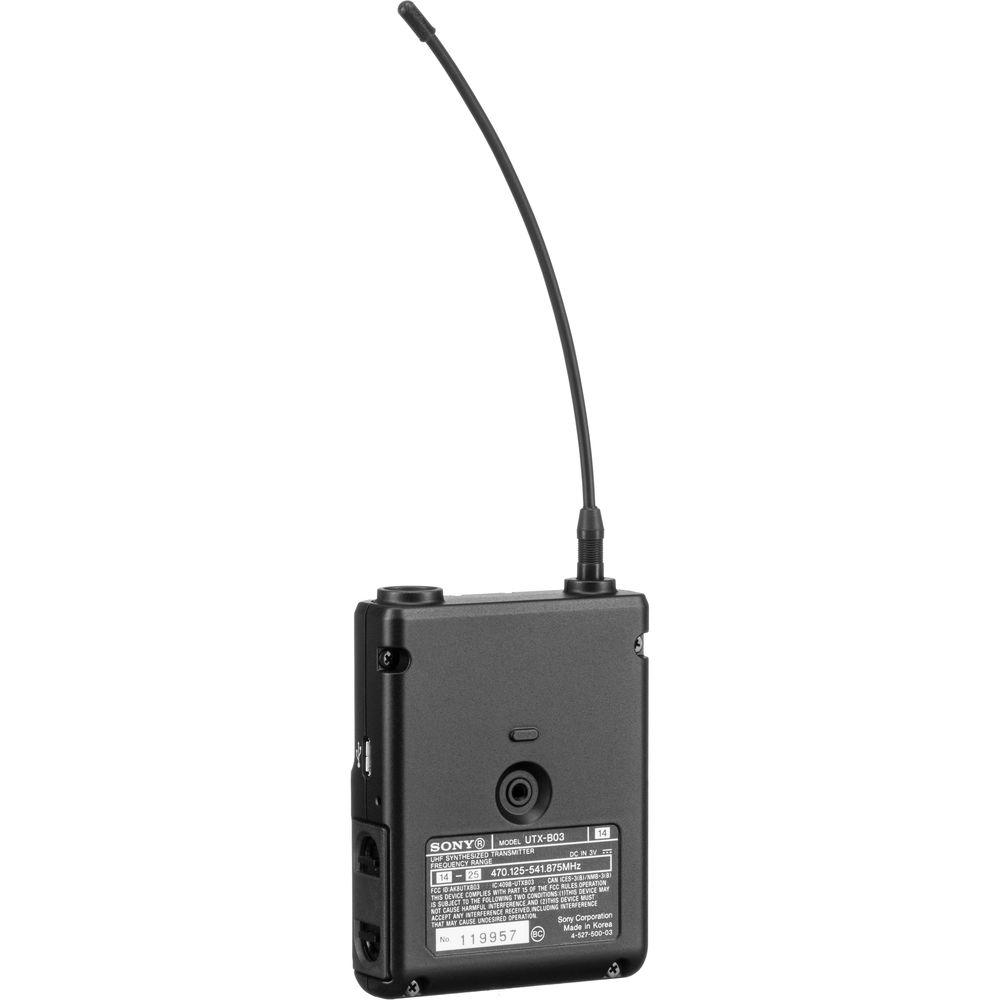

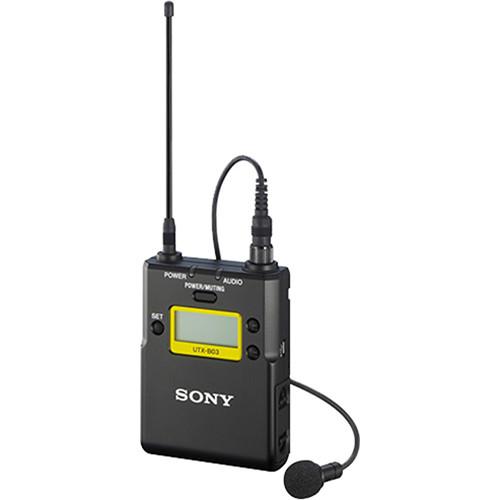

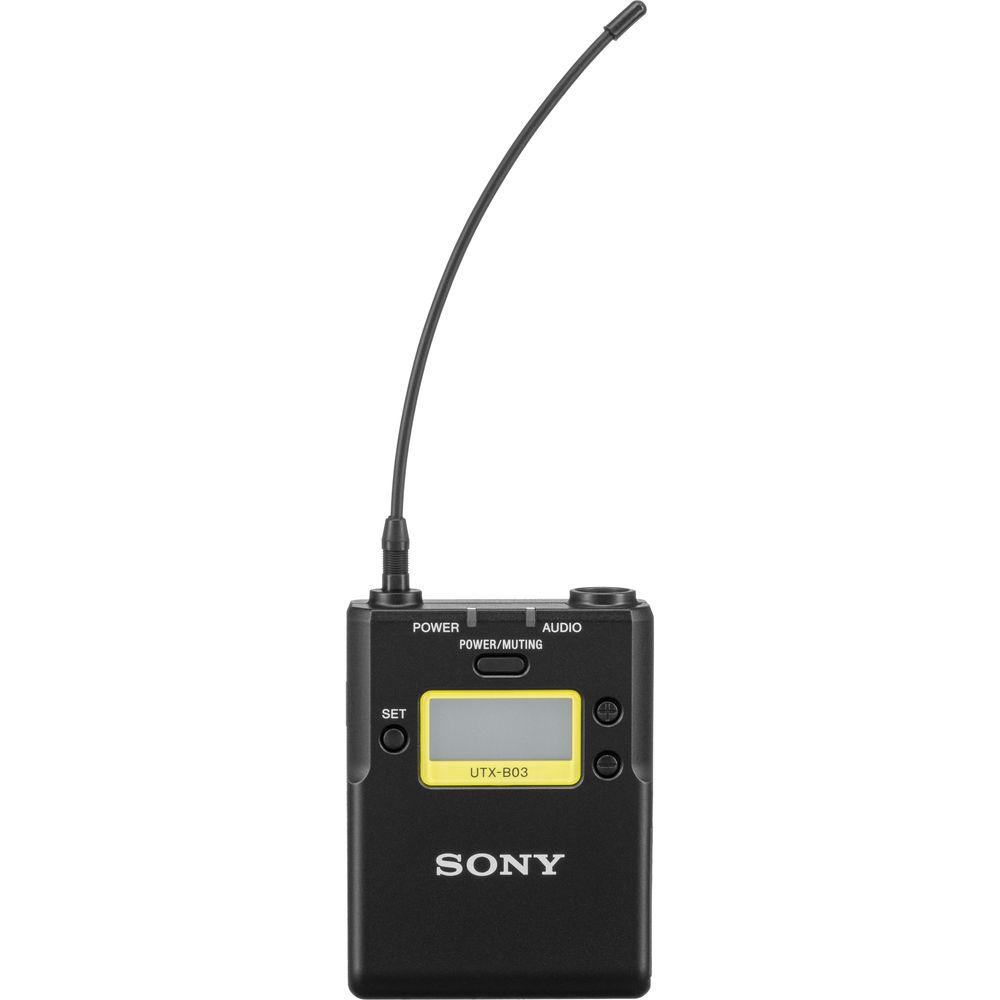

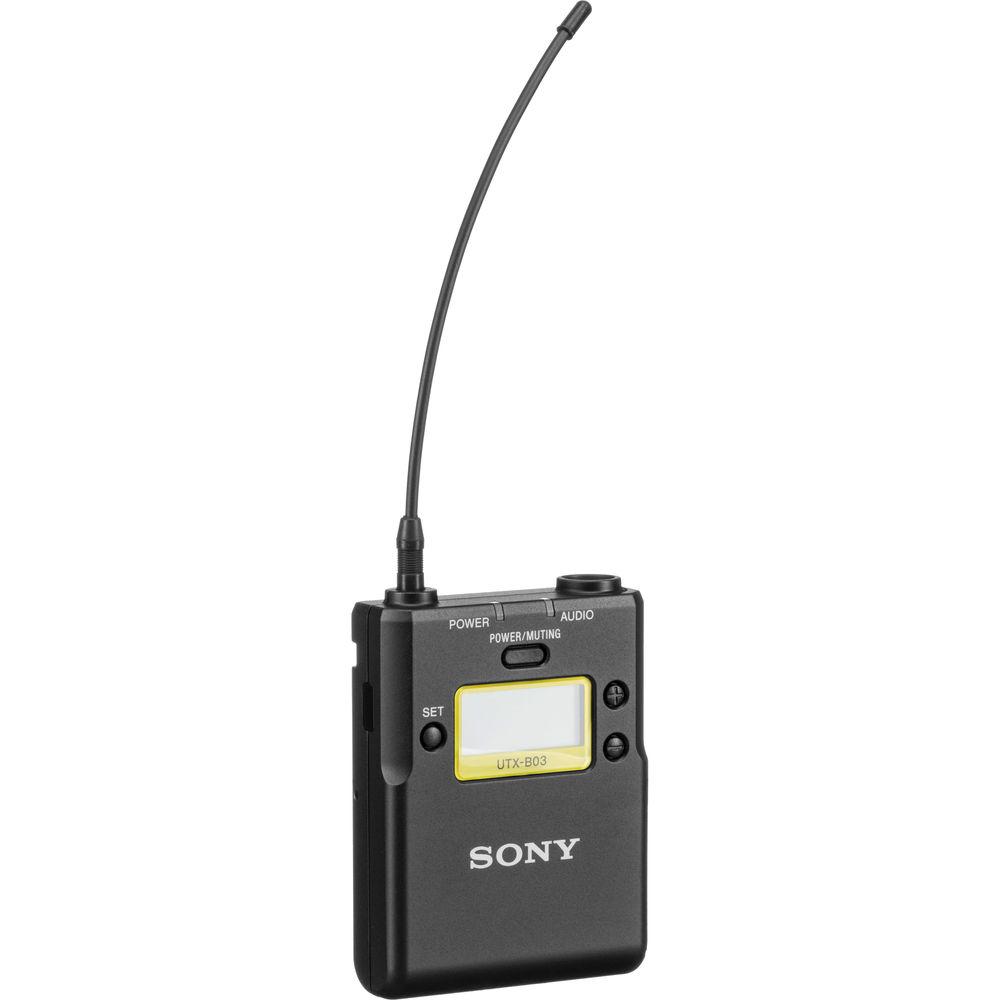

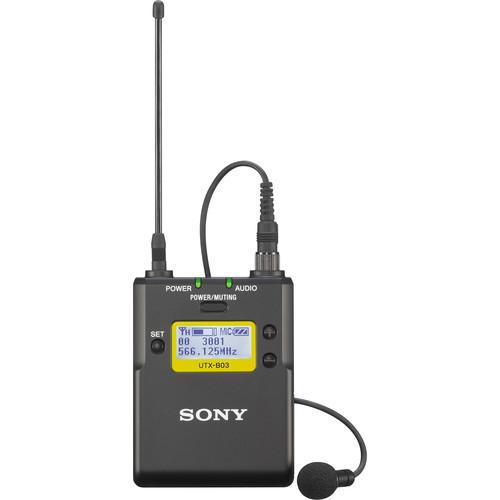

UPC: 027242874138 In the Box Sony UTX-B03 Integrated Digital Wireless Bodypack Transmitter with Lavalier Microphone (UHF Channels 14/25: 470 to 542 MHz) ECM-V1BMP Electret Condenser Lavalier Microphone for UWP Transmitters yzvytyscvqvsfy Microphone Windscreen Microphone Holder Clip Belt Clip Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Sony UTX-B03 Integrated Digital Wireless Bodypack Transmitter with Lavalier Microphone in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSony UTX-B03 Specs | | | Frequency Response | 40 to 20,000 Hz | | Directivity | Omnidirectional | | Capsule | Condenser | | Sensitivity | -43.0 dB ±3.0 dB (1 kHz/Pa) | | Dynamic Range | 86 dB or more | | Maximum Input | 120 dB SPL | | Microphone Head Size | 0.27 x 0.77" (6.8 x 19.5 mm) | | Power Requirements | 5 VDC | | Cable Length | 3.9' (1.2 m) | | Weight | Not specified by the manufacturer | | | | Type of Transmitter | Crystal-controlled UHF PLL-synthesized bodypack transmitter | | Antenna | 1/4 wave length wire | | Emission | F3E | | Carrier Frequency Range | 470 to 542 MHz | | RF Bandwidth | 72 MHz | | RF Power | 30 mW / 5 mW | | Type of Input Connector | Mic/Line Switchable - 3-pole locking mini microphone connector (3.5 mm) | | Interchangeable Mic Heads | Compatible with any microphone that features a mini (3.5mm) connection | | Reference Input Level | Mic: -60 dBV (at 0-dB attenuator level)
Line: +4 dBu | | Attenuation / Gain | Mic: 0 to 21 dB (in 3 dB steps) | | Frequency Response | 23 to 18,000 Hz (typical) | | Signal to Noise Ratio | 96 dB (max deviation, A-weighted) | | Audio Delay | Approximately 0.35 msec | | Pilot Tone | 32 kHz / 32.382 kHz / 32.768 kHz | | Display | LCD | | Power Requirements | 3.0 VDC (with two AA-size alkaline LR6 batteries)
5.0 VDC (via USB micro-B) | | Battery Type/Approx. Life | Approximately 8 hours with Sony's AA-size alkaline (LR6) batteries at 77°F (25°C) at 30 mW output | | Operating Temperature | 32 to 122°F (0 to 50°C) | | Storage Temperature | -4 to 131°F (-20 to 55°C) | | Dimensions (W x H x D) | 2.48 x 3.23 x 0.79" (63 x 82 x 20 mm) | | Weight | 5.26 oz (149 g) with batteries | | | | Package Weight | 0.9 lb | | Box Dimensions (LxWxH) | 9.8 x 5.9 x 3.8" |
