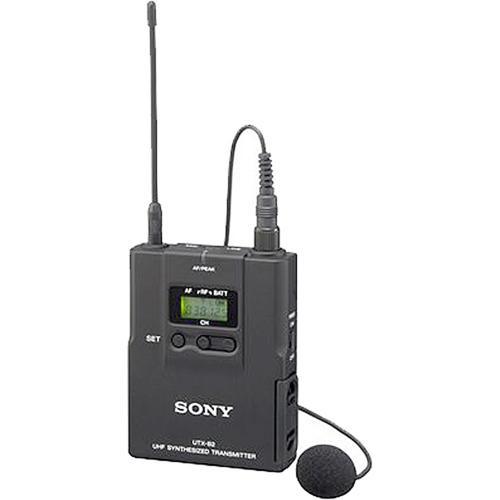

User Manual for Sony UTX-B2 Bodypack Transmitter for UWP Series Wireless Microphone Systems Frequency Group 42 44 Click to enlarge the picture
Contents of the user manual for the Sony UTX-B2 Bodypack Transmitter for UWP
- Product category: Wireless Transmitters Sony
- Brand: Sony
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Sony Wireless Transmitters
|
User manual for the Sony UTX-B2 Bodypack Transmitter for UWP contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Sony product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Sony user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Sony product will considerably shorten its lifespan!
|
Product description The Sony UTX-B2 is a wireless bodypack transmitter for the UWP series wireless microphone system. Users are able to choose from 5mW output, which is suitable for simultaneous multi-channel operation or 30mW output for long distance transmission. The transmitter features selectable RF-output level providing added signal strength at long range. The bodypack transmitter features 188 selectable UHF frequencies and operates up to 10 hours on two-AA size alkaline batteries (10mW output power). An LCD display and a 3.5mm input jack is switchable between mic- and line-level signals. - UHF Synthesized Frequencies
- 188 user-selectable frequencies provide plenty of options when interference is present.
- Selectable RF Output
- The transmitter allows selection between 5mW output power and 30mW output. 5mW is suitable for indoor, simultaneous multi-channel operation while 30mW is intended for outdoor, long-range use.
- Comprehensive Display
- A comprehensive LCD display provides channel and frequency information, battery life, total usage time and more.
UPC: 027242731745 In the Box Sony UTX-B2 Bodypack Transmitter for UWP Series Wireless Microphone Systems Frequency Group 42/44 (638 to 662 MHz) Cardioid Lavalier Microphone Belt Clip Microphone Holder Clip Windscreen Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Sony UTX-B2 Bodypack Transmitter for UWP Series Wireless Microphone Systems Frequency Group 42 44 in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSony UTX-B2 Specs | Type of Transmitter | Crystal-Controlled UHF PLL-synthesized bodypack transmitter | | # Of Channels | 188 | | RF Power Output | 30 mW / 5 mW | | Pilot Tone | 32 kHz | | Audio Input Level | Mic: -60 dBV @ 0 dB attenuation level
Line: +4 dBu | | Type of Input Connector | 3-pole mini jack | | Type of Microphone | Cardioid Lavalier | | Polar Pattern | Cardioid | | Interchangeable Mic Heads | Compatible with Sony lavalier and headworn microphones featuring 3.5mm mini connection | | Frequency Response | 50 Hz to 18 kHz | | Battery Type/Approx. Life | Two AA-size (LR6) alkaline batteries, up to 10 hrs | | Mute Switch | No | | Level Control | Microphone level control | | Antenna Type | Miniature 1/4 wave length helical antenna | | Display | LCD display | | Dimensions (W x H x D) | 2.5 x 3.2 x 0.7" / 63.0 x 82.5 x 18.7 mm excluding the antenna | | Weight | 5.1 oz / 145.0 g including batteries | | | | Package Weight | 1.0 lb | | Box Dimensions (LxWxH) | 9.8 x 5.8 x 3.1" |
