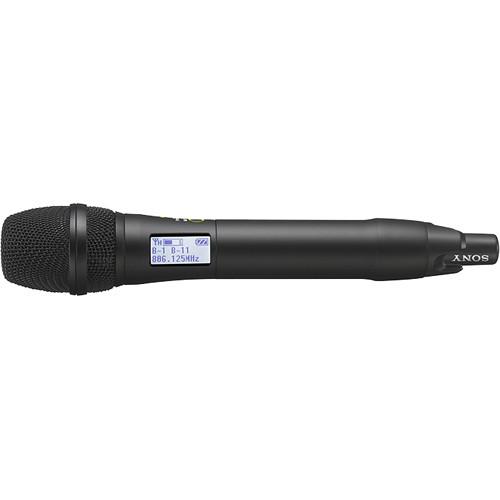

User Manual for Sony UTX-M03 Handheld Wireless Microphone with Cardioid Capsule Click to enlarge the picture
Contents of the user manual for the Sony UTX-M03 Handheld Wireless Microphone with
- Product category: Wireless Transmitters Sony
- Brand: Sony
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Sony Wireless Transmitters
 |
User manual for the Sony UTX-M03 Handheld Wireless Microphone with contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Sony product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Sony user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Sony product will considerably shorten its lifespan!
|

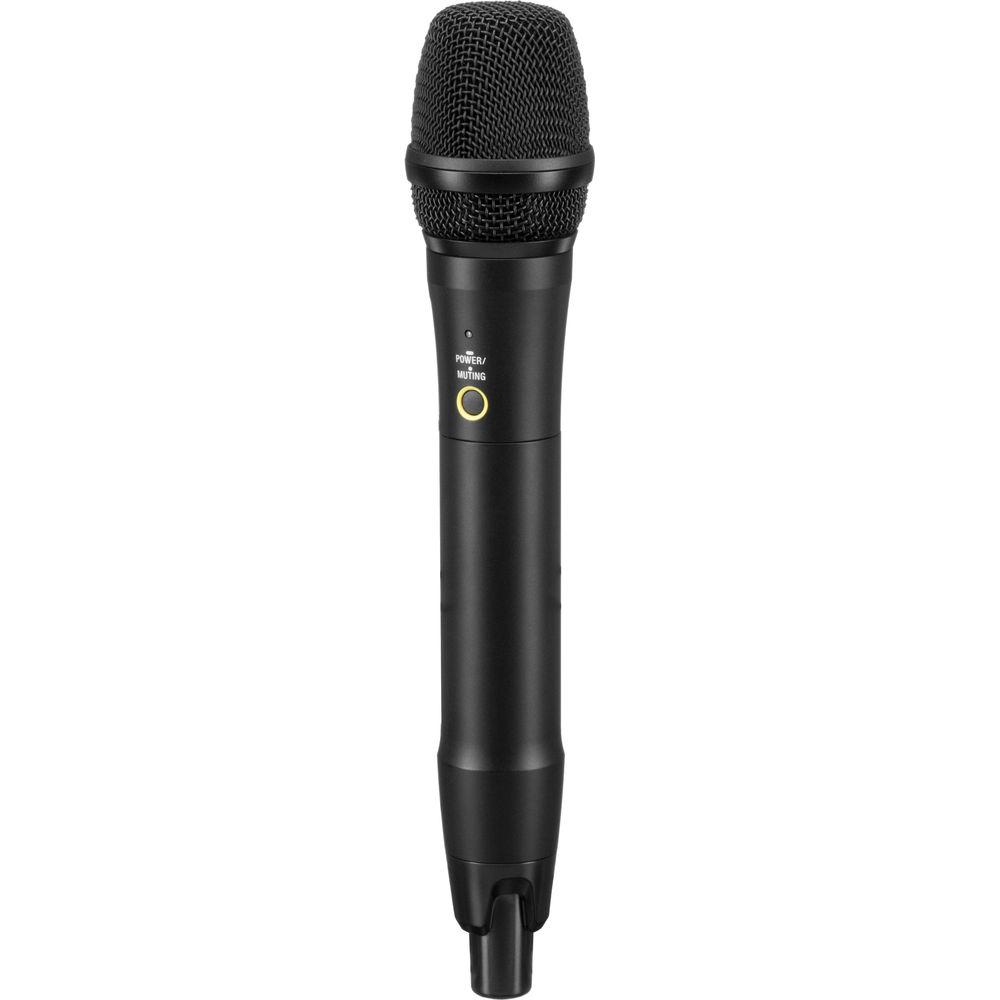

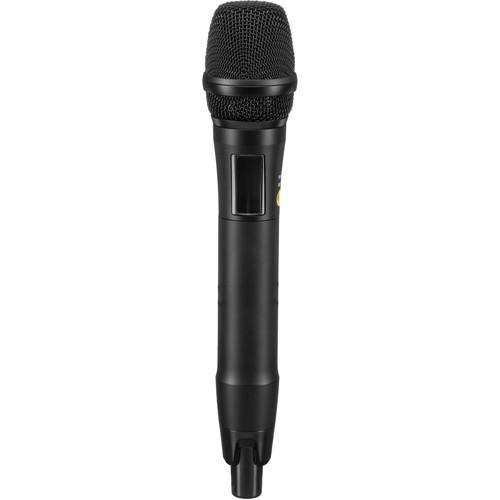

Product description The 536 to 608 MHz version of the Sony UTX-M03 Handheld Wireless Microphone with Cardioid Capsule features an all-metal chassis, an easy to read LCD display, a wide switching RF bandwidth, USB power and charging options, automatic channel scanning, infrared synchronization between the transmitter and receiver, and digital companding circuitry to improve the transient response of received audio. The package is suitable for a wide range of wireless applications such as ENG (Electronic News Gathering), talk shows, lectures, and more.
The transmitter is referred to as integrated digital because the transmitter and receiver utilize DSP for digital companding and expanding of the transmission signal. Performing the companding and expanding processes in the digital domain improves the accuracy and transient response of the received audio. The handheld microphone transmitter features a unidirectional capsule, a built-in windscreen, and a robust metal construction. The capsule can be removed and interchanged with over 40 compatible microphone capsules from various manufacturers, such as the industry standard Shure SM58. The transmitter can operate for up to 8 hours on two AA-size alkaline batteries, can be powered or recharged via USB micro B connections, and features a comprehensive LCD display.

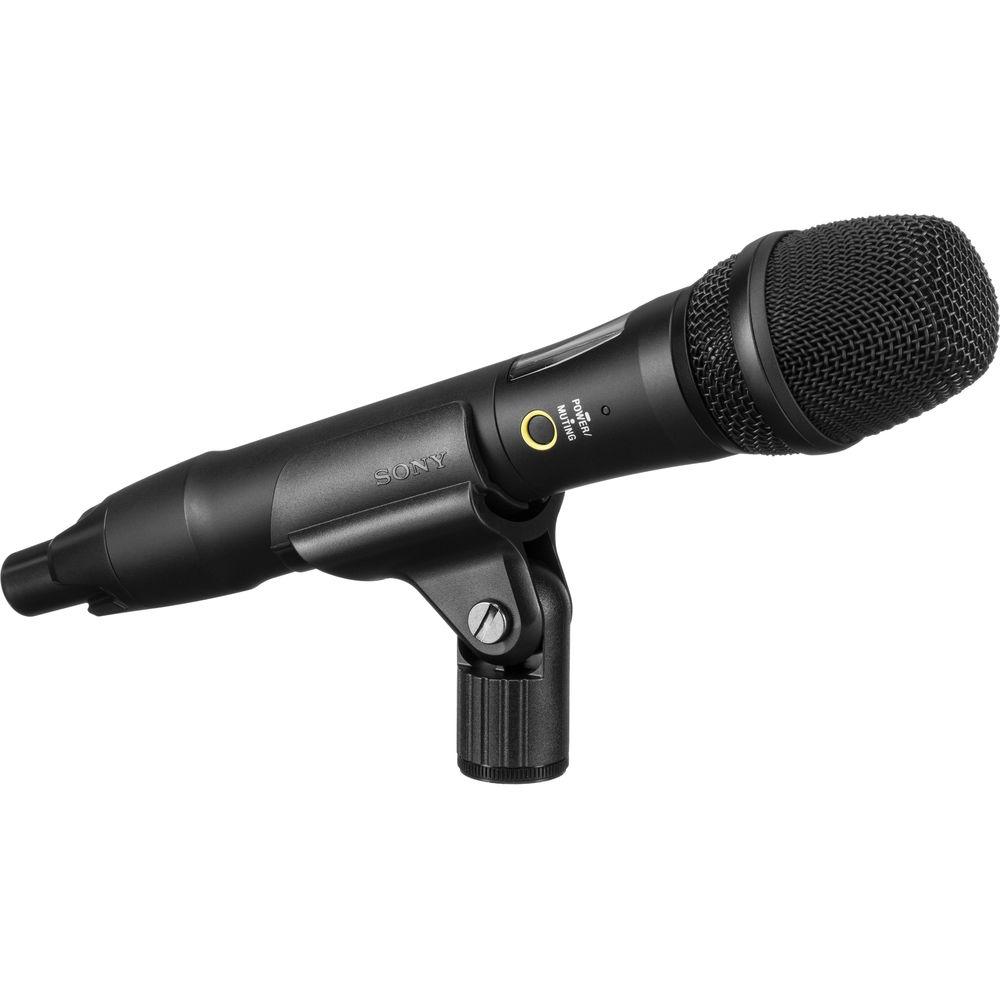

The unit comes with a screw adapter and a microphone holder.
- Interchangeable Microphone Capsules
- Enables use of Sony's DWX Series microphone capsules such as the F31, F32, or CU-C31 as well as over 40 capsules from other manufacturers such as the industry standard Shure SM58
- Digital Companding
- Utilizes analog-to-digital and digital-to-analog converter stages so that the transmission signal can be digitally companded by the transmitter and digitally expanded by the receiver for improved audio transient response
- Automatic Channel Scanning
- Scans for available transmission channels and then syncs the transmitter to the receiver via infrared
- Frequency Coverage
- Provides up to 72 MHz of transmission bandwidth
- UWP Series / WL-800 Series Compatibility
- Enables cross-compatibility between the UWP-D transmitter with a UWP Series or WL-800 Series receiver or UWP Series or WL-800 Series transmitter with a UWP-D receiver
- USB Power Options
- Supports USB powering and USB charging of internal Ni-MH rechargeable batteries placed in the battery cartridge
- UHF Phase Locked Loop (PLL) Synthesized Frequencies
- Provides stable transmission and reception by generating a transmission frequency and locking the phase of the transmission signal to the incoming signal of the receiver
- True Diversity Reception
- Utilizes dual antenna reception circuits and selects the stronger incoming signal to reduce drop-outs
- Tone Squelch Circuitry
- Transmits a pilot-tone signal with the audio signal and only outputs the audio signal if the pilot tone is present to reduce RF interference from other sources
- Simultaneous Multi-Channel Operation
- Stores the most stable interference-free transmission frequencies to internal memory for rapid setup and switching between frequency groups
- Selectable RF Output
- The transmitter allows selection between 5mW output power and 30mW output. 5mW is suitable for indoor, simultaneous multi-channel operation while 30mW is intended for outdoor long-range use
- Visual Display
- Features a comprehensive LED display providing channel and frequency information, battery life, total usage time and more
- All-Metal Construction
- Features metal construction for durability
UPC: 027242909779 In the Box Sony UTX-M03 Handheld Wireless Microphone with Cardioid Capsule (UC25: 536 to 608 MHz) Microphone Holder Screw Adapter Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Sony UTX-M03 Handheld Wireless Microphone with Cardioid Capsule in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSony UTX-M03 Specs | | | Type of Transmitter | Crystal-controlled UHF PLL synthesized handheld microphone transmitter | | Antenna | 1/4 wave length wire (internal) | | Polar Pattern | Unidirectional | | Emission | F3E | | Carrier Frequency Range | 536 to 608 MHz | | RF Power | 30 mW / 5 mW | | Adjustment Range | 151 dB SPL (at 21 dB attenuator level) | | Dimensions (Diam. x L) | 0 to 21 dB (in 3 dB steps) | | Frequency Response | Transmission: 23 to 18,000 Hz (typical)
Capsule unit: 70 to 18,000 Hz | | Signal to Noise Ratio | 96 dB (max deviation, A-weighted) | | Audio Delay | Approximately 0.35 msec | | Pilot Tone | 32 kHz / 32.382 kHz / 32.768 kHz | | Display | LCD | | Power Requirements | 3.0 VDC (with two AA-size alkaline LR6 batteries)
5.0 VDC (via USB micro-B) | | Battery Type/Approx. Life | Approximately 8 hours with Sony's AA-size alkaline (LR6) batteries at 77°F (25°C) at 30 mW output | | Operating Temperature | 32 to 122°F / 0 to 50°C | | Dimensions (W x H x D) | 1.89 x 10.24" / 4.80 x 26.00 cm | | Weight | Approximately 10.4 oz / 294.8 g including batteries | | | | Package Weight | 1.3 lb | | Box Dimensions (LxWxH) | 11.5 x 5.75 x 3.5" |
