Sony UTX-M03 Integrated Digital Handheld Wireless

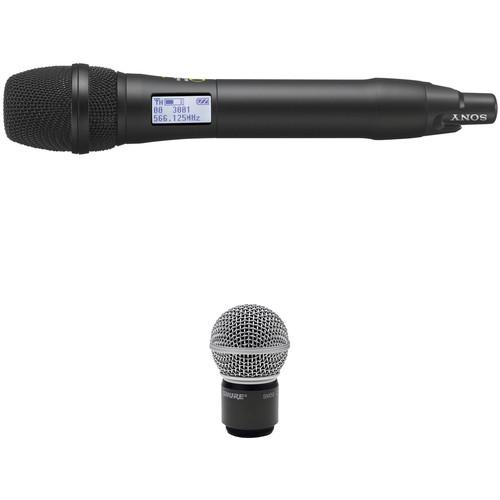

User Manual for Sony UTX-M03 Integrated Digital Handheld Wireless Mic Transmitter With SM58 Cartridge Kit

• Product category: Wireless Transmitters Sony
• Brand: Sony
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Sony Wireless Transmitters

Product description

• Sony UTX-M03 Integrated Digital Handheld Wireless Microphone Transmitter (UHF Channels 14/25: 470 to 542 MHz) The 470 to 542 MHz version of the Sony UTX-M03 Integrated Digital Handheld Wireless Microphone Transmitter features an all-metal chassis, an easy to read LCD display, a wide switching RF bandwidth, USB power and charging options, automatic channel scanning, infrared synchronization between the transmitter and receiver, and digital companding circuitry to improve the transient response of received audio. The package is suitable for a wide range of wireless applications such as ENG (Electronic News Gathering), talk shows, lectures, and more.

  The transmitter is referred to as integrated digital because the transmitter and receiver utilize DSP for digital companding and expanding of the transmission signal. Performing the companding and expanding processes in the digital domain improves the accuracy and transient response of the received audio. The handheld microphone transmitter features a unidirectional capsule, a built-in windscreen, and a robust metal construction. The capsule can be removed and interchanged with over 40 compatible microphone capsules from various manufacturers, such as the industry standard Shure SM58. The transmitter can operate for up to 8 hours on two AA-size alkaline batteries, can be powered or recharged via USB micro B connections, and features a comprehensive LCD display.

  The unit comes with a screw adapter and a microphone holder.

  Interchangeable Microphone Capsules
  • Enables use of Sony's DWX Series microphone capsules such as the F31, F32, or CU-C31 as well as over 40 capsules from other manufacturers such as the industry standard Shure SM58
  Digital Companding
  • Utilizes analog-to-digital and digital-to-analog converter stages so that the transmission signal can be digitally companded by the transmitter and digitally expanded by the receiver for improved audio transient response
  Automatic Channel Scanning
  • Scans for available transmission channels and then syncs the transmitter to the receiver via infrared
  Frequency Coverage
  • Provides up to 72 MHz of transmission bandwidth
  UWP Series / WL-800 Series Compatibility
  • Enables cross-compatibility between the UWP-D transmitter with a UWP Series or WL-800 Series receiver or UWP Series or WL-800 Series transmitter with a UWP-D receiver
  USB Power Options
  • Supports USB powering and USB charging of internal Ni-MH rechargeable batteries placed in the battery cartridge
  UHF Phase Locked Loop (PLL) Synthesized Frequencies
  • Provides stable transmission and reception by generating a transmission frequency and locking the phase of the transmission signal to the incoming signal of the receiver
  True Diversity Reception
  • Utilizes dual antenna reception circuits and selects the stronger incoming signal to reduce drop-outs
  Tone Squelch Circuitry
  • Transmits a pilot-tone signal with the audio signal and only outputs the audio signal if the pilot tone is present to reduce RF interference from other sources
  Simultaneous Multi-Channel Operation
  • Stores the most stable interference-free transmission frequencies to internal memory for rapid setup and switching between frequency groups
  Selectable RF Output
  • The transmitter allows selection between 5mW output power and 30mW output. 5mW is suitable for indoor, simultaneous multi-channel operation while 30mW is intended for outdoor long-range use
  Visual Display
  • Features a comprehensive LED display providing channel and frequency information, battery life, total usage time and more
  All-Metal Construction
  • Features metal construction for durability
  UPC: 027242874213
• Shure RPW112 Dynamic Replacement Element for Shure SM58 Microphone Transmitters The Shure RPW112 Replacement Microphone Element replaces a damaged or faulty element on any wireless microphone transmitter using a Shure SM58 dynamic capsule. The microphone cartridge is completely compatible with Shure L, LX, T, EC, SC, UC, ULX, SLX, Performance Gear, UHF and UHF-R series handheld wireless transmitters. UPC: 042406124201

• UTX-M03 Integrated Digital Handheld Wireless Microphone Transmitter (UHF Channels 14/25: 470 to 542 MHz) yycrwefqfr
• Microphone Holder
• Screw Adapter
• Limited 1-Year Warranty

• Shure - RPW112 Dynamic Replacement Element for Shure SM58 Microphone Transmitters

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• Sony UTX-M03 Integrated Digital Handheld Wireless Microphone Transmitter (UHF Channels 14/25: 470 to 542 MHz)

  Type of Transmitter	Crystal-controlled UHF PLL synthesized handheld microphone transmitter
  Antenna	1/4 wave length wire (internal)
  Polar Pattern	Unidirectional
  Emission	F3E
  Carrier Frequency Range	470 to 542 MHz
  RF Power	30 mW / 5 mW
  Adjustment Range	151 dB SPL (at 21 dB attenuator level)
  Dimensions (Diam. x L)	0 to 21 dB (in 3 dB steps)
  Frequency Response	Transmission: 23 to 18,000 Hz (typical) Capsule unit: 70 to 18,000 Hz
  Signal to Noise Ratio	96 dB (max deviation, A-weighted)
  Audio Delay	Approximately 0.35 msec
  Pilot Tone	32 kHz / 32.382 kHz / 32.768 kHz
  Display	LCD
  Power Requirements	3.0 VDC (with two AA-size alkaline LR6 batteries) 5.0 VDC (via USB micro-B)
  Battery Type/Approx. Life	Approximately 8 hours with Sony's AA-size alkaline (LR6) batteries at 77°F (25°C) at 30 mW output
  Operating Temperature	32 to 122°F / 0 to 50°C
  Dimensions (W x H x D)	1.89 x 10.24" / 4.80 x 26.00 cm
  Weight	Approximately 10.4 oz / 294.8 g including batteries

  Box Dimensions (LxWxH)	11.65 x 5.85 x 3.6"

• Shure RPW112 Dynamic Replacement Element for Shure SM58 Microphone Transmitters

  Box Dimensions (LxWxH)	4.6 x 3.4 x 3.3"
