User Manual for Sony UTXB03HR 14 UWP-D Bodypack Transmitter Click to enlarge the picture
Contents of the user manual for the Sony UTXB03HR 14 UWP-D Bodypack Transmitter
- Product category: Wireless Transmitters Sony
- Brand: Sony
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Sony Wireless Transmitters
|
User manual for the Sony UTXB03HR 14 UWP-D Bodypack Transmitter contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Sony product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Sony user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Sony product will considerably shorten its lifespan!
|

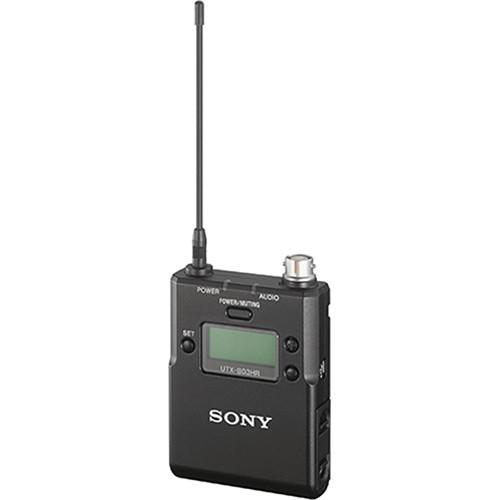

Product description The UTXB03HR/14 from Sony is a lightweight bodypack transmitter that offers wide frequency coverage and operates on UHF TV channels 14-25. It can be used when paired with an optional lavalier microphone and receiver to form a complete UWP-D audio system, which combines digital audio processing with analog FM modulation for interviews, broadcast, ENG (Electronic News Gathering), and EFP (Electronic Field Production) applications. The easy-to-use features include a large LCD display, automatic channel setting function, USB connection for power supply and charging of nickel metal hydride batteries if desired, audio-input level indicator, and mic/line switching controls. In addition, the built-in DSP enables digital companding for high-quality audio transmission, and it allows compatibility with Sony analog wireless systems such as the UWP-D series, UWP series, and WRR series receivers operating on the same 470-542 MHz frequency. A belt clip is also included. - SMC9-4S input connector with locking mechanism accepts the output from Sony EMC-77BC/9X or ECM-44BC omnidirectional lavalier microphones
- Digital Audio Processing for high quality sound
- Wide frequency coverage with choice of channels available
- Attenuator function allows adjustment of the audio input level
- Selectable RF output level: 5 mW (suitable for simultaneous multichannel operation) or 30 mW (for long distance transmission)
- 8 hours of continuous operation with two AA-size alkaline batteries
- LCD screen provides extensive set up information
- Can access 2,310 frequencies
UPC: 027242897076 In the Box Sony UTXB03HR/14 UWP-D Bodypack Transmitter (470-542 MHz) Belt Clip Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Sony UTXB03HR 14 UWP-D Bodypack Transmitter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSony UTXB03HR/14 Specs | | | Antenna | 1/4 wave length wire | | Audio Input Connectors | SMC9-4S (female) | | Reference Input Level | Mic: -60 dBV (at 0-dB attenuator level)
Line: +4 dBu | | Frequency Response | 40 Hz to 18 kHz | | Attenuation | 0 dB to 27 dB (3 dB steps) | | Indicators | Audio, Power/Muting | | Oscillator Type | Crystal-controlled UHF PLL synthesizer | | Carrier Frequency | 470-542 MHz | | RF Output Level | 30 mW/5 mW selectable (for model available in USA, Europe, and China) | | Preemphasis | 50 μs | | Reference Deviation | ±5 kHz (-60 dBV, 1 kHz input) | | Distortion | 0.9% or less (-60 dBV, 1 kHz input) | | Signal to Noise Ratio | 60 dB or more | | Voice Delay | 0.35 ms | | Tone Signal | In UWP-D Compander Mode: 32.382 kHz
In UWP Compander Mode: 32 kHz
In WL800 Compander Mode: 32.768 kHz | | Power Requirements | 3.0 VDC (with two AA-size alkaline LR6 batteries)
5.0 VDC (via USB micro-B) | | Battery Type/Approx. Life | Approximately 8 hours with Sony's AA-size alkaline (LR6) batteries at 77°F (25°C) at 30 mW output | | Operating Temperature | 32 to 122°F (0 to 50°C)
32 to 95°F (0 to 35 °C) when charging | | Storage Temperature | -4 to 131°F (-20 to 55°C) | | Dimensions (W x H x D) | 2.5 x 3.6 x 0.8" (63.0 x 92.0 x 20.0 mm) | | Weight | 3.7 oz (105 g) without batteries | | | | Package Weight | 0.85 lb | | Box Dimensions (LxWxH) | 9.7 x 5.7 x 3.6" |
