Product description

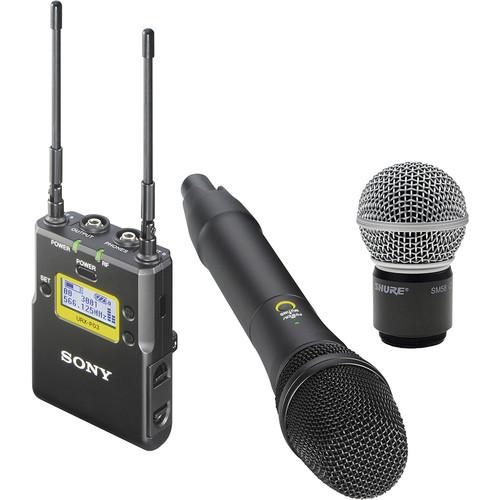

• Sony UWP-D12 Camera-Mount Wireless Cardioid Handheld Microphone System (UC14: 470 to 542 MHz)
  • Sony UWP-D Wireless System Demo
  The 470 to 542 MHz version of the Sony UWP-D12 Camera-Mount Wireless Cardioid Handheld Microphone System features all-metal construction, easy to read LCD displays, wide switching RF bandwidth, USB power and charging, automatic channel scanning, infrared synchronization between the transmitter and receiver, true diversity receiver, headphone output on the receiver, output gain control on the receiver for optimizing input level to a camera, and digital companding circuitry to improve the transient response of received audio. The package is suitable for a wide range of wireless applications such as ENG, talk shows, lectures, and more.

  The system is referred to as integrated digital because the transmitter and receiver utilize DSP for digital companding and expanding of the transmission signal. Performing the companding and expanding processes in the digital domain improves the accuracy and transient response of the received audio.The camera-mountable receiver features true-diversity technology, which stabilizes reception and minimizes RF interference by using dual antenna input/reception circuits and selecting the strongest incoming signal. The angle of the antennas is also adjustable to improve reception when the receiver is mounted on top of a camera or camcorder. The system utilizes UHF Phase Locked Loop (PLL) synthesis to lock the phase of the transmission frequency between transmitter and receiver. The receiver can automatically search for an available transmission frequency and link the desired frequency to the transmitter via infrared connection.

  A stereo mini-jack output with monitor volume control is featured, and both stereo mini and stereo XLR cables are provided. The unit also includes a headphone monitor output for use with cameras and camcorders that don't have a monitor output. An LCD display provides channel and frequency information, battery life, RF-input level, audio-output status and accumulated operating time.

  For power, the receiver operates on two AA batteries for up to 6 hours, or on 5 VDC of USB power over a USB micro B cable. The USB connection can also be used to recharge Ni-MH rechargeable batteries within the battery cartridge. The receiver's compact design and included shoe-mount adapter allows easy mounting to most camcorders and interchangeable lens system cameras.The handheld microphone transmitter features a unidirectional capsule, a built-in windscreen, and a robust metal construction.

  The capsule is removable and can be interchanged with over 40 compatible microphone capsules from various manufacturers, such as the industry standard Shure SM58. The transmitter can operate for up to 8 hours on two AA-size alkaline batteries, can be powered or recharged via USB micro-B connections, and features a comprehensive LCD display.

  The system comes with a screw adapter, a belt-clip, a shoe-mount adapter, a 3.5mm mini to mini stereo cable, and a 3.5mm mini to XLR cable. Optional accessories such as a microphone holder, battery case, and soft case for the receiver are sold separately.
  Interchangeable Microphone Capsules
  • Enables use of Sony's DWX Series microphone capsules such as the F31, F32, or CU-C31 as well as over 40 capsules from other manufacturers such as the industry standard Shure SM58
  Digital Companding
  • Utilizes analog-to-digital and digital-to-analog converter stages so that the transmission signal can be digitally companded by the transmitter and digitally expanded by the receiver for improved audio transient response
  Automatic Channel Scanning
  • Scans for available transmission channels and then syncs the transmitter to the receiver via infrared
  Frequency Coverage
  • Provides up to 72 MHz of transmission bandwidth
  UWP Series / WL-800 Series Compatibility
  • Enables cross-compatibility between the UWP-D transmitter with a UWP Series or WL-800 Series receiver or UWP Series or WL-800 Series transmitter with a UWP-D receiver
  Headphone Output
  • Enables direct monitoring of receiver via headphones, especially useful for cameras that lack a monitor output
  USB Power Options
  • Supports USB powering and USB charging of internal Ni-MH rechargeable batteries placed in the battery cartridge
  Output Level Control
  • Controls the receiver's output level with ±12 dB adjustments for optimizing the input level into the camera
  UHF Phase Locked Loop (PLL) Synthesized Frequencies
  • Provides stable transmission and reception by generating a transmission frequency and locking the phase of the transmission signal to the incoming signal of the receiver
  True Diversity Reception
  • Utilizes dual antenna reception circuits and selects the stronger incoming signal to reduce drop-outs
  Tone Squelch Circuitry
  • Transmits a pilot-tone signal with the audio signal and only outputs the audio signal if the pilot tone is present to reduce RF interference from other sources
  Simultaneous Multi-Channel Operation
  • Stores the most stable interference-free transmission frequencies to internal memory for rapid setup and switching between frequency groups
  Selectable RF Output
  • The transmitter allows selection between 5mW output power and 30mW output. 5mW is suitable for indoor, simultaneous multi-channel operation while 30mW is intended for outdoor, long-range use
  Visual Display
  • The receiver features a comprehensive LED display providing channel and frequency information, battery life, total usage time and more
  Improved All-Metal Construction
  • The transmitter and receiver feature metal construction for durability
  UPC: 027242873940
• Shure RPW112 Dynamic Replacement Element for Shure SM58 Microphone Transmitters
  • Sony UWP-D Wireless System Demo
  The Shure RPW112 Replacement Microphone Element replaces a damaged or faulty element on any wireless microphone transmitter using a Shure SM58 dynamic capsule. The microphone cartridge is completely compatible with Shure L, LX, T, EC, SC, UC, ULX, SLX, Performance Gear, UHF and UHF-R series handheld wireless transmitters. UPC: 042406124201

• UWP-D12 Camera-Mount Wireless Cardioid Handheld Microphone System (UC14: 470 to 542 MHz) feqquyxvdywaesyusdebrwsw
• UTX-M03 Integrated Digital Handheld Wireless Microphone Transmitter (UHF Channels 14/25: 470 to 542 MHz)
• URXP03 Integrated Digital Portable Wireless Receiver (UHF Channels 14/25: 470 to 542 MHz)
• Microphone Holder
• Screw Adapter
• Belt Clip
• Shoe-Mount Adapter (Receiver)
• 1/8" (3.5mm) Mini to Mini Output Cable
• 1/8" (3.5mm) Mini to XLR Output Cable
• Limited 1-Year Warranty

• Shure - RPW112 Dynamic Replacement Element for Shure SM58 Microphone Transmitters

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• Sony UWP-D12 Camera-Mount Wireless Cardioid Handheld Microphone System (UC14: 470 to 542 MHz)

  Type of System	Camera mountable UHF synthesized wireless handheld system
  RF Carrier Frequency Range	470 to 542 MHz
  RF Bandwidth	72 MHz
  Approx. Working Range	Not specified by the manufacturer

  Type of Receiver	Camera mountable, space diversity, crystal-controlled PLL synthesizer
  Reception Type	True diversity
  Antenna Type	1/4 wave length wire
  Frequency Response	23 Hz to 18 kHz (typical)
  Signal to Noise Ratio	96 dB (max deviation, A-weighted)
  Distortion	0.9% or less (-60 dBV, 1 kHz input)
  Audio Delay	Approximately 0.35 msec
  Type of Outputs	1/8" / 3.5 mm 3-pole mini-jack, unbalanced
  Analog Output Levels	-60 dBV (at ±5 kHz deviation)
  Adjustment Range	-12 dB to +12 dB (3 dB steps)
  Headphone Monitoring	1/8" / 3.5 mm stereo mini-jack, unbalanced with variable level
  Headphone Output Level	5 mW (at 16-Ohm load)
  Pilot Tone	32 / 32.382 / 32.768 kHz
  Display	LCD
  Power Requirements	3.0 V (with two AA-size alkaline (LR6) batteries) 5.0 VDC (via USB micro-B)
  Battery Type/Approx. Life	Approximately 6 hours with AA-size alkaline (LR6) batteries at 77°F / 25°C
  Operating Temperature	32 to 122°F / 0 to 50°C
  Storage Temperature	-4 to 131°F / -20 to +55°C
  Mounting Options	Camera / Belt / Mic Stand Mountable
  Dimensions	2.48 x 3.23 x 0.94" / 6.30 x 8.20 x 2.39 cm
  Weight	6.2 oz / 176.1 g including batteries

  Type of Transmitter	Crystal-controlled UHF PLL synthesized handheld microphone transmitter
  Antenna	1/4 wave length wire (internal)
  Polar Pattern	Unidirectional
  Emission	F3E
  Carrier Frequency Range	470 to 542 MHz
  RF Power	30 mW / 5 mW
  Adjustment Range	151 dB SPL (at 21 dB attenuator level)
  Dimensions (Diam. x L)	0 to 21 dB (in 3 dB steps)
  Frequency Response	Transmission: 23 Hz to 18 kHz (typical) Capsule Unit: 70 Hz to 18 kHz
  Signal to Noise Ratio	96 dB (max deviation, A-weighted)
  Audio Delay	Approximately 0.35 msec
  Pilot Tone	32 / 32.382 / 32.768 kHz
  Display	LCD
  Power Requirements	3.0 V (with two AA-size alkaline LR6 batteries) 5.0 VDC (via USB micro-B)
  Battery Type/Approx. Life	Approximately 8 hours with AA-size alkaline (LR6) batteries at 77°F / 25°C at 30 mW output
  Operating Temperature	32 to 122°F / 0 to 50°C
  Storage Temperature	-4 to 131°F / -20 to 55°C
  Dimensions (Diam. x L)	1.89 x 10.20" / 4.80 x 25.91 cm
  Weight	Approximately 10.4 oz / 294.8 g including batteries

  Box Dimensions (LxWxH)	12.2 x 11.0 x 3.1"

• Shure RPW112 Dynamic Replacement Element for Shure SM58 Microphone Transmitters

  Box Dimensions (LxWxH)	4.6 x 3.4 x 3.3"
