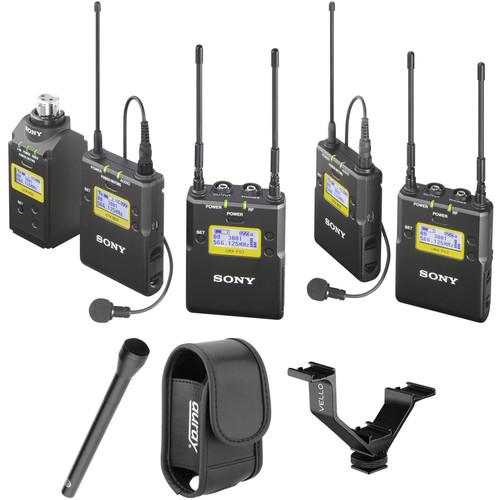

Sony UWP-D16 2-Person Camera-Mount Wireless Combo

User Manual for Sony UWP-D16 2-Person Camera-Mount Wireless Combo Microphone System Kit

• Product category: Wireless Systems Sony
• Brand: Sony
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Sony Wireless Systems

Product description

• Sony UWP-D16 Camera-Mount Wireless Combo Microphone System (UC25: 536 to 608 MHz) The Sony UWP-D16 Camera-Mount Wireless Combo Microphone System provides filmmakers, videographers, and journalists with a professional wireless system featuring digital audio processing for pristine sound, and analog UHF transmission with true-diversity reception for reliability—even under difficult shooting conditions.The system offers a winning combination of trustworthy performance, ease of use, flexible control, and a wide 72 MHz bandwidth with 2772 frequency options for clean, broadcast-quality audio. You can operate up to 16 mics in one location.The versatile UWP-D16 includes a bodypack transmitter with an ECM-V1BMP omnidirectional lavalier mic, great for hands-free interviews. Also included is a plug-on transmitter, which can be attached to a handheld microphone of your choice for man-on-the-street interviews, or to a shotgun mic for wireless booming (both types of mics are available separately). The plug-on also provides 48V phantom power, giving you the option to use a condenser microphone.The receiver connects to a camcorder or a DSLR/mirrorless camera to capture natural-sounding speech or dialog for projects ranging from field-based news productions and sports events to wedding videos and documentaries.Note: While this system includes two transmitters, only one can be used at a time with the included receiver. To record both transmitters simultaneously to a single camera, you can use the 2-channel URX-P03D receiver (available separately).
  A Rugged Build, Ready for the Camera
  • • The UWP-D16 features a robust, all-metal construction well suited for tough operating conditions.
    • The compact bodypack transmitter is lightweight and comfortable for the talent to wear. A locking, 3.5mm BMP-type microphone input connector ensures that your lav doesn’t detach at a critical moment. A quick press on the power button allows you to mute your mic.
    • The equally lightweight plug-on transmitter attaches to any dynamic or condenser microphone equipped with an XLR connector. Also, a quick press on the power button allows you to mute your mic.
    • Using the included shoemount adapter, the compact receiver easily mounts on your camera, while adding minimal weight to your rig. Cables are included to connect to cameras equipped with either a 3.5mm or an XLR audio input. Alternatively, the ML shoe mount on select Sony cameras can serve as a cable-free audio connection using the SMD-P3 shoe adapter (available separately).
    • If your camera doesn’t have a headphone jack, you can monitor your sound via the receiver’s headphone output while recording.
    • Large, daylight-readable displays on both transmitters and the receiver show reception quality, battery status, and audio level.
  Fast and Flexible
  • • The easy-to-navigate menu allows for secure and speedy settings.
    • With Auto Set enabled, simply power up the components and the Clear Channel Scan function automatically searches for the cleanest frequency at your location. The system then synchronizes the transmitter and receiver via IR Sync with no additional action required-saving you valuable set up time in the field.
    • The RF output level on the transmitters has two settings: the 5 mW option allows you to conserve battery life, while the 30 mW (40 mW on the plug-on) setting gives you more power to overcome interference, great in busy RF environments.
    • Inputs on both transmitters are switchable between mic and line level and offer adjustable attenuators so you can set the ideal gain level for your sound source.
    • The receiver provides a variable output level control of ± 12dB so you can optimize it for the input level of a camcorder or DSLR/mirrorless camera, reducing the self-noise that incurs from turning up the camera gain.
  Reliable Reception with True Diversity
  • • To achieve stable audio, the UWP-D receiver employs true-diversity technology with two antennas and two independent receiver sections within the unit. Both RF signals are compared, and the stronger signal is automatically selected for output—reducing dropouts to a minimum.
    • The angle of the two antennas can also be adjusted, which helps to further prevent signal dropouts.
  Professional Sound with Digital Audio Processing
  • • Unlike a traditional analog system, The UWP-D supplements its proven analog UHF transmission technology with proprietary digital audio processing. Transient sounds and consonants are reproduced with greater accuracy, resulting in clear, natural sound that’s intelligible and nuanced.
    • The ECM-V1BMP lavalier mic is optimized for capturing news in the field. This omnidirectional mic picks up sound from every direction, allowing for a variety of placement options and freedom of movement.
    • For clearer speech in noisy environments, you can substitute the included lav mic with an ECM-322BMP headset mic.
  Multiple Powering Options
  • • The receiver and transmitters can be powered via two AA batteries for up to 6 hours of shooting time.
    • The transmitters and receiver can also be powered through their USB ports, allowing them to run for numerous hours on a USB power pack or indefinitely, if you have access to AC.
    • The USB ports can also recharge Ni-MH batteries (available separately) while in use.
    • With the SMAD-P3 shoe adapter (available separately) the wireless receiver can get power directly from select Sony cameras.
    • Cartridge-type battery cases allow for quick battery replacement on set.
  Compatibility with Other Sony Wireless Systems
  • • UWP-D Series transmitters and receivers can also be used with WL-800 Series receivers and transmitters.
  UPC: 027242909755
• Sony UWP-D11 Camera-Mount Wireless Omni Lavalier Microphone System (UC25: 536 to 608 MHz) The Sony UWP-D11 Camera-Mount Wireless Omni Lavalier Microphone System provides filmmakers, videographers, and journalists with a professional wireless system featuring digital audio processing for pristine sound, and analog UHF transmission with true-diversity reception for reliability—even under difficult shooting conditions.The system offers a winning combination of trustworthy performance, ease of use, flexible control, and a wide 72 MHz bandwidth with 2772 frequency options for clean, broadcast-quality audio. You can operate up to 16 mics in one location.The UWP-D11 includes a camera-mount receiver and a bodypack transmitter with an ECM-V1BMP omnidirectional lavalier mic. It connects to a camcorder or a DSLR/mirrorless camera to capture natural-sounding speech or dialog for projects ranging from field-based news productions and hands-free interviews to wedding videos, sports events, and documentaries.
  A Rugged Build, Ready for the Camera
  • • The UWP-D11 features a robust, all-metal construction well suited for tough operating conditions.
    • The compact bodypack transmitter is lightweight and comfortable for the talent to wear. A locking, 3.5mm BMP-type microphone input connector ensures that your lav doesn’t detach at a critical moment. A quick press on the power button allows you to mute your mic.
    • Using the included shoemount adapter, the compact receiver easily mounts on your camera, while adding minimal weight to your rig. Cables are included to connect to cameras equipped with either a 3.5mm or an XLR audio input. Alternatively, the ML shoe mount on select Sony cameras can serve as a cable-free audio connection using the SMD-P3 shoe adapter (available separately).
    • If your camera doesn’t have a headphone jack, you can monitor your sound via the receiver’s headphone output while recording.
    • Large, daylight-readable displays on both the transmitter and receiver show reception quality, battery status, and audio level.
  Fast and Flexible
  • • The easy-to-navigate menu allows for secure and speedy settings.
    • With Auto Set enabled, simply power up the components and the Clear Channel Scan function automatically searches for the cleanest frequency at your location. The system then synchronizes the transmitter and receiver via IR Sync with no additional action required-saving you valuable set up time in the field.
    • The RF output level on the transmitter has two settings: the 5 mW option allows you to conserve battery life, while the 30 mW setting gives you more power to overcome interference, great in busy RF environments.
    • The transmitter input is switchable between mic and line level, and offers adjustable attenuators so you can set the ideal gain level for your sound source.
    • The receiver provides a variable output level control of ± 12dB so you can optimize it for the input level of a camcorder or DSLR/mirrorless camera, reducing the self-noise that incurs from turning up the camera gain.
  Reliable Reception with True Diversity
  • • To achieve stable audio, the UWP-D receiver employs true-diversity technology with two antennas and two independent receiver sections within the unit. Both RF signals are compared, and the stronger signal is automatically selected for output—reducing dropouts to a minimum.
    • The angle of the two antennas can also be adjusted, which helps to further prevent signal dropouts.
  Professional Sound with Digital Audio Processing
  • • Unlike a traditional analog system, The UWP-D supplements its proven analog UHF transmission technology with proprietary digital audio processing. Transient sounds and consonants are reproduced with greater accuracy, resulting in clear, natural sound that’s intelligible and nuanced.
    • The ECM-V1BMP lavalier mic is optimized for capturing news in the field. This omnidirectional mic picks up sound from every direction, allowing for a variety of placement options and freedom of movement.
    • With this set, you can add the UTX-M03 handheld wireless mic with cardioid capsule, ideal in situations where you don't have time to position a lavalier mic or you need to quickly pass the mic between several people.
    • Adding the UTX-P03 plug-on transmitter with 48V phantom allows you to connect any handheld microphone of your choice for man-on-the-street-style interviews, or a shotgun mic for wireless booming.
    • For clearer speech in noisy environments, you can substitute the included lav mic with an ECM-322BMP headset mic.
  Multiple Powering Options
  • • The receiver and transmitter can be powered via two AA batteries for up to 6 hours of shooting time.
    • The transmitter and receiver can also be powered through their USB ports, allowing them to run for numerous hours on a USB power pack or indefinitely, if you have access to AC.
    • The USB ports can also recharge Ni-MH batteries (available separately) while in use.
    • With the SMAD-P3 shoe adapter (available separately) the wireless receiver can get power directly from select Sony cameras.
    • Cartridge-type battery cases allow for quick battery replacement on set.
  Compatibility with Other Sony Wireless Systems
  • • UWP-D Series transmitters and receivers can also be used with WL-800 Series receivers and transmitters.
  UPC: 027242909731
• Senal ENG-18RL Broadcast Omnidirectional Dynamic Microphone (Long) The Senal ENG-18RL is a broadcast-quality omnidirectional dynamic microphone. The dynamic capsule picks up sound in a 360° pattern and does not require a battery or phantom power, making it a reliable choice for critical field applications. The microphone's exceptionally low handling noise and resistance to wind noise and vocal plosives make it perfect for professional ENG applications like live reporting, interviews, and press conferences.

  At multiple areas inside the microphone, natural rubber with special shock-absorbing properties is bonded to carbon steel rings to isolate the sealed inner shell from the outer shell. This system protects the microphone capsule from impacts and inclement weather, and dissipates kinetic energy, dramatically reducing handling noise and resonance due to rustling and knocking.

  The microphone also incorporates multistage wind protection to minimize wind noise and vocal plosives. A mesh grille, acoustic foam, acoustic fabric, and another layer of acoustic foam work to diffuse excess sound pressure from wind and breath. A fixed rigid carbon-steel ring with a unique bullet-shaped design disperses breath to minimize vocal plosives.

  The EQ curve is tailored for broadcast use, with a gradual low-frequency roll-off to keep out unwanted rumble, a pronounced midrange to ensure speech intelligibility, and a high-frequency roll-off to eliminate hiss and sibilance distortion. Whether broadcasting on television, AM/FM radio, or over the internet, the ENG-18RL is designed to ensure that dialogue cuts through the mix, and can be broadcast live without EQ adjustment.

  The ENG-18RL features a durable aluminum-alloy shaft designed for EMI rejection and reduced internal resonance, with a matte black finish for a professional appearance and minimum light reflection. The mic is also long enough to accommodate a mic flag.
  Ideal Choice for Critical Field Applications
  • The broadcast-quality omnidirectional dynamic capsule picks up sound in a 360° pattern and does not require a battery or phantom power, making it a reliable choice for critical field applications
  Isolated Inner Shell
  • The kinetic isolation system helps protect the microphone capsule and dissipate kinetic energy to dramatically reduce handling noise and resonance. Natural rubber shockmouts are bonded to carbon steel rings to isolate the sealed inner shell from the outer shell
  Diffuses Excess Sound Pressure From Wind and Vocal Plosives
  • Multistage wind protection comprises a mesh grille, acoustic foam, a bullet-shaped ring, acoustic fabric, and another layer of acoustic foam to diffuse excess sound pressure from wind and vocal plosives
  Broadcast Live Without EQ Adjustment
  • The EQ curve is tailored for broadcast use, with a gradual low-frequency roll-off to keep out unwanted rumble, a pronounced midrange to ensure speech intelligibility, and a high-frequency roll-off to eliminate hiss and sibilance distortion
  Can Accommodate Mic Flag
  • The ENG-18RL is long enough to fit a mic flag for show or station identification
  UPC: 847628572461
• Auray UPOH-B Universal Plug-On Transmitter Holster The Auray UPOH-B Universal Plug-On Transmitter Holster is a durable leather case that will fit most wireless plug-on transmitters. It builds upon its predecessor, the UPOH-A, by increasing the area of the side window. This change accommodates more brands and models.

  The side window will make it easy for you to view and access your transmitter's controls. Also, you'll notice that the connector cutout has been made wider to facilitate cable interaction and connectivity with a greater range of transmitters.

  The Auray UPOH-B is built with a heavy-duty belt clip. The transmitter is secured in the holster by a touch-fastener closure that keeps your device protected while conveniently at your side.
  Leather Holster
  • The Auray holster is an excellent option for your transmitter. It keeps it secured within this stylish leather case, and protects it from dust, dirt, and the bumps in your environment.
  Heavy-Duty Belt Clip
  • The belt clip is made of a heavy-duty metal and clamps securely to your belt or pocket.
  Large Side Window
  • The side window is larger than the window of this model's predecessor, the UPOH-B; it allows easy viewing and access to your transmitter, permitting you to quickly make adjustments such as changing channels or volume on the fly.
  Touch-Fastener Closure
  • The touch-fastener closure provides a snug fit for your transmitter and securely keeps the transmitter protected, while on the belt and even when in use.
  Compatible Plug-On Transmitters:
  • • Azden 35XT
    • Lectrosonics HMa
    • Senal AWS-2000P
    • Sennheiser SKP100
    • Sony UTX-P03
    • Similar-sized wireless transmitters
  UPC: 847628007604
• Vello V-Rig 4.1" Triple Shoe Bracket The Vello V-Rig 4.1" Triple Shoe Bracket mounts onto a camera's accessory shoe in order to provide three additional accessory shoes for mounting lights, monitors, microphones, or other accessories. In addition to the shoe mount, a 1/4"-20 thread is also available for attaching the bracket to a tripod, rig, or other bracket featuring a 1/4"-20-threaded mount.

  The bracket is constructed from rigid, yet lightweight single-piece aluminum alloy, and the mounting shoes are machined out of the same piece as the bracket, for additional strength. The accessory shoes also feature backstops for greater security when attaching accessories. The bottom shoe that attaches to the camera features a locking pin, which keeps the shoe in place and prevents the shoe from rotating during use.
  4.1"-Wide Bracket
  • This V-Bracket's width spans 4.1" and has a tiered design for mounting up to three additional accessories.
  Machined Aluminum Alloy
  • The bracket is machined out of a single piece of aluminum alloy, which provides greater strength to the three shoes.
  Accessory Shoe and 1/4"-20 Socket Mounts
  • The bracket can attach directly to a camera via the accessory shoe or, additionally, it features a 1/4"-20 socket for attaching to threaded mounts such as a tripod.
  Locking Pin
  • The bottom shoe that mounts on to the camera features a locking pin, which prevents the bracket from rotating.
  UPC: 847628580169

• UWP-D16 Camera-Mount Wireless Combo Microphone System (UC25: 536 to 608 MHz) vbsuduxw
• URX-P03 Camera-Mount Receiver (UC25: 536 to 608 MHz)
• UTX-B03 Bodypack Transmitter with Omni Lavalier Microphone (UC25: 536 to 608 MHz)
• UTX-P03 Plug-On Transmitter (UC25: 536 to 608 MHz)
• Mic Clip
• Windscreen
• 2 x Belt Clips
• Shoemount Adapter
• Soft Case for Plug-On
• 3.5mm to 3.5mm Output Cable
• 3.5mm to XLR-M Output Cable
• Limited 1-Year Warranty

• UWP-D11 Camera-Mount Wireless Omni Lavalier Microphone System (UC25: 536 to 608 MHz) vbsuduxw

• Senal - ENG-18RL Broadcast Omnidirectional Dynamic Microphone (Long)

• Auray - UPOH-B Universal Plug-On Transmitter Holster

• Vello - V-Rig 4.1" Triple Shoe Bracket

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• Sony UWP-D16 Camera-Mount Wireless Combo Microphone System (UC25: 536 to 608 MHz)

  Wireless Transmission	Analog UHF
  Number of RF Channels	2772
  Included Transmitters	1 x Bodypack with Microphone
  Diversity	True Diversity
  RF Frequency Band	470.125 to 541.875 MHz
  RF Bandwidth	72 MHz
  Frequency Step Size	25 kHz
  Max Operating Range	300' / 91.4 m (Typical)
  Max Systems per Setup	16
  Latency	0.35 ms
  Modulation	FM
  Pilot Tone	32 / 32.382 / 32.768 kHz

  Form Factor	Camera-Mount
  Mounting Options	Shoe-Mount (with Included Hardware)
  Antenna	2 x 1/4 Wave External, Fixed (Top-Mount)
  Number of Audio Channels	1
  Audio I/O	1 x 1/8" / 3.5 mm TRS Female Unbalanced Output (Lockable) 1 x 1/8" / 3.5 mm TRS Female Unbalanced Headphone Output
  Gain Range	-12 to +12 dB (3 dB Steps)
  Audio Output Level	-60 dBV
  Frequency Response	23 Hz to 18 kHz
  USB Port	1 x Micro-USB (Bus Power, Charging)
  Power Requirements	Battery, USB Bus Power
  Battery Type	2 x AA (Not Included)
  Approx. Battery Life	6 Hours (Alkaline)
  Display & Indicators	1 x LCD (AF Level, Battery Status, Frequency, Menu Navigation, Peak)
  Housing	Metal
  Operating Temperature	32 to 122°F / 0 to 50°C
  Storage Temperature	-4 to 131°F / -20 to 55°C
  Dimensions	2.7 x 3.2 x 0.9" / 68.0 x 82.0 x 23.8 mm (without Antennas)
  Weight	6.2 oz / 176.0 g (with Batteries)

  Form Factor	Bodypack
  RF Output Power	5 / 30 mW
  Audio I/O	1 x 1/8" / 3.5 mm TRS Female Unbalanced Input (Lockable)
  Muting	Off/On Switch
  Audio Input Level	-60 dBV (Mic Level) 4 dBu (Line Level)
  Gain Range	0 to 21 dB (3 dB Steps)
  Frequency Response	23 Hz to 18 kHz
  Sync Method	IR
  Antenna	1 x 1/4 Wave Internal, Fixed
  Power Requirements	Battery, USB Bus Power
  Battery Type	2 x AA (Not Included)
  Approx. Battery Life	8 Hours (Alkaline)
  USB Port	1 x Micro-USB (Bus Power, Charging)
  Display & Indicators	1 x LCD (Audio Level, Battery Status, Peak, RF Output Power)
  Housing	Metal
  Operating Temperature	32 to 122°F / 0 to 50°C
  Storage Temperature	-4 to 131°F / -20 to 55°C
  Dimensions	1.7 x 4.0 x 1.7" / 42.0 x 102.0 x 42.0 mm
  Weight	6.9 oz / 197.0 g (with Batteries)

  Form Factor	Lavalier
  Sound Field	Mono
  Transducer	Electret Condenser
  Polar Pattern	Omnidirectional
  Frequency Range	40 Hz to 20 kHz
  Sensitivity	-43 dB
  Output Connectors	1 x 1/8" / 3.5 mm TRS Male Unbalanced (Lockable)
  Cable Length	3.90' / 1.19 m
  Operating Temperature	32 to 122°F / 0 to 50°C
  Storage Temperature	-4 to 131°F / -20 to 55°C
  Length	0.77" / 19.5 mm
  Diameter	0.27" / 6.8 mm
  Weight	0.57 oz / 16.2 g

  Form Factor	Plug-On
  RF Output Power	5 / 40 mW
  Audio I/O	1 x XLR 3-Pin Female Unbalanced Input
  Phantom Power	+48 V
  Muting	Off/On Switch
  Audio Input Level	-6 dBV (Mic Level) +4 dBu (Line Level)
  Gain Range	0 to 21 dB (3 dB Steps)
  Frequency Response	23 Hz to 18 kHz
  Sync Method	IR
  Antenna	1 x 1/4 Wave Internal
  Power Requirements	Battery, USB Bus Power
  Battery Type	2 x AA (Not Included)
  Approx. Battery Life	7 Hours (Alkaline)
  USB Port	1 x Micro-USB (Bus Power, Charging)
  Display & Indicators	1 x LCD (Audio Level, Battery Status, Peak, RF Output Power)
  Housing	Metal
  Operating Temperature	32 to 122°F / 0 to 50°C
  Storage Temperature	-4 to 131°F / -20 to 55°C
  Dimensions	1.7 x 4.0 x 1.7" / 42.0 x 102.0 x 42.0 mm
  Weight	6.9 oz / 197.0 g (with Batteries)

  Box Dimensions (LxWxH)	12.1 x 10.8 x 2.9"

• Sony UWP-D11 Camera-Mount Wireless Omni Lavalier Microphone System (UC25: 536 to 608 MHz)

  Wireless Transmission	Analog UHF
  Number of RF Channels	2772
  Included Transmitters	1 x Bodypack with Microphone
  Diversity	True Diversity
  RF Frequency Band	536.125 to 607.875 MHz
  RF Bandwidth	72 MHz
  Frequency Step Size	25 kHz
  Max Operating Range	300' / 91.4 m (Typical)
  Max Systems per Setup	16
  Latency	0.35 ms
  Modulation	FM
  Pilot Tone	32 / 32.382 / 32.768 kHz

  Form Factor	Camera-Mount
  Mounting Options	Shoe-Mount (with Included Hardware)
  Antenna	2 x 1/4 Wave External, Fixed (Top-Mount)
  Number of Audio Channels	1
  Audio I/O	1 x 1/8" / 3.5 mm TRS Female Unbalanced Output (Lockable) 1 x 1/8" / 3.5 mm TRS Female Unbalanced Headphone Output
  Gain Range	-12 to +12 dB (3 dB Steps)
  Audio Output Level	-60 dBV
  Frequency Response	23 Hz to 18 kHz
  USB Port	1 x Micro-USB (Bus Power, Charging)
  Power Requirements	Battery, USB Bus Power
  Battery Type	2 x AA (Not Included)
  Approx. Battery Life	6 Hours (Alkaline)
  Display & Indicators	1 x LCD (AF Level, Battery Status, Frequency, Menu Navigation, Peak)
  Housing	Metal
  Operating Temperature	32 to 122°F / 0 to 50°C
  Storage Temperature	-4 to 131°F / -20 to 55°C
  Dimensions	2.7 x 3.2 x 0.9" / 68.0 x 82.0 x 23.8 mm (without Antennas)
  Weight	6.2 oz / 176.0 g (with Batteries)

  Form Factor	Bodypack
  RF Output Power	5 / 30 mW
  Audio I/O	1 x 1/8" / 3.5 mm TRS Female Unbalanced Input (Lockable)
  Muting	Off/On Switch
  Audio Input Level	-60 dBV (Mic Level) 4 dBu (Line Level)
  Gain Range	0 to 21 dB (3 dB Steps)
  Frequency Response	23 Hz to 18 kHz
  Sync Method	IR
  Antenna	1 x 1/4 Wave External, Fixed
  Power Requirements	Battery, USB Bus Power
  Battery Type	2 x AA (Not Included)
  Approx. Battery Life	8 Hours (Alkaline)
  USB Port	1 x Micro-USB (Bus Power, Charging)
  Display & Indicators	1 x LCD (Audio Level, Battery Status, Peak, RF Output Power)
  Housing	Metal
  Operating Temperature	32 to 122°F / 0 to 50°C
  Storage Temperature	-4 to 131°F / -20 to 55°C
  Dimensions	2.5 x 3.2 x 0.8" / 63.0 x 82.0 x 20.0 mm (without Antennas)
  Weight	5.3 oz / 149.0 g (with Batteries)

  Form Factor	Lavalier
  Sound Field	Mono
  Transducer	Electret Condenser
  Polar Pattern	Omnidirectional
  Frequency Range	40 Hz to 20 kHz
  Sensitivity	-43 dB at 1 kHz
  Output Connectors	1 x 1/8" / 3.5 mm TRS Male Unbalanced (Lockable)
  Cable Length	3.9' / 1.19 m
  Operating Temperature	32 to 122°F / 0 to 50°C
  Storage Temperature	-4 to 131°F / -20 to 55°C
  Length	0.77" / 19.5 mm
  Diameter	0.27" / 6.8 mm
  Weight	0.57 oz / 16.2 g

  Box Dimensions (LxWxH)	12.1 x 10.8 x 2.9"

• Senal ENG-18RL Broadcast Omnidirectional Dynamic Microphone (Long)

  Polar Pattern	Omnidirectional
  Element Type	Dynamic
  Output Connector	3-Pin XLR Male
  Frequency Response	50 Hz - 18 kHz
  Output Impedance	500 Ohms
  Sensitivity	2.2 mV/Pa
  Case Material	Aluminum
  Dimensions (L x D)	1.3 x 9.1" / 33.0 x 231.0 mm
  Weight	4.8 oz / 136 g

  Box Dimensions (LxWxH)	11.1 x 5.1 x 2.6"

• Auray UPOH-B Universal Plug-On Transmitter Holster

  Material of Construction	Leather
  Closure Method	Touch fastener
  Carrying / Transport Options	Belt clip
  Dimensions (H x W x D)	4.0 x 2.0 x 2.0" / 10.2 x 5.1 x 5.1 cm
  Weight	1.2 oz / 34 g

  Box Dimensions (LxWxH)	5.0 x 2.7 x 2.0"

• Vello V-Rig 4.1" Triple Shoe Bracket

  Bottom Mount	1 x Accessory Foot
  Top Mount	3 x Accessory Shoe
  Material	Aluminum
  Dimensions	4.1 x 3.4 x 0.9" / 10.5 x 8.5 x 2.2 cm
  Weight	2 oz / 56.7 g

  Box Dimensions (LxWxH)	7.7 x 6.1 x 0.9"

Rating

Discussion
