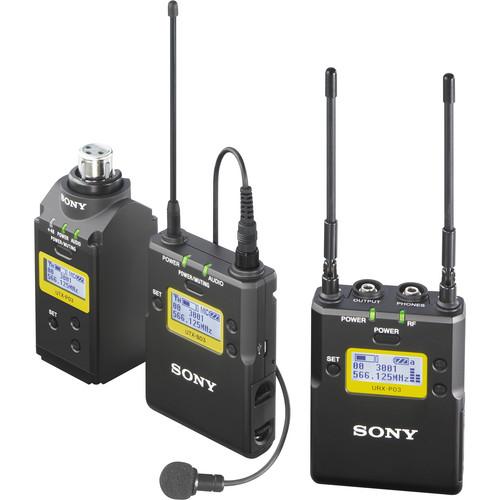

User Manual for Sony UWP-D16 Camera-Mount Wireless Combo Microphone System Click to enlarge the picture
Contents of the user manual for the Sony UWP-D16 Camera-Mount Wireless Combo Microphone
- Product category: Wireless Systems Sony
- Brand: Sony
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Sony Wireless Systems
 |
User manual for the Sony UWP-D16 Camera-Mount Wireless Combo Microphone contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Sony product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Sony user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Sony product will considerably shorten its lifespan!
|
Product description - Sony UWP-D Wireless System Demo
The 470 to 542 MHz version of the Sony UWP-D16 Camera-Mount Wireless Combo Microphone System features an all-metal chassis, easy to read LCD display, wide switching RF bandwidth, USB power and charging options, automatic channel scanning, infrared synchronization between transmitter and receiver, Mic/Line switchable inputs on both the bodypack and plug-on transmitter, +48V phantom power from the plug-on transmitter, a true diversity receiver, PLL-synthesized tuning, output gain control on the receiver for optimizing the audio input level to a camera/camcorder, and digital companding circuitry. The package is suitable for a wide range of wireless applications such as ENG, documentary work, talk shows, conferences, and more.
The system is referred to as integrated digital because the transmitters and receiver utilize DSP for digital companding and expanding of the transmission signal. Performing the companding and expanding processes in the digital domain improves the accuracy and transient response of the received audio.The camera-mountable receiver features true diversity technology, which stabilizes reception and minimizes RF interference by using dual antenna, input/reception circuits, and selecting the strongest incoming signal. The angle of the antennas is also adjustable to improve reception when the receiver is mounted on top of a camera or camcorder. The system utilizes UHF Phase Locked Loop (PLL) synthesis to lock the phase of the transmission frequency between transmitter and receiver. The receiver can automatically search for an available transmission frequency and link the desired frequency to the transmitter via infrared connection.

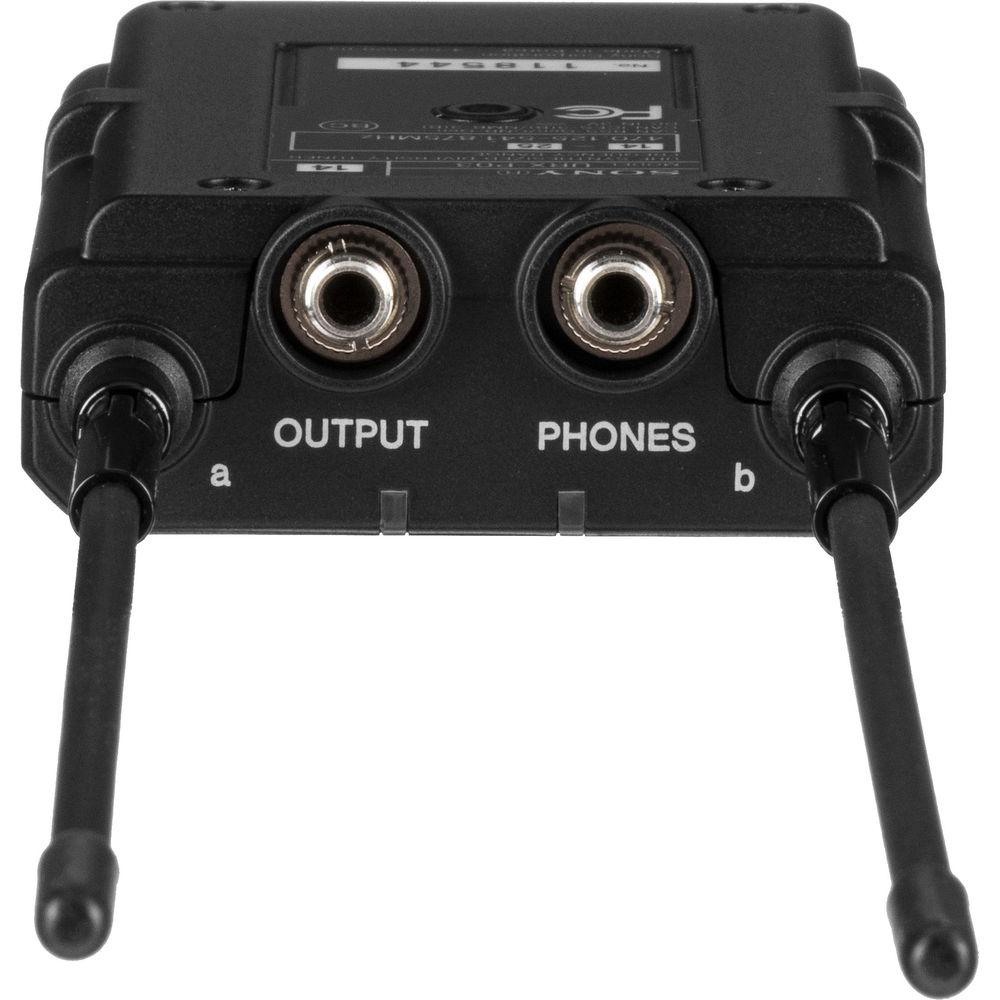

A stereo mini-jack output with monitor volume control is featured, and both stereo mini and stereo XLR cables are provided for optimizing the audio input into a camera or camcorder. The unit also includes a headphone monitor output for use with cameras and camcorders that don't have a monitor output. An LCD display provides channel and frequency information, battery life, RF-input level, audio-output status and accumulated operating time.

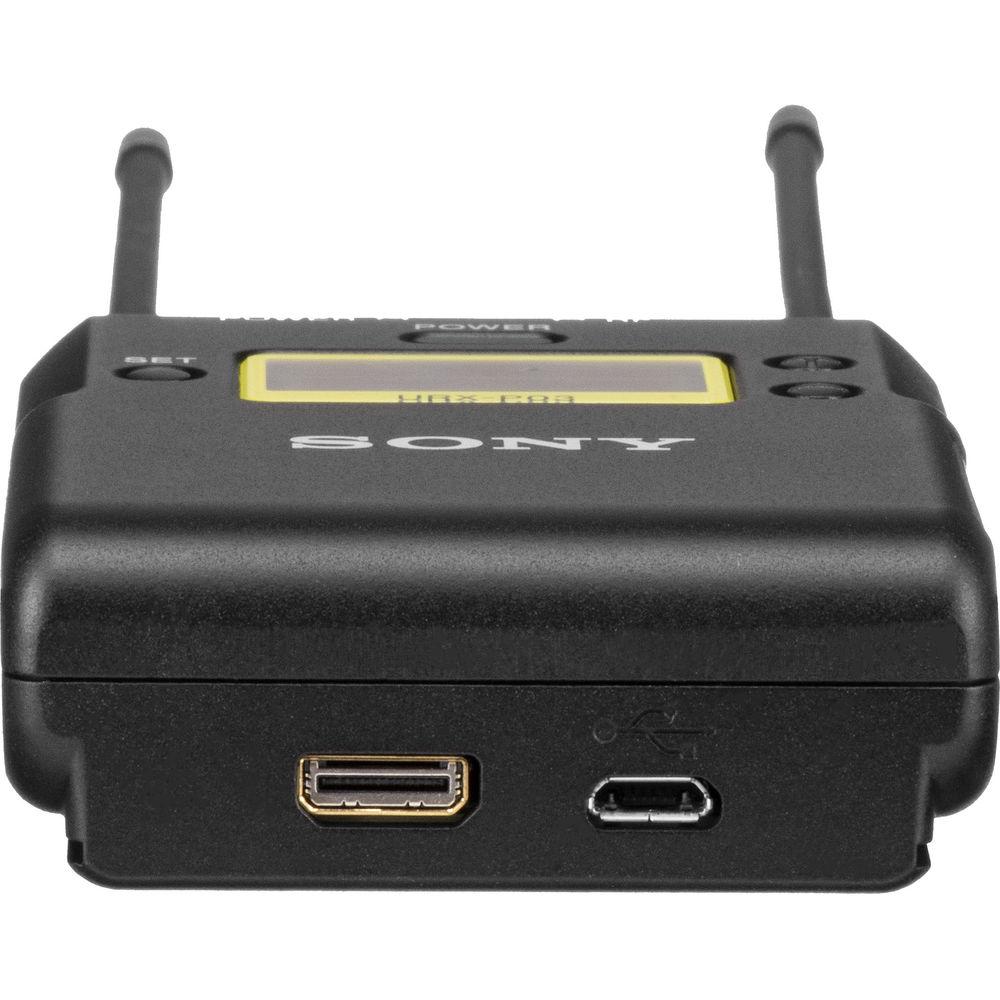

For power, the receiver operates on two AA batteries for up to 6 hours, or on 5 VDC of USB power over a USB micro-B cable. The USB connection can also be used to recharge Ni-MH rechargeable batteries within the battery cartridge. The receiver's compact design and included shoe-mount adapter allows easy mounting to most camcorders and interchangeable lens system cameras.The improved plug-on and bodypack transmitters feature mic- and line-level switches for standard wired microphone- or line-level sources. The plug-on transmitter also features selectable +48V of phantom power for connection to a condenser microphone. Selectable transmission output power provides a choice between 5mW output, which is suitable for simultaneous multi-channel operation, or 30mW output for long-distance transmission.
The transmitters can operate for up to 8 hours on two AA-size alkaline batteries, be powered or recharged via USB micro-B connections, and feature comprehensive LCD displays.

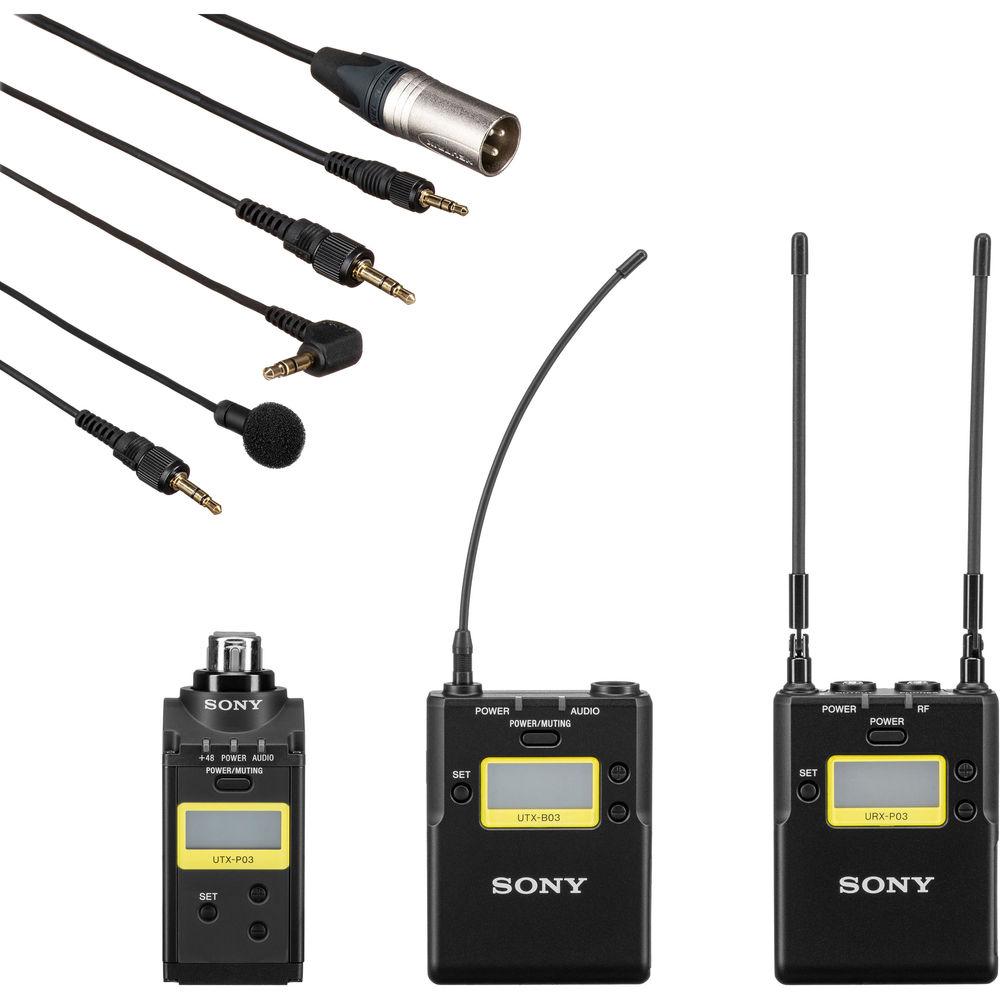

The system comes with an omnidirectional lavalier microphone, a windscreen for the microphone, a microphone holder clip, two belt clips, a shoe-mount adapter, a 3.5mm mini to mini stereo cable, and a 3.5mm mini to XLR cable. Optional accessories such as a microphone holder, battery case, and soft case for the receiver are sold separately. - Digital Companding
- Utilizes analog-to-digital and digital-to-analog converter stages so that the transmission signal can be digitally companded by the transmitter and digitally expanded by the receiver for improved audio transient response
- Automatic Channel Scanning
- Scans for available transmission channels and then syncs the transmitter to the receiver via infrared
- Frequency Coverage
- Provides up to 72 MHz of transmission bandwidth
- UWP Series / WL-800 Series Compatibility
- Enables cross-compatibility between the UWP-D transmitter with a UWP Series or WL-800 Series receiver or UWP Series or WL-800 Series transmitter with a UWP-D receiver
- Headphone Output
- Enables direct monitoring of receiver via headphones, especially useful for cameras that lack a monitor output
- USB Power Options
- Supports USB powering and USB charging of internal Ni-MH rechargeable batteries placed in the battery cartridge
- Output Level Control
- Controls the receiver's output level with ±12 dB adjustments for optimizing the input level into the camera
- Phantom Power on Plug-On Transmitter
- Provides selectable +48V of phantom power for use with condenser microphones
- UHF Phase Locked Loop (PLL) Synthesized Frequencies
- Provides stable transmission and reception by generating a transmission frequency and locking the phase of the transmission signal to the incoming signal of the receiver
- True Diversity Reception
- Utilizes dual-antenna reception circuits and selects the stronger incoming signal to reduce drop-outs
- Tone Squelch Circuitry
- Transmits a pilot-tone signal with the audio signal and only outputs the audio signal if the pilot tone is present to reduce RF interference from other sources
- Mic and Line Input Switch
- Enables switching between microphone- and line-level inputs on both the bodypack and plug-on transmitters
- Simultaneous Multi-Channel Operation
- Stores the most stable interference-free transmission frequencies to internal memory for rapid setup and switching between frequency groups
- Selectable RF Output
- The transmitter allows selection between 5mW output power and 30mW output. 5mW is suitable for indoor, simultaneous multi-channel operation while 30mW is intended for outdoor, long-range use
- Visual Display
- Both transmitter and receiver feature a comprehensive LED display providing channel and frequency information, battery life, total usage time and more
- Improved All-Metal Construction
- The transmitters and receiver feature metal construction for durability

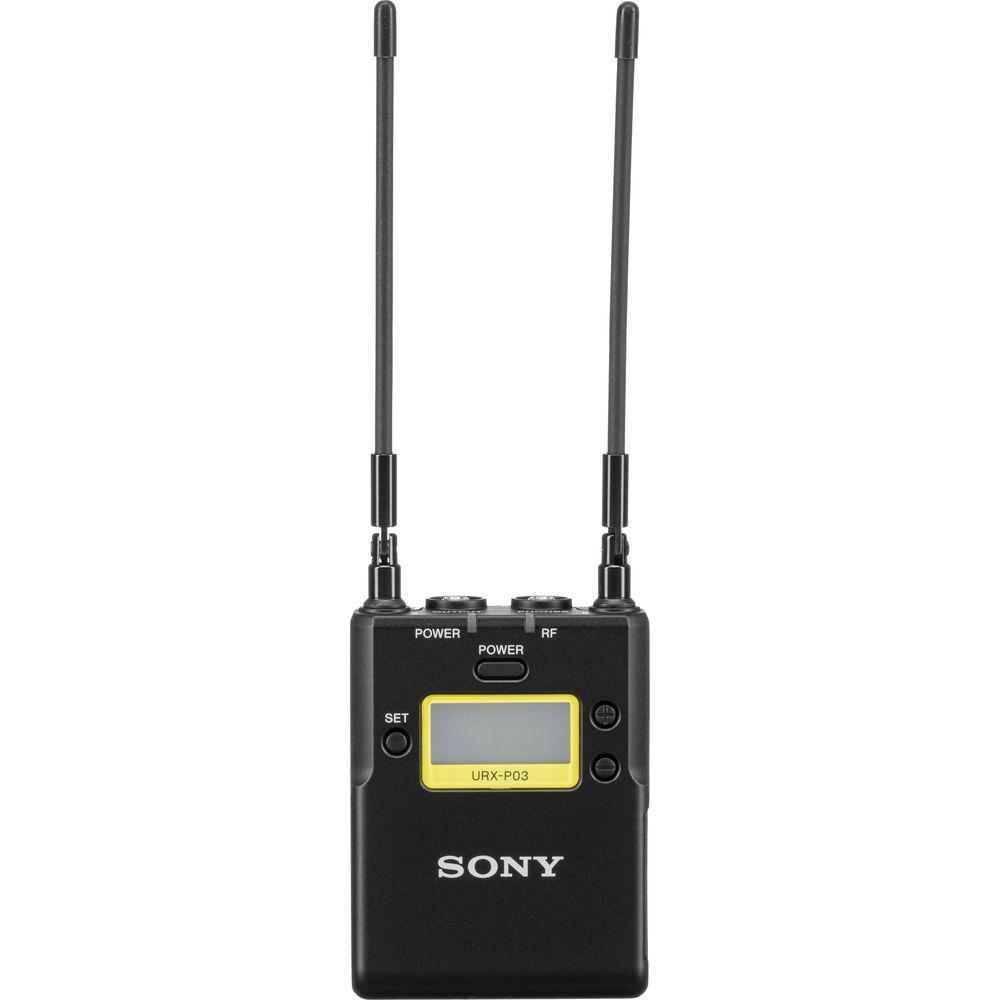

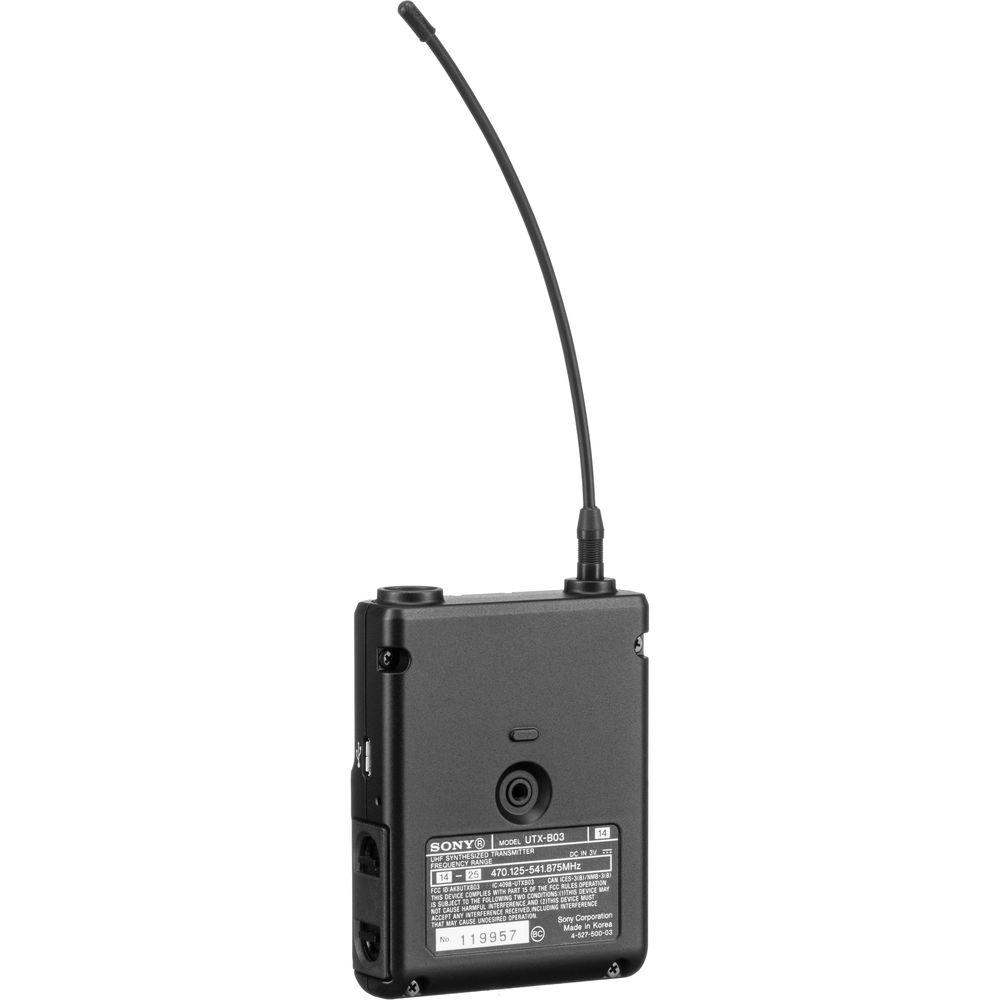

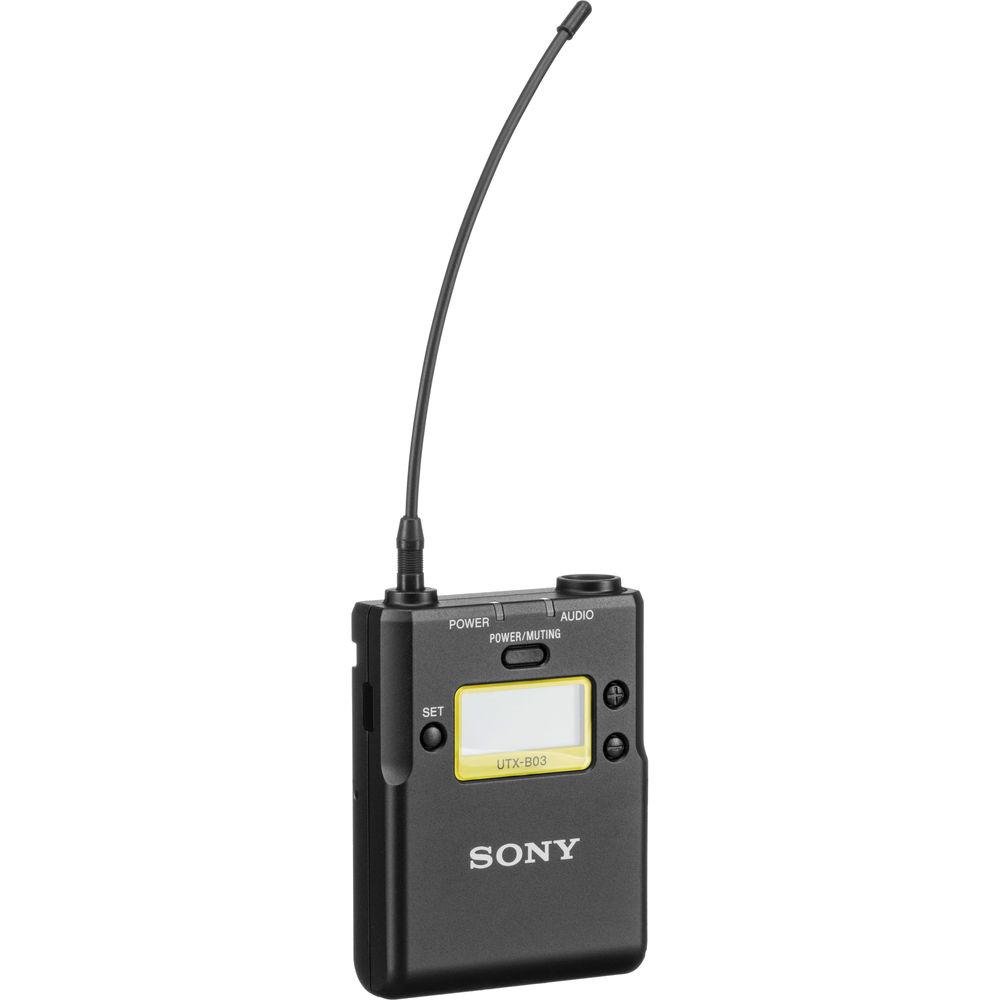

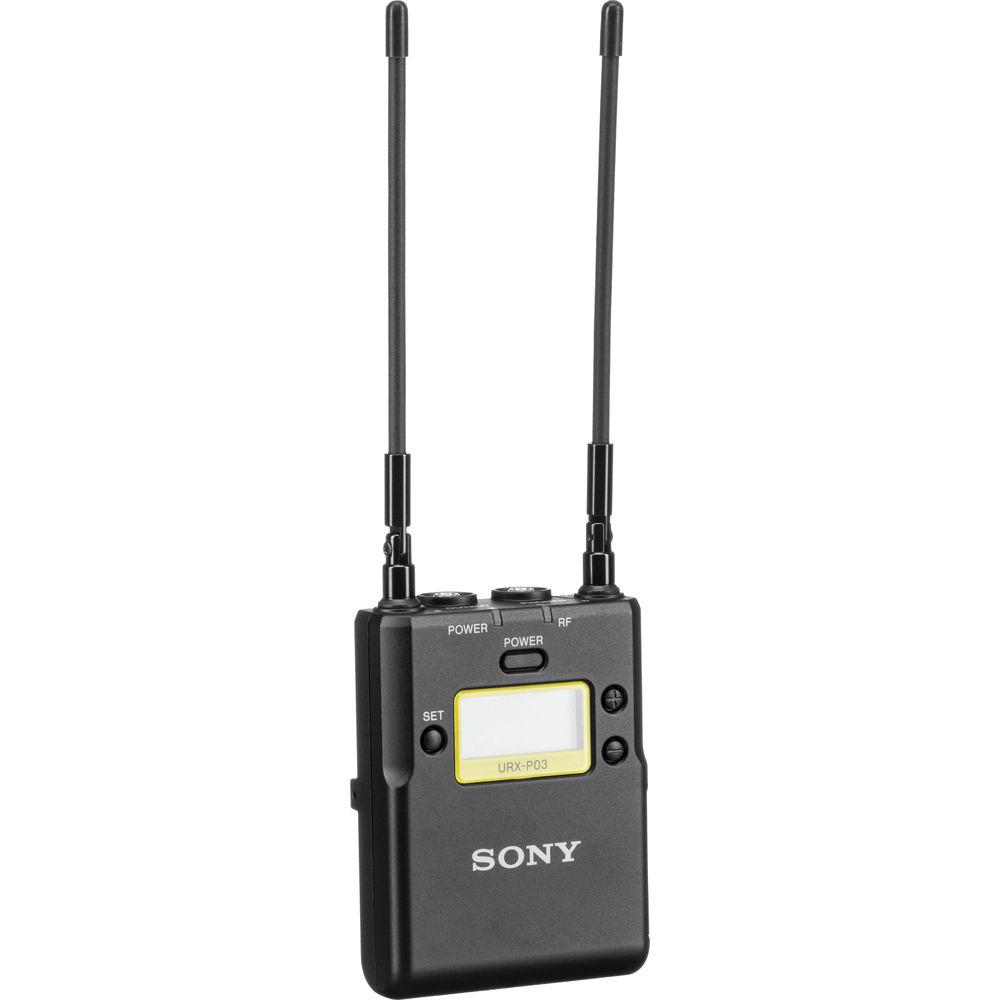

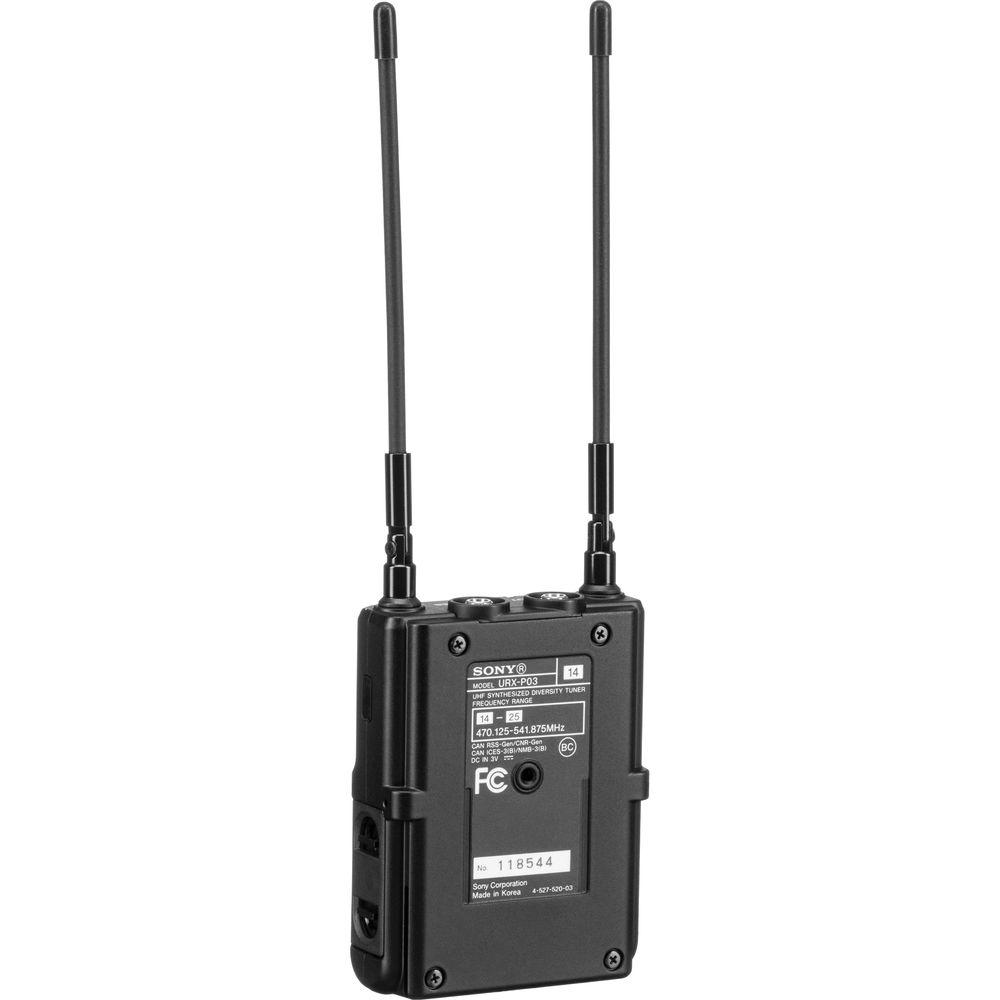

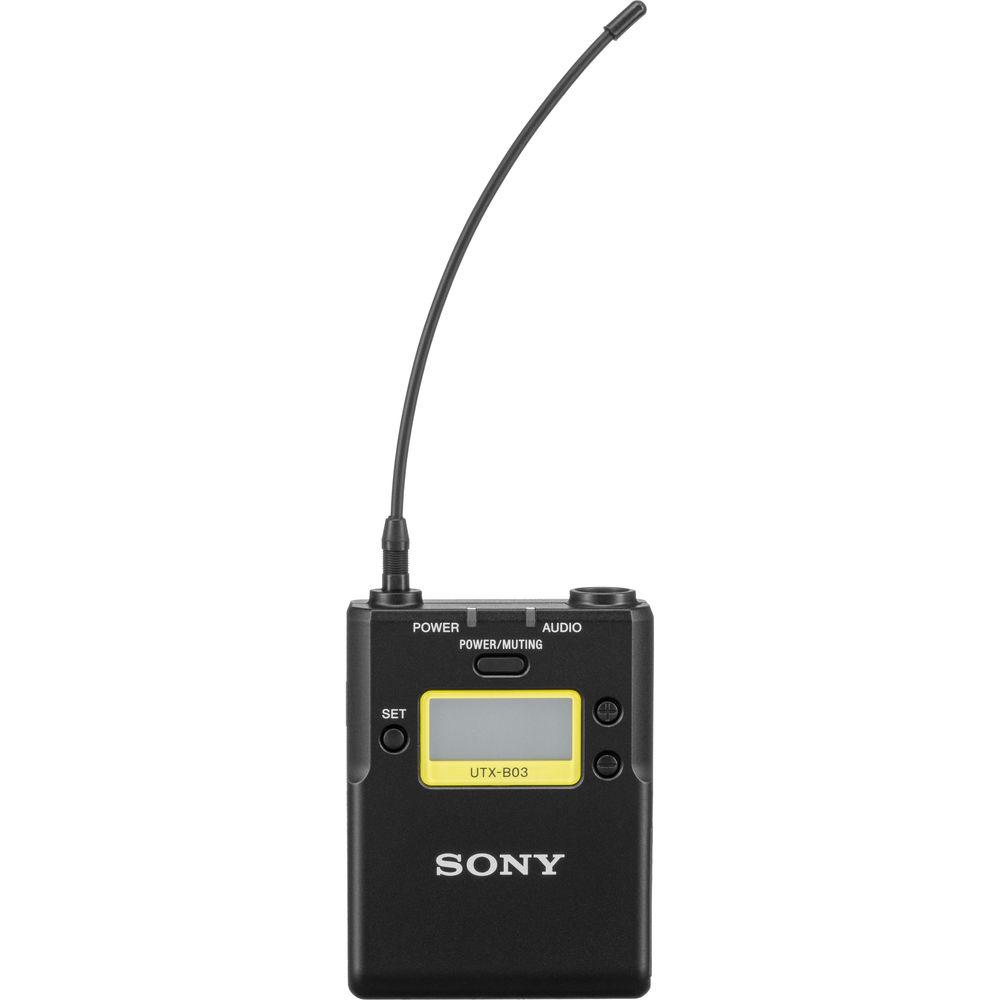

UPC: 027242874053 In the Box Sony UWP-D16 Camera-Mount Wireless Combo Microphone System (UC14: 470 to 542 MHz) URXP03 Integrated Digital Portable Wireless Receiver (UHF Channels 14/25: 470 to 542 MHz) dvwexfsvbyauyxrqavwteaabf UTX-B03 Integrated Digital Wireless Bodypack Transmitter with Lavalier Microphone (UHF Channels 14/25: 470 to 542 MHz) UTX-P03 Integrated Digital Wireless Plug-On Transmitter (UHF Channels 14/25: 470 to 542 MHz) Omnidirectional Lavalier Microphone Microphone Holder Clip Microphone Windscreen 2 x Belt Clip Shoe-Mount Adapter (Receiver) 3.5mm Mini to Mini Output Cable 3.5mm Mini to XLR Output Cable Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Sony UWP-D16 Camera-Mount Wireless Combo Microphone System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSony UWP-D16 Specs | | | Directivity | Omnidirectional | | Weight | Not specified by the manufacturer | | | | Type of System | Camera mountable UHF synthesized wireless plug-in system | | RF Carrier Frequency Range | 470 to 542 MHz | | RF Bandwidth | 72 MHz | | Approx. Working Range | Not specified by manufacturer | | | | Type of Receiver | Camera mountable, space diversity, crystal-controlled PLL synthesizer | | Reception Type | True diversity | | Antenna Type | 1/4 wave length wire | | Frequency Response | 23 Hz to 18 kHz (typical) | | Signal to Noise Ratio | 96 dB (max deviation, A-weighted) | | Distortion | 0.9% or less (-60 dBV, 1 kHz input) | | Audio Delay | Approximately 0.35 msec | | Type of Outputs | 1/8" / 3.5 mm mini-jack, unbalanced | | Analog Output Levels | -60 dBV (at ±5 kHz deviation) | | Adjustment Range | -12 dB to +12 dB (in 3 dB steps) | | Headphone Monitoring | 1/8" / 3.5 mm stereo mini-jack, unbalanced with variable level | | Headphone Output Level | 5 mW (at 16-Ohm load) | | Pilot Tone | 32 kHz / 32.382 kHz / 32.768 kHz | | Display | LCD | | Power Requirements | 3.0 VDC (with two AA-size alkaline (LR6) batteries)
5.0 VDC (via USB micro-B) | | Battery Type/Approx. Life | Approximately 6 hours with AA-size alkaline (LR6) batteries at 77°F / 25°C | | Operating Temperature | 32 to 122°F / 0 to 50°C | | Storage Temperature | -4 to 131°F / -20 to +55°C | | Mounting Options | Camera / Belt / Mic Stand Mountable | | Dimensions | 2.50 x 3.25 x 0.94" / 6.35 x 8.26 x 2.39 cm | | Weight | 6.2 oz / 175.8 g including batteries | | | | Type of Transmitter | Crystal-controlled PLL synthesizer plug-on transmitter | | Antenna Type | Integral | | Emission | F3E | | RF Power | 30 mW / 5 mW | | Type of Microphone | Not Applicable | | Type of Input Connector | Mic/Line switchable 3-pin XLR female | | Phantom Power | +48 V | | Reference Input Level | Mic: -60 dBV (at 0 dB attenuator level)
Line: +4 dBu | | Adjustment Range | Mic Input: 0 to 21 dB (in 3 dB steps) | | Frequency Response | 23 Hz to 18 kHz (typical) | | Signal to Noise Ratio | 96 dB (max deviation, A-weighted) | | Audio Delay | Approximately 0.35 msec | | Pilot Tone | 32 kHz / 32.382 kHz / 32.768 kHz | | Interchangeable Mic Heads | Standard XLR Type Microphones | | Display | LCD | | Power Requirements | 3.0 VDC (with two AA-size alkaline LR6 batteries)
5.0 VDC (via USB micro-B) | | Battery Type/Approx. Life | Approximately 8 hours with AA-size alkaline (LR6) batteries at 77°F / 25°C at 30 mW output | | Operating Temperature | 32 to 122°F / 0 to 50°C | | Storage Temperature | -4 to 131°F / -20 to 55°C | | Dimensions (W x H x D) | 1.65 x 1.65 x 4.02" / 4.19 x 4.19 x 10.21 cm | | Weight | Approximately 6.9 oz / 195.6 g including batteries | | | | Type of Transmitter | Crystal-controlled UHF PLL-synthesized bodypack transmitter | | Antenna | 1/4 wave length wire | | Emission | F3E | | Carrier Frequency Range | 470 to 542 MHz | | RF Power | 30 mW / 5 mW | | Type of Input Connector | Mic/Line Switchable, 1/8" / 3.5 mm locking mini connector | | Interchangeable Mic Heads | Compatible with any microphone that features a 1/8" / 3.5 mm connection | | Reference Input Level | Mic: -60 dBV (at 0 dB attenuator level)
Line: +4 dBu | | Adjustment Range | Mic: 0 to 21 dB (in 3 dB steps) | | Frequency Response | 23 Hz to 18 kHz (typical) | | Signal to Noise Ratio | 96 dB (max deviation, A-weighted) | | Audio Delay | Approximately 0.35 msec | | Pilot Tone | 32 / 32.382 / 32.768 kHz | | Display | LCD | | Power Requirements | 3.0 VDC (with two AA-size alkaline LR6 batteries) 5.0 VDC (via USB micro-B) | | Battery Type/Approx. Life | Approximately 8 hours with AA-size alkaline (LR6) batteries at 77°F (25°C) at 30 mW output | | Operating Temperature | 32 to 122°F / 0 to 50°C | | Storage Temperature | -4 to 131°F / -20 to 55°C | | Dimensions (W x H x D) | 2.48 x 3.23 x 0.79" / 6.30 x 8.20 x 2.01 cm | | Weight | 5.26 oz / 149.12 g with batteries | | | | Package Weight | 2.2 lb | | Box Dimensions (LxWxH) | 12.2 x 11.0 x 3.1" |
