Sony UWP-D16 Camera-Mount Wireless Combo Microphone

User Manual for Sony UWP-D16 Camera-Mount Wireless Combo Microphone System with Handheld Mic Kit

• Product category: Wireless Systems Sony
• Brand: Sony
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Sony Wireless Systems

Product description

• Sony UWP-D16 Camera-Mount Wireless Combo Microphone System (UC14: 470 to 542 MHz)
  • Sony UWP-D Wireless System Demo
  The 470 to 542 MHz version of the Sony UWP-D16 Camera-Mount Wireless Combo Microphone System features an all-metal chassis, easy to read LCD display, wide switching RF bandwidth, USB power and charging options, automatic channel scanning, infrared synchronization between transmitter and receiver, Mic/Line switchable inputs on both the bodypack and plug-on transmitter, +48V phantom power from the plug-on transmitter, a true diversity receiver, PLL-synthesized tuning, output gain control on the receiver for optimizing the audio input level to a camera/camcorder, and digital companding circuitry. The package is suitable for a wide range of wireless applications such as ENG, documentary work, talk shows, conferences, and more.

  The system is referred to as integrated digital because the transmitters and receiver utilize DSP for digital companding and expanding of the transmission signal. Performing the companding and expanding processes in the digital domain improves the accuracy and transient response of the received audio.The camera-mountable receiver features true diversity technology, which stabilizes reception and minimizes RF interference by using dual antenna, input/reception circuits, and selecting the strongest incoming signal. The angle of the antennas is also adjustable to improve reception when the receiver is mounted on top of a camera or camcorder. The system utilizes UHF Phase Locked Loop (PLL) synthesis to lock the phase of the transmission frequency between transmitter and receiver. The receiver can automatically search for an available transmission frequency and link the desired frequency to the transmitter via infrared connection.

  A stereo mini-jack output with monitor volume control is featured, and both stereo mini and stereo XLR cables are provided for optimizing the audio input into a camera or camcorder. The unit also includes a headphone monitor output for use with cameras and camcorders that don't have a monitor output. An LCD display provides channel and frequency information, battery life, RF-input level, audio-output status and accumulated operating time.

  For power, the receiver operates on two AA batteries for up to 6 hours, or on 5 VDC of USB power over a USB micro-B cable. The USB connection can also be used to recharge Ni-MH rechargeable batteries within the battery cartridge. The receiver's compact design and included shoe-mount adapter allows easy mounting to most camcorders and interchangeable lens system cameras.The improved plug-on and bodypack transmitters feature mic- and line-level switches for standard wired microphone- or line-level sources. The plug-on transmitter also features selectable +48V of phantom power for connection to a condenser microphone. Selectable transmission output power provides a choice between 5mW output, which is suitable for simultaneous multi-channel operation, or 30mW output for long-distance transmission.

  The transmitters can operate for up to 8 hours on two AA-size alkaline batteries, be powered or recharged via USB micro-B connections, and feature comprehensive LCD displays.

  The system comes with an omnidirectional lavalier microphone, a windscreen for the microphone, a microphone holder clip, two belt clips, a shoe-mount adapter, a 3.5mm mini to mini stereo cable, and a 3.5mm mini to XLR cable. Optional accessories such as a microphone holder, battery case, and soft case for the receiver are sold separately.
  Digital Companding
  • Utilizes analog-to-digital and digital-to-analog converter stages so that the transmission signal can be digitally companded by the transmitter and digitally expanded by the receiver for improved audio transient response
  Automatic Channel Scanning
  • Scans for available transmission channels and then syncs the transmitter to the receiver via infrared
  Frequency Coverage
  • Provides up to 72 MHz of transmission bandwidth
  UWP Series / WL-800 Series Compatibility
  • Enables cross-compatibility between the UWP-D transmitter with a UWP Series or WL-800 Series receiver or UWP Series or WL-800 Series transmitter with a UWP-D receiver
  Headphone Output
  • Enables direct monitoring of receiver via headphones, especially useful for cameras that lack a monitor output
  USB Power Options
  • Supports USB powering and USB charging of internal Ni-MH rechargeable batteries placed in the battery cartridge
  Output Level Control
  • Controls the receiver's output level with ±12 dB adjustments for optimizing the input level into the camera
  Phantom Power on Plug-On Transmitter
  • Provides selectable +48V of phantom power for use with condenser microphones
  UHF Phase Locked Loop (PLL) Synthesized Frequencies
  • Provides stable transmission and reception by generating a transmission frequency and locking the phase of the transmission signal to the incoming signal of the receiver
  True Diversity Reception
  • Utilizes dual-antenna reception circuits and selects the stronger incoming signal to reduce drop-outs
  Tone Squelch Circuitry
  • Transmits a pilot-tone signal with the audio signal and only outputs the audio signal if the pilot tone is present to reduce RF interference from other sources
  Mic and Line Input Switch
  • Enables switching between microphone- and line-level inputs on both the bodypack and plug-on transmitters
  Simultaneous Multi-Channel Operation
  • Stores the most stable interference-free transmission frequencies to internal memory for rapid setup and switching between frequency groups
  Selectable RF Output
  • The transmitter allows selection between 5mW output power and 30mW output. 5mW is suitable for indoor, simultaneous multi-channel operation while 30mW is intended for outdoor, long-range use
  Visual Display
  • Both transmitter and receiver feature a comprehensive LED display providing channel and frequency information, battery life, total usage time and more
  Improved All-Metal Construction
  • The transmitters and receiver feature metal construction for durability
  UPC: 027242874053
• Senal ENG-18RL Broadcast Omnidirectional Dynamic Microphone (Long)
  • Sony UWP-D Wireless System Demo
  The Senal ENG-18RL is a broadcast-quality omnidirectional dynamic microphone. The dynamic capsule picks up sound in a 360° pattern and does not require a battery or phantom power, making it a reliable choice for critical field applications. The microphone's exceptionally low handling noise and resistance to wind noise and vocal plosives make it perfect for professional ENG applications like live reporting, interviews, and press conferences.

  At multiple areas inside the microphone, natural rubber with special shock-absorbing properties is bonded to carbon steel rings to isolate the sealed inner shell from the outer shell. This system protects the microphone capsule from impacts and inclement weather, and dissipates kinetic energy, dramatically reducing handling noise and resonance due to rustling and knocking.

  The microphone also incorporates multistage wind protection to minimize wind noise and vocal plosives. A mesh grille, acoustic foam, acoustic fabric, and another layer of acoustic foam work to diffuse excess sound pressure from wind and breath. A fixed rigid carbon-steel ring with a unique bullet-shaped design disperses breath to minimize vocal plosives.

  The EQ curve is tailored for broadcast use, with a gradual low-frequency roll-off to keep out unwanted rumble, a pronounced midrange to ensure speech intelligibility, and a high-frequency roll-off to eliminate hiss and sibilance distortion. Whether broadcasting on television, AM/FM radio, or over the internet, the ENG-18RL is designed to ensure that dialogue cuts through the mix, and can be broadcast live without EQ adjustment.

  The ENG-18RL features a durable aluminum-alloy shaft designed for EMI rejection and reduced internal resonance, with a matte black finish for a professional appearance and minimum light reflection. The mic is also long enough to accommodate a mic flag.
  Ideal Choice for Critical Field Applications
  • The broadcast-quality omnidirectional dynamic capsule picks up sound in a 360° pattern and does not require a battery or phantom power, making it a reliable choice for critical field applications
  Isolated Inner Shell
  • The kinetic isolation system helps protect the microphone capsule and dissipate kinetic energy to dramatically reduce handling noise and resonance. Natural rubber shockmouts are bonded to carbon steel rings to isolate the sealed inner shell from the outer shell
  Diffuses Excess Sound Pressure From Wind and Vocal Plosives
  • Multistage wind protection comprises a mesh grille, acoustic foam, a bullet-shaped ring, acoustic fabric, and another layer of acoustic foam to diffuse excess sound pressure from wind and vocal plosives
  Broadcast Live Without EQ Adjustment
  • The EQ curve is tailored for broadcast use, with a gradual low-frequency roll-off to keep out unwanted rumble, a pronounced midrange to ensure speech intelligibility, and a high-frequency roll-off to eliminate hiss and sibilance distortion
  Can Accommodate Mic Flag
  • The ENG-18RL is long enough to fit a mic flag for show or station identification
  UPC: 847628572461
• Auray UPOH-B Universal Plug-On Transmitter Holster
  • Sony UWP-D Wireless System Demo
  The Auray UPOH-B Universal Plug-On Transmitter Holster is a durable leather case that will fit most wireless plug-on transmitters. It builds upon its predecessor, the UPOH-A, by increasing the area of the side window. This change accommodates more brands and models.

  The side window will make it easy for you to view and access your transmitter's controls. Also, you'll notice that the connector cutout has been made wider to facilitate cable interaction and connectivity with a greater range of transmitters.

  The Auray UPOH-B is built with a heavy-duty belt clip. The transmitter is secured in the holster by a touch-fastener closure that keeps your device protected while conveniently at your side.
  Leather Holster
  • The Auray holster is an excellent option for your transmitter. It keeps it secured within this stylish leather case, and protects it from dust, dirt, and the bumps in your environment.
  Heavy-Duty Belt Clip
  • The belt clip is made of a heavy-duty metal and clamps securely to your belt or pocket.
  Large Side Window
  • The side window is larger than the window of this model's predecessor, the UPOH-B; it allows easy viewing and access to your transmitter, permitting you to quickly make adjustments such as changing channels or volume on the fly.
  Touch-Fastener Closure
  • The touch-fastener closure provides a snug fit for your transmitter and securely keeps the transmitter protected, while on the belt and even when in use.
  Compatible Plug-On Transmitters:
  • • Azden 35XT
    • Lectrosonics HMa
    • Senal AWS-2000P
    • Sennheiser SKP100
    • Sony UTX-P03
    • Similar-sized wireless transmitters
  UPC: 847628007604
• SKB iSeries Waterproof Sennheiser EW, Sony UWP, and Senal Wireless Mic System Case
  • Sony UWP-D Wireless System Demo
  The iSeries Waterproof Sennheiser EW, *Sony UWP, and Senal Wireless Mic System Case from SKB is a compact, durable, injection-molded military-standard waterproof case constructed from a high-strength polypropylene copolymer resin. It features a gasketed, water and dustproof submersible (IP67-rated) design that makes it resistant to corrosion and damage due to impact for use in protecting your wireless system during transport and storage.With stainless steel molded-in hinges, a trigger-release latch system and a comfortable snap-down rubber overmolded cushion grip handle, the case has an automatic ambient pressure equalization valve (MIL-STD-648C), which prevents pressure buildup of gasses and vapors inside the case.In addition, the interior of the case features custom-cut PE (polyethylene) foam that can accommodate a wireless plug-on transmitter, a wireless bodypack transmitter, and a wireless bodypack receiver, with an extra spot for a lavalier microphone plus additional accessories.
  • For Sennheiser EW, Sony UWP, and Senal Wireless Systems
  • Fits Plug-On & Body Transmitter/Receiver
  • UV, solvent, corrosion, and fungus resistant (MIL-STD-810F)
  • Complete gasket seal makes this case watertight (MIL-STD-C-4150J)
  • Automatic ambient pressure equalization value (MIL-STD-648C & IP67)
  UPC: 789270999251

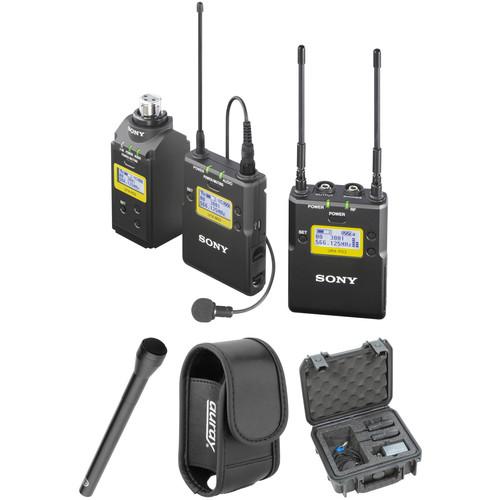

• UWP-D16 Camera-Mount Wireless Combo Microphone System (UC14: 470 to 542 MHz) vwfvyzdawcfytzrsatdyv
• URXP03 Integrated Digital Portable Wireless Receiver (UHF Channels 14/25: 470 to 542 MHz)
• UTX-B03 Integrated Digital Wireless Bodypack Transmitter with Lavalier Microphone (UHF Channels 14/25: 470 to 542 MHz)
• UTX-P03 Integrated Digital Wireless Plug-On Transmitter (UHF Channels 14/25: 470 to 542 MHz)
• Omnidirectional Lavalier Microphone
• Microphone Holder Clip
• Microphone Windscreen
• 2 x Belt Clip
• Shoe-Mount Adapter (Receiver)
• 3.5mm Mini to Mini Output Cable
• 3.5mm Mini to XLR Output Cable
• Limited 1-Year Warranty

• Senal - ENG-18RL Broadcast Omnidirectional Dynamic Microphone (Long)

• Auray - UPOH-B Universal Plug-On Transmitter Holster

• SKB - iSeries Waterproof Sennheiser EW, Sony UWP, and Senal Wireless Mic System Case

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• Sony UWP-D16 Camera-Mount Wireless Combo Microphone System (UC14: 470 to 542 MHz)

  Directivity	Omnidirectional
  Weight	Not specified by the manufacturer

  Type of System	Camera mountable UHF synthesized wireless plug-in system
  RF Carrier Frequency Range	470 to 542 MHz
  RF Bandwidth	72 MHz
  Approx. Working Range	Not specified by manufacturer

  Type of Receiver	Camera mountable, space diversity, crystal-controlled PLL synthesizer
  Reception Type	True diversity
  Antenna Type	1/4 wave length wire
  Frequency Response	23 Hz to 18 kHz (typical)
  Signal to Noise Ratio	96 dB (max deviation, A-weighted)
  Distortion	0.9% or less (-60 dBV, 1 kHz input)
  Audio Delay	Approximately 0.35 msec
  Type of Outputs	1/8" / 3.5 mm mini-jack, unbalanced
  Analog Output Levels	-60 dBV (at ±5 kHz deviation)
  Adjustment Range	-12 dB to +12 dB (in 3 dB steps)
  Headphone Monitoring	1/8" / 3.5 mm stereo mini-jack, unbalanced with variable level
  Headphone Output Level	5 mW (at 16-Ohm load)
  Pilot Tone	32 kHz / 32.382 kHz / 32.768 kHz
  Display	LCD
  Power Requirements	3.0 VDC (with two AA-size alkaline (LR6) batteries) 5.0 VDC (via USB micro-B)
  Battery Type/Approx. Life	Approximately 6 hours with AA-size alkaline (LR6) batteries at 77°F / 25°C
  Operating Temperature	32 to 122°F / 0 to 50°C
  Storage Temperature	-4 to 131°F / -20 to +55°C
  Mounting Options	Camera / Belt / Mic Stand Mountable
  Dimensions	2.50 x 3.25 x 0.94" / 6.35 x 8.26 x 2.39 cm
  Weight	6.2 oz / 175.8 g including batteries

  Type of Transmitter	Crystal-controlled PLL synthesizer plug-on transmitter
  Antenna Type	Integral
  Emission	F3E
  RF Power	30 mW / 5 mW
  Type of Microphone	Not Applicable
  Type of Input Connector	Mic/Line switchable 3-pin XLR female
  Phantom Power	+48 V
  Reference Input Level	Mic: -60 dBV (at 0 dB attenuator level) Line: +4 dBu
  Adjustment Range	Mic Input: 0 to 21 dB (in 3 dB steps)
  Frequency Response	23 Hz to 18 kHz (typical)
  Signal to Noise Ratio	96 dB (max deviation, A-weighted)
  Audio Delay	Approximately 0.35 msec
  Pilot Tone	32 kHz / 32.382 kHz / 32.768 kHz
  Interchangeable Mic Heads	Standard XLR Type Microphones
  Display	LCD
  Power Requirements	3.0 VDC (with two AA-size alkaline LR6 batteries) 5.0 VDC (via USB micro-B)
  Battery Type/Approx. Life	Approximately 8 hours with AA-size alkaline (LR6) batteries at 77°F / 25°C at 30 mW output
  Operating Temperature	32 to 122°F / 0 to 50°C
  Storage Temperature	-4 to 131°F / -20 to 55°C
  Dimensions (W x H x D)	1.65 x 1.65 x 4.02" / 4.19 x 4.19 x 10.21 cm
  Weight	Approximately 6.9 oz / 195.6 g including batteries

  Type of Transmitter	Crystal-controlled UHF PLL-synthesized bodypack transmitter
  Antenna	1/4 wave length wire
  Emission	F3E
  Carrier Frequency Range	470 to 542 MHz
  RF Power	30 mW / 5 mW
  Type of Input Connector	Mic/Line Switchable, 1/8" / 3.5 mm locking mini connector
  Interchangeable Mic Heads	Compatible with any microphone that features a 1/8" / 3.5 mm connection
  Reference Input Level	Mic: -60 dBV (at 0 dB attenuator level) Line: +4 dBu
  Adjustment Range	Mic: 0 to 21 dB (in 3 dB steps)
  Frequency Response	23 Hz to 18 kHz (typical)
  Signal to Noise Ratio	96 dB (max deviation, A-weighted)
  Audio Delay	Approximately 0.35 msec
  Pilot Tone	32 / 32.382 / 32.768 kHz
  Display	LCD
  Power Requirements	3.0 VDC (with two AA-size alkaline LR6 batteries) 5.0 VDC (via USB micro-B)
  Battery Type/Approx. Life	Approximately 8 hours with AA-size alkaline (LR6) batteries at 77°F (25°C) at 30 mW output
  Operating Temperature	32 to 122°F / 0 to 50°C
  Storage Temperature	-4 to 131°F / -20 to 55°C
  Dimensions (W x H x D)	2.48 x 3.23 x 0.79" / 6.30 x 8.20 x 2.01 cm
  Weight	5.26 oz / 149.12 g with batteries

  Box Dimensions (LxWxH)	12.2 x 11.0 x 3.1"

• Senal ENG-18RL Broadcast Omnidirectional Dynamic Microphone (Long)

  Polar Pattern	Omnidirectional
  Element Type	Dynamic
  Output Connector	3-Pin XLR Male
  Frequency Response	50 Hz - 18 kHz
  Output Impedance	500 Ohms
  Sensitivity	2.2 mV/Pa
  Case Material	Aluminum
  Dimensions (L x D)	1.3 x 9.1" / 33.0 x 231.0 mm
  Weight	4.8 oz / 136 g

  Box Dimensions (LxWxH)	11.1 x 5.1 x 2.6"

• Auray UPOH-B Universal Plug-On Transmitter Holster

  Material of Construction	Leather
  Closure Method	Touch fastener
  Carrying / Transport Options	Belt clip
  Dimensions (H x W x D)	4.0 x 2.0 x 2.0" / 10.2 x 5.1 x 5.1 cm
  Weight	1.2 oz / 34 g

  Box Dimensions (LxWxH)	5.0 x 2.7 x 2.0"

• SKB iSeries Waterproof Sennheiser EW, Sony UWP, and Senal Wireless Mic System Case

  Material of Construction	Injection-Molded Polypropylene Copolymer Exterior Shell Stainless Steel Molded-In Hinges
  Dimensions (L x W x D)	Interior: 9.5 x 7 x 4.1" / 24.1 x 17.8 x 10.5 cm Exterior: 10.7 x 9.7 x 4.8" / 27.3 x 24.6 x 12.2 cm Lid Depth: 1.5" / 3.8 cm Base Depth: 3.3" / 8.4 cm
  Weight	2.8 lb / 1.3 kg

  Box Dimensions (LxWxH)	11.5 x 10.1 x 5.2"
