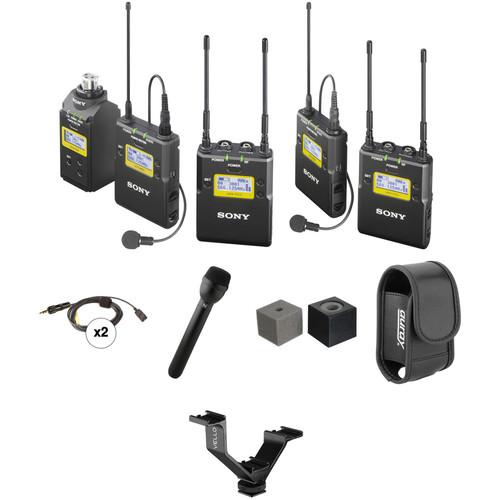

Sony UWP-D16 Premium 2-Person Camera-Mount Wireless

User Manual for Sony UWP-D16 Premium 2-Person Camera-Mount Wireless Combo Microphone System Kit

• Product category: Wireless Systems Sony
• Brand: Sony
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Sony Wireless Systems

Product description

• Sony UWP-D16 Camera-Mount Wireless Combo Microphone System (UC14: 470 to 542 MHz)
  • Sony UWP-D Wireless System Demo
  The 470 to 542 MHz version of the Sony UWP-D16 Camera-Mount Wireless Combo Microphone System features an all-metal chassis, easy to read LCD display, wide switching RF bandwidth, USB power and charging options, automatic channel scanning, infrared synchronization between transmitter and receiver, Mic/Line switchable inputs on both the bodypack and plug-on transmitter, +48V phantom power from the plug-on transmitter, a true diversity receiver, PLL-synthesized tuning, output gain control on the receiver for optimizing the audio input level to a camera/camcorder, and digital companding circuitry. The package is suitable for a wide range of wireless applications such as ENG, documentary work, talk shows, conferences, and more.

  The system is referred to as integrated digital because the transmitters and receiver utilize DSP for digital companding and expanding of the transmission signal. Performing the companding and expanding processes in the digital domain improves the accuracy and transient response of the received audio.The camera-mountable receiver features true diversity technology, which stabilizes reception and minimizes RF interference by using dual antenna, input/reception circuits, and selecting the strongest incoming signal. The angle of the antennas is also adjustable to improve reception when the receiver is mounted on top of a camera or camcorder. The system utilizes UHF Phase Locked Loop (PLL) synthesis to lock the phase of the transmission frequency between transmitter and receiver. The receiver can automatically search for an available transmission frequency and link the desired frequency to the transmitter via infrared connection.

  A stereo mini-jack output with monitor volume control is featured, and both stereo mini and stereo XLR cables are provided for optimizing the audio input into a camera or camcorder. The unit also includes a headphone monitor output for use with cameras and camcorders that don't have a monitor output. An LCD display provides channel and frequency information, battery life, RF-input level, audio-output status and accumulated operating time.

  For power, the receiver operates on two AA batteries for up to 6 hours, or on 5 VDC of USB power over a USB micro-B cable. The USB connection can also be used to recharge Ni-MH rechargeable batteries within the battery cartridge. The receiver's compact design and included shoe-mount adapter allows easy mounting to most camcorders and interchangeable lens system cameras.The improved plug-on and bodypack transmitters feature mic- and line-level switches for standard wired microphone- or line-level sources. The plug-on transmitter also features selectable +48V of phantom power for connection to a condenser microphone. Selectable transmission output power provides a choice between 5mW output, which is suitable for simultaneous multi-channel operation, or 30mW output for long-distance transmission.

  The transmitters can operate for up to 8 hours on two AA-size alkaline batteries, be powered or recharged via USB micro-B connections, and feature comprehensive LCD displays.

  The system comes with an omnidirectional lavalier microphone, a windscreen for the microphone, a microphone holder clip, two belt clips, a shoe-mount adapter, a 3.5mm mini to mini stereo cable, and a 3.5mm mini to XLR cable. Optional accessories such as a microphone holder, battery case, and soft case for the receiver are sold separately.
  Digital Companding
  • Utilizes analog-to-digital and digital-to-analog converter stages so that the transmission signal can be digitally companded by the transmitter and digitally expanded by the receiver for improved audio transient response
  Automatic Channel Scanning
  • Scans for available transmission channels and then syncs the transmitter to the receiver via infrared
  Frequency Coverage
  • Provides up to 72 MHz of transmission bandwidth
  UWP Series / WL-800 Series Compatibility
  • Enables cross-compatibility between the UWP-D transmitter with a UWP Series or WL-800 Series receiver or UWP Series or WL-800 Series transmitter with a UWP-D receiver
  Headphone Output
  • Enables direct monitoring of receiver via headphones, especially useful for cameras that lack a monitor output
  USB Power Options
  • Supports USB powering and USB charging of internal Ni-MH rechargeable batteries placed in the battery cartridge
  Output Level Control
  • Controls the receiver's output level with ±12 dB adjustments for optimizing the input level into the camera
  Phantom Power on Plug-On Transmitter
  • Provides selectable +48V of phantom power for use with condenser microphones
  UHF Phase Locked Loop (PLL) Synthesized Frequencies
  • Provides stable transmission and reception by generating a transmission frequency and locking the phase of the transmission signal to the incoming signal of the receiver
  True Diversity Reception
  • Utilizes dual-antenna reception circuits and selects the stronger incoming signal to reduce drop-outs
  Tone Squelch Circuitry
  • Transmits a pilot-tone signal with the audio signal and only outputs the audio signal if the pilot tone is present to reduce RF interference from other sources
  Mic and Line Input Switch
  • Enables switching between microphone- and line-level inputs on both the bodypack and plug-on transmitters
  Simultaneous Multi-Channel Operation
  • Stores the most stable interference-free transmission frequencies to internal memory for rapid setup and switching between frequency groups
  Selectable RF Output
  • The transmitter allows selection between 5mW output power and 30mW output. 5mW is suitable for indoor, simultaneous multi-channel operation while 30mW is intended for outdoor, long-range use
  Visual Display
  • Both transmitter and receiver feature a comprehensive LED display providing channel and frequency information, battery life, total usage time and more
  Improved All-Metal Construction
  • The transmitters and receiver feature metal construction for durability
  UPC: 027242874053
• Sony UWP-D11 Camera-Mount Wireless Omni Lavalier Microphone System (UC14: 470 to 542 MHz)
  • Sony UWP-D Wireless System Demo
  The 470 to 542 MHz version of the Sony UWP-D11 Camera-Mount Wireless Omni Lavalier Microphone System features all-metal construction, easy to read LCD displays, wide switching RF bandwidth, USB power and charging, automatic channel scanning, infrared synchronization between transmitter and receiver, Mic/Line switchable input on the bodypack transmitter, true diversity receiver, PLL-synthesized tuning, headphone output on the receiver, output gain controls on the receiver for optimizing the input level into a camera, and digital companding circuitry. The package is suitable for a wide range of wireless applications such as ENG, documentary work, talk shows, conferences, and more.

  The system is referred to as integrated digital because the transmitter and receiver utilize DSP for digital companding and expanding of the transmission signal. Performing the companding and expanding processes in the digital domain improves the accuracy and transient response of the received audio.The camera-mountable receiver features true-diversity technology, which stabilizes reception and minimizes RF interference by using dual antenna input/reception circuits and selecting the strongest incoming signal. The angle of the antennas is also adjustable to improve reception when the receiver is mounted on top of a camera or camcorder. The system utilizes UHF Phase Locked Loop (PLL) synthesis to lock the phase of the transmission frequency between transmitter and receiver. The receiver can automatically search for an available transmission frequency and link the desired frequency to the transmitter via infrared connection.

  A stereo mini-jack output with monitor volume control is included, and both stereo mini and stereo XLR cables are provided. The unit also includes a headphone monitor output for use with cameras and camcorders that don't have a monitor output. An LCD display provides channel and frequency information, battery life, RF-input level, audio output status and accumulated operating time.

  For power, the receiver operates on two AA batteries for up to 6 hours, or on 5 VDC of USB power over a USB micro-B cable. The USB connection can also be used to recharge Ni-MH rechargeable batteries within the battery cartridge. The receiver's compact design and included shoe-mount adapter allows easy mounting to most camcorders and interchangeable lens system cameras.The improved bodypack transmitter features a mic- and line-level switch for standard wired microphone or line-level sources. Selectable transmission output power provides a choice between 5mW output, which is suitable for simultaneous multi-channel operation, or 30mW output for long-distance transmission.

  The transmitter can operate for up to 8 hours on two AA-size alkaline batteries, be powered or recharged via USB micro-B connection, and features a comprehensive LCD display.

  The system comes with an omnidirectional lavalier microphone, a windscreen for the microphone, a microphone holder clip, two belt clips, a shoe-mount adapter, a mini to mini stereo cable, and a mini to XLR cable. Optional accessories such as a battery case and soft case for the receiver are sold separately.
  Digital Companding
  • Utilizes analog-to-digital and digital-to-analog converter stages so that the transmission signal can be digitally companded by the transmitter and digitally expanded by the receiver for improved audio transient response
  Automatic Channel Scanning
  • Scans for available transmission channels and then syncs the transmitter to the receiver via infrared
  Frequency Coverage
  • Provides up to 72 MHz of transmission bandwidth
  UWP Series / WL-800 Series Compatibility
  • Enables cross-compatibility between the UWP-D transmitter with a UWP Series or WL-800 Series receiver or UWP Series or WL-800 Series transmitter with a UWP-D receiver
  Headphone Output
  • Enables direct monitoring of receiver via headphones; especially useful for cameras that lack a monitor output
  USB Power Options
  • Supports USB powering and USB charging of internal Ni-MH rechargeable batteries placed in the battery cartridge
  Output Level Control
  • Controls the receiver's output level with ±12 dB adjustments for optimizing the input level into the camera
  UHF Phase Locked Loop (PLL) Synthesized Frequencies
  • Provides stable transmission and reception by generating a transmission frequency and locking the phase of the transmission signal to the incoming signal of the receiver
  True Diversity Reception
  • Utilizes dual-antenna reception circuits and selects the stronger incoming signal to reduce drop-outs
  Tone Squelch Circuitry
  • Transmits a pilot-tone signal with the audio signal and only outputs the audio signal if the pilot tone is present to reduce RF interference from other sources
  Mic and Line Input Switch
  • Enables switching between microphone- and line-level inputs
  Simultaneous Multi-Channel Operation
  • Stores the most stable interference-free transmission frequencies to internal memory for rapid setup and switching between frequency groups
  Selectable RF Output
  • Allows selection between 5mW output power and 30mW output. 5mW is suitable for indoor, simultaneous multi-channel operation while 30mW is intended for outdoor, long-range use
  Visual Display
  • Both transmitter and receiver feature a comprehensive LED display providing channel and frequency information, battery life, total usage time and more
  Improved All-Metal Construction
  • The transmitters and receiver feature metal construction for durability
  UPC: 027242873834
• 2 x Voice Technologies VT500 Omnidirectional Miniature Lavalier Microphone for Sony UWP/WRT-805
  • Sony UWP-D Wireless System Demo
  The VT500 Omnidirectional Miniature Lavalier Microphone for Sony UWP/WRT-805 by Voice Technologies features both professional sound quality and rugged durability. This acclaimed lavalier also features hand-selected electret capsule inserts, individually tested for frequency response and sensitivity within low tolerances. The thin, flat capsule head is easy to flush-mount on your source. The VT500's flat frequency response provides natural voice reproduction.

  The thin 1.5mm diameter cable features extremely low noise transmission from rubbing against clothing. Additionally, an integral filter provides efficient RF suppression. The cable jacket is molded into the head section strain-relief. Also, as a byproduct of the micro-grill design, the VT500 lavaliers are water resistant.
  Wired For Sony UWP Series and WRT-805
  • The connector on this version of the VT500 is a 1/8" (3.5mm) mini, compatible with the Sony UWP Series and WRT-805.
  Included Accessories
  • The VT500 comes with a selection of mounting accessories, including an alligator clip, windscreen, tie tac clip, dracula mount and rubber body mount. The microphone and accessories fit in the waterproof Otter box that is also included.
• Electro-Voice RE50B - Omnidirectional Dynamic Shockmounted ENG Microphone (Black)
  • Sony UWP-D Wireless System Demo
  Every day, for local, national and international news reports, the Electro-Voice RE50B gathers the audio for news interviews. Designed specifically as an ENG/EFP interview microphone, the RE50B's custom Dyna-Damp "mic-within-a-mic" shockmount provides extremely low handling noise for clear sound. A large, built-in Acoustifoam filter keeps wind and P-pop noise to an absolute minimum, indoors or out. Frequency response is 80 Hz to 13 kHz.
  • Industry standard news interview microphone
  • Features EV Dyna-Damp shockmount
  • Extremely low handling noise for clear sound
  • "Mic-within-a-mic" concept reduces wind and vocal plosive sounds
  UPC: 701001010905
• Auray Square Microphone Flag (Black)
  • Sony UWP-D Wireless System Demo
  This Auray 2.25" Square Microphone Flag fits any size handheld ENG microphone. The flag includes two foam inserts that accomodate various handle sizes. The square area is black and provides sufficient space for a station ID logo. UPC: 847628562875
• Auray UPOH-B Universal Plug-On Transmitter Holster
  • Sony UWP-D Wireless System Demo
  The Auray UPOH-B Universal Plug-On Transmitter Holster is a durable leather case that will fit most wireless plug-on transmitters. It builds upon its predecessor, the UPOH-A, by increasing the area of the side window. This change accommodates more brands and models.

  The side window will make it easy for you to view and access your transmitter's controls. Also, you'll notice that the connector cutout has been made wider to facilitate cable interaction and connectivity with a greater range of transmitters.

  The Auray UPOH-B is built with a heavy-duty belt clip. The transmitter is secured in the holster by a touch-fastener closure that keeps your device protected while conveniently at your side.
  Leather Holster
  • The Auray holster is an excellent option for your transmitter. It keeps it secured within this stylish leather case, and protects it from dust, dirt, and the bumps in your environment.
  Heavy-Duty Belt Clip
  • The belt clip is made of a heavy-duty metal and clamps securely to your belt or pocket.
  Large Side Window
  • The side window is larger than the window of this model's predecessor, the UPOH-B; it allows easy viewing and access to your transmitter, permitting you to quickly make adjustments such as changing channels or volume on the fly.
  Touch-Fastener Closure
  • The touch-fastener closure provides a snug fit for your transmitter and securely keeps the transmitter protected, while on the belt and even when in use.
  Compatible Plug-On Transmitters:
  • • Azden 35XT
    • Lectrosonics HMa
    • Senal AWS-2000P
    • Sennheiser SKP100
    • Sony UTX-P03
    • Similar-sized wireless transmitters
  UPC: 847628007604
• Vello V-Rig 4.1" Triple Shoe Bracket
  • Sony UWP-D Wireless System Demo
  The Vello V-Rig 4.1" Triple Shoe Bracket mounts onto a camera's accessory shoe in order to provide three additional accessory shoes for mounting lights, monitors, microphones, or other accessories. In addition to the shoe mount, a 1/4"-20 thread is also available for attaching the bracket to a tripod, rig, or other bracket featuring a 1/4"-20-threaded mount.

  The bracket is constructed from rigid, yet lightweight single-piece aluminum alloy, and the mounting shoes are machined out of the same piece as the bracket, for additional strength. The accessory shoes also feature backstops for greater security when attaching accessories. The bottom shoe that attaches to the camera features a locking pin, which keeps the shoe in place and prevents the shoe from rotating during use.
  4.1"-Wide Bracket
  • This V-Bracket's width spans 4.1" and has a tiered design for mounting up to three additional accessories.
  Machined Aluminum Alloy
  • The bracket is machined out of a single piece of aluminum alloy, which provides greater strength to the three shoes.
  Accessory Shoe and 1/4"-20 Socket Mounts
  • The bracket can attach directly to a camera via the accessory shoe or, additionally, it features a 1/4"-20 socket for attaching to threaded mounts such as a tripod.
  Locking Pin
  • The bottom shoe that mounts on to the camera features a locking pin, which prevents the bracket from rotating.
  UPC: 847628580169

• UWP-D16 Camera-Mount Wireless Combo Microphone System (UC14: 470 to 542 MHz) sscbaabwzbxrwc
• URXP03 Integrated Digital Portable Wireless Receiver (UHF Channels 14/25: 470 to 542 MHz)
• UTX-B03 Integrated Digital Wireless Bodypack Transmitter with Lavalier Microphone (UHF Channels 14/25: 470 to 542 MHz)
• UTX-P03 Integrated Digital Wireless Plug-On Transmitter (UHF Channels 14/25: 470 to 542 MHz)
• Omnidirectional Lavalier Microphone
• Microphone Holder Clip
• Microphone Windscreen
• 2 x Belt Clip
• Shoe-Mount Adapter (Receiver)
• 3.5mm Mini to Mini Output Cable
• 3.5mm Mini to XLR Output Cable
• Limited 1-Year Warranty

• UWP-D11 Camera-Mount Wireless Omni Lavalier Microphone System (UC14: 470 to 542 MHz)

• 2 x Voice Technologies - VT500 Omnidirectional Miniature Lavalier Microphone for Sony UWP/WRT-805

• Electro-Voice - RE50B - Omnidirectional Dynamic Shockmounted ENG Microphone (Black)

• Auray - Square Microphone Flag (Black)

• Auray - UPOH-B Universal Plug-On Transmitter Holster

• Vello - V-Rig 4.1" Triple Shoe Bracket

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• Sony UWP-D16 Camera-Mount Wireless Combo Microphone System (UC14: 470 to 542 MHz)

  Directivity	Omnidirectional
  Weight	Not specified by the manufacturer

  Type of System	Camera mountable UHF synthesized wireless plug-in system
  RF Carrier Frequency Range	470 to 542 MHz
  RF Bandwidth	72 MHz
  Approx. Working Range	Not specified by manufacturer

  Type of Receiver	Camera mountable, space diversity, crystal-controlled PLL synthesizer
  Reception Type	True diversity
  Antenna Type	1/4 wave length wire
  Frequency Response	23 Hz to 18 kHz (typical)
  Signal to Noise Ratio	96 dB (max deviation, A-weighted)
  Distortion	0.9% or less (-60 dBV, 1 kHz input)
  Audio Delay	Approximately 0.35 msec
  Type of Outputs	1/8" / 3.5 mm mini-jack, unbalanced
  Analog Output Levels	-60 dBV (at ±5 kHz deviation)
  Adjustment Range	-12 dB to +12 dB (in 3 dB steps)
  Headphone Monitoring	1/8" / 3.5 mm stereo mini-jack, unbalanced with variable level
  Headphone Output Level	5 mW (at 16-Ohm load)
  Pilot Tone	32 kHz / 32.382 kHz / 32.768 kHz
  Display	LCD
  Power Requirements	3.0 VDC (with two AA-size alkaline (LR6) batteries) 5.0 VDC (via USB micro-B)
  Battery Type/Approx. Life	Approximately 6 hours with AA-size alkaline (LR6) batteries at 77°F / 25°C
  Operating Temperature	32 to 122°F / 0 to 50°C
  Storage Temperature	-4 to 131°F / -20 to +55°C
  Mounting Options	Camera / Belt / Mic Stand Mountable
  Dimensions	2.50 x 3.25 x 0.94" / 6.35 x 8.26 x 2.39 cm
  Weight	6.2 oz / 175.8 g including batteries

  Type of Transmitter	Crystal-controlled PLL synthesizer plug-on transmitter
  Antenna Type	Integral
  Emission	F3E
  RF Power	30 mW / 5 mW
  Type of Microphone	Not Applicable
  Type of Input Connector	Mic/Line switchable 3-pin XLR female
  Phantom Power	+48 V
  Reference Input Level	Mic: -60 dBV (at 0 dB attenuator level) Line: +4 dBu
  Adjustment Range	Mic Input: 0 to 21 dB (in 3 dB steps)
  Frequency Response	23 Hz to 18 kHz (typical)
  Signal to Noise Ratio	96 dB (max deviation, A-weighted)
  Audio Delay	Approximately 0.35 msec
  Pilot Tone	32 kHz / 32.382 kHz / 32.768 kHz
  Interchangeable Mic Heads	Standard XLR Type Microphones
  Display	LCD
  Power Requirements	3.0 VDC (with two AA-size alkaline LR6 batteries) 5.0 VDC (via USB micro-B)
  Battery Type/Approx. Life	Approximately 8 hours with AA-size alkaline (LR6) batteries at 77°F / 25°C at 30 mW output
  Operating Temperature	32 to 122°F / 0 to 50°C
  Storage Temperature	-4 to 131°F / -20 to 55°C
  Dimensions (W x H x D)	1.65 x 1.65 x 4.02" / 4.19 x 4.19 x 10.21 cm
  Weight	Approximately 6.9 oz / 195.6 g including batteries

  Type of Transmitter	Crystal-controlled UHF PLL-synthesized bodypack transmitter
  Antenna	1/4 wave length wire
  Emission	F3E
  Carrier Frequency Range	470 to 542 MHz
  RF Power	30 mW / 5 mW
  Type of Input Connector	Mic/Line Switchable, 1/8" / 3.5 mm locking mini connector
  Interchangeable Mic Heads	Compatible with any microphone that features a 1/8" / 3.5 mm connection
  Reference Input Level	Mic: -60 dBV (at 0 dB attenuator level) Line: +4 dBu
  Adjustment Range	Mic: 0 to 21 dB (in 3 dB steps)
  Frequency Response	23 Hz to 18 kHz (typical)
  Signal to Noise Ratio	96 dB (max deviation, A-weighted)
  Audio Delay	Approximately 0.35 msec
  Pilot Tone	32 / 32.382 / 32.768 kHz
  Display	LCD
  Power Requirements	3.0 VDC (with two AA-size alkaline LR6 batteries) 5.0 VDC (via USB micro-B)
  Battery Type/Approx. Life	Approximately 8 hours with AA-size alkaline (LR6) batteries at 77°F (25°C) at 30 mW output
  Operating Temperature	32 to 122°F / 0 to 50°C
  Storage Temperature	-4 to 131°F / -20 to 55°C
  Dimensions (W x H x D)	2.48 x 3.23 x 0.79" / 6.30 x 8.20 x 2.01 cm
  Weight	5.26 oz / 149.12 g with batteries

  Box Dimensions (LxWxH)	12.2 x 11.0 x 3.1"

• Sony UWP-D11 Camera-Mount Wireless Omni Lavalier Microphone System (UC14: 470 to 542 MHz)

  Frequency Response	40 Hz to 20 kHz
  Directivity	Omnidirectional
  Capsule	Condenser
  Sensitivity	-43.0 dB ±3.0 dB (1 kHz/Pa)
  Dynamic Range	86 dB or more
  Maximum Input	120 dB SPL
  Microphone Head Size	0.27 x 0.77" / 6.8 x 19.5 mm
  Power Requirements	5 VDC
  Cable Length	3.9' / 1.2 m
  Weight	Not specified by the manufacturer

  Type of System	Camera mountable UHF synthesized wireless lavalier system
  RF Carrier Frequency Range	470 to 542 MHz
  RF Bandwidth	72 MHz
  Approx. Working Range	Not specified by the manufacturer

  Type of Receiver	Camera mountable, space diversity, crystal-controlled PLL synthesizer
  Reception Type	True diversity
  Antenna Type	1/4 wave length wire
  Frequency Response	23 Hz to 18 kHz (typical)
  Signal to Noise Ratio	96 dB (max deviation, A-weighted)
  Distortion	0.9% or less (-60 dBV, 1 kHz input)
  Audio Delay	Approximately 0.35 ms
  Type of Outputs	1/8" / 3.5 mm mini-jack, unbalanced
  Analog Output Levels	-60 dBV (at ±5 kHz deviation)
  Adjustment Range	-12 dB to 12 dB (3 dB steps)
  Headphone Monitoring	1/8" / 3.5 mm stereo mini-jack, unbalanced with variable level
  Headphone Output Level	5 mW (at 16-Ohm load)
  Pilot Tone	32 / 32.382 / 32.768 kHz
  Display	LCD
  Power Requirements	3.0 V (with two AA-size alkaline (LR6) batteries) 5.0 VDC (via USB micro-B)
  Battery Type/Approx. Life	Approximately 6 hours with Sony's AA-size alkaline (LR6) batteries at 77°F (25°C)
  Operating Temperature	32 to 122°F (0 to 50°C)
  Storage Temperature	-4 to 131°F (-20 to 55°C)
  Mounting Options	Camera / Belt / Mic Stand Mountable
  Dimensions	2.5 x 3.25 x 0.94" / 63 x 82 x 23.8 mm
  Weight	6.2 oz / 176 g including batteries

  Type of Transmitter	Crystal-controlled UHF PLL-synthesized bodypack transmitter
  Antenna	1/4 wave length wire
  Emission	F3E
  Carrier Frequency Range	470 to 542 MHz
  RF Power	30 mW / 5 mW
  Type of Input Connector	Mic/Line switchable - 3-pole locking mini microphone connector (3.5 mm)
  Interchangeable Mic Heads	Compatible with any microphone that features a mini (3.5mm) connection
  Reference Input Level	Mic: -60 dBV (at 0 dB attenuator level) Line: 4 dBu
  Adjustment Range	Mic: 0 to 21 dB (in 3 dB steps)
  Frequency Response	23 Hz to 18 kHz (typical)
  Signal to Noise Ratio	96 dB (max deviation, A-weighted)
  Audio Delay	Approximately 0.35 ms
  Pilot Tone	32 / 32.382 / 32.768 kHz
  Display	LCD
  Power Requirements	3.0 V (with two AA-size alkaline LR6 batteries) 5.0 VDC (via USB micro-B)
  Battery Type/Approx. Life	Approximately 8 hours with Sony's AA-size alkaline (LR6) batteries at 77°F (25°C) at 30 mW output
  Operating Temperature	32 to 122°F / 0 to 50°C
  Storage Temperature	-4 to 131°F / -20 to 55°C
  Dimensions (W x H x D)	2.48 x 3.23 x 0.79" / 63.0 x 82.0 x 20.0 mm
  Weight	5.30 oz / 149 g with batteries

  Box Dimensions (LxWxH)	12.1 x 10.9 x 2.8"

• 2 x Voice Technologies VT500 Omnidirectional Miniature Lavalier Microphone for Sony UWP/WRT-805

  Element Type	Electret Condenser
  Polar Pattern	Omnidirectional
  Frequency Range	40 Hz to 20 kHz
  Sensitivity	-59 dB (re 1 Volt/microbar)
  Noise Level	26 dB (A-weighted)
  Maximum SPL	118 dB
  Impedance	3kΩ
  Bias Voltage(s)	1.3V (0.9 to 20V)
  Current Drain	25 μA
  Cable	Length: 4.92' (1.5 m) Diameter: 0.06" (1.5 mm)
  Wiring	Red: Mic+ Copper: Mic-Output Green: Mic-Shield (Ground)
  Dimensions (L x W x H)	0.5 x 0.28 x 0.14" (13 x 7 x 3.5 mm)
  Weight	0.25 oz (7 g)

  Box Dimensions (LxWxH)	5.1 x 3.65 x 1.55"

• Electro-Voice RE50B - Omnidirectional Dynamic Shockmounted ENG Microphone (Black)

  Polar Pattern	Omnidirectional
  Element Type	Dynamic
  Output Connector	3-Pin XLR Male
  Frequency Response	80 Hz - 13 kHz
  Output Impedance	150 Ohms
  Sensitivity	1.6 mV/Pa
  Power Requirements	None
  Case Material	Aluminum
  Dimensions (L x D)	7.8 x 1.9" / 198.1 x 48.3 mm
  Weight	9.5 oz / 269 g

  Box Dimensions (LxWxH)	10.0 x 5.15 x 2.7"

• Auray Square Microphone Flag (Black)

  Box Dimensions (LxWxH)	5.0 x 2.7 x 2.4"

• Auray UPOH-B Universal Plug-On Transmitter Holster

  Material of Construction	Leather
  Closure Method	Touch fastener
  Carrying / Transport Options	Belt clip
  Dimensions (H x W x D)	4.0 x 2.0 x 2.0" / 10.2 x 5.1 x 5.1 cm
  Weight	1.2 oz / 34 g

  Box Dimensions (LxWxH)	5.0 x 2.7 x 2.0"

• Vello V-Rig 4.1" Triple Shoe Bracket

  Bottom Mount	1 x Accessory Foot
  Top Mount	3 x Accessory Shoe
  Material	Aluminum
  Dimensions	4.1 x 3.4 x 0.9" / 10.5 x 8.5 x 2.2 cm
  Weight	2 oz / 56.7 g

  Box Dimensions (LxWxH)	7.7 x 6.1 x 0.9"

Rating

Discussion
