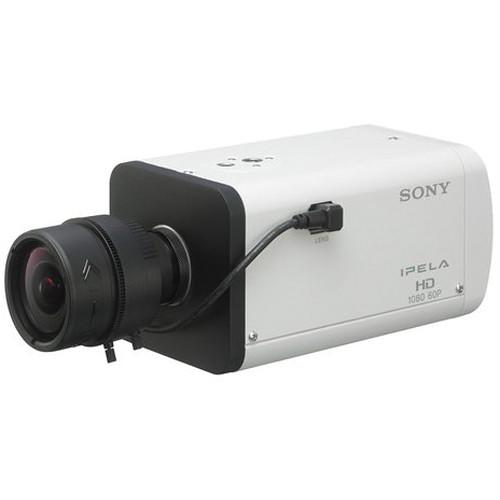

User Manual for Sony V-Series SNC-VB635 Fixed Full HD Network Camera with IPELA ENGINE EX Technology Click to enlarge the picture
Contents of the user manual for the Sony V-Series SNC-VB635 Fixed Full HD
- Product category: Wired IP Cameras Sony
- Brand: Sony
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Sony Wired IP Cameras
|
User manual for the Sony V-Series SNC-VB635 Fixed Full HD contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Sony product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Sony user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Sony product will considerably shorten its lifespan!
|
Product description The Sony V-Series SNC-VB635 Fixed Full HD Network Camera with IPELA ENGINE EX Technology (No Lens)is equipped with a 1/1.9" Exmor CMOS sensor that captures clear images with a maximum resolution of up to 1920 x 1080 pixels. The IPELA ENGINE EX signal processing system has been developed based on Sony’s signal processing and intelligent video analytics technologies to provide features such as View-DR, XDNR, and DEPA Advanced technologies. Thanks to the View-DR wide dynamic range technology, the camera is able to capture images clearly and adaptively even under severe backlight or highlight conditions.The built-in Visibility Enhancer (VE) dynamically optimizes the brightness and color reproduction of an image on a pixel-by-pixel basis while continuously adapting to the scene within the given dynamic range. The built-in DEPA Advanced Intelligent Video Analytics trigger an alarm based on user-defined rules. Thanks to the image stabilizer function, the effect of camera shake or vibration gets minimized to achieve less blurry images. - Maximum resolution of 1920 x 1080 pixels with the 1/1.9" Exmor CMOS sensor
- Minimum illumination of 0.04 lux in color mode and 0.03 lux in B&W mode at 50 IRE and 30 frames per second (fps)
- Wide Dynamic Range equivalent to 90 dB achieved with View-DR technology
- IPELA ENGINE EX signal processing system developed based on Sony's signal processing and intelligent video analytics technologies for features such as View-DR, XDNR, and DEPA Advanced technologies
- High frame rate of 60 fps to provide smoother and less blurry moving pictures
- View-DR wide dynamic range technology helps capture images clearly and adaptively even under severe backlight or highlight conditions
- Visibility Enhancer (VE) optimizes the brightness and color reproduction of an image dynamically on a pixel-by-pixel basis while continuously adapting to the scene within the given dynamic range
- DEPA Advanced Intelligent Video Analytics to trigger an alarm based on user-defined rules
- Picture mode to facilitate camera parameter settings to optimize picture quality
- XDNR (eXcellent Dynamic Noise Reduction) technology for clear images with virtually no motion blur under low illumination
- True D/N (Day/Night) function to switch to Day or Night mode depending on the light level
- VBR (variable bit rate) or CBR (constant bit rate) compression mode selectable to correspond with various network conditions
- Edge Storage function to record video and audio data with an SD/SDHC card attached to the camera 1
Please Note: SDXC cards not supported. close - Image Stabilizer to help minimize the effect of camera shake or vibration to achieve less blurry images
- RS-485 interface to transparently control camera peripherals such as powered zoom lenses and camera pedestals with pan and tilt functionalities; the camera converts control commands sent over the network to serial data and transfers this to devices via an RS-485 interface for easy and convenient operations
- Easy focus function for easy installation
- Easy initial network settings by supplied SNC Easy IP Setup Guide application
- Operating temperature up to 140°F (60°C)
- Powered by either IEEE 802.3af-compliant (PoE system), 24VAC ±20%, or 12VDC ±10% for easy installation
- Smartphone viewer to display an image of the camera on the smartphone's screen and control the camera's pan, tilt, and zoom functions by simple touch-panel manipulation
- ONVIF (Open Network Video Interface Forum) Profile S-conformance firmware that ensures greater interoperability and more flexibility in building multi-vendor systems
- CS-mount, 5mm C-mount adapter included
UPC: 027242871588 In the Box Sony V-Series SNC-VB635 Fixed Full HD Network Camera with IPELA ENGINE EX Technology (No Lens) Wire Rope M4 x 8 Screw C-Mount Adapter Set 12VDC/ 24VAC Connector Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Sony V-Series SNC-VB635 Fixed Full HD Network Camera with IPELA ENGINE EX Technology in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSony SNC-VB635 Specs | | | Image Sensor | 1/1.9" progressive scan Exmor CMOS | | Number of Effective Pixels | Approximately 2.38 MP | | Signal System | NTSC | | Sync System | Internal synchronization | | Minimum Illumination | Color at 50 IRE: 0.04 lux (F1.2, View-DR Off, VE Off, AGC On, 1/30 sec, 30 fps)
B&W: 0.03 lux (F1.2, View-DR Off, VE Off, AGC On, 1/30 sec, 30 fps)
Color at 30 IRE: 0.02 lx (F1.2, View-DR Off, VE Off, AGC On, 1/30 sec, 30 fps)
B&W: 0.01 lux (F1.2, View-DR Off, VE Off, AGC On, 1/30 sec, 30 fps) | | Dynamic Range | Equivalent to 90 dB with View-DR technology | | S/N Ratio | >50 dB @ 0 dB gain | | Gain | Auto | | Shutter Speed | 1/1 to 1/10,000 sec | | Exposure Control | Exposure compensation, AGC, Shutter speed, Iris | | White Balance | ATW, ATW-PRO, Fluorescent lamp, Mercury lamp, Sodium vapor lamp, Metal halide lamp, White LED, One-push WB, Manual | | Lens | C-mount varifocal lens (not included) | | | | Day/Night | True D/N | | Wide-D | View-DR | | Correction Method | For Tone Correction: Visibility Enhancer (VE) | | Noise Reduction | XDNR | | Others | Image Stabilizer
Picture Mode
Edge Storage
Smartphone Viewer | | Privacy Masking | 20
Shape: Quadrangle formed by any four corner points Color/effect: Opaque: 14 colors (Black, White, Red, Green, Blue, Cyan, Yellow, Magenta, Gray (6 scales)), Mosaic | | Positions | 3 independent positions for characters (Codec, Date & time, Event, Text (maximum 64 characters)), 1 independent position for logo marks | | Language | Superimpose Language: English | | Menu Languages | English, Japanese, Chinese (simplified), Chinese (traditional), French, Spanish, German, Italian, Korean, Portuguese, Russian, Arabic, Hindi, Vietnamese, Thai | | | | Resolution | 1920 x 1080, 1280 x 720, 1024 x 576, 720 x 576, 720 x 480, 704 x 576, 640 x 480, 640 x 360, 352 x 288, 320 x 184 (H.264, JPEG) | | Compression Format | H.264 (High/Main/Baseline Profile), JPEG | | Maximum Frame Rate | H.264: 60 fps (1920 x 1080), JPEG: 60 fps (1280 x 720) | | Bitrate Control Method | CBR/VBR (selectable) | | Range | 64 kb/s to 32 Mb/s | | PTZ | Solid PTZ | | Rate Control | H.264 | | Bandwidth Control | JPEG | | Multi-Streaming | Triple streaming | | Number of Clients | 20 | | | | Architecture | DEPA Advanced | | Video Analytics | Intelligent Motion Detection, Face Detection, Tamper Alarm | | Scene Analytics | Passing, Intrusion, Left Object Detection, Removed Object Detection | | | | Compression Format | G.711/G.726/AAC (16 kHz, 48 kHz) | | | | Operating System | Windows XP (32-bit) Professional Edition
Windows Vista (32-bit) Ultimate, Business Edition
Windows 7 (32/64-bit) Ultimate, Professional Edition
Windows 8 Pro (32/64-bit) | | Processor | Intel Core i7 2.8 GHz or higher | | Memory | 2 GB or more | | Web Browser | Microsoft Internet Explorer Ver. 7.0, 8.0, 9.0, 10.0, Firefox Ver. 19.02 (plug-in free viewer only), Safari Ver. 5.1 (plug-in free viewer only), Google Chrome Ver. 25.0 (plug-in free viewer only) | | | | Protocols | IPv4, TCP, UDP, ARP, ICMP, IGMP*, HTTP, DHCP, DNS, NTP, RTP/RTCP, RTSP over TCP, SMTP over HTTP, IPv6, HTTPS, SNMP (v1, v2c, v3), SSL QoS DSCP | | Streaming | Multicast | | ONVIF Conformance | Profile S | | Authentication | IEEE 802.1X | | | | Analog Video Output | 1 x BNC | | Analog Monitor Output | 1 x Phono jack for setup | | Line Input | Mini jack (monaural) | | Line Output | Mini jack (monaural) | | Port | 10Base-T/100Base-TX (RJ45) | | Alarm Input | 2 | | Alarm Output | 2 | | Serial Interface | RS-485 | | Card Slots | 1 x SD card (card not included) | | Compatible Memory Cards | 4/8/16/32 GB SDHC (no support for SDXC) | | | | Power Requirements | IEEE802.3af compliant (PoE system), 24 VAC ±20%, 50/60 Hz, 12 VDC ±10% | | Power Consumption | Maximum 6 W | | Temperature | Operating Temperature: 14 to 140°F (-10 to +60°C)
Cold Start Temperature: Higher than 32°F (0°C)
Storage Temperature: -4 to +140°F (-20 to +60°C) | | Humidity | Operating Humidity: 20 to 80%
Storage Humidity: 20 to 95% | | Material | Top cover: SECC-CF, Bottom cover: SECC-CF, Front panel: ADC12, Rear panel: PC | | Color | Top cover: Munsell 3.6GY 8.4/0.3, Bottom cover: Munsell 3.6GY 8.4/0.3
Front panel: Munsell 3.5PB 2.2/0.4, Rear panel: Munsell 4.4BG 8.4/0.2 | | Fire Protection | UL2044 | | Safety Regulations | JATE Technical Standard (LAN)
UL2044, IEC60950-1 (CB)
VCCI (Class A), FCC (Class A), IC (Class A)
Emission: EN55022 (Class A) + EN50130-4
Immunity: EN55022 (Class A) + EN55024
Emission: AS/NZS CISPR22 (Class A)
KCC
EMC-TR | | Dimensions (W x H x D) | 3.12 x 3.00 x 5.75" (7.92 x 7.62 x 14.60 cm) | | Weight | 1.25 lb (0.57 kg) | | | | Package Weight | 2.25 lb | | Box Dimensions (LxWxH) | 8.819 x 6.142 x 5.591" |
