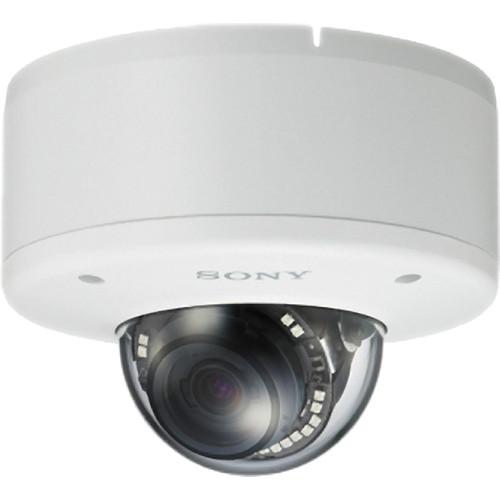

User Manual for Sony V-Series SNC-VM632R Full HD Mini Dome Outdoor IR PTZ Network Camera with Built-In Varifocal Lens Click to enlarge the picture
Contents of the user manual for the Sony V-Series SNC-VM632R Full HD Mini
- Product category: Wired IP Cameras Sony
- Brand: Sony
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Sony Wired IP Cameras
|
User manual for the Sony V-Series SNC-VM632R Full HD Mini contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Sony product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Sony user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Sony product will considerably shorten its lifespan!
|
Product description The V-Series SNC-VM632R Full HD Mini Dome Outdoor IR PTZ Network Camera with Built-In Varifocal Lens from Sony is powered by IPELA ENGINE EX technology that offers features such as View-DR, XDNR, and DEPA Advanced technologies. With its Exmor CMOS sensor, this network camera delivers a maximum resolution of 1920 x 1080 pixels and records with a frame rate of 60 fps. It achieves a wide dynamic range up to 90 dB thanks to the View-DR technology for capturing objects clearly and adaptively even under very harsh, severe backlight or highlight conditions.The camera features a picture mode that optimizes picture quality in various applications. DEPA Advanced Intelligent Video Analytics allows you to trigger an alarm based on the rules defined by you. Plus, the camera’s advanced intelligent video analytics are further enhanced with tools like face detection. The camera uses H.264 video compression format for high, main, and baseline profiles and JPEG video codecs, which optimizes storage space and bandwidth utilization. In low-light conditions, this camera is capable of recording in color down to 0.1 lux and in black and white down to 0 lux (50 IRE @ 1/30 sec).This camera comes with a built-in varifocal lens and features an image stabilization feature for minimizing the effect of camera shake or vibration. This helps in achieving less blurry images. Plus, the camera is vandal-resistant with an IK10 rating. - IPELA ENGINE EX signal processing system provides View-DR, XDNR, and DEPA advanced technologies
- Built-in IR (infrared) illuminators to assist capturing objects in the dark even under 0 lux, up to 98' (30m) (50 IRE) away
- View-DR, a wide dynamic range technology captures objects clearly and adaptively even under very harsh, severe backlight, or highlight conditions
- Advanced IR technology to provide high-quality images without overexposure by using View-DR technology
- VE (Visibility Enhancer) optimizes the brightness and color reproduction of an image dynamically on a pixel-by-pixel basis, while continuously adapting to the scene within the given dynamic range
- DEPA Advanced Intelligent Video Analytics triggers an alarm based on user-defined rules
- XDNR (eXcellent Dynamic Noise Reduction) technology allows capture of clear images with virtually no motion blur under low illumination
- High frame rate of 60 fps to provide smoother and less blurry moving pictures
- IK10-rated vandal-resistant casing protects the camera from destructive behaviors
- IP66-rated water- and dust-resistant case for outdoor surveillance and indoor where water ingress may pose an issue
- Picture mode selectable from a range of camera scenes in the setting menu, which optimizes picture quality in various applications
- True D/N (Day/Night) function to switch to Day or Night mode depending on the light level
- Built-in HTML viewer compatible with most Smartphones
- Easy Focus allows installer / user to focus the camera locally or remotely using a PC
- Easy Zoom allows installer / user to change field of view locally or remotely using a PC
- Powered by either IEEE 802.3af/IEEE 802.3at-compliant (PoE/PoE+), 24 VAC ±20%, or 12 VDC ±10% for easy installation
- ONVIF (Open Network Video Interface Forum) Profile S conformance software ensures interoperability and flexibility in building multiple-vendor systems
- VBR (variable bit-rate) or CBR (constant bit-rate) compression mode selectable to correspond with various network conditions
- Edge storage function to record video and audio data with a microSD/SDHC card attached to the camera
- Easy initial network settings with supplied SNC Easy IP Setup Guide application
- Image stabilizer to help minimize the effect of camera shake or vibration to achieve less blurry images
- Features e-Flip, solid PTZ control, tamper alarm, multicast streaming support
In the Box Sony V-Series SNC-VM632R Full HD Mini Dome Outdoor IR PTZ Network Camera with Built-In Varifocal Lens CD-ROM (Supplied Programs) Bracket Template Wire Rope Wrench 4 x Camera Unit Mounting Screw 2 x M4 x 8 Screw Cable Holder (For Conduit) LAN Cable Holder Table of Contents
|
Upload User Manual
Have you got an user manual for the Sony V-Series SNC-VM632R Full HD Mini Dome Outdoor IR PTZ Network Camera with Built-In Varifocal Lens in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSony SNC-VM632R Specs | | | Image Sensor | 1/2.9-type progressive scan Exmor CMOS sensor | | Number of Effective Pixels | Approximately 2.14 Mp | | Signal System | NTSC | | Sync System | Internal synchronization | | Minimum Illumination | At 50 IRE
Color: 0.1 lux (F1.2, View-DR OFF, VE OFF, AGC ON, 1/30 sec, 30 fps)
B/W: 0 lux (IR illuminator on)
At 30 IRE
Color: 0.06 lux (F1.2, View-DR OFF, VE OFF, AGC ON, 1/30 sec, 30 fps)
B/W: 0 lux (IR illuminator on) | | Dynamic Range | Equivalent to 90 dB with View-DR technology | | S/N Ratio | More than 50 dB (Gain 0 dB) | | Gain | Auto | | Shutter Speed | 1 to 1/10,000 sec | | Exposure Control | Exposure compensation, AGC, Shutter speed, Iris | | White Balance | ATW, ATW-PRO, fluorescent lamp, mercury lamp, sodium vapor lamp, metal halide lamp, white LED, one push WB, and manual | | Lens | Built-in varifocal lens | | Zoom Ratio | Optical: 3x
Digital: 4x
Total: 12x | | Horizontal Viewing Angle | 105 to 35.4° | | Vertical Viewing Angle | 57.0 to 20.0° | | Tilt Angle | 127.6° | | Focal Length | f = 3.0 to 9.0 mm | | F Number | F1.2 (Wide) to F2.1 (Tele) | | Minimum Object Distance | 11.8" (300 mm) | | Manual Controls | Pan: ±192°
Tilt: -7 to 75°
Rotation: ±99° | | IR Illuminator | Wavelength: 850 nm (typical), IR LED 20 pieces | | IR Working Distance | 98.4' (30.0 m) (50 IRE) | | | | Day/Night | True D/N | | Wide-D | View-DR | | Correction Method | Tone: Visibility Enhancer (VE) | | Noise Reduction | XDNR | | Privacy Masking | Number: 20
Shape: Quadrangle formed by any four corner points
Color/Effect: Opaque: 14 colors (black, white, red, green, blue, cyan, yellow, magenta, gray (6 scales)), mosaic | | Vandal Resistant | IK10 | | Ingress Protection Rating | IP66 | | Additional | Superimpose Number: 3 independent positions for character (Codec, Date & time, Event, Text (maximum 64 characters)), 1 independent position for logo mark
Superimpose Language: English | | Menu Language | English, Japanese, Chinese (simplified), Chinese (Traditional), French, Spanish, German, Italian, Korean, Portuguese, Russian, Arabic, Hindi, Vietnamese, and Thai | | | | Resolution | 1920 x 1080, 1280 x 720, 1024 x 576, 720 x 576, 720 x 480, 704 x 576, 640 x 480, 640 x 360, 352 x 288, 320 x 184 (H.264, JPEG) | | Compression Format | H.264 (high / main / baseline profile), JPEG | | Maximum Frame Rate | H.264: 60 fps (1920 x 1080)
JPEG: 60 fps (1920 x 1080) | | Bitrate | Compression Mode: CBR/VBR (selectable)
Range of Bitrate Setting: 64 kb/s to 32 Mb/s | | Control | Adaptive Rate Control: H.264 | | Bandwidth Control | JEPG | | Multi-Streaming | Triple streaming | | Number of Clients | 20 | | | | Analytics | Analytics Architecture: DEPA Advanced | | Scene Analytics | Passing, appearance, left object detection, removed object detection | | | | Compression Format | G.711/G.726/AAC (16 kHz, 48 kHz) | | | | Operating System | Windows XP (32 bit) Professional Edition, Vista (32 bit) Ultimate, Business Edition, 7 (32/64 bit) Ultimate, Professional Edition, 8 Pro (32/64 bit), Microsoft DirectX 9.0c or higher | | Processor | Intel Corei7 2.8 GHz or higher | | Memory | 2 GB or more | | Web Browser | Microsoft Internet Explorer Version 7.0, Ver. 8.0, Ver. 9.0, Ver10.0, Firefox Version 19.02 (Plug-in free viewer only), Safari Version 5.1 (Plug-in free viewer only), Google Chrome Version 25.0 (Plug-in free viewer only) | | | | Protocols | IPv4, TCP, UDP, ARP, ICMP, IGMP*1, HTTP, DHCP, DNS, NTP, RTP/RTCP, RTSP over TCP, SMTP over HTTP, IPv6, HTTPS, SNMP (v1, v2c, v3), SSL IGMP: SSM (Source Specific Multimedia) is supported | | QoS | DSCP | | ONVIF Conformance | Profile S | | Authentication | IEEE 802.1X | | Interface | 1 x analog video output BNC
1 x analog monitor output for setup phono jack
Line input mini jack (monaural)
Line Output Mini jack (monaural)
Network Port 10BASE-T/100BASE-TX (RJ-45)
2 x Alarm input (sensor input)
2 x Alarm output
1 x Card Slots SD Card
Confirmed SD Card Type 4/8/16/32 GB SDHC (no support for SDXC) | | | | Power Requirement | 12 VDC ± 10%
24 VAC ± 20%, 50/60 Hz
IEEE802.3at compliant (PoE/PoE+ system) | | Power Consumption | Maximum 22 W (24 VAC/12 VDC, heater enabled)
Maximum 18 W (IEEE802.3at (PoE+), heater enabled)
Maximuum 12.8 W (IEEE802.3af/at (PoE/PoE+), heater disabled) | | Operating Temperature | -40 to 140°F (-40 to 60°C) (IR illuminator OFF, heater enabled)
-40 to 122°F (-40 to 50°C) (IR illuminator ON, heater enabled)
14 to 140°F (-10 to 60°C) (IR illuminator OFF, heater disabled)
14 to 122°F (-10 to 50°C) (IR illuminator ON, heater disabled) If the camera is installed in high-temperature environments and subjected to direct sunlight, it is recommended to use the optional SNCA-WP602 Weather Protector | | Cold Start | -22°F (-30°C) (heater enabled)
32°F (0°C) (heater disabled) | | Storage Temperature | -4 to 140°F (-20 to 60°C) | | Operating Humidity | 20 to 90% | | Storage Humidity | 20 to 95% | | Construction | External Material
Upper Case: AL Diecast
Lower case: AL Diecast
Dome Cover: PC
Cap: PC | | Fire Protection | UL2044 | | Safety Regulations | JATE Technical Standard (LAN), UL2044, IEC60950-1 (CB), VCCI (Class A), FCC (Class A), IC (Class A), Emission: EN55022 (Class A) + EN50130-4, Immunity: EN55022 (Class A) + EN55024, Emission: AS/NZS CISPR22 (Class A), KCC, EMC-TR | | Dimensions (Ø x H) | 6.6 x 5.1" (166.0 mm x 128.0 mm) | | Weight | 3.8 lb (1730.0 g) |
