Sony Vario-Tessar T* E 16-70mm f

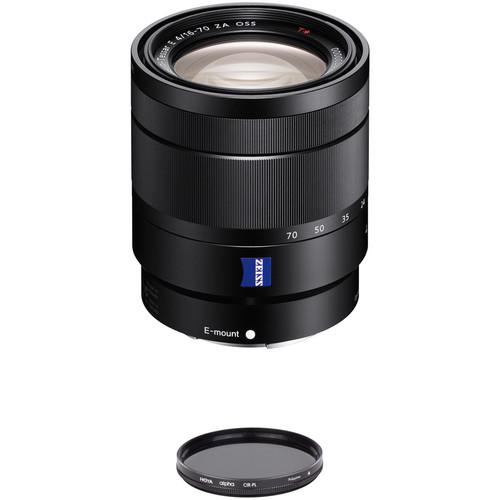

User Manual for Sony Vario-Tessar T* E 16-70mm f 4 Lens with Circular Polarizer Filter Kit

• Product category: Mirrorless System Lenses Sony
• Brand: Sony
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Sony Mirrorless System Lenses

Product description

• Sony Vario-Tessar T* E 16-70mm f/4 ZA OSS Lens Covering both wide landscapes and tight portraits, the Vario-Tessar T* E 16-70mm f/4 ZA OSS Lens from Sony is a great all-around choice for APS-C-format E-mount cameras. It offers a very versatile 24-105mm equivalent zoom range and even features a constant f/4 aperture for consistent performance. Also, through the use of one extra-low dispersion element, one Advanced Aspherical, and three aspherical elements, users will enjoy sharp, aberration-free imagery. Furthermore, the lens benefits from Zeiss' T* anti-reflective coating to effectively eliminate ghosting and flare.

  For fast, silent autofocus, the 16-70mm is equipped with a linear motor and uses an internal focus design. It also has Optical SteadyShot image stabilization to reduce the effects of camera shake, especially at longer focal lengths. Additionally, the lens can focus as close as 13.8" and it has a seven-blade circular diaphragm for smooth bokeh.
  • Based on the Zeiss Tessar optical concept, this lens uses a design with 16 elements in 12 groups that helps ensure a smaller overall lens size along with reduced flaring, distortion, and chromatic aberrations.
  • A versatile mid-range zoom for APS-C-format E-mount cameras, this 16-70mm lens provides a wide-angle to short telephoto 24-105mm equivalent focal length that works for anything from vast landscapes to tight portraits to distant subjects.
  • A constant f/4 maximum aperture offers consistent performance throughout the zoom range and also lends greater control over focus position for shallow depth of field techniques.
  • Zeiss T* anti-reflective coatings have been applied to each lens surface to help minimize reflections in order to provide greater image clarity, contrast, and color fidelity.
  • One extra-low dispersion glass element is featured in the lens design to help reduce chromatic aberrations and color fringing for improved clarity and color neutrality.
  • Four aspherical elements, including one Advanced Aspherical (AA), are incorporated in the lens design to reduce astigmatism, field curvature, coma, and other monochromatic aberrations.
  • Optical SteadyShot image stabilization helps to minimize the appearance of camera shake for sharper imagery when shooting handheld with slower shutter speeds. This stabilization system can also be combined with select camera's sensor-shift type image stabilization for more effective control of camera blur.
  • A linear autofocus motor and internal focus design provide quick and precise autofocus performance and enables accurate and silent focusing while recording videos.
  • Rounded seven-blade diaphragm contributes to a pleasing bokeh quality when employing selective focus techniques.
  UPC: 027242868229
• Hoya 55mm alpha Circular Polarizer Filter The Hoya 55mm alpha Circular Polarizer Filter helps to reduce reflections and glare by filtering out light that has become polarized due to reflection from a non-metallic surface. The light from the sun naturally becomes partially polarized due to reflecting off electrons in air molecules, causing the light to scatter into what appears as haze. A polarizing filter arranges, and filters, this directionally polarized light perpendicularly to the reflected light, allowing for the absorption of much of this light. This results in a noticeable reduction of glare and reflections from non-metallic surfaces and an increase in the saturation of skies and foliage.

  A circular polarizer only differs from a linear polarizer in that it contains a quarter wave plane in addition to the linear polarizing filter. The addition of this quarter wave plane is to circularly polarize the linearly polarized light for the use of auto focus and exposure functions. Due to how the light is broken down and filtered with a linear polarizer, auto focus and exposure accuracy become skewed during use. When the light becomes circularly polarized, it permits the use of these functions.

  This filter is non-coated and has approximately 96% average light transmission. It is constructed from optical glass and precision milled aluminum frames.
  • Helps to reduce reflections and glare by filtering out light that has become polarized due to reflection from a non-metallic surface.
  • Polarizing filters arrange, and filter, directionally polarized light perpendicularly to the reflected light, allowing for the absorption of much of the light.
  • Clears up haze in distant landscapes and provides more saturated, vivid colors.
  • Strongest effect when used at a 90° angle from the sun.
  • Circular polarizers are ideal for use with digital cameras and autofocus lenses where a linear polarizer will often disrupt auto exposure and focus features.
  • Non-coated.
  • Approximately 96% average light transmission.
  • 3 to 4x filter factor reduces exposure by 1.6 to 2 stops.
  • Constructed from optical glass and precision milled aluminum frames.
  • Plastic filter case for storage and transport.
  UPC: 024066056160

• Vario-Tessar T* E 16-70mm f/4 ZA OSS Lens wcvfefydfctxztbveeyedeeyebarxa
• ALC-SH127 Lens Hood
• ALC-F55S 55mm Front Lens Cap
• ALC-R1EM Rear Lens Cap
• Lens Pouch
• Limited 1-Year Warranty

• Hoya - 55mm alpha Circular Polarizer Filter

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• Sony Vario-Tessar T* E 16-70mm f/4 ZA OSS Lens

  Focal Length	16 to 70mm (35mm Equivalent Focal Length: 24 to 105mm)
  Maximum Aperture	f/4
  Minimum Aperture	f/22
  Lens Mount	Sony E
  Format Compatibility	APS-C
  Angle of View	83 Rating 70% users recommend this product to others. And what about you? This product has already been rated by 48 owners. Add your rating and experience with the product. Discussion Ask our technicians if you have a problem with your settings, or if anything is unclear in the user manual you have downloaded. You can make use of our moderated discussion. The discussion is public and helps other users of our website who may be encountering similar problems. The discussion is empty - enter the first post Post a new topic / query / comment: Items marked with * are required. Your name *: E-mail : Subject *: Message *: Your email address will not be displayed. Do not forget to fill it in if you want to receive a reply to your enquiry/contribution. Processing of personal data in accordance with GDPR
