User Manual for Sony Vision Exchange Controller for Active Learning Videoconferencing Systems Click to enlarge the picture
Contents of the user manual for the Sony Vision Exchange Controller for Active
- Product category: Whiteboard & Easel Display Accessories Sony
- Brand: Sony
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Sony Whiteboard & Easel Display Accessories
 |
User manual for the Sony Vision Exchange Controller for Active contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Sony product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Sony user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Sony product will considerably shorten its lifespan!
|

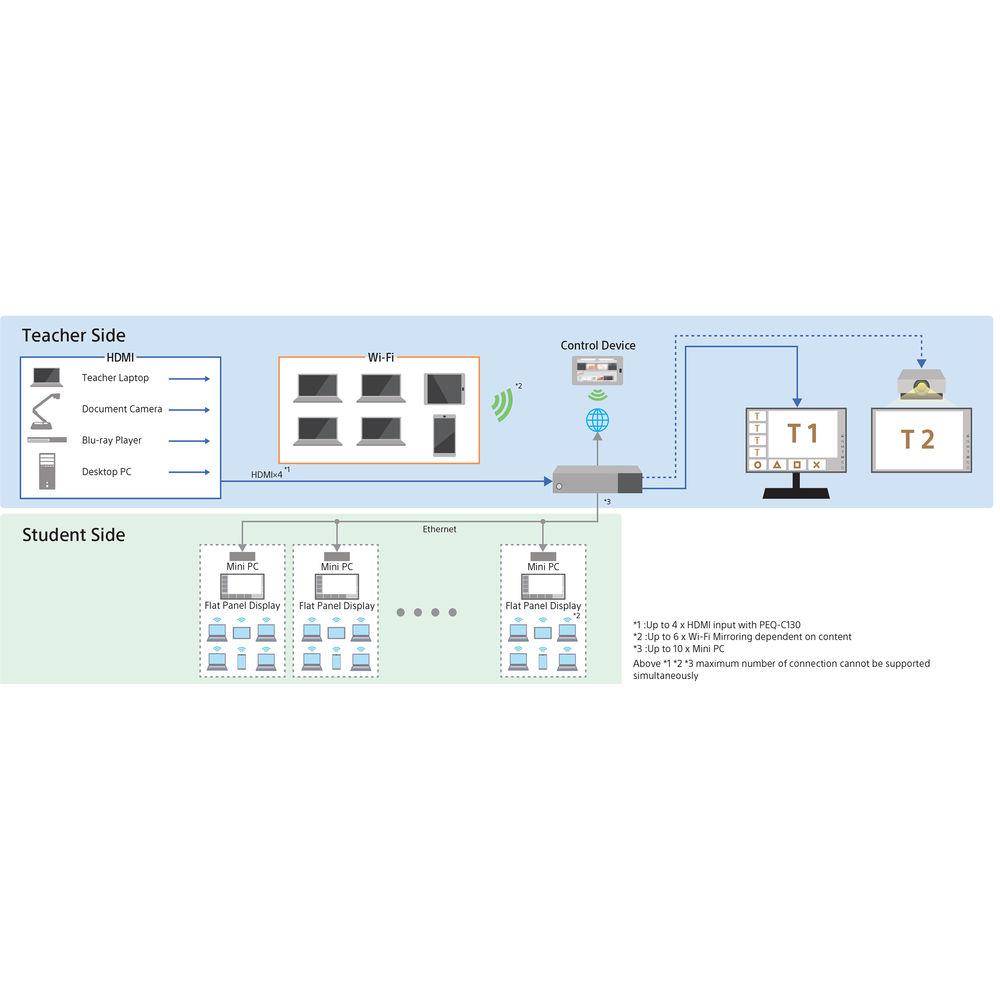

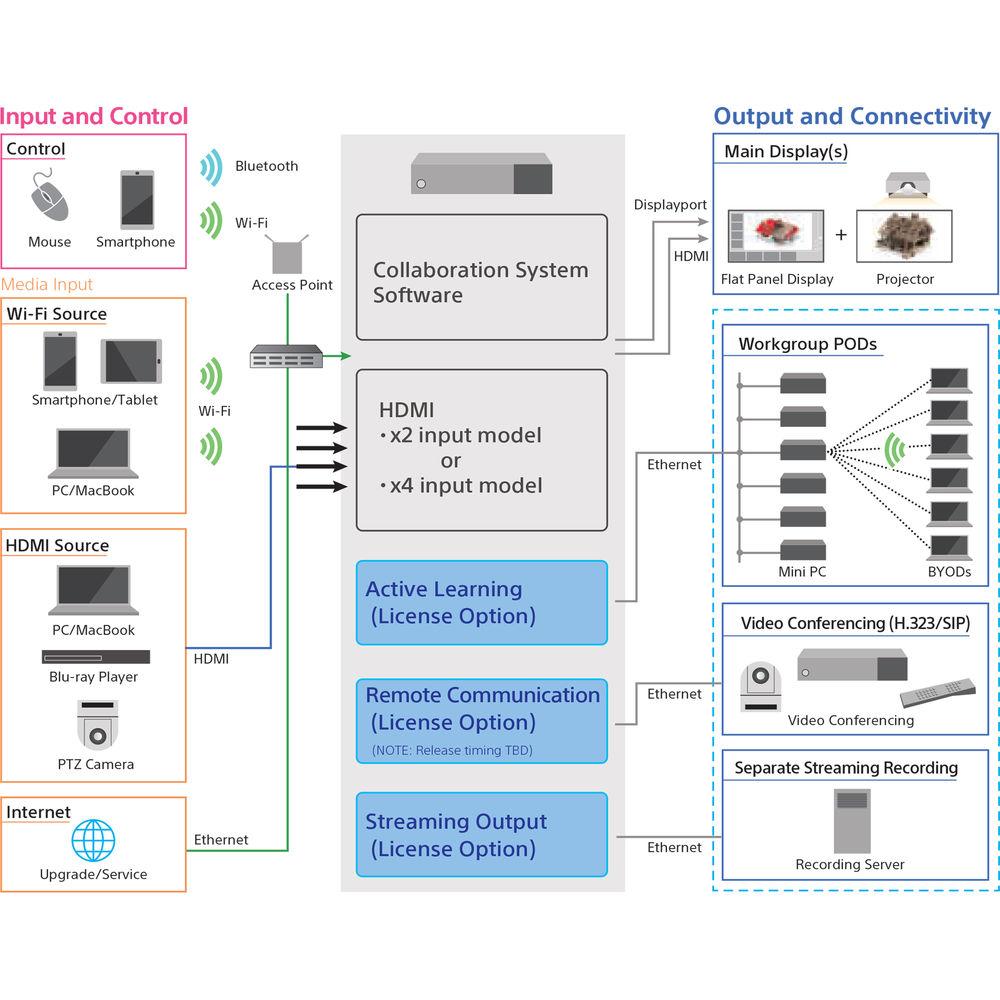

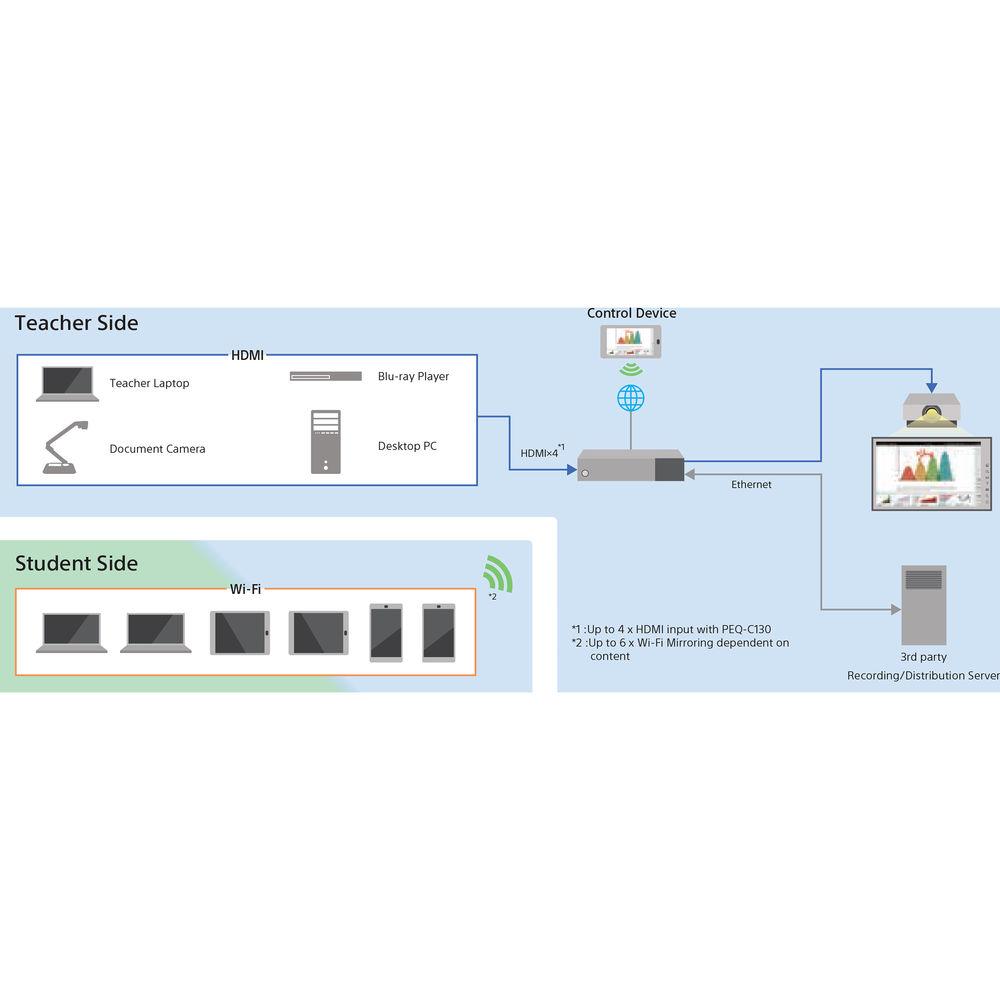

Product description The Vision Exchange Controller from Sony provides an immersive environment for lecturers, students, and colleagues to learn, collaborate, and brainstorm ideas. The controller has integrated Skype for Business for global learning as well as Personal Note Taker that supports interactive learning in lecture-style classrooms. It features four HDMI inputs, HDMI and DisplayPort outputs, audio inputs and output, and six USB ports. - Collaboration with Bring Your Own Devices
- Students can work in collaborative groups, connecting wirelessly with their own laptops, tablets, or smartphones to create and share content with group members, lecturers, and other workgroups.

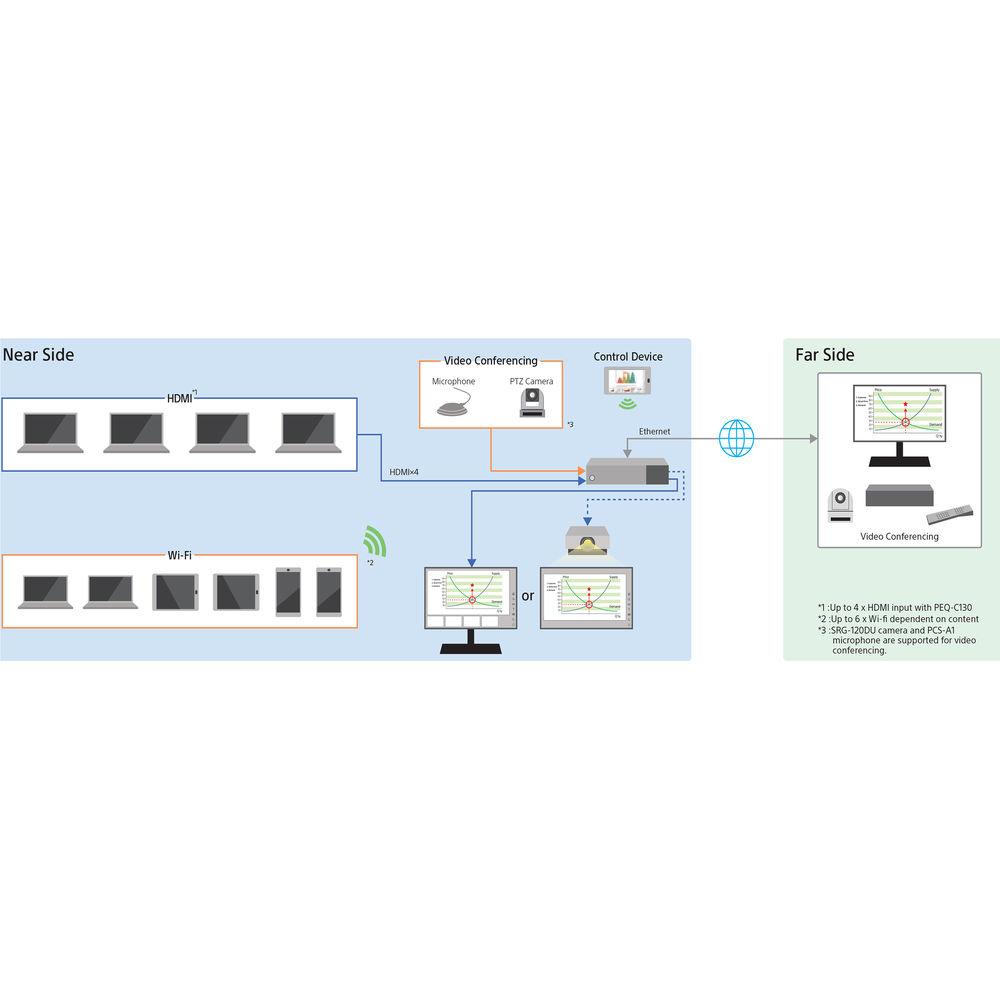

- Skype for Business
- Skype for Business is natively integrated to Vision Exchange, enabling participants to learn remotely as content can be shared with multiple users within a workgroup regardless of their geographical location.
- Personal Note Taker
- Students can directly capture content shown on the main Vision Exchange screen, annotate and make personal notes, then store the image and notes to their own devices for later review.
- Intuitive Control
- Lecturers or presenters can simply change their materials via simple drag-and-drop gestures. Control devices can be a touch panel, web browser, or wireless/wired mouse.
- Media Inputs
- Lecturers, presenters, or students can add or share any material from a number of mirrored devices, as well as connecting up to four HDMI devices to the main system.
- Annotation/Whiteboard Tools
- Lecturers can enhance their presentations with easy-to-use annotation tools: draw and sketch to emphasize what's on screen, or bring up whiteboard with handy digital tags.
- Snapshot/Downloading
- Any image on the main view can be saved as a snapshot and then be downloaded to wirelessly connected devices or to a USB memory inserted to the main unit to review collaboration results.
UPC: 027242907430 In the Box Sony Vision Exchange Controller for Active Learning Videoconferencing Systems (4 HDMI Inputs) Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Sony Vision Exchange Controller for Active Learning Videoconferencing Systems in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSony PEQ-C130 Specs | Connectors | 4 x HDMI, Video Input
1 x HDMI, Video Output
1 x DisplayPort, Video Output
1 x 3.5mm Jack, Microphone Audio Input
1 x 3.5mm Jack, Line Audio Input
1 x 3.5mm Jack, Line Audio Output
2 x RJ45, 1000Base-T LAN Network
2 x USB 2.0, Data Port (Front)
4 x USB 3.0, Data Port (Rear) | | Languages | English, Japanese, Simplified Chinese, German, French, Spanish | | Operating Voltage | 19.5 VDC | | Power Supply | 100 to 240 VAC, 50/60 Hz | | Dimensions | 14.6 x 2.2 x 9.6" / 370 x 56 x 245 mm | | Weight | 7.5 lb / 3.4 kg | | | | Package Weight | 12.9 lb | | Box Dimensions (LxWxH) | 19.0 x 15.0 x 10.0" |
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 94 owners. Add your rating and experience with the product.
