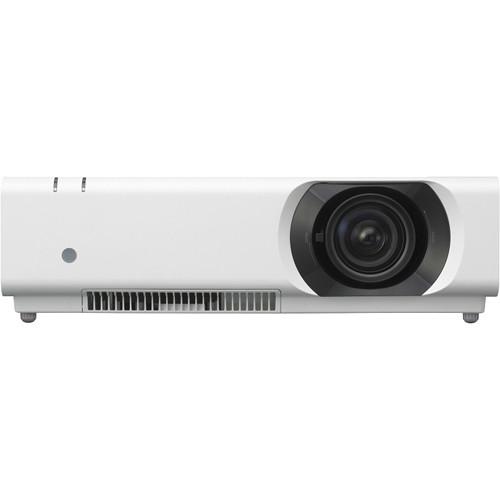

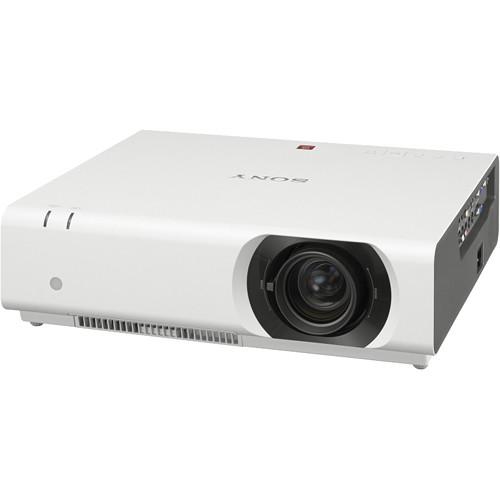

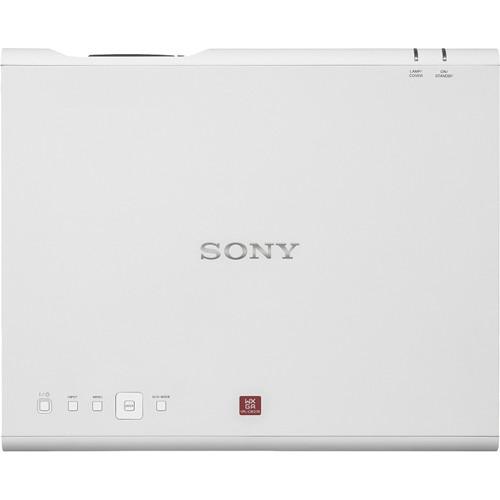

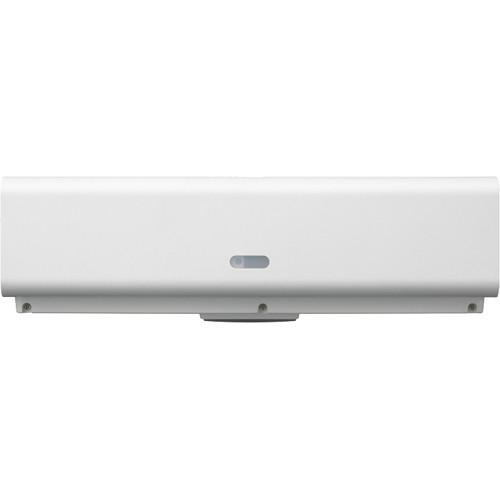

User Manual for Sony VPL-CW276 5100-Lumen WXGA Data Projector Click to enlarge the picture
Contents of the user manual for the Sony VPL-CW276 5100-Lumen WXGA Data Projector
- Product category: Multimedia Projectors Sony
- Brand: Sony
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Sony Multimedia Projectors
 |
User manual for the Sony VPL-CW276 5100-Lumen WXGA Data Projector contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Sony product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Sony user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Sony product will considerably shorten its lifespan!
|
Product description The VPL-CW276 WXGA 5100-Lumen WXGA Data Projector from Sony features a WXGA 1280 x 800 native resolution and a 3000:1 contrast ratio that accommodates almost any lighting condition in the office or classroom. Two brightness modes lower power consumption and extend lamp life to up to 4,000 hours. The projector also features Bright Era 3LCD panels, an advanced crisp focus lens, and a 12-bit 3D digital gamma correction circuit for a better visual experience. The VPL-CW276 is equipped with an Ethernet RJ45 connection for network integration and system administration, making it ideal for classroom and corporate LAN environments. The projector provides HDMI connectivity, as well as a variety of other inputs and outputs. Other features include vertical/horizontal keystone correction, lens shift, advanced geometric correction, RS-232C connectivity, a 10W speaker, and an intelligent automatic lamp dimming function. - WXGA (1280 x 800) native resolution
- Up to 4,000 hours expected lamp life
- Versatile inputs including HDMI and composite RCA
- RJ45 for network control and monitoring
- Advanced crisp focus lens
- 12-bit 3D digital gamma correction
- Auto lamp dimming function
- Synchronized lamp and filter maintenance timing
- Designed to blend in visually
- Vertical and horizontal keystone correction
- Advanced geometric correction
UPC: 027242884366 In the Box Sony VPL-CW276 5100-Lumen WXGA Data Projector RM-PJ8 Remote Control CR2025 Battery for Remote AC Power Cord 15-Pin VGA Cable Lens Cap Limited 90-Day Warranty on Lamp Limited 3-Year Warranty on Projector Table of Contents
|
Upload User Manual
Have you got an user manual for the Sony VPL-CW276 5100-Lumen WXGA Data Projector in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSony VPL-CW276 Specs | | | Display System | 3-Chip LCD | | Native Chip Resolution | 1280 x 800 (WXGA) | | Supported Resolutions | Maximum: 1600 x 1200 | | Max Brightness | 5100 Lumens
4200 Lumens | | Contrast Ratio | 3000:1 | | | | Lens Shift | Horizontal: ± 3%

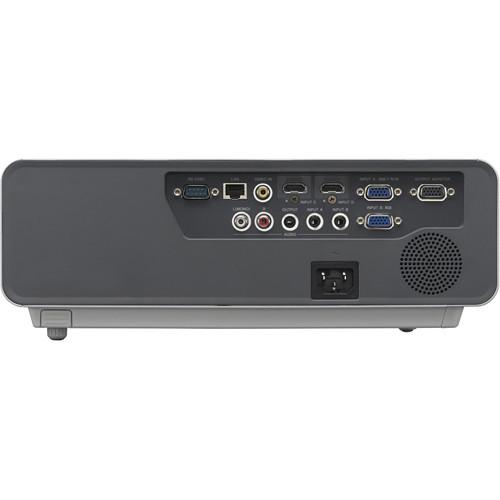

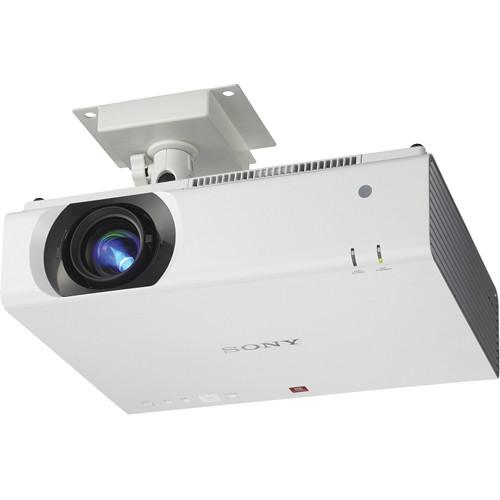

Vertical: ± 5% | | Optical Zoom | Manual: 1.5x | | Throw Ratio | 1.32 - 1.91:1 | | Projection Size | 40 - 300" / 101.60 - 762.00 cm | | | | Ceiling Mountable | Yes | | Built-In Speaker | Yes (Mono) | | Speaker Power | 10W | | Closed Captioning | Yes | | | | Inputs/Outputs | 1 x Composite (RCA) Video (Input)
1 x RCA Stereo (L/R) Audio (Input)
2 x VGA (DE-15) Video (Input)
2 x 1/8" (3.5 mm) Mini Audio (Input)
2 x HDMI Video (Input)
1 x Ethernet (RJ45) LAN
1 x VGA (DE-15) Video (Output)
1 x 1/8" (3.5 mm) Mini Audio (Output)
1 x RS-232C (Unspecified Connector) Remote | | | | Light Source | Lamp (1 x UHP) | | Lamp Power | 280 W | | Expected Lamp Life | Full Brightness: 3000 Hours
Medium Brightness: 4000 Hours | | AC Input Power | 120 to 240 VAC, 50 / 60 Hz | | Power Consumption | Medium Brightness: 390 W | | Dimensions (W x H x D) | 15.9 x 4.8 x 13.0" / 40.4 x 12.2 x 33.0 cm | | Weight | 12.38 lb / 5.613 kg | | | | Package Weight | 18.8 lb | | Box Dimensions (LxWxH) | 22.0 x 17.9 x 10.7" |
