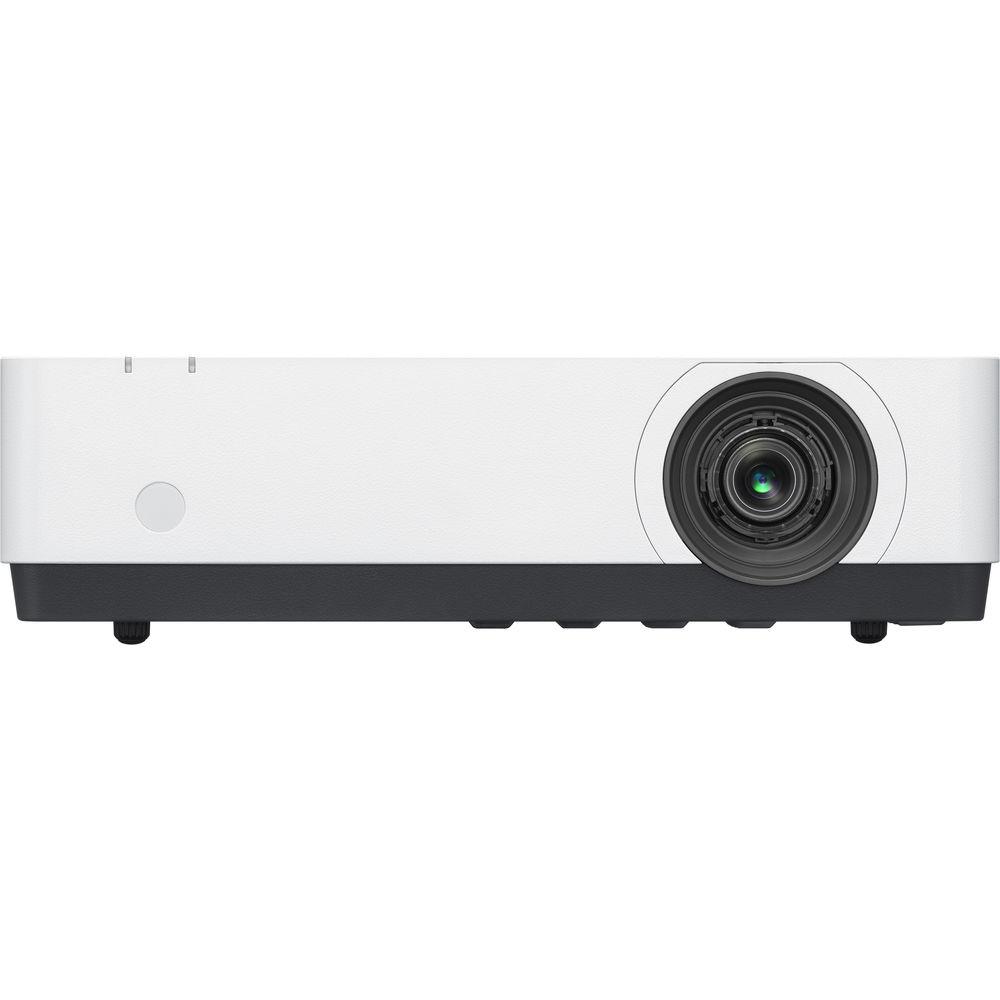

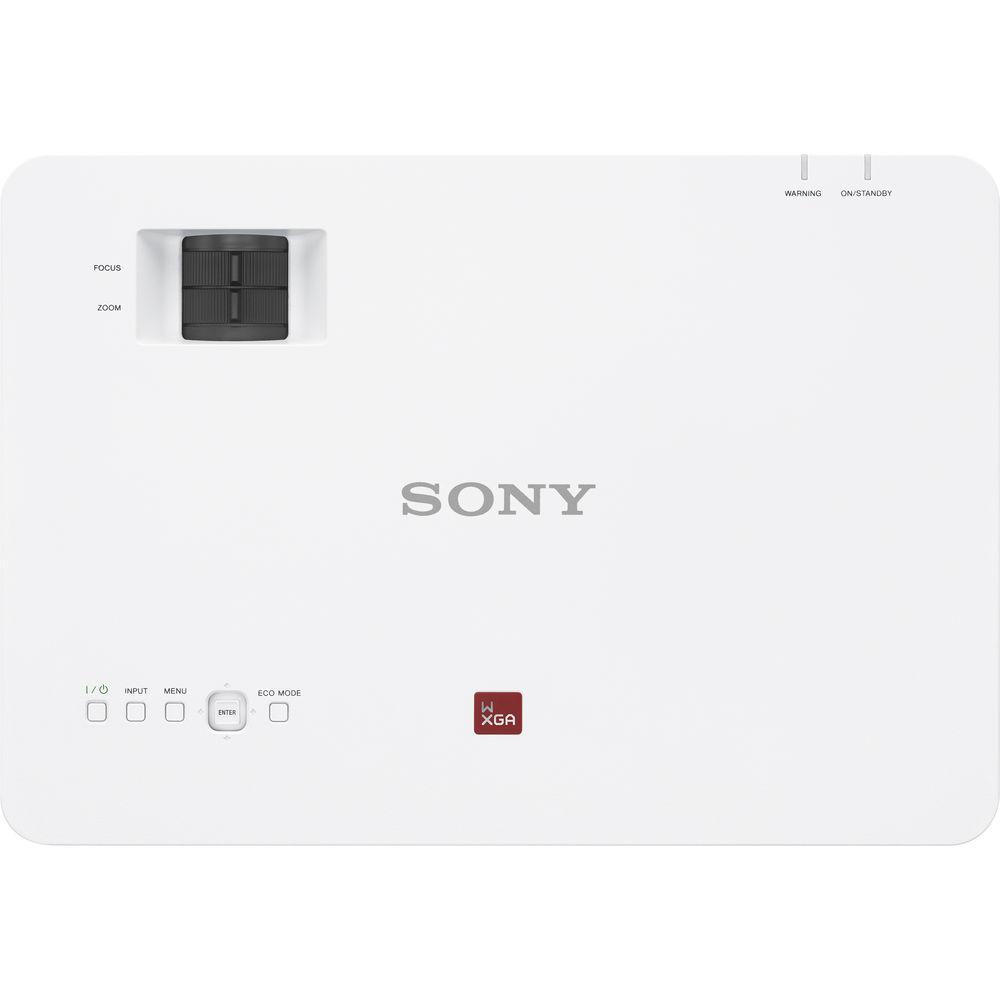

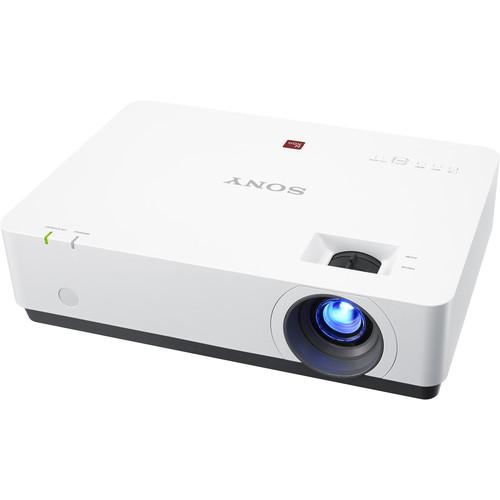

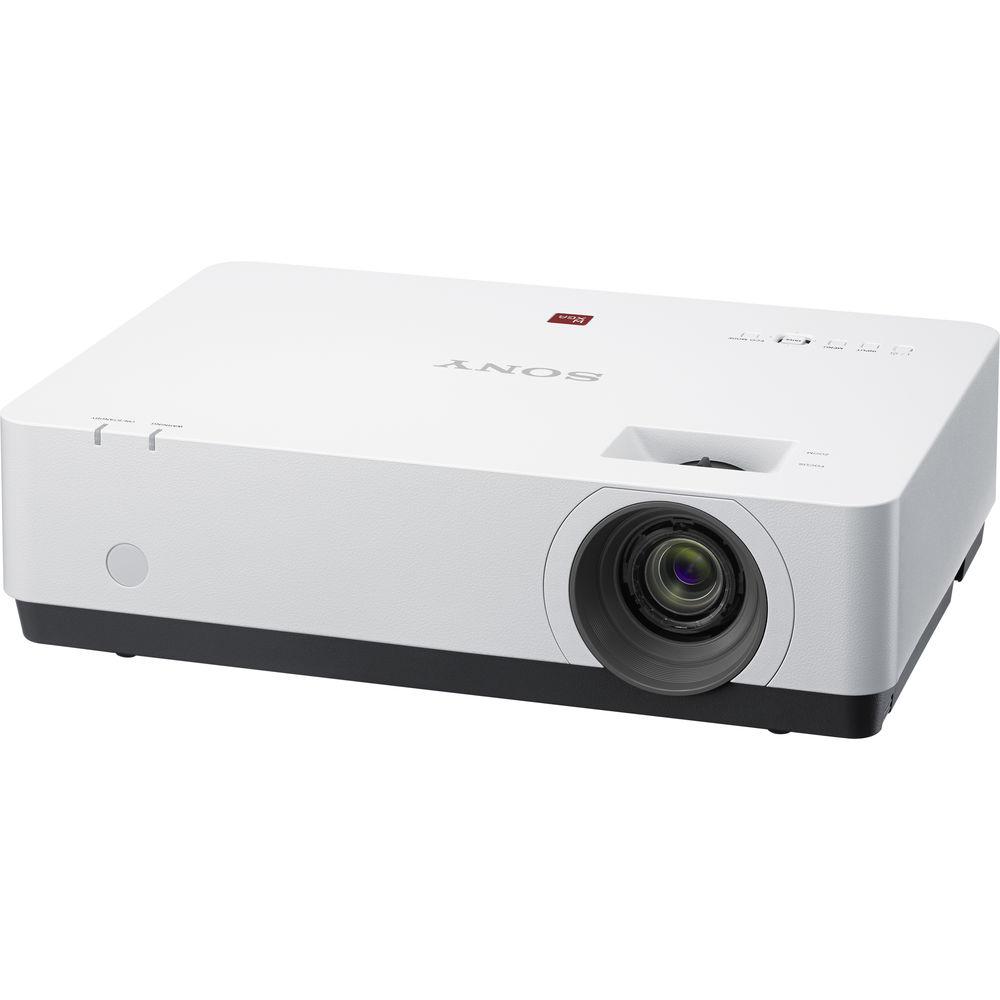

User Manual for Sony VPL-EW455 3500 Lumen WXGA 3LCD DLP Projector Click to enlarge the picture
Contents of the user manual for the Sony VPL-EW455 3500 Lumen WXGA 3LCD
- Product category: Multimedia Projectors Sony
- Brand: Sony
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Sony Multimedia Projectors
 |
User manual for the Sony VPL-EW455 3500 Lumen WXGA 3LCD contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Sony product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Sony user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Sony product will considerably shorten its lifespan!
|
Product description Enjoy detailed high resolution and network support with the Sony VPL-EW455 3500-Lumen WXGA 3LCD DLP Projector. It features 3500 lumens of brightness and a 20,000:1 dynamic contrast ratio for enhanced images in rooms with ambient light. It sports a WXGA 1280 x 800 native resolution for clear data and images at most viewing distances. The VPL-EW455 is powered by a 3LCD display system, and its lamp features a long life of up to 6000 hours in normal mode. You can use the VPL-EW455 to project up to a 300" diagonal screen size, making it suitable for large venues. This projector also features a 1.37 to 1.8:1 throw ratio and a native 16:10 aspect ratio.

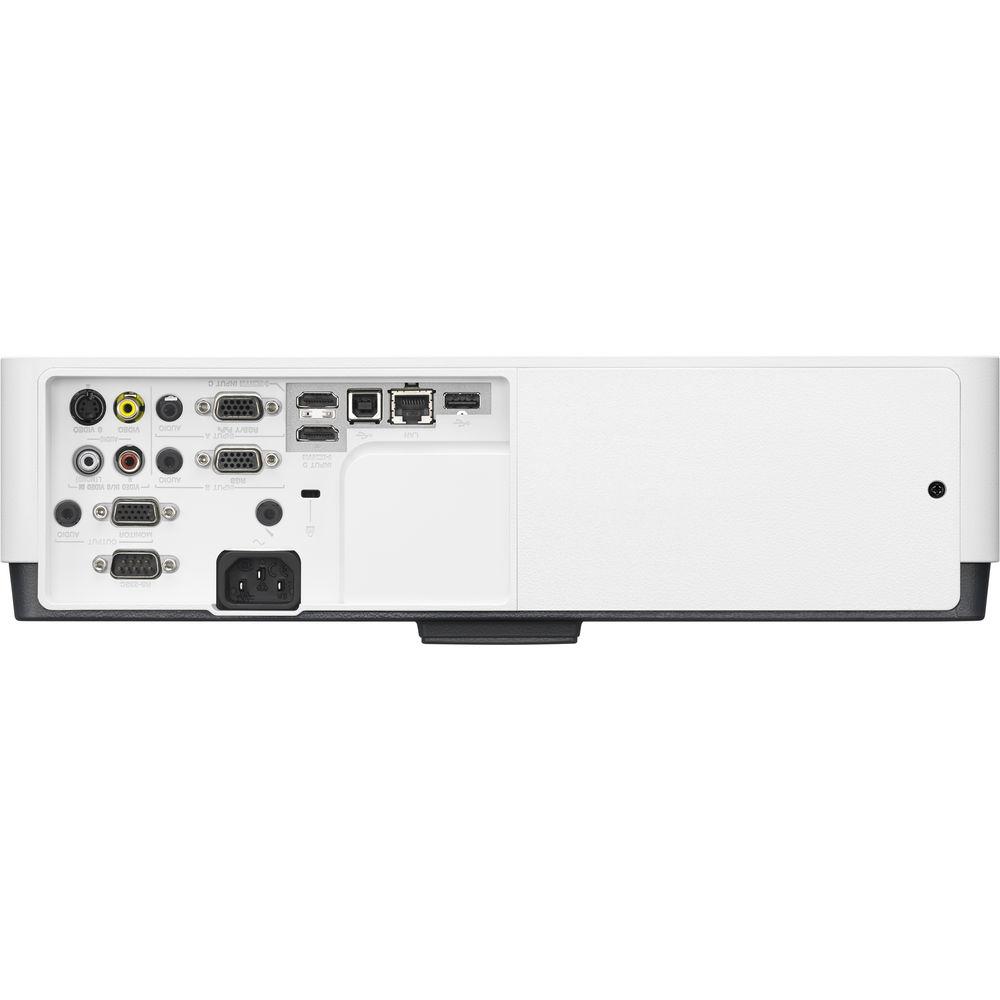

With S-video, composite video, USB Type-A, USB Type-B, two VGA, and two HDMI inputs, this projector is well equipped for external control and source connections. A VGA output enables you to send the video signal to another projector or display. The VPL-EW455 also features an Ethernet port for LAN control and projection. A remote control and a VGA cable are included for instant connectivity. - 3LCD BrightEra Color Processor
- Sony's BrightEra panels are designed to deliver enhanced panel light resistance, panel reliability, and brightness for improved color reproduction.
- 3500 Lumens of Light Output
- With up to 3500 lumens of light output in high brightness mode, the VPL-EW455 is designed to produce a clear image, even in high-ambient-light installations.
- Six Picture Modes for Optimal Image Quality
- The VPL-EW455 has six picture modes, and with its three brightness modes, you can select the combination that works best in your installation.
- Vivid mode emphasizes colors and brightness for an eye-catching image.
- Presentation mode is best suited for use in rooms with fluorescent lighting such as offices and classrooms.
- Dynamic mode emphasizes contrast for enhanced colors, particularly on white surfaces.
- Whiteboard and Blackboard modes are optimized to deliver clear images on a whiteboard or blackboard in classrooms without a projection screen.
- Dual HDMI Input Terminals
- With two HDMI inputs, you can use both traditional sources and wireless input adapters without switching plugs.
- Quiet Design
- With Sony's air-discharge system, the fan emits less than 35 dB during operation in high-brightness mode.
- Network Presentation via LAN
- When the projector is installed in a LAN, presentations can be shown from any Windows or Mac computer on the network. Up to four users can project computer images simultaneously, while up to eight users (seven via wireless connectivity) can connect to one projector.
- Designed to Blend In
- The slim 3.8" case features a flat-top surface designed to blend into the ceiling when mounted.
- Rear Lamp Access for Simplified Maintenance
- The lamp-access panel is in the rear of the projector, making it easier to access when the projector is hanging from a ceiling mount.
- Input Label
- You can customize the input label that appears in the input menu on the screen, giving you a clear understanding of which source you're selecting.
- IP-Control Sync Function
- Control signals (power on/off, input selection, etc.) received from a master projector can be distributed to additional projectors on the network.
- Three Wireless Connection Options
- The VPL-EW455 supports three different methods of wireless projection for enhanced flexibility:
- Wireless projection directly from a computer with an optional wireless module for the projector
- Wired connection to an access point with the computers transmitting to the access point wirelessly
- When using an optional wireless module to connect to the access point wirelessly.
- Long-Lasting Lamp
- The lamp can last up to 10,000 hours in low brightness mode.
- Auto Mode (Auto-Brightness Adjustment)
- The brightness of the lamp is automatically adjusted depending on the brightness of the projected image to avoid unnecessary power consumption. When showing darker images that don't require high brightness, lamp output decreases.
- Blank Mode
- The VPL-EW455 can temporarily disable video-signal output with the touch of a button on the included remote control.
- Lamp-Dimming Function
- The VPL-EW455 is equipped with a lamp-dimming function, which dims the lamp by approximately 15% after 10 seconds of a static signal feed. If the projector is left powered-on while not in use, it will dim the lamp to as low as 30% of total brightness after a set period of time to further reduce energy consumption.
- ECO MODE Key
- With a single push of the ECO MODE key on either the projector or remote, you can select the ECO mode of your choice.
UPC: 027242900097 In the Box Sony VPL-EW455 3500 Lumen WXGA 3LCD DLP Projector Remote Control CR2025 Battery VGA Cable Software CD-ROM Limited 3-Year Warranty on Projector Limited 90-Day Warranty on Lamp Table of Contents
|
Upload User Manual
Have you got an user manual for the Sony VPL-EW455 3500 Lumen WXGA 3LCD DLP Projector in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSony VPL-EW455 Specs | | | Display System | 3-Chip 0.59" LCD | | Native Chip Resolution | 1280 x 800 (WXGA) | | Supported Resolutions | Maximum: UXGA - 1600 x 1200 | | Max Brightness | 3500 Lumens
2500 Lumens
2100 Lumens | | Aspect Ratio | Native: 16:10 | | Dynamic Contrast Ratio | 20,000:1 | | Scan | Horizontal: 15 to 92 kHz
Vertical: 48 to 92 Hz | | | | Focus | Manual | | Optical Zoom | Manual: 1.3x | | Throw Ratio | 1.37 - 1.8:1 | | Projection Size | 30 - 300" / 76.20 - 762.00 cm | | | | Keystone Correction | Vertical: ± 20° | | Ceiling Mountable | Yes | | | | Inputs/Outputs | 2 x HDMI Audio/Video (Input)
2 x VGA (DE-15) Video (Input)
1 x S-Video (4-Pin DIN) Video (Input)
1 x Composite (RCA) Video (Input)
2 x 1/8" (3.5 mm) Mini Audio (Input)
1 x 1/8" (3.5 mm) Mini Microphone (Input)
1 x VGA (DE-15) Video (Output)
1 x 1/8" (3.5 mm) Mini Audio (Output)
1 x Ethernet (RJ45) LAN (Input)
1 x RS-232C (Unspecified Connector) Control (Input)
1 x USB Type-A Female
1 x USB Type-B Female | | | | Lamp Power | 225 W | | Expected Lamp Life | Full Brightness: 4000 Hours
Medium Brightness: 6000 Hours
Low Brightness: 10,000 Hours | | Security | Cable Lock Slot | | Supported Languages | Arabic
Czech
Dutch
English
Finnish
French
German
Greek
Hungarian
Indonesian
Italian
Japanese
Korean
Norwegian
Polish
Portuguese
Romanian
Russian
Simplified Chinese
Spanish
Swedish
Thai
Turkish
Vietnamese | | Heat Dissipation | 1133 BTU (AC 100 to 120V)
1088 BTU (AC 220 to 240V) | | Power Consumption | Full Brightness: 332 W
Medium Brightness: 270 W
Low Brightness: 233 W | | Temperature | Operating
32 to 104°F (0 to 40°C)
Humidity: 20 - 80%
Storage
14 to 140°F (-10 to 60°C)
Humidity: 20 - 80% | | Dimensions (W x H x D) | 14.4 x 3.8 x 9.9" / 365.0 x 96.2 x 252.0 mm Without protrusions | | Weight | 8.6 lb / 3.90 kg | | | | Package Weight | 12.35 lb | | Box Dimensions (LxWxH) | 17.5 x 13.1 x 7.8" |
