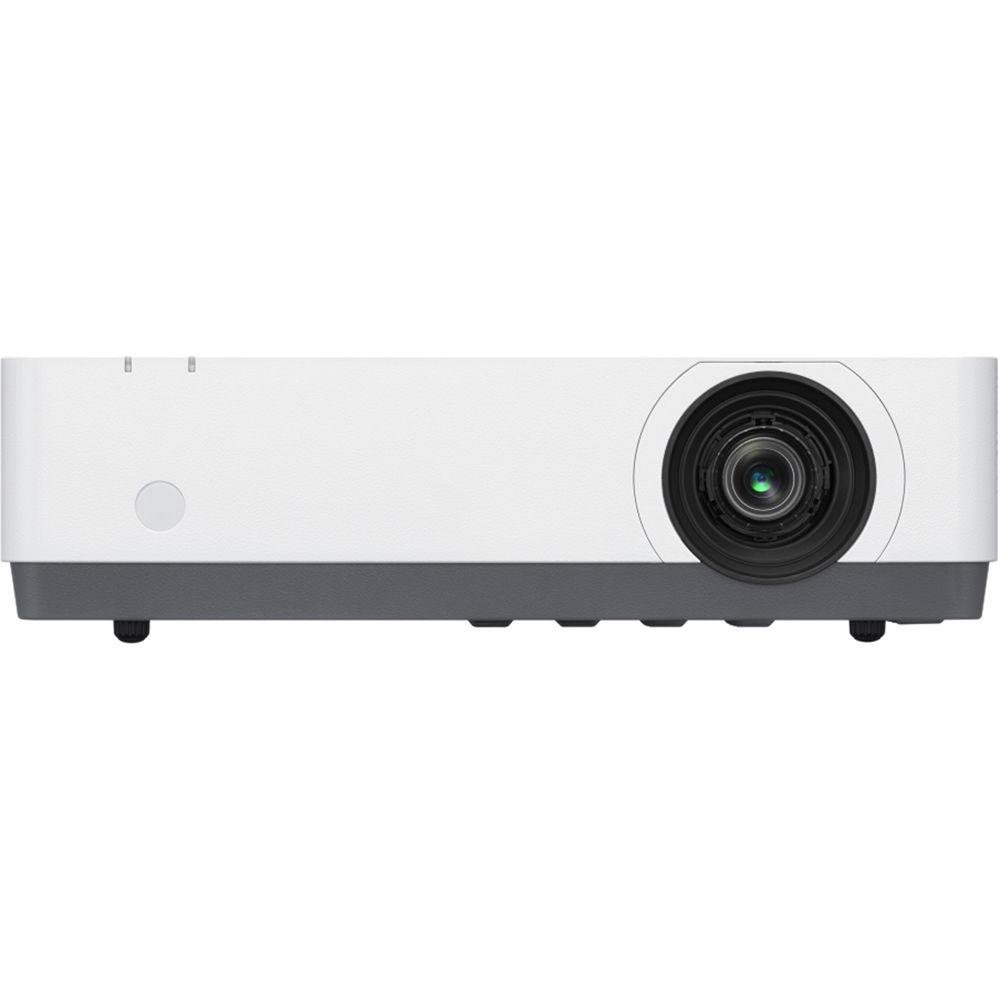

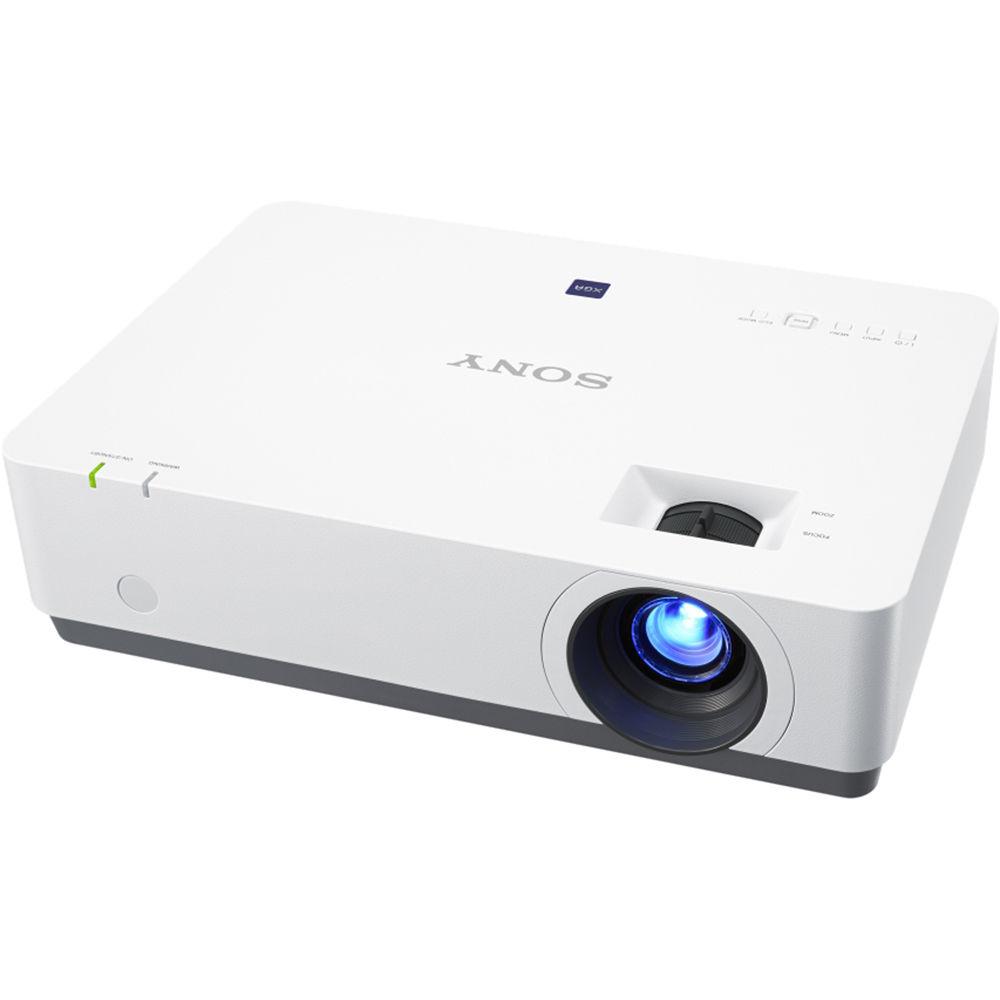

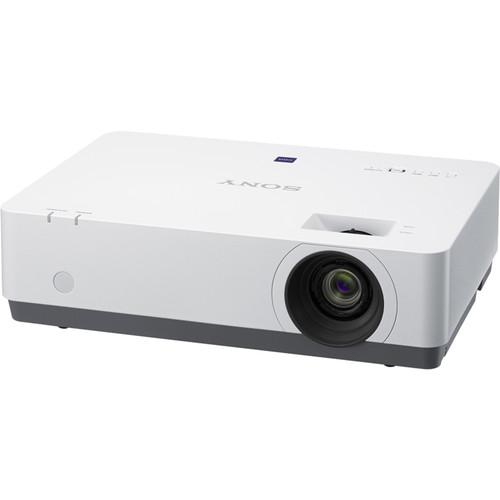

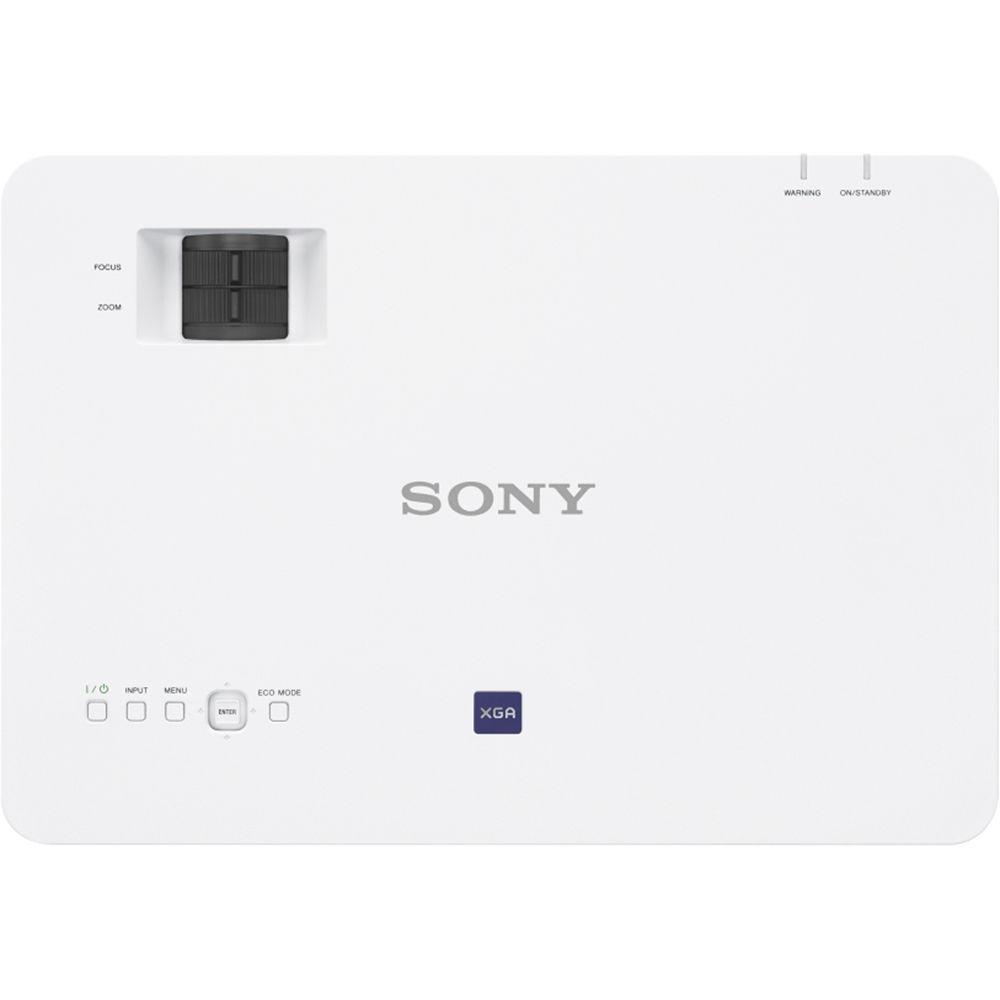

User Manual for Sony VPL-EX455 3600-Lumen XGA 3LCD Projector Click to enlarge the picture
Contents of the user manual for the Sony VPL-EX455 3600-Lumen XGA 3LCD Projector
- Product category: Multimedia Projectors Sony
- Brand: Sony
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Sony Multimedia Projectors
 |
User manual for the Sony VPL-EX455 3600-Lumen XGA 3LCD Projector contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Sony product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Sony user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Sony product will considerably shorten its lifespan!
|
Product description Enjoy enhanced connectivity options with the Sony VPL-EX455 3600-Lumen XGA 3LCD Projector. It features 3600 lumens of brightness and a 20,000:1 dynamic contrast ratio for detailed images in rooms with ambient light. It sports an XGA 1024 x 768 native resolution for clear data at most viewing distances. The VPL-EX455 is powered by a 3LCD display system, and its lamp features a life of up to 4000 hours at max brightness. You can use the VPL-EX455 to project up to a 300" diagonal screen size, making it suitable for large venues. This projector also features a 1.37 to 1.8:1 throw ratio with a native 4:3 aspect ratio.

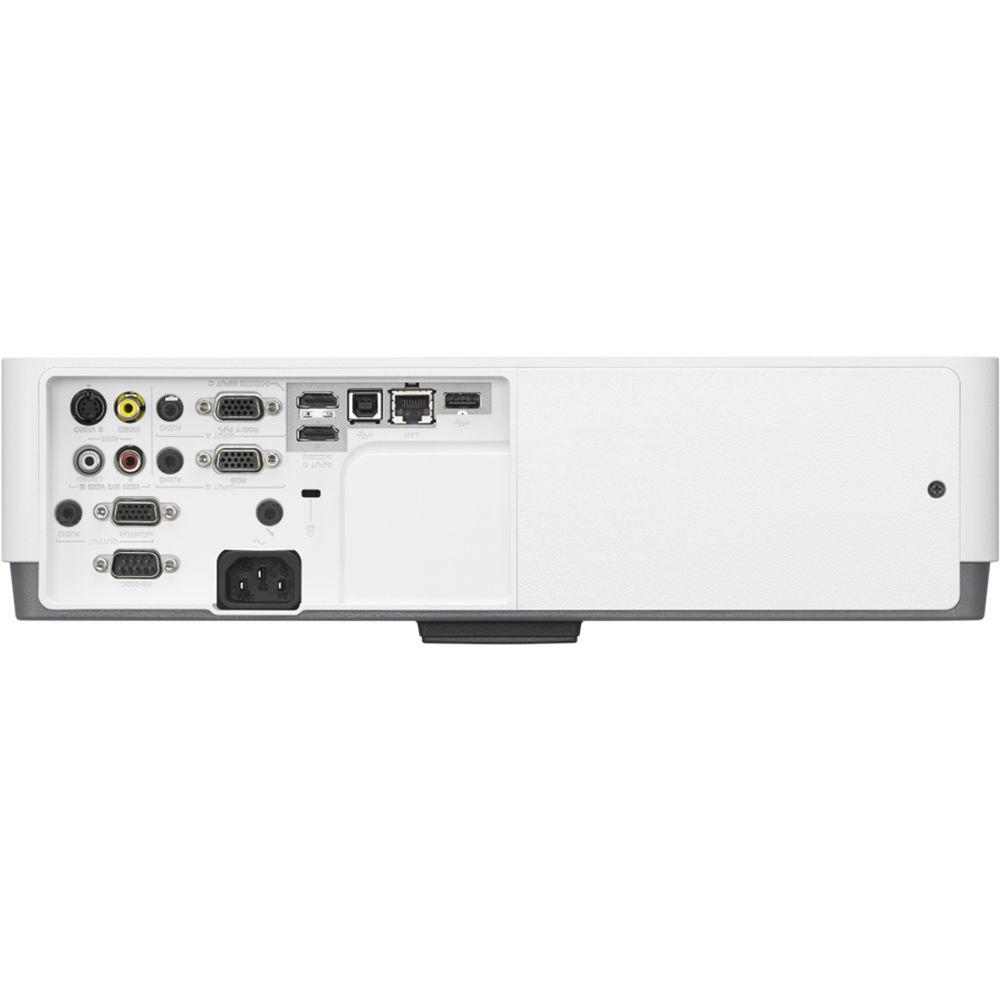

With S-video, composite video, USB Type-A, USB Type-B, two VGA, and two HDMI inputs, this projector is well equipped for external control and source connections. A VGA output shared with one of the VGA inputs enables you to send the video signal to another projector or display. The VPL-EX455 also features an Ethernet port for LAN control. A remote control and a VGA cable are included for instant connectivity. - 3LCD BrightEra Color Processor
- Sony's BrightEra panels are designed to deliver enhanced color light output with a 12-bit 3D Digital Gamma Correction circuit to help produce smooth color gradations.
- Long-Lasting Lamp
- The included lamp can last up to 10,000 hours in low brightness mode.
- Auto Lamp Dimming
- The VPL-EX455 is equipped with a lamp-dimming function, which dims the lamp if the projector is left powered on while not in use. The lamp will dim to as low as 30% of the original brightness level to reduce energy consumption.
- Auto Mode (Auto-Brightness Adjustment)
- The brightness of the lamp is automatically adjusted depending on the brightness of the projected image to avoid unnecessary power consumption. When showing darker images that don't require high brightness, lamp output decreases.
- Synchronized Lamp and Filter Maintenance
- The filter is designed to last as long as the lamp, so lamp replacement and filter cleaning can be performed at the same time, saving maintenance time. Lamp access is on the side for expedited lamp changes.
- Crestron RoomView Connected
- The VPL-EX455 is compatible with Crestron RoomView Connected control and management systems, which provide control capability over an IT network without custom programming or a control processor.
- Input Naming
- Inputs can be named in a logical way to help make operation fast and easy.
- Network Presentation
- You can project images over a wired LAN or, with the optional wireless adapter, over a wireless network. The projector can simultaneously display computer images from up to four different sources. System requirements are:
- Windows XP (Home/Professional Edition SP3-); Windows Vista (Home Basic/Home Premium/Business/Ultimate/Enterprise); or Windows 7, 8, or 10 (Home Basic/Home Premium/Professional/Ultimate/Enterprise)
- CPU: Pentium 4, 2.8 GHz or faster
- RAM: 512MB or more
- Display Output: Resolution greater than XGA (1024 x 768)
- USB Picture Viewer
- You can project still images files in JPEG, BMP, PNG, GIF, or TIFF format from a USB flash drive for computer-less presentations.
- Installation-Friendly Design
- Quiet operation (as low as 29 dB in low-brightness mode, or 35 dB in high-brightness mode) helps ensure that the projector itself doesn't distract your audience from your presentation. Digital keystone and digital shrink functions help you adjust the image to fit the screen.
- Optional Wireless Tablet Connection
- Apple devices using iOS 5.1.1 and iOS 6 can be supported with the optional wireless LAN module and the Sony Remote Control + app.
UPC: 027242900127 In the Box Sony VPL-EX455 3600-Lumen XGA 3LCD Projector Remote Control CR2025 Battery VGA Cable CD-ROM AC Power Cord Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Sony VPL-EX455 3600-Lumen XGA 3LCD Projector in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSony VPL-EX455 Specs | | | Display System | 3-Chip 0.63" Polysilicon TFT LCD | | Native Chip Resolution | 1024 x 768 (XGA) | | Supported Resolutions | Maximum: UXGA - 1600 x 1200 @ 60 Hz | | Max Brightness | 3600 Lumens | | Aspect Ratio | Native: 4:3 | | Dynamic Contrast Ratio | 20,000:1 | | Scan | Horizontal: 14 to 93 kHz
Vertical: 47 to 93 Hz | | | | Optical Zoom | Manual: 1.3x | | Throw Ratio | 1.37 - 1.8:1 | | Projection Size | 30 - 300" / 76.20 - 762.00 cm | | | | Ceiling Mountable | Yes | | Built-In Speaker | Yes (Mono) | | Speaker Power | 16W | | | | Inputs/Outputs | 2 x HDMI Audio/Video (Input)
1 x USB Type-A Female (Input)
1 x VGA (DE-15) Video (Input)
1 x VGA (DE-15) Video (Input/Output)
1 x S-Video (4-Pin DIN) Video (Input)
1 x Composite (RCA) Video (Input)
1 x RCA Stereo (L/R) Audio (Input)
1 x 1/8" (3.5 mm) Mini Audio (Input)
1 x 1/8" (3.5 mm) Mini Microphone (Input)
1 x 1/8" (3.5 mm) Mini Audio (Output)
1 x RS-232C (Unspecified Connector) Control (Input)
1 x Ethernet (RJ45) LAN (Input)
1 x USB Type-B Female (Input) | | Wireless LAN / Wi-Fi | No, Optional Adapter Available | | | | Light Source | Lamp | | Lamp Power | 225 W | | Expected Lamp Life | Full Brightness: 4000 Hours
Medium Brightness: 6000 Hours
Low Brightness: 10,000 Hours | | Fan Noise | Full Brightness: 35 dB
Low Brightness: 29 dB | | Supported Photo File Types | BMP, GIF, JPEG, PNG, TIFF | | Heat Dissipation | 1136 BTU | | Dimensions (W x H x D) | 14.4 x 4.2 x 9.9" / 36.5 x 10.6 x 25.2 cm | | Weight | 8.6 lb / 3.90 kg | | | | Package Weight | 11.9 lb | | Box Dimensions (LxWxH) | 18.0 x 13.0 x 7.0" |
