User Manual for Sony VPL-FH65 6000-Lumen WUXGA 3LCD Lamp Projector Click to enlarge the picture
Contents of the user manual for the Sony VPL-FH65 6000-Lumen WUXGA 3LCD Lamp
- Product category: Multimedia Projectors Sony
- Brand: Sony
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Sony Multimedia Projectors
 |
User manual for the Sony VPL-FH65 6000-Lumen WUXGA 3LCD Lamp contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Sony product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Sony user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Sony product will considerably shorten its lifespan!
|

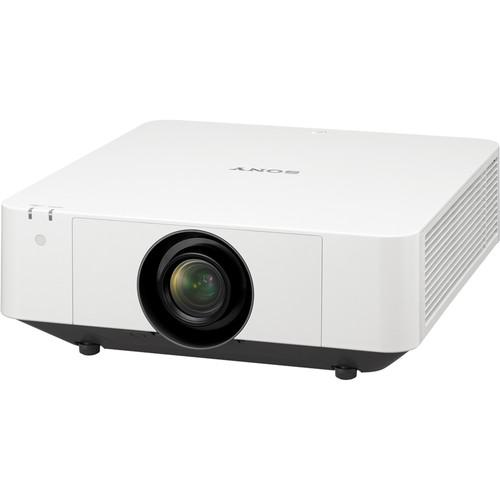

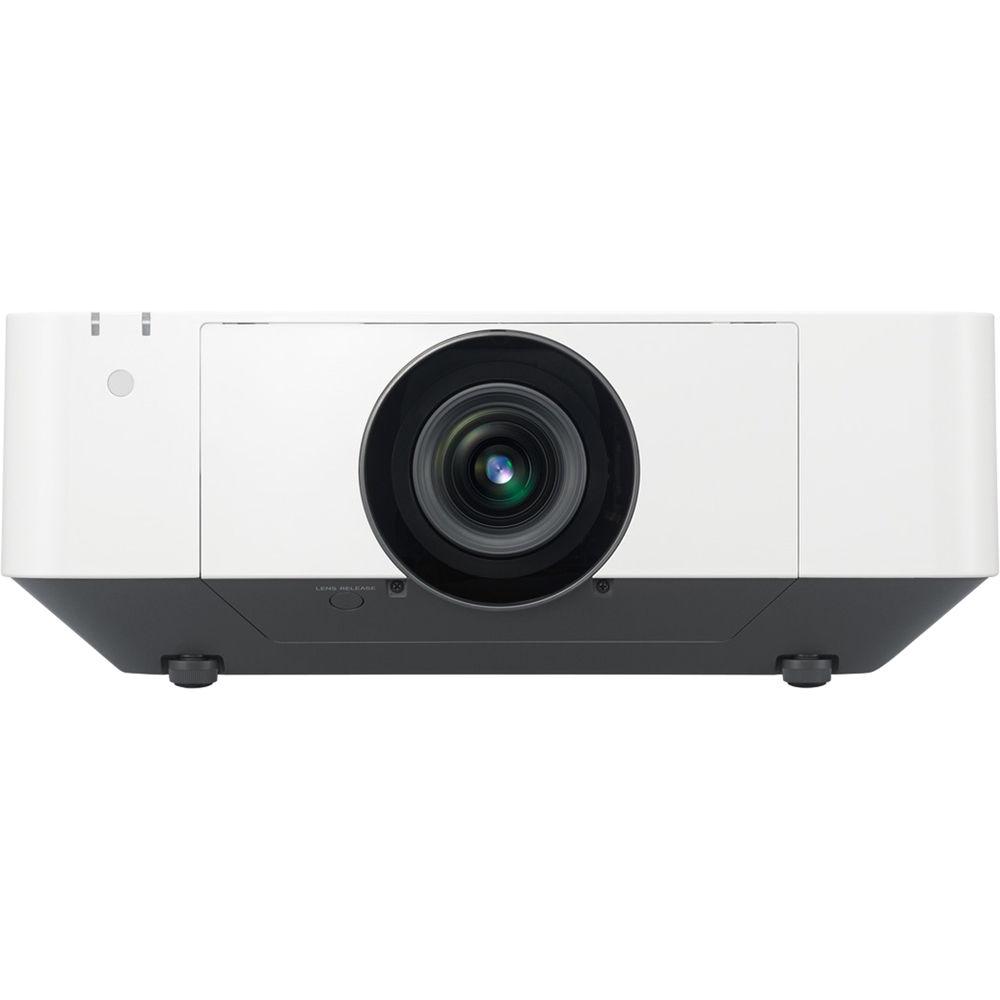

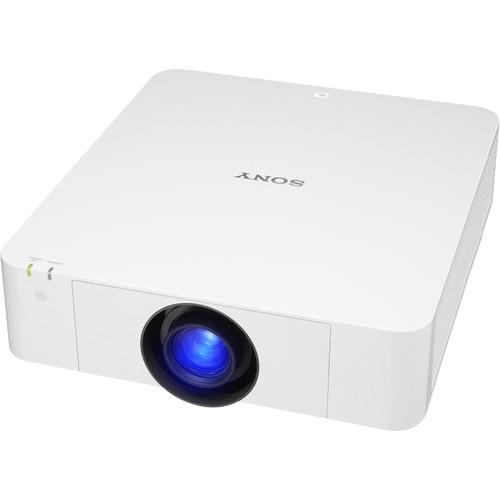

Product description The white VPL-FH65 6000-Lumen WUXGA 3LCD Lamp Projector from Sony is designed to deliver enhanced picture quality with advanced features, such as Reality Creation and Contrast Enhancer. The Reality Creation engine analyzes and processes every input signal to refine detail, clarity, and sharpness for naturally upscaled images. The Contrast Enhancer feature expands the perceived dynamic range of the signal in real-time. This projector features a built-in, HDBaseT interface, enabling easier connectivity and reducing total system cost by using a single category cable which runs all the video, audio, control, and IP signals.The projector also has a new integrated terminal cover design which allows installation without any visible cable runs from any angle. The integrated cover also helps to manage cables without attaching any external cable cover boxes (avoiding a bulky installation). In addition, a powered wide lens shift allows installation in challenging environments. Each projector can be combined with a wide variety of optional lenses to suit specific installation requirements. Offering a blend-in design, tidy cable management, and low fan noise, the projector fits smoothly into almost any environment, from entertainment venues, to academic institutions, to corporate spaces. - Slim, Attractive, Blend-in Design

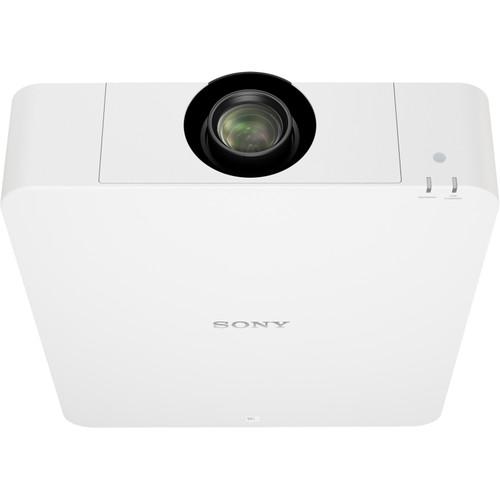

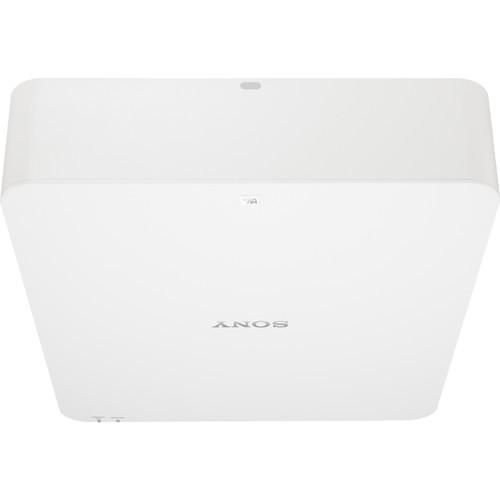

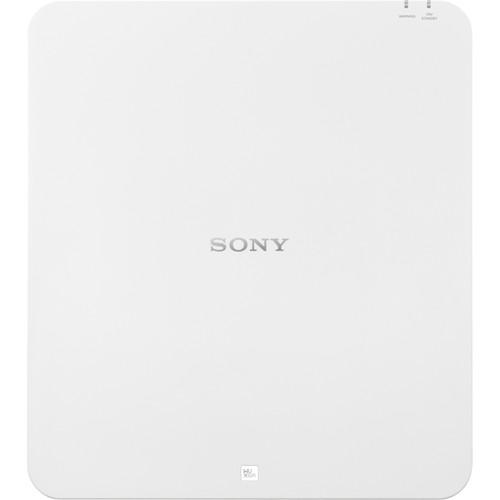

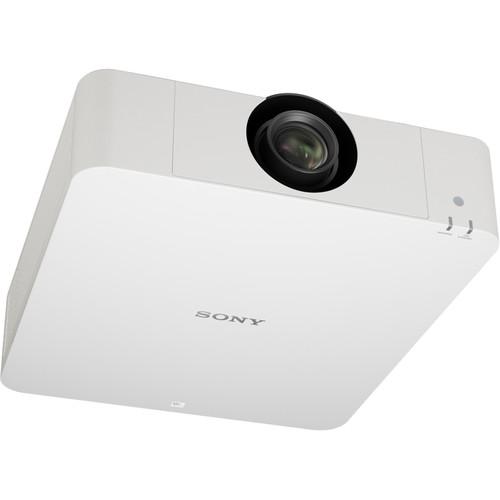

- The slim, stylish case design features a flat top surface that blends in discreetly when the projector is ceiling mounted. The clean appearance is accentuated by a new terminal cover that reduces cable clutter.
- Crisp, Detail-Packed WUXGA Resolution Images
- The projector delivers an amazing WUXGA resolution (1920 x 1200), which exceeds Full-HD resolution (1920 x 1080). It also allows projection in a wider display range. More information can be displayed on screen, so you can see the whole page without scrolling. Extremely clear and detailed high-quality images are projected, even on a large screen, and native Full-HD images can be projected full screen.
- Reality Creation Function
- Reality Creation uses a powerful pattern-matching database to optimize every pixel.
- Contrast Enhancer
- Contrast Enhancer actively analyzes and refines dark and light image areas for sparkling highlights and rich, deep blacks.
- Hassle-free Automatic Filter Cleaning
- Focus on great-looking images instead of arduous maintenance tasks. A new automated filter cleaning system removes dust every 100 hours.
- Included Powered Standard Zoom Lens
- Installation flexibility is increased by a wide range of compatible lens options to suit virtually any size of room and throw requirement. The quick-release bayonet mount simplifies quick lens exchange.
- Supports HDBaseT
- Simple, cost-effective installation and connectivity with digital transmission of HD video, audio, and networking/control over a single Ethernet cable.
- Powered Wide Lens Shift Function
- Using this function, the position of the projected image can be moved vertically by -32% to +32% and horizontally by -5% to +60%. Images can be easily adjusted to the desired settings during installation. With this shift range, the projectors can be installed in ways to maximize performance.
- Project onto Non-flat Surfaces with Image Warping
- Easily correct image geometry for natural-looking projections, even on convex or concave surfaces. Corner and edge correction can be easily adjusted with the supplied remote and onscreen menu.
- Create Supersize Displays with Edge Blending
- Seamlessly join accurately color-matched images from multiple projectors, simplifying the creation of stunning supersize displays for retail, corporate, and live event applications
- Quiet Operation
- The quiet projector offers low fan noise of 28 dB for discreet, unobtrusive operation in quiet environments, from museums and galleries to lecture theaters.
- Picture Mode
- Select Standard, Dynamic, Brightness Priority, or Multi-screen Picture mode for optimized image quality, from virtually any source and in every room.
- Simple Setup with Friendly New Installation Menu
- You can use the remote commander to easily adjust projector settings, including warping and edge blending.
- Project Side by Side
- Images from two inputs can be projected at the same time, ideal for applications such as video conferencing and medical training where two images need to be seen simultaneously.
UPC: 027242886384 In the Box Sony VPL-FH65 6000-Lumen WUXGA 3LCD Lamp Projector (White) RM-PJ27 Remote Commander Terminal Cover Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Sony VPL-FH65 6000-Lumen WUXGA 3LCD Lamp Projector in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSony VPL-FH65 Specs | | | Display System | 3-Chip 0.76" LCD | | Native Chip Resolution | 1920 x 1200 (WUXGA) | | Max Brightness | 6000 Lumens
4400 Lumens | | Aspect Ratio | Native: 16:10 | | Contrast Ratio | 2000:1 | | Scan | Horizontal: 15 to 92 kHz
Vertical: 48 to 92 Hz | | | | Focus | Auto | | Lens Shift | Vertical: to 5%
Vertical: + 60%
Horizontal: ± 32% | | Optical Zoom | Powered: 1.6x | | Throw Ratio | 1.39 - 2.23:1 | | Projection Size | 40 - 600" / 101.60 - 1524.00 cm | | | | Keystone Correction | Auto-Vertical: ± 30°

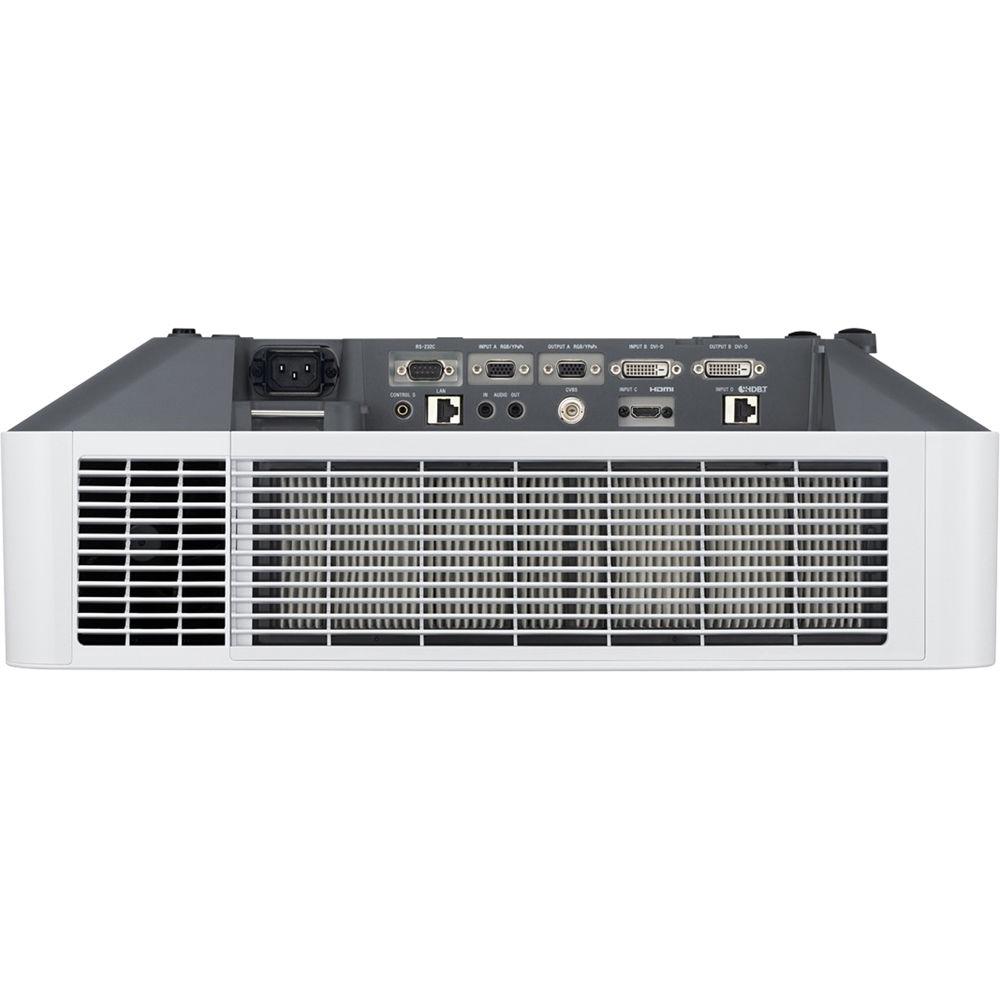

Auto-Horizontal: ± 30° | | Ceiling Mountable | Yes | | | | Inputs/Outputs | 1 x VGA (DE-15) Video (Input)
1 x DVI Video (Input)
1 x HDMI Video (Input)
1 x HDBaseT (RJ45) Service (Input)
1 x Composite (BNC) Video (Input)
1 x VGA (DE-15) Video (Output)
2 x 1/8" (3.5 mm) Mini Audio (Output)
1 x DVI-D Video (Output)
1 x 1/8" (3.5 mm) Mini Audio (Input/Output)
1 x RS-232C (DE-9) Remote (Input/Output)
1 x 1/8" (3.5 mm) Mini Control (Input/Output) | | Inputs/Outputs | 1 x Ethernet (RJ45) LAN Input | | Memory Card Slot | None | | | | Light Source | Lamp | | Lamp Power | 370 W | | Expected Lamp Life | Full Brightness: 3000 Hours
Low Brightness: 4000 Hours | | Fan Noise | Full Brightness: 28 dB | | Supported Languages | Arabic
Dutch
English
Finnish
French
German
Greek
Hungarian
Indonesian
Italian
Japanese
Korean
Norwegian
Polish
Portuguese
Russian
Simplified Chinese
Spanish
Swedish
Thai
Traditional Chinese
Turkish
Vietnamese | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz at 2.1 to 5 A | | Heat Dissipation | 1699 BTU (AC 100 to 120V)
1648 BTU (AC 220 to 240V) | | Power Consumption | Full Brightness: 498 W
Standby Mode (Lamp Off): 0.5 W | | Temperature | Operating
32 to 104°F (0 to 40°C)
Humidity: 20 - 80%
Storage
14 to 140°F (-10 to 60°C)
Humidity: 20 - 80% | | Dimensions (W x H x D) | 18.1 x 6.7 x 20.3" / 460.0 x 169.0 x 515.0 mm | | Weight | 28.00 lb / 12.70 kg | | | | Package Weight | 36.0 lb | | Box Dimensions (LxWxH) | 25.0 x 23.0 x 13.0" |
