User Manual for Sony VPL-FHZ66 6100-Lumen WUXGA Laser 3LCD Projector Click to enlarge the picture
Contents of the user manual for the Sony VPL-FHZ66 6100-Lumen WUXGA Laser 3LCD
- Product category: Multimedia Projectors Sony
- Brand: Sony
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Sony Multimedia Projectors
 |
User manual for the Sony VPL-FHZ66 6100-Lumen WUXGA Laser 3LCD contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Sony product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Sony user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Sony product will considerably shorten its lifespan!
|

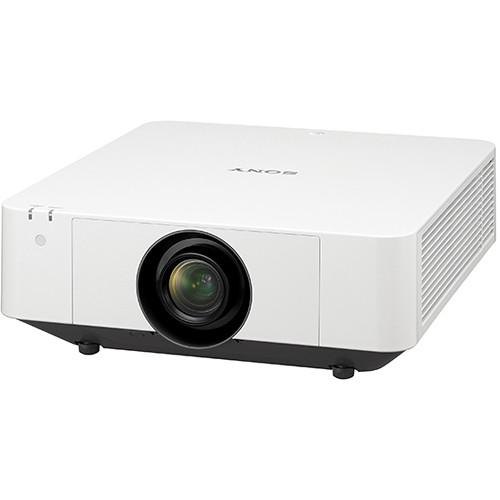

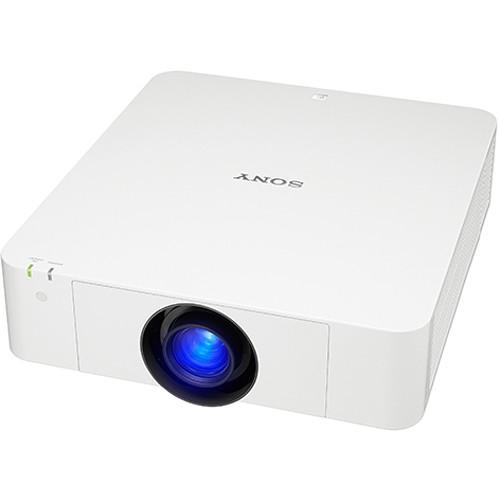

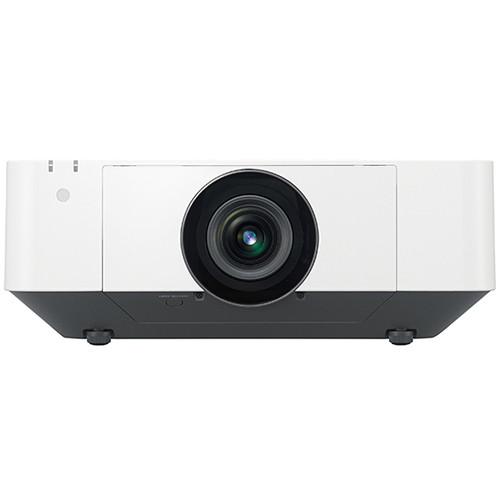

Product description Enjoy bright images in many everyday settings with the white Sony VPL-FHZ66 6100-Lumen WUXGA Laser 3LCD Projector. Its 6100 lumens of brightness and 500,000:1 dynamic contrast ratio work together to overcome light in relatively bright rooms and provide detail in dark areas of the image. It sports a 1920 x 1200 WUXGA native resolution for viewing HD video and detailed pictures or data. The projector's 1.39 to 2.23:1 throw ratio and 1.6x powered zoom provide a range of throw distances for focused images, and a variety of other lens options further enhance installation flexibility.

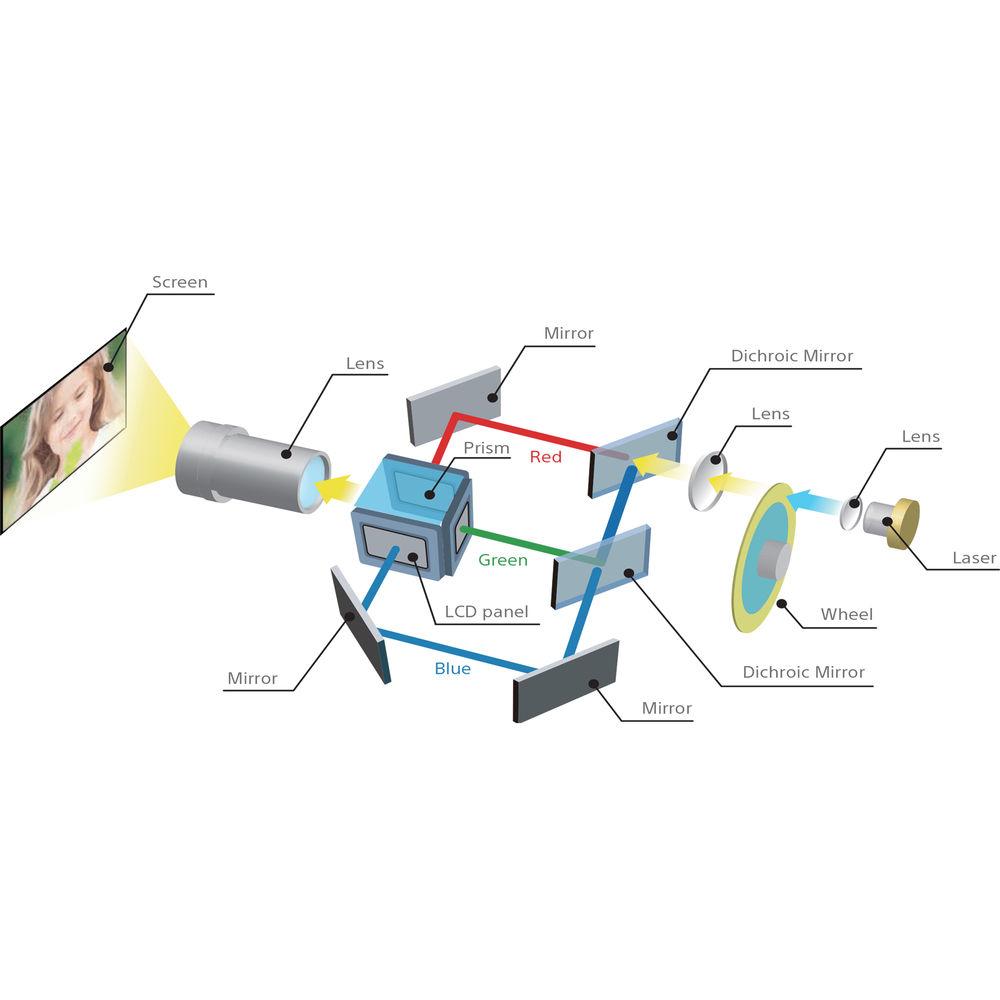

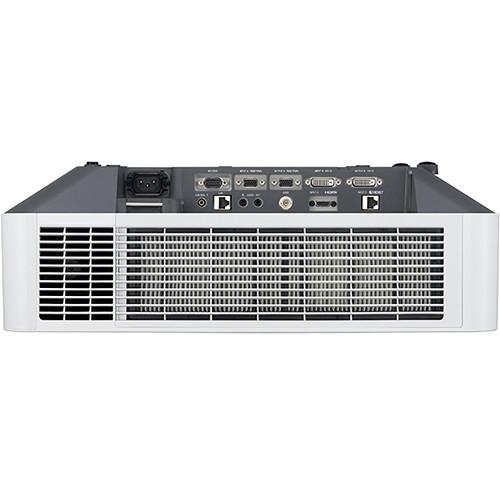

The VPL-FHZ66 features HDBaseT, VGA, DVI-D, BNC, and HDMI inputs for connecting to nearly any source, while its analog audio input and output allow you to pass sound through the projector and use your sound system of choice. The projector is controllable via the included remote control, HDBaseT, or RS-232. - BrightEra 3LCD Projection Engine and Z-Phosphor Laser Light Source
- The Z-Phosphor laser light source is coupled with Sony's BrightEra 3LCD projection engine to help provide a 6100-lumen image with natural color reproduction.
- Constant Brightness
- The Constant Brightness feature is designed to maintain the same brightness throughout the 20,000-hour recommended life span in the medium light output mode.
- Reality Creation with Contrast Enhancer
- Reality Creation uses a pattern-matching database designed to optimize every pixel, while Contrast Enhancer is engineered to actively analyze and refine dark and light image areas for augmented highlights and deep blacks.
- WUXGA High-Resolution Images
- See detail in presentations, videos, or multimedia signage with WUXGA (1920 x 1200) native resolution.
- Up to 20,000 Hours of Operation
- The laser light source offers up to 20,000 hours of operation without lamp replacement.
- Automatic Filter Cleaning
- The built-in automated filter cleaning system removes dust every 100 hours.
- Energy Saving Features
- Reduce running costs with the integrated energy-saving features, including Picture Mute and Auto Dimming.
- Save Time
- Quick Power On/Off cuts warm-up time after powering the projector on, before you can start presenting at full brightness.
- 360° Installation Capability
- Position the projector at nearly any angle – even on its side or upside down.
- Powered Lens Shift
- Lens shift adjustments provide more flexibility for positioning the projector where you want it, including close to the ceiling or horizontally offset.
- Zoom Lens Included, Accessory Lenses Available Separately
- Installation flexibility is further enhanced with a range of compatible lens options to suit a variety of room size and throw requirements. The quick-release, bayonet-style mount helps simplify quick lens swapping.
- Supports HDBaseT
- This single-cable installation and connection solution with digital transmission of HD video, audio, and networking/control over Ethernet helps simplify and reduce the cost of connectivity.
- Create Oversize Displays with Edge Blending
- Edge Blending helps you join color-matched images from multiple projectors, simplifying the creation of large displays for corporate and educational use.
- Image Warping
- Correct image geometry for natural-looking projections, even on convex or concave surfaces. Corner and edge correction can be adjusted with the included remote and on-screen menu.
- Picture Mode
- Picture Mode is designed to help ensure high picture quality in nearly any presentation condition. Select Standard, Dynamic, Brightness Priority, or Multi Screen mode for optimized image quality.
- Auto-Calibration
- After extended periods, the color can be automatically calibrated to the original factory condition. A built-in color sensor stores all the necessary information, eliminating the need for extra equipment.
- Designed to Blend In
- The case features a flat top surface designed to blend in when the projector is ceiling-mounted. Additionally, the terminal cover helps reduce the appearance of cable clutter.
- Side-by-Side Projection
- This feature allows you to project images from two inputs at the same time, making the projector well suited for use in video conferencing and medical training.
- Installation Menu Helps Simplify Setup
- Adjust projector settings, including warping and edge blending, with the included remote control.
- Designed for Quiet Operation
- The VPL-FHZ66 emits just 28 dB at medium brightness, making it suitable for use in quiet environments, such as museums, galleries, and lecture halls.
UPC: 027242912434 In the Box Sony VPL-FHZ66 6100-Lumen WUXGA Laser 3LCD Projector (White) Remote Control Limited 5-Year or 12,000-Hour Warranty, Whichever Comes First Table of Contents
|
Upload User Manual
Have you got an user manual for the Sony VPL-FHZ66 6100-Lumen WUXGA Laser 3LCD Projector in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSony VPL-FHZ66 Specs | | | Display System | 3-Chip 0.76" LCD | | Native Chip Resolution | 1920 x 1200 (WUXGA) | | Supported Resolutions | Maximum: WUXGA - 1920 x 1200 | | Max Brightness | White: 6100 Lumens
Color: 6100 Lumens | | Aspect Ratio | Native: 16:10 | | Dynamic Contrast Ratio | 500,000:1 | | Scan | Horizontal: 15 to 92 kHz
Vertical: 48 to 92 Hz | | | | Focus | Manual Powered | | Lens Shift | Vertical: -5 to 60%
Horizontal: ± 32% | | Optical Zoom | Powered: 1.6x | | Throw Ratio | 1.39 - 2.23:1 | | Projection Size | 40 - 600" / 101.60 - 1524.00 cm | | | | Keystone Correction | Horizontal: ± 30°

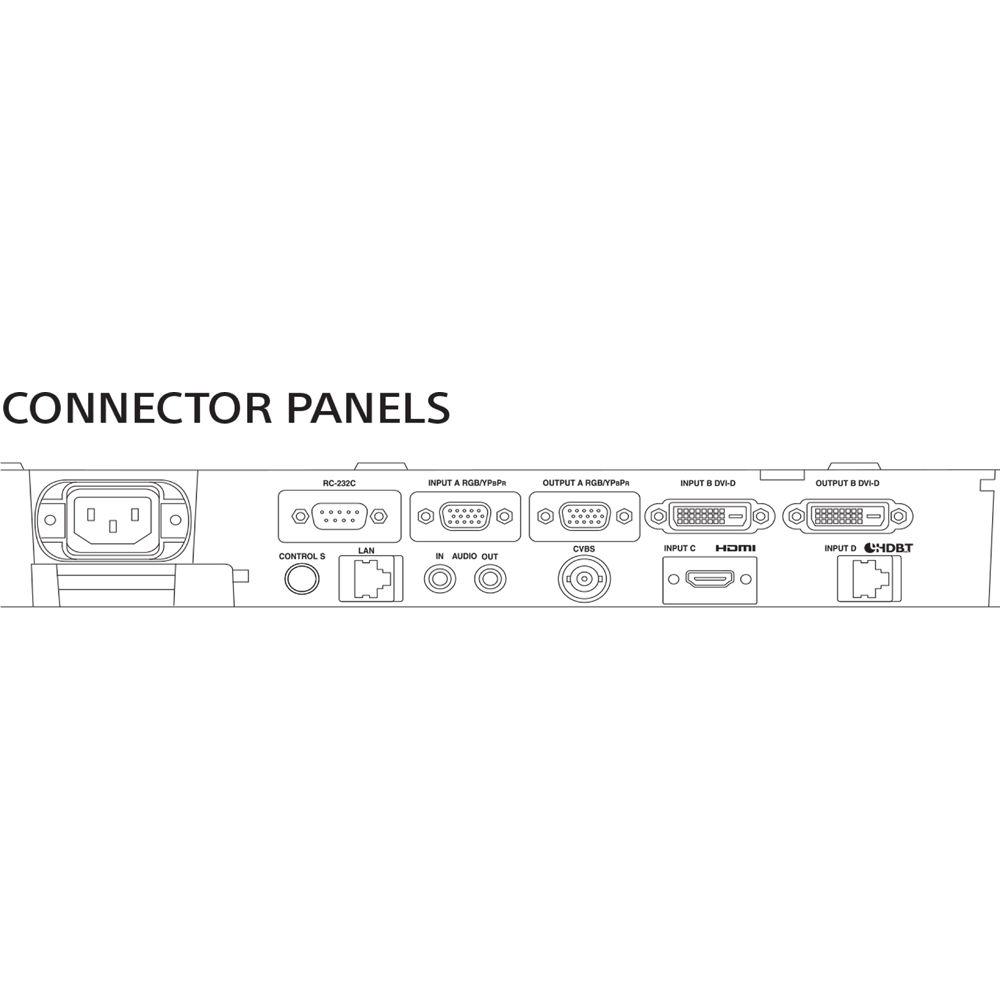

Vertical: ± 30° | | Ceiling Mountable | Yes | | Projection Tilt Option | Yes | | | | Inputs/Outputs | 1 x HDBaseT (RJ45) Audio, Control, LAN, Video
1 x HDMI (HDMI Type-A) Audio, Video Input
1 x DVI-D Video Input
1 x VGA (DE-15) Video Input
1 x BNC Video Input
1 x 1/8" / 3.5 mm Mini Audio Input
1 x VGA (DE-15) Video Output
1 x 1/8" / 3.5 mm Mini Audio Output
1 x Ethernet (RJ45) LAN
1 x RS-232 (DE-9) Control Input | | | | Wireless LAN / Wi-Fi | None | | | | Light Source | Laser Phosphor | | Expected Lamp Life | Low Brightness: 20,000 Hours | | Fan Noise | Medium Brightness: 28 dB | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz at 2.3 to 5.5 A | | Heat Dissipation | 1757 BTU (AC 100 to 120V)
1696 BTU (AC 220 to 240V) | | Power Consumption | Medium Brightness: 515 W

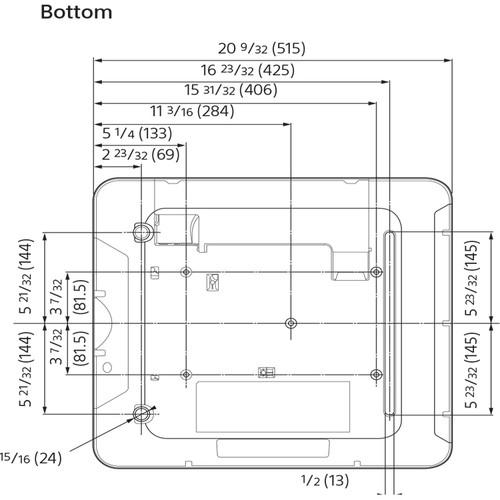

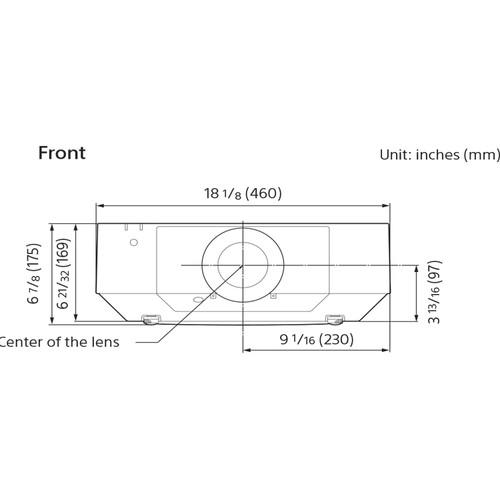

Standby Mode (Lamp Off): 0.5 W | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Storage Temperature | 14 to 140°F / -10 to 60°C | | Operating Humidity | 20 - 80% | | Storage Humidity | 20 - 80% | | Dimensions (W x H x D) | 18.1 x 6.7 x 20.3" / 460.0 x 169.0 x 515.0 mm Without Protrusions | | Weight | 35.27 lb / 16 kg | | | | Package Weight | 45.5 lb | | Box Dimensions (LxWxH) | 24.8 x 22.6 x 13.4" |
