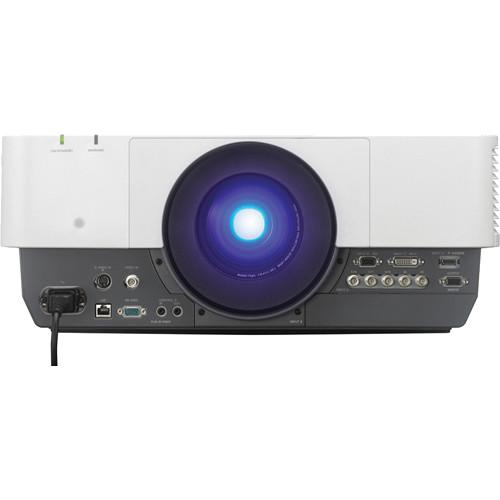

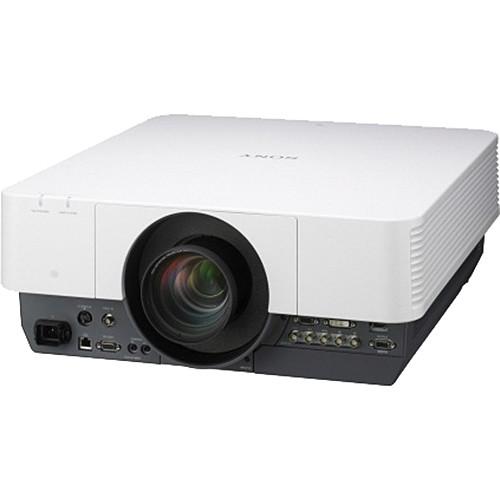

Product description The white Sony VPL-FHZ700L 7000 Lumens WUXGA Laser Light Projector features a native 1920 x 1200 resolution, an 8000:1 contrast ratio, and utilizes a laser light source with a BrightEra 3LCD optical system. Since it doesn't use bulbs, this model offers a low maintenance cost, lower to no downtime, and therefore overall greater efficiency as compared to otherwise similar projectors that use replaceable bulbs.
The VPL-FHZ700L offers a few different features to ensure that your projections display smoothly. One of those is advanced geometric correction, which will allow you to make a wide range of keystone adjustments. Its edge blending feature will adjust for overlapping image edges when using multiple projectors side-by-side. Thanks to its angle-free tilting design, the VPL-FHZ700LW can be placed at any angle, even on its side or upside down. Optically, it features Sony interchangeable lenses for screen sizes ranging from 40 - 600" with up to a 113% vertical and 63% horizontal lens shift; a lens is required and not included.
You will have a number of connectivity options with the VPL-FHZ700LW. Its standard connections include one DVI-D, one HDMI input, one S-Video input with corresponding stereo RCA audio, one RCA composite video also with corresponding stereo RCA audio, and a 5-BNC component video with audio input. This model is also built with an adapter slot for optional HDBaseT connection, which will simplify your installation process and reduce the number of signal extenders and receiver boxes necessary.
The VPL-FHZ700L also has energy- and environment-friendly features like auto-dimming mode, auto-light source control, picture muting, and low power consumption with no input present. It is also mercury free. - 7,000 lumens for bright images even in well-lit rooms
- Native WUXGA (1920 x 1200) resolution produces clear images at close viewing range
- Laser light source and BrightEra 3LCD optics provide a bright, vivid image for approximately 20,000 hours of maintenance-free operation
- Instant on/off feature produces images at full brightness immediately at power-on for smooth presentations

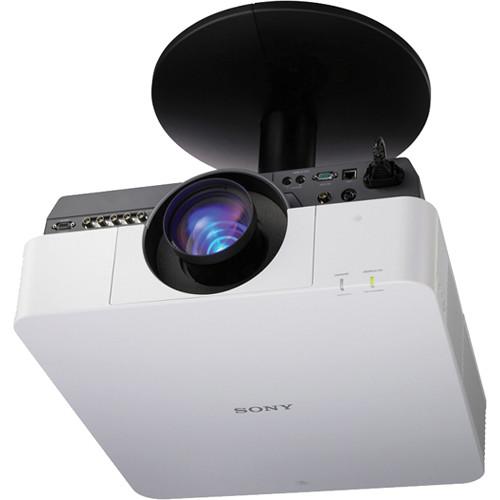

- Angle-free tilting allows you to position the projector at any angle and still achieve a level image
- Compatible with separately available Sony lenses for additional zoom, focus, throw distance, and image size options
- Up to vertical +/-113%, horizontal +/-63% lens shift for installation at wide angles
- Advanced geometric correction allows you to correct image shape by adjusting either all four corners or all four sides of the image for a properly displayed image from offset projection angles
- Edge blending will adjust for overlapping image edges when using multiple projectors side by side
- Constant brightness mode will maintain brightness for the entire lifespan of the light source by reducing its light output at the beginning of the projector's life and gradually increasing it as the output drops
- Interface terminals include 1 x DVI-D and 1 x HDMI for connection versatility
- Optional adapter slot for HDBaseT compatibility, simplifying installation and reducing the number of signal extenders and receiver boxes needed
- Only 497W power consumption thanks to energy-efficient functions, including auto dimming mode, auto light source control, blank screen mode, and low power consumption with no input
- DICOM GSDF Simulation Gamma Mode
- Crestron RoomView Connected
- Environmentally friendly mercury free design
UPC: 027242879980 In the Box Sony VPL-FHZ700L 7000 Lumens WUXGA Laser Light Projector (White, No Lens) Remote Control with Batteries AC Power Cord 2 x Cable Ties Cable Tie Holder 4 x Lens Attachment Screws Lens Gap Cover Security Label Limited 5-Year / 12,000 Hour Warranty (Whichever Comes First) Brochure PDF 3.9mb Table of Contents
|
Upload User Manual
Have you got an user manual for the Sony VPL-FHZ700L 7000 Lumens WUXGA Laser Light Projector in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSony VPLFHZ700L Specs | | | Display System | 3-Chip 0.95" LCD | | Native Chip Resolution | 1920 x 1200 (WUXGA) | | Max Brightness | 5600 Lumens
7000 Lumens | | Aspect Ratio | Native: 16:10 | | Contrast Ratio | 8000:1 | | DLP Link 3D | None | | Supported 3D Formats | None | | Scan | Horizontal: 14 to 93 kHz
Vertical: 47 to 93 Hz | | | | Focus | Auto depends on lens | | Lens | None | | Lens Shift | Vertical: + 113%
Horizontal: ± 63% | | Throw Distance | None | | Projection Size | 40 - 600" / 101.60 - 1524.00 cm depends on lens | | | | Keystone Correction | Vertical: ± 30°
Horizontal: ± 30° | | Picture-in-Picture | Yes Picture-by-Picture | | Ceiling Mountable | Yes | | Built-In Speaker | None | | Closed Captioning | Yes | | | | Inputs/Outputs | 1 x 5BNC Video (Input)
1 x VGA (DE-15) Video (Input)
1 x DVI-D Video (Input)
1 x HDMI Audio/Video (Input)
1 x S-Video (4-Pin DIN) Video (Input)
1 x Composite (BNC) Video (Input)
1 x VGA (DE-15) Video (Output)
1 x RS-232C (Unspecified Connector) Control (Input)
1 x Ethernet (RJ45) LAN (Input)
1 x 1/8" (3.5 mm) Mini Control (Input)
1 x 1/8" (3.5 mm) Mini Control (Output) | | Wireless LAN / Wi-Fi | None | | | | Light Source | Laser Phosphor | | Security | Security Bar | | Supported Languages | Arabic
Dutch
English
Finnish
French
German
Greek
Hungarian
Indonesian
Italian
Japanese
Korean
Norwegian
Persian
Polish
Portuguese
Russian
Simplified Chinese
Spanish
Swedish
Thai
Traditional Chinese
Turkish
Vietnamese | | AC Input Power | 120 to 240 VAC, 50 / 60 Hz | | Heat Dissipation | 1696 BTU (AC 100 to 120V)
1624 BTU (AC 220 to 240V) | | Power Consumption | Full Brightness: 497 W
Standby Mode (Lamp Off): 12.2 W
Standby Mode (Lamp Off): 0.1 W | | Temperature | Operating
32 to 104°F (0 to 40°C)
Humidity: 35 - 85%
Storage
-4 to 140°F (-20 to 60°C)
Humidity: 10 - 90% | | Dimensions (W x H x D) | 20.9 x 8.4 x 21.5" / 530.0 x 213.0 x 545.0 mm | | Weight | 48.5 lb / 22.0 kg | | | | Package Weight | 59.12 lb | | Box Dimensions (LxWxH) | 27.5 x 26.65 x 15.6" |
