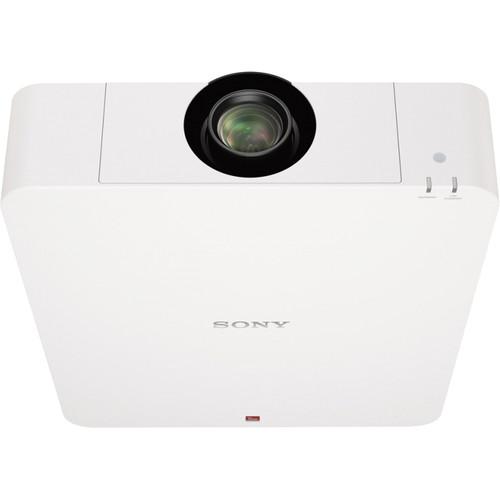

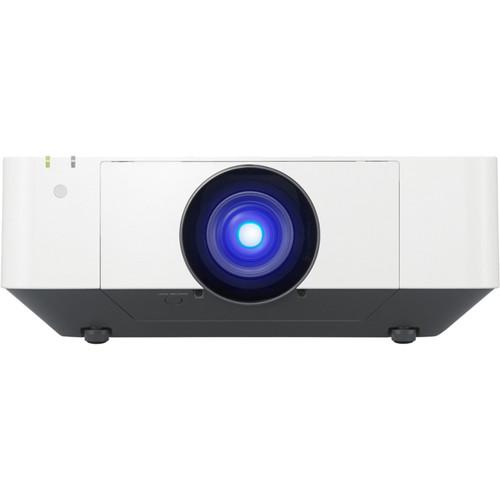

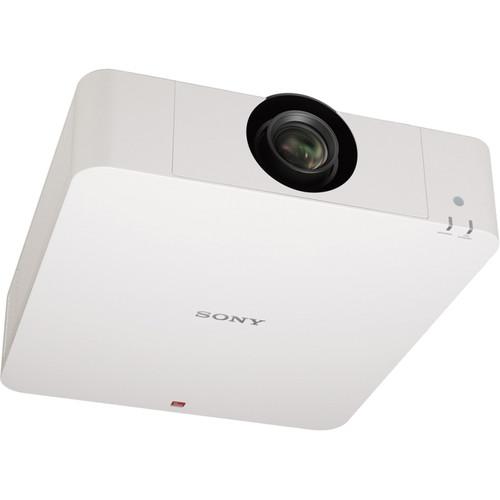

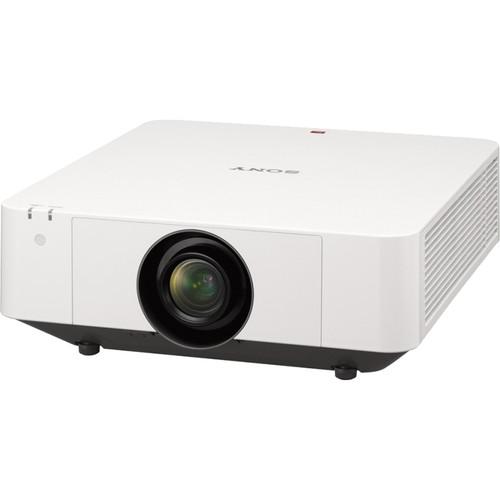

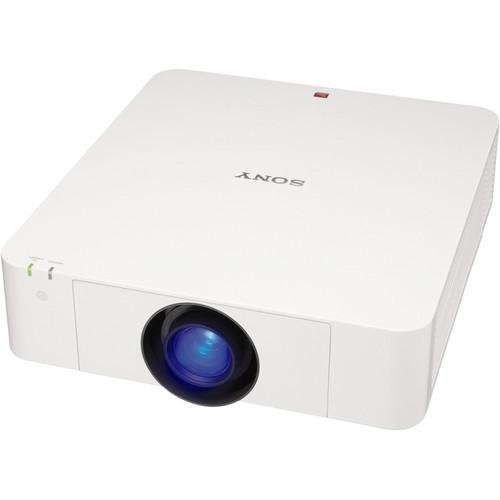

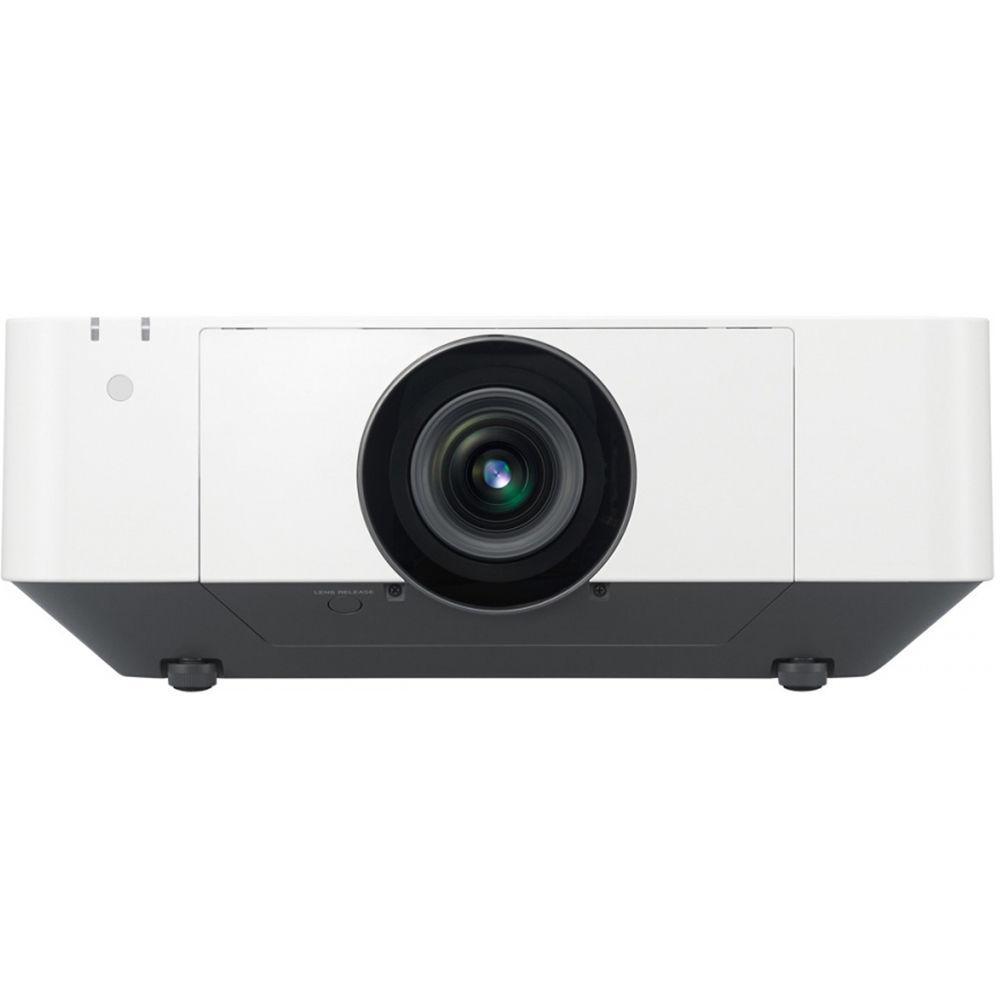

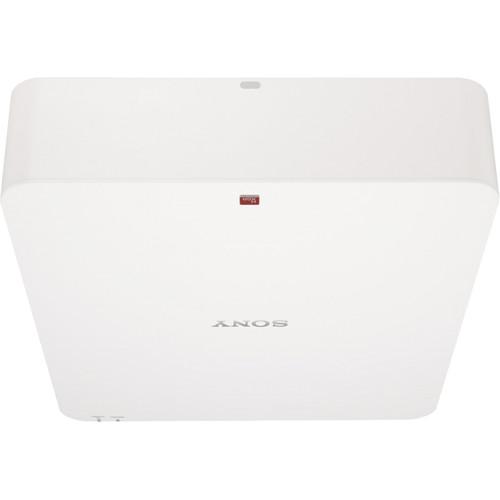

User Manual for Sony VPL-FWZ60 5000-Lumen WXGA 3LCD Laser Light Source Projector Click to enlarge the picture
Contents of the user manual for the Sony VPL-FWZ60 5000-Lumen WXGA 3LCD Laser
- Product category: Multimedia Projectors Sony
- Brand: Sony
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Sony Multimedia Projectors
 |
User manual for the Sony VPL-FWZ60 5000-Lumen WXGA 3LCD Laser contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Sony product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Sony user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Sony product will considerably shorten its lifespan!
|
Product description The VPL-FWZ60 3LCD Laser Light Source Projector from Sony provides 5000-lumen output and 10,000:1 contrast ratio. It features a throw ratio of 1.39 to 2.23:1 and 1.6x powered zoom. The projector supports multiple modes such as Reality Creation and Contrast Enhancer to enhance the projected picture. VPL-FWZ60 comes equipped with an HDMI port and is HDBaseT compatible. -
- Native WXGA resolution
- Laser light source Z-phosphor and 3LCD projection system
- Bright Era optics
- 20,000 hours of virtually zero maintenance operation
- Hassle-free automatic filter cleaning
- Tilt-angle free
- Supports edge blending
- Quiet operation
- Professional calibration
- Instant ON/OFF
- Constant brightness mode
UPC: 027242886360 In the Box Sony VPL-FWZ60 5000-Lumen WXGA 3LCD Laser Light Source Projector Limited 3-Year Warranty on Projector Limited 90-Day Warranty on Lamp Brochure PDF 472.9kbytvxvbxyasavaedu Table of Contents
|
Upload User Manual
Have you got an user manual for the Sony VPL-FWZ60 5000-Lumen WXGA 3LCD Laser Light Source Projector in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSony VPL-FWZ60 Specs | | | Display System | 3-Chip 0.76" LCD | | Native Chip Resolution | 1280 x 800 (WXGA) | | Supported Resolutions | Maximum: 1920 x 1200 | | Max Brightness | 5000 Lumens
3500 Lumens | | Aspect Ratio | Native: 16:10 | | Contrast Ratio | 10000:1 | | Scan | Horizontal: 15 to 92 kHz
Vertical: 48 to 92 Hz | | | | Focus | Manual Powered | | Lens Shift | Vertical: -5 to 60%
Horizontal: ± 32% | | Optical Zoom | Powered: 1.6x | | Throw Ratio | 1.39 - 2.23:1 | | | | Inputs/Outputs | 1 x Mini-VGA port Video (Input)
1 x 1/8" (3.5 mm) Mini Audio (Input)
1 x DVI-D Audio/Video (Input)
1 x HDMI Audio/Video (Input)
1 x HDBaseT (RJ45) Audio/Video, Control/Service, LAN, Power (Input)
1 x Composite (BNC) Video (Input)
1 x Mini-VGA port Video (Output)
1 x DVI-D Video (Output)
1 x RS-232C (Unspecified Connector) Control
1 x Ethernet (RJ45) LAN | | Wireless LAN / Wi-Fi | None | | | | Light Source | Laser Phosphor | | Expected Lamp Life | Medium Brightness: 20,000 Hours | | Fan Noise | Full Brightness: 34 dB
Medium Brightness: 28 dB | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz at 2.3 to 5.5 A | | Power Consumption | Full Brightness: 383 W
Standby Mode (Lamp Off): 15 W | | Dimensions (W x H x D) | 18.1 x 6.7 x 20.3" / 46.0 x 16.9 x 51.5 cm | | Weight | 16.00 lb / 7.26 kg | | | | Package Weight | 43.0 lb | | Box Dimensions (LxWxH) | 25.0 x 23.0 x 13.0" |
