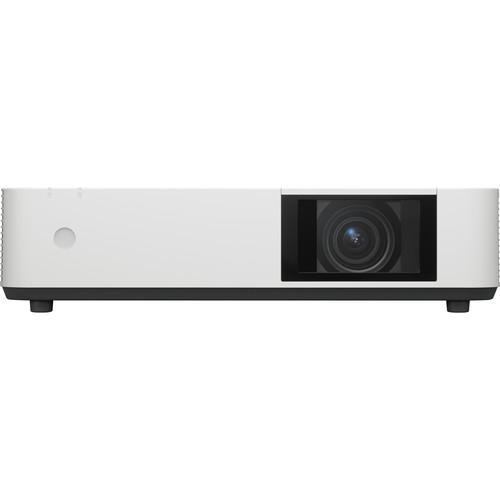

User Manual for Sony VPL-PHZ10 5000-Lumen WUXGA Laser Projector Click to enlarge the picture
Contents of the user manual for the Sony VPL-PHZ10 5000-Lumen WUXGA Laser Projector
- Product category: Multimedia Projectors Sony
- Brand: Sony
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Sony Multimedia Projectors
|
User manual for the Sony VPL-PHZ10 5000-Lumen WUXGA Laser Projector contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Sony product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Sony user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Sony product will considerably shorten its lifespan!
|
Product description Enjoy bright images in many everyday settings with the Sony VPL-PHZ10 5000-Lumen WUXGA Laser Projector. Its 5000 lumens of brightness and 500,000:1 dynamic contrast ratio will work together to overcome light in relatively bright rooms and provide detail in dark areas of the image. It sports a 1920 x 1200 WUXGA native resolution for viewing HD video and detailed pictures or data. The projector's 1.27 to 1.89:1 throw ratio and 1.45x manual zoom provide a range of throw distances for focused images.
The VPL-PHZ10 features HDBaseT, VGA, and two HDMI inputs for connecting to nearly any source, while its analog audio input and output will allow you to pass sound through the projector to your sound system of choice. The projector is controllable via the included remote control, Ethernet, or RS-232. - BrightEra 3LCD Projection Engine and Z-Phosphor Laser Light Source
- The Z-Phosphor laser light source is coupled with Sony's BrightEra 3LCD projection engine to provide a 5000-lumen image with natural color reproduction.
- Constant Brightness
- The Constant Brightness feature is designed to maintain the same brightness throughout the 20,000 hours recommended life span in light output mode "Middle."
- Reality Creation with Contrast Enhancer
- Reality Creation uses a pattern-matching database designed to optimize every pixel, while Contrast Enhancer is designed to actively analyze and refine dark and light image areas for augmented highlights and blacks.
- WUXGA High-Resolution Images
- See detail in presentations, videos, or multimedia signage with WUXGA (1920 x 1200) 16:10 native resolution.
- Up to 20,000 Hours of Operation
- The laser light source offers up to 20,000 hours of operation without lamp replacement.
- Automatic Filter Cleaning
- The built-in automated filter cleaning system removes dust every 100 hours.
- Energy Saving Features
- Reduce running costs with the integrated energy-saving features: Picture Mute and Auto Dimming.
- Save Time
- Quick Power On/Off cuts warm-up time after powering the projector on before you can start presenting at full brightness.
- 360° Installation Capability
- Position the projector at nearly any angle–even on its side or upside down.
- Supports HDBaseT
- A single-cable installation and connection solution with digital transmission of HD video, audio, and networking/control over Ethernet.
- Designed to Blend In
- The case features a flat top surface designed to blend in when the projector is ceiling-mounted.
- Picture Mode
- Picture Mode is designed to help ensure high picture quality in nearly any presentation condition. Select Standard, Dynamic, or Brightness Priority mode for optimized image quality.
- Installation Menu Helps Simplify Setup
- Adjust projector settings conveniently with remote commander.
UPC: 027242903104 In the Box Sony VPL-PHZ10 5000-Lumen WUXGA Laser Projector Remote Control CR2025 Lithium Battery for Remote Control AC Power Cord Limited 5-Year or 12,000-Hour Warranty, Whichever Comes First Table of Contents
|
Upload User Manual
Have you got an user manual for the Sony VPL-PHZ10 5000-Lumen WUXGA Laser Projector in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSony VPL-PHZ10 Specs | | | Display System | 3-Chip 0.76" LCD | | Native Chip Resolution | 1920 x 1200 (WUXGA) | | Supported Resolutions | Maximum: WUXGA - 1920 x 1200 | | Max Brightness | 5000 Lumens
4000 Lumens | | Aspect Ratio | Native: 16:10 | | Dynamic Contrast Ratio | 500,000:1 | | Scan | Horizontal: 15 to 92 kHz
Vertical: 48 to 92 Hz | | | | Focus | Manual | | Lens Shift | Vertical: 20 to 55%
Horizontal: ± 10% | | Optical Zoom | Manual: 1.45x | | Throw Ratio | 1.27 - 1.88:1 | | Projection Size | 40 - 600" / 101.60 - 1524.00 cm | | | | Ceiling Mountable | Yes | | Built-In Speaker | Yes (Mono) | | Speaker Power | 16W | | | | Inputs/Outputs | 2 x HDMI Audio/Video (Input)
1 x HDBaseT (RJ45) Audio/Video (Input)
1 x VGA (DE-15) Video (Input)
1 x 1/8" (3.5 mm) Mini Audio (Input)
1 x 1/8" (3.5 mm) Mini Audio (Output)
1 x USB Type-A Female
1 x USB Type-B Female
1 x RS-232C (Unspecified Connector) Control (Input)
1 x Ethernet (RJ45) LAN (Input) | | | | Light Source | Laser Phosphor | | Expected Lamp Life | Medium Brightness: 20,000 Hours | | AC Input Power | 120 VAC, 60 Hz | | Heat Dissipation | 1446 BTU per hour | | Power Consumption | Full Brightness: 424 W
Medium Brightness: 287 W
Low Brightness: 217 W
Standby Mode (Lamp Off): 0.5 W | | Dimensions (W x H x D) | 20.0 x 4.4 x 13.9" / 50.8 x 11.2 x 35.3 cm | | Weight | 19.2 lb / 8.71 kg | | | | Package Weight | 26.0 lb | | Box Dimensions (LxWxH) | 25.0 x 19.0 x 10.0" |
