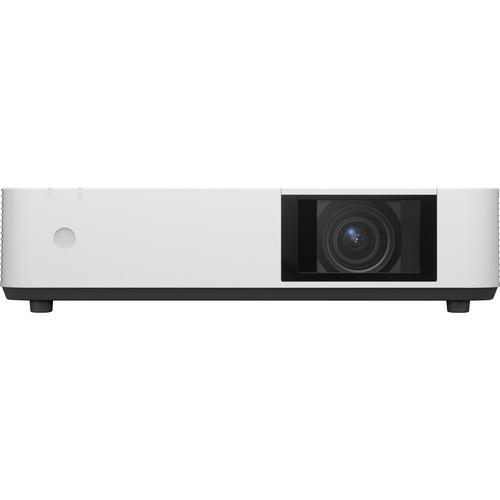

User Manual for Sony VPL-PWZ10 5000-Lumen WXGA Laser 3LCD Projector Click to enlarge the picture
Contents of the user manual for the Sony VPL-PWZ10 5000-Lumen WXGA Laser 3LCD
- Product category: Multimedia Projectors Sony
- Brand: Sony
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Sony Multimedia Projectors
|
User manual for the Sony VPL-PWZ10 5000-Lumen WXGA Laser 3LCD contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Sony product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Sony user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Sony product will considerably shorten its lifespan!
|
Product description Enjoy bright images in many everyday settings with the Sony VPL-PWZ10 5000-Lumen WXGA Laser 3LCD Projector. Its 5000 lumens of brightness and 500,000:1 dynamic contrast ratio work together to overcome light in relatively bright rooms and provide detail in dark areas of the image. It sports a 1280 x 800 WXGA native resolution for viewing HD video and detailed pictures or data. The projector's 1.28 to 1.88:1 throw ratio and 1.45x manual zoom provide a range of throw distances for focused images.
The VPL-PWZ10 features HDBaseT, VGA, and two HDMI inputs for connecting to nearly any source, while its analog audio input and output allow you to pass sound through the projector and use your sound system of choice. The projector is controllable via the included remote control, HDBaseT, USB, or RS-232. - BrightEra 3LCD Projection Engine and Z-Phosphor Laser Light Source
- The Z-Phosphor laser light source is coupled with Sony's BrightEra 3LCD projection engine to provide a 5000-lumen image with natural color reproduction.
- Constant Brightness
- The Constant Brightness feature is designed to maintain the same brightness throughout the 20,000 hours recommended life span in light output mode Middle.
- Reality Creation with Contrast Enhancer
- Reality Creation uses a pattern-matching database designed to optimize every pixel, while Contrast Enhancer is designed to actively analyze and refine dark and light image areas for augmented highlights and blacks.
- WUXGA High-Resolution Images
- See detail in presentations, videos, or multimedia signage with WUXGA (1920 x 1200) 16:10 native resolution.
- Up to 20,000 Hours of Operation
- The laser light source offers up to 20,000 hours of operation without lamp replacement.
- Automatic Filter Cleaning
- The built-in automated filter cleaning system removes dust every 100 hours.
- Energy Saving Features
- Reduce running costs with the integrated energy-saving features: Picture Mute and Auto Dimming.
- Save Time
- Quick Power On/Off cuts warm-up time after powering the projector on, before you can start presenting at full brightness.
- 360° Installation Capability
- Position the projector at nearly any angle–even on its side or upside down.
- Geometric Correction
- Each corner and side can be fit squarely into the desired position, making it easier to install the projector in an offset position.
- Enhanced Calibration
- The projector offers a professional calibration function to adjust the hue, saturation, and brightness of each target color so you can get the picture you want. The projector can also adjust the color space for red, green, and blue, tweaking the images according to the installation condition.
- Supports HDBaseT
- A single-cable installation and connection solution with digital transmission of HD video, audio, and networking/control over Ethernet.
- Designed to Blend In
- The case features a flat top surface designed to blend in when the projector is ceiling-mounted.
- Picture Mode
- Picture Mode is designed to help ensure high picture quality in nearly any presentation condition. Select Standard, Dynamic, or Brightness Priority mode for optimized image quality.
- Installation Menu Helps Simplify Setup
- Adjust projector settings conveniently with remote commander.
- Designed for Quiet Operation
- The VPL-PWZ10 emits just 36 dB at full brightness, and as low as 25 dB at the lowest brightness setting.
UPC: 027242903111 In the Box Sony VPL-PWZ10 5000-Lumen WXGA Laser 3LCD Projector Remote Control CR2025 Lithium Battery AC Power Cord Limited 5-Year or 12,000-Hour Warranty, Whichever Comes First Table of Contents
|
Upload User Manual
Have you got an user manual for the Sony VPL-PWZ10 5000-Lumen WXGA Laser 3LCD Projector in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSony VPL-PWZ10 Specs | | | Display System | 3-Chip LCD | | Native Chip Resolution | 1280 x 800 (WXGA) | | Supported Resolutions | Maximum: WUXGA - 1920 x 1200 | | Max Brightness | White: 5000 Lumens
Color: 5000 Lumens | | Aspect Ratio | Native: 16:10 | | Dynamic Contrast Ratio | 500,000:1 | | Scan | Horizontal: 15 to 92 kHz
Vertical: 48 to 92 Hz | | | | Focus | Manual | | Lens Shift | Vertical: 20 to 55%
Horizontal: ± 10% | | Optical Zoom | Manual: 1.45x | | Throw Ratio | 1.28 - 1.88:1 | | Projection Size | 40 - 300" / 101.60 - 762.00 cm | | | | Keystone Correction | Horizontal: ± 30°
Vertical: ± 20° | | Ceiling Mountable | Yes | | Built-In Speaker | Yes (Mono) | | Speaker Power | 16W | | | | Inputs/Outputs | 1 x HDBaseT (RJ45) Audio, Control, Data, Video Input/Output
2 x HDMI (HDMI Type-A) Audio, Video Input
1 x VGA (DE-15) Video Input
1 x BNC Video Input
1 x 1/8" (3.5 mm) Mini Audio Input
1 x 1/8" (3.5 mm) Mini Audio Output
1 x RS-232 (DE-9) Control Input
1 x USB 2.0 (USB Type-A) LAN Input
1 x USB 2.0 (USB Type-B) Audio, Video Input | | Memory Card Slot | None | | Wireless LAN / Wi-Fi | No, Optional Adapter Available | | | | Light Source | Laser Phosphor | | Expected Lamp Life | Medium Brightness: 20,000 Hours | | Fan Noise | Full Brightness: 36 dB
Medium Brightness: 28 dB
Low Brightness: 25 dB | | Security | Cable Lock Slot
Password Protection
Security Bar | | Supported Languages | Arabic
Czech
Dutch
English
Farsi
Finnish
French
German
Greek
Hungarian
Indonesian
Italian
Japanese
Korean
Norwegian
Polish
Portuguese
Romanian
Russian
Simplified Chinese
Slovak
Spanish
Swedish
Thai
Turkish
Vietnamese | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz at 1.6 to 4 A | | Heat Dissipation | 1361 BTU (AC 100 to 120V)
1286 BTU (AC 220 to 240V) | | Power Consumption | Full Brightness: 399 W
Standby Mode (Lamp Off): 0.5 W | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Storage Temperature | 14 to 140°F / -10 to 60°C | | Operating Humidity | 20 - 80% | | Storage Humidity | 20 - 80% | | Dimensions (W x H x D) | 20.1 x 4.4 x 14.0" / 510.0 x 113.0 x 354.6 mm Without protrusions | | Weight | 19.2 lb / 8.7 kg Approximately | | | | Package Weight | 26.0 lb | | Box Dimensions (LxWxH) | 25.5 x 19.0 x 10.0" |
