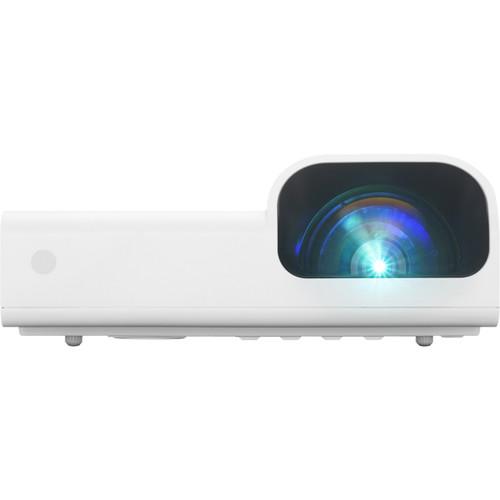

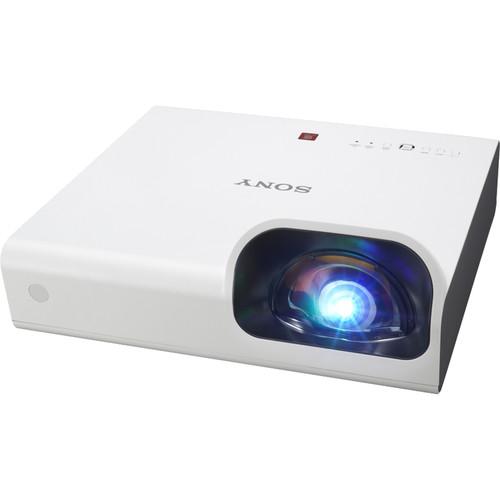

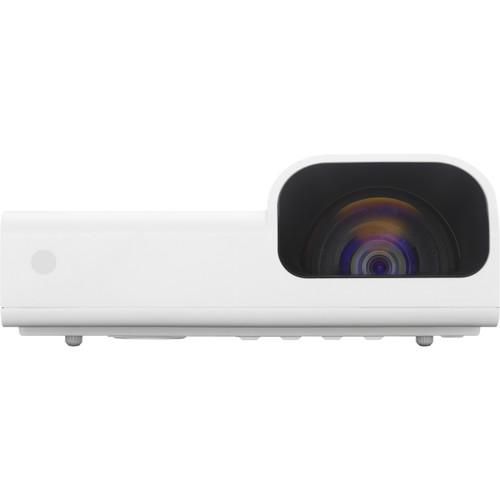

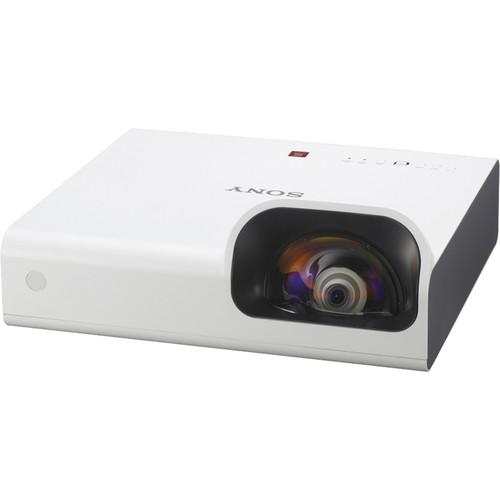

Product description The wall-mountable VPL-SX236 3300-Lumen XGA Short Throw Data Projector from Sony is a colorful and bright projector. It features 3LCD Sony "BrightEra" panels to help enhance the vivid 3300 lumens of brightness. For energy saving, the lamp dimming function reduces the lamp power usage and lamp power consumption. Its low TCO and usability allow you to enjoy bright images for a longer time. Smart Connection with PC, tablet and smartphone is also supported. The wireless presentation capability makes it simple to present files from your PC or smartphone/tablet.
The VPL-SX236 is suitable for use with a whiteboard. The short throw distance of 29.5" for an 80" screen makes it useful in classrooms with limited space. - Short Throw Distance
- The projector's short focal length lens allows an 80" (diagonal screen size) image to be projected from a distance of only 29.5" from the screen. The presenter is not distracted by the projected image, and it's easier for the audience to see the projected image as on screen shadows from the presenter are minimized.
- Energy Efficient with up to 10,000-Hour Lamp Life
- High performance lamp technology offers reduced ownership costs plus reduced maintenance, with a lamp replacement time of approximately 10,000 hours (with brightness in low mode).
- Advanced Energy-Saving Features
- Advanced lamp technology enables a range of energy-saving features. Auto Light Dimming mode saves energy when the projector is left on without being used.
Auto Picture Mode automatically adjusts light output to suit the projected scene. Touching a button on the remote mutes the picture temporarily, dramatically reducing power consumption. - Low TCO
- The lamp dimming function reduces lamp power usage and lamp power consumption. Its low total cost of ownership (TCO) and usability lets you enjoy bright images for a much longer time.
- ECO Mode Key

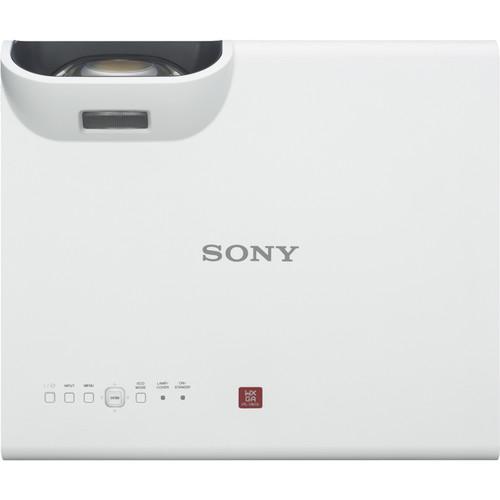

- Just touch the ECO MODE key on the projector or supplied Remote Commander to instantly access energy-saving settings.
- 3LCD BrightEra Technology
- The 3LCD panel system is enhanced by BrightEra technology. You'll see the difference with bright, consistent, high resolution images with impressive color accuracy and reliability.
- Bright, Clear Images with Up To 3300 Lumens Color Light Output
- With a 3300 lumen maximum light output (in high mode), the VPL-SX236 delivers crisp, bright presentations that can be seen clearly in classrooms or meeting rooms. There's a choice of three brightness modes to suit various environments, from bright daylight to darkened rooms.
- Choice of Picture Modes
- Available picture modes include Dynamic, Standard, Presentation, and Blackboard. Combined with a choice of three brightness modes, you can select the most suitable setting to suit various picture sources and presentation environments.
- Networked Presentations
- Project presentations from a networked Windows or Mac computer. Present JPEG, PDF and other files wirelessly from a tablet or smartphone. Up to four users can project computer images simultaneously, while up to eight users can connect to one projector. The Projector Station for Network Presentation application for Windows/Mac is included. For tablet/smartphone use, an application is provided by Pixelworks, downloaded from the web.
- Control and Management from Any Networked PC
- Projector functions and status can be managed and monitored remotely from any networked PC, using the included Projector Station for Network Control application.
- Present Wirelessly
- Make presentations wirelessly from a portable or handheld device. Windows/Macintosh OS requires Projector Station for Network Presentation application. iOS/Android requires VueMagic application.
- Remote Control for iPhone/iPad/Android Phone
- Download the free Projector Remote app and control the projector from anywhere in the room with your handheld device, with simple easy-to-read buttons on your phone or tablet.
- USB Media Viewer
- Slip in a USB drive and display photos, images and graphics with no PC needed.
- USB Display for Easy One-Cable PC Connection
- Present pictures and audio from a connected computer with just one USB cable. You don't even need to install a software driver. 1
Please Note: There may be a time lag between video and audio. For low-latency applications it is recommended to use projector's line-in or HDMI-in connection. close - Customized Input Labels
- Define your own input labels like 'BD Player', 'PC' and 'Document Camera', making it easier to see on screen what devices are connected and being used.
- Stylish Blend-In Design
- The projector's smart, contemporary looks fit discreetly into any classroom, training suite or meeting room.
UPC: 027242886483 In the Box Sony VPL-SX236 3300-Lumen XGA Short Throw Data Projector RM-PJ8 Remote Commander Table of Contents
|
Upload User Manual
Have you got an user manual for the Sony VPL-SX236 3300-Lumen XGA Short Throw Data Projector in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSony VPL-SX236 Specs | | | Display System | 3-Chip 0.63" LCD | | Native Chip Resolution | 1024 x 768 (XGA) | | Supported Resolutions | UXGA - 1600 x 1200 | | Max Brightness | 3300 Lumens | | Aspect Ratio | Native: 4:3 | | Contrast Ratio | 3000:1 | | Scan | Horizontal: 15 to 92 kHz

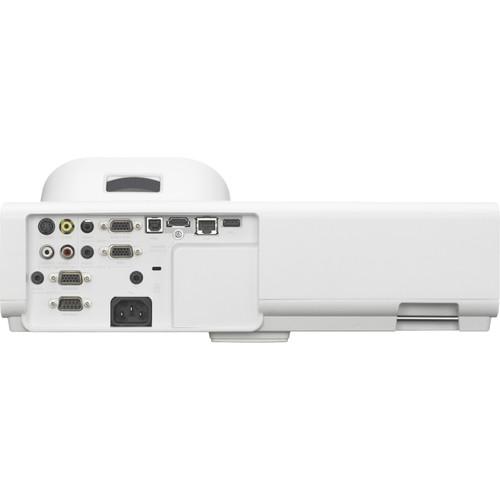

Vertical: 48 to 92 Hz | | | | Focus | Manual | | Throw Distance | 21.654 - 40.551" / 0.55 - 1.03 m | | Throw Ratio | 0.46:1 | | Projection Size | 60 - 110" / 152.40 - 279.40 cm | | | | Built-In Speaker | Yes (Mono) | | Speaker Power | 16W | | | | Inputs/Outputs | 2 x VGA (DE-15) Video (Input)
1 x HDMI Audio/Video (Input)
1 x Composite (RCA) Video (Input)
1 x RCA Stereo (L/R) Audio (Input)
1 x S-Video (4-Pin DIN) Video (Input)
2 x 1/8" (3.5 mm) Mini Audio (Input)
1 x 1/8" (3.5 mm) Mini Microphone (Input)
1 x VGA (DE-15) Video (Output)
1 x 1/8" (3.5 mm) Mini Audio (Output)
1 x RS-232C (Unspecified Connector) Control
1 x Ethernet (RJ45) LAN
1 x USB 2.0 Type-A Female
1 x USB 2.0 Type-B Female | | Wireless LAN / Wi-Fi | No, Optional Adapter Available | | | | Light Source | Lamp | | Lamp Power | 210 W | | Expected Lamp Life | Full Brightness: 4000 Hours
Medium Brightness: 6000 Hours
Low Brightness: 10,000 Hours | | Fan Noise | Low Brightness: 30 dB | | Security | Cable Lock Slot
Security Bar | | Supported Languages | Arabic
Dutch
English
Finnish
French
German
Greek
Hungarian
Indonesian
Italian
Japanese
Korean
Norwegian
Polish
Portuguese
Russian
Simplified Chinese
Spanish
Swedish
Thai
Traditional Chinese
Turkish
Vietnamese | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz at 1.3 to 3.2 A | | Heat Dissipation | 1051 BTU (AC 100 to 120V)
1014 BTU (AC 220 to 240V) | | Power Consumption | Medium Brightness: 308 W
Standby Mode (Lamp Off): 0.5 W | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Storage Temperature | 14 to 140°F / -10 to 60°C | | Operating Humidity | 20 - 80% | | Storage Humidity | 20 - 80% | | Dimensions (W x H x D) | 14.4 x 5.5 x 12.2" / 365.0 x 138.7 x 310.0 mm | | Weight | 9.7 lb / 4.4 kg approx. | | | | Package Weight | 13.55 lb | | Box Dimensions (LxWxH) | 17.165 x 15.433 x 9.449" |
